Traditional Plan 036-00019

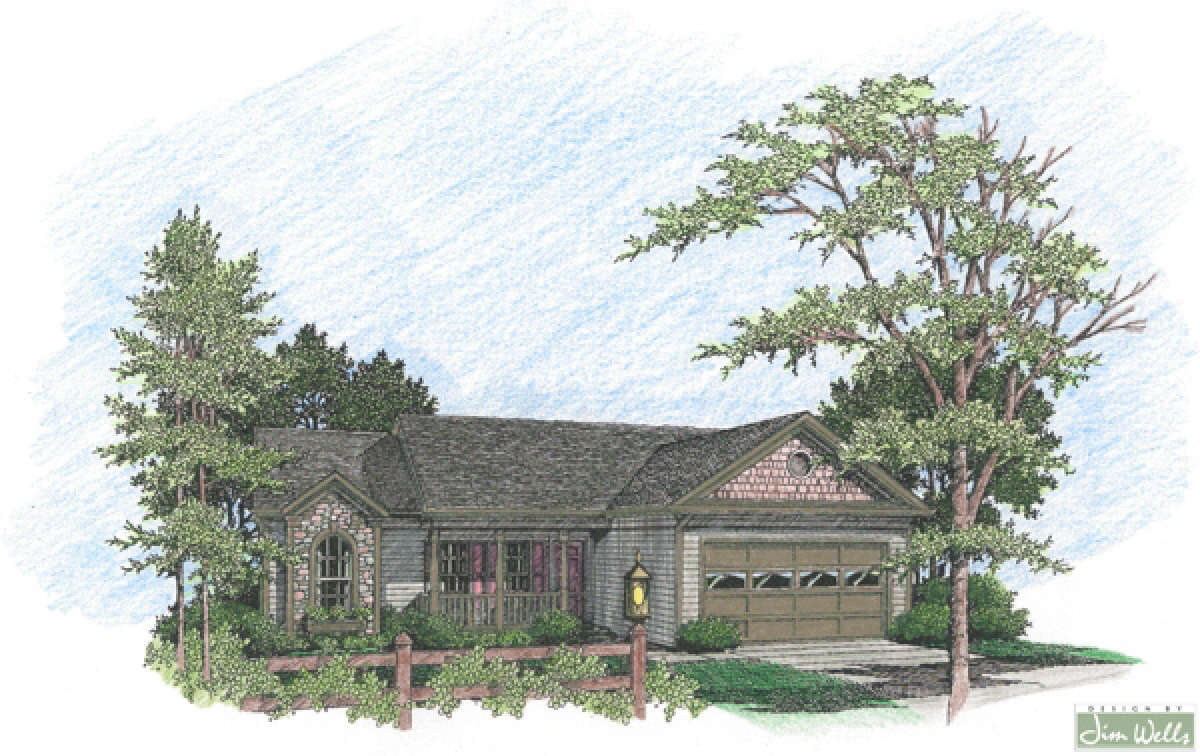

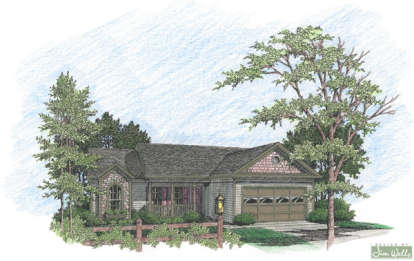

Traditional House Plan #036-00019 Elevation Photo

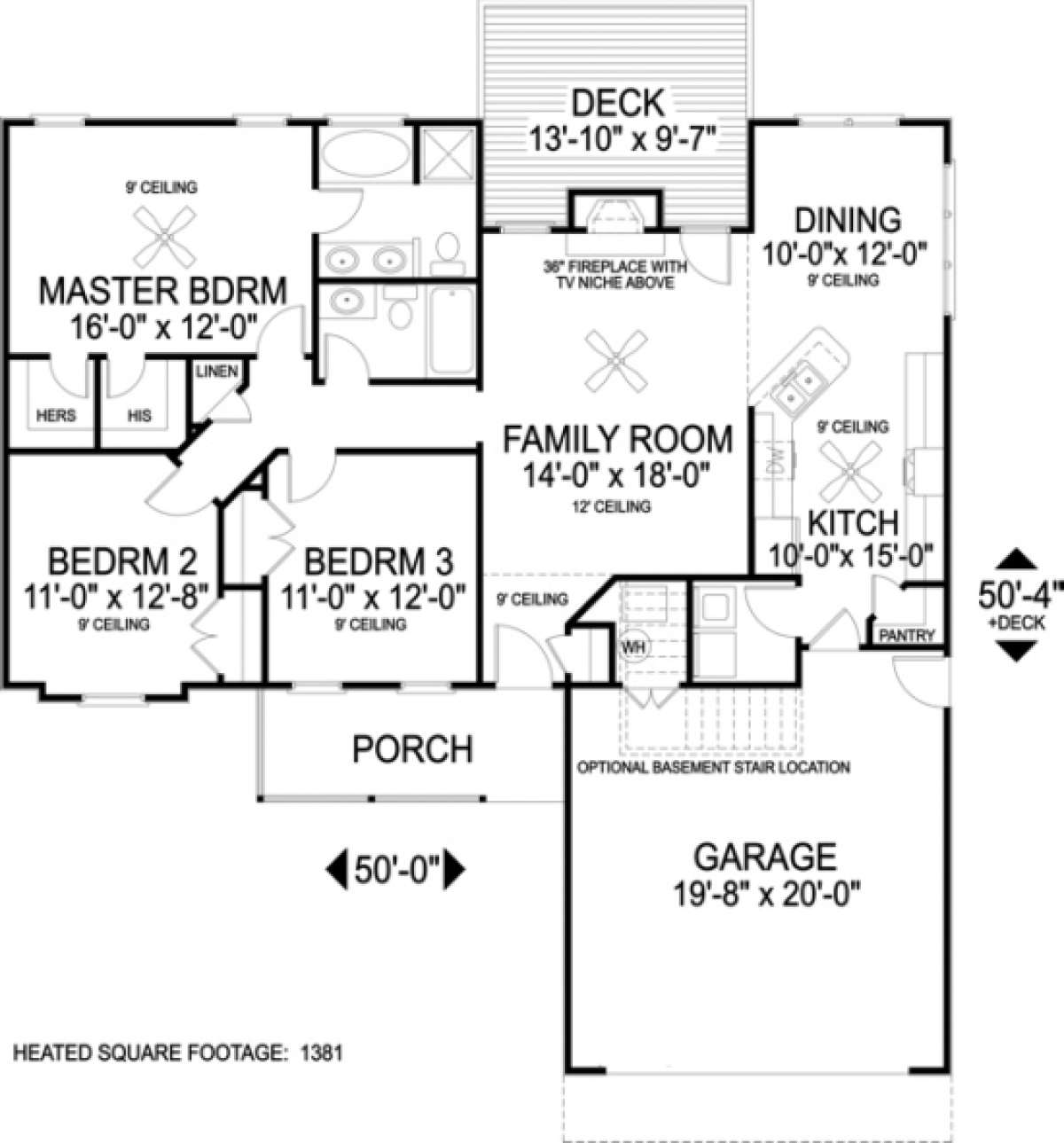

Floorplan for House Plan #036-00019
2 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 1,381
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 2
Stories Icon Stories 1
Width Icon Width 50'
Depth Icon Depth 50' 4"

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan for House Plan #036-00019
Floorplan
Floorplan for House Plan #036-00019
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This compact ranch is warm and irresistible and offers a combination of siding, wood shingles and stone along with a charming front porch. With a truss roof system and simple design, this cost-effective plan is perfect for the budget-conscious. Though compact, this home contains generously proportioned living space including a 10'x15' kitchen, a 16'x12' master bedroom, and two spacious secondary bedrooms. The family room is large with a center fireplace, TV nice and rear deck access. The kitchen contains an angled bar area, separate walk-in pantry, plenty of cabinet and counter storage along with a dining area surrounded on two sides by windows making this a bright and airy space. There is a utility room located inside the home right off the two car garage for convenience. Two bedrooms share a hall bath while the master suite has two walk-in closets and a master bath which offers dual vanities, a separate shower and garden tub. This home is beautifully designed and offers comfort and space for your family.
