Vacation Plan 036-00012

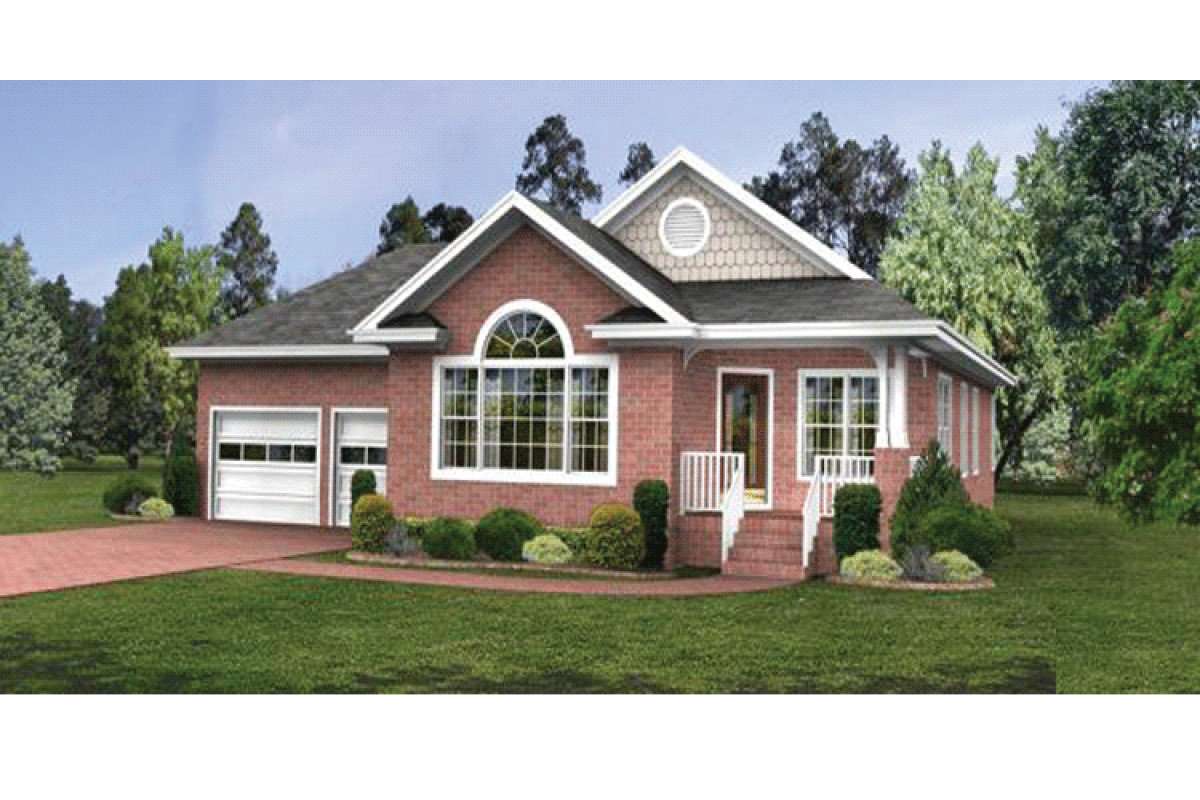

Vacation House Plan #036-00012 Elevation Photo
Floorplan for House Plan #036-00012
Vacation House Plan #036-00012 Elevation Photo
Floorplan for House Plan #036-00012

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,343
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 50'
Depth 60'

Floorplan Drawings

 PRINT  DOWNLOAD

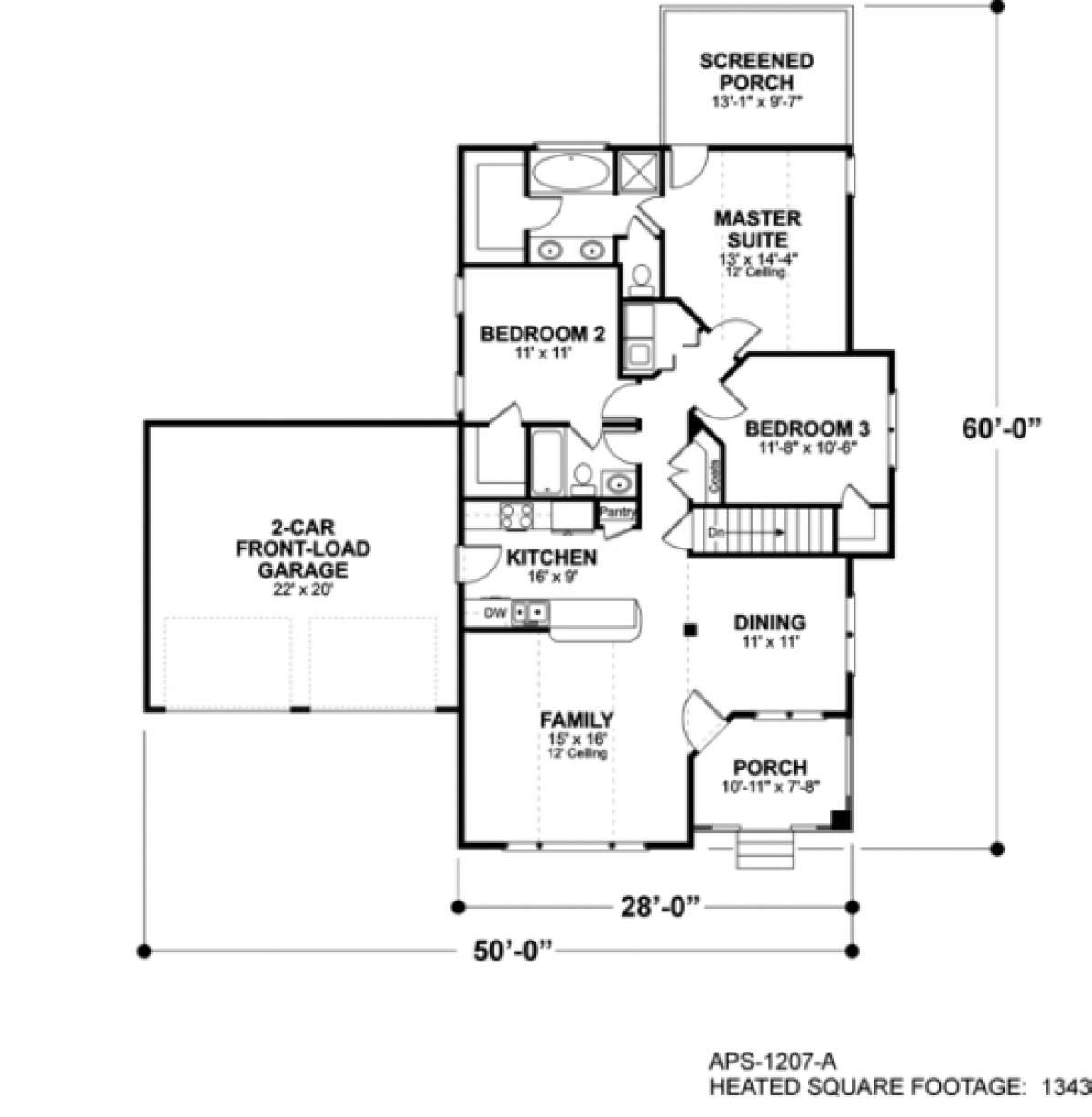

Floorplan for House Plan #036-00012
Floorplan

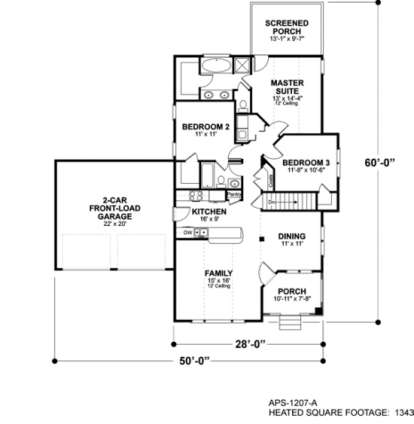

Floorplan for House Plan #036-00012
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely house plan has a dramatic Palladian window framing the family room and is open to the dining room and kitchen. The galley style kitchen has an island, pantry and garage access while the laundry room is conveniently tucked away in the hallway leading to the bedrooms. Two bedrooms, each with their own walk-in closets share a hall bath while the master suite is located at the rear of the home. The master bedroom is large, vaulted and has an oversized walk-in closet along with a private master bath which includes dual vanities, separate shower, garden tub and a compartmentalized toilet. The master bedroom also has back screened porch access. There is a two car garage making this home ideal for a small family or vacation home.
