Ranch Plan 036-00009

Ranch House Plan #036-00009 Elevation Photo

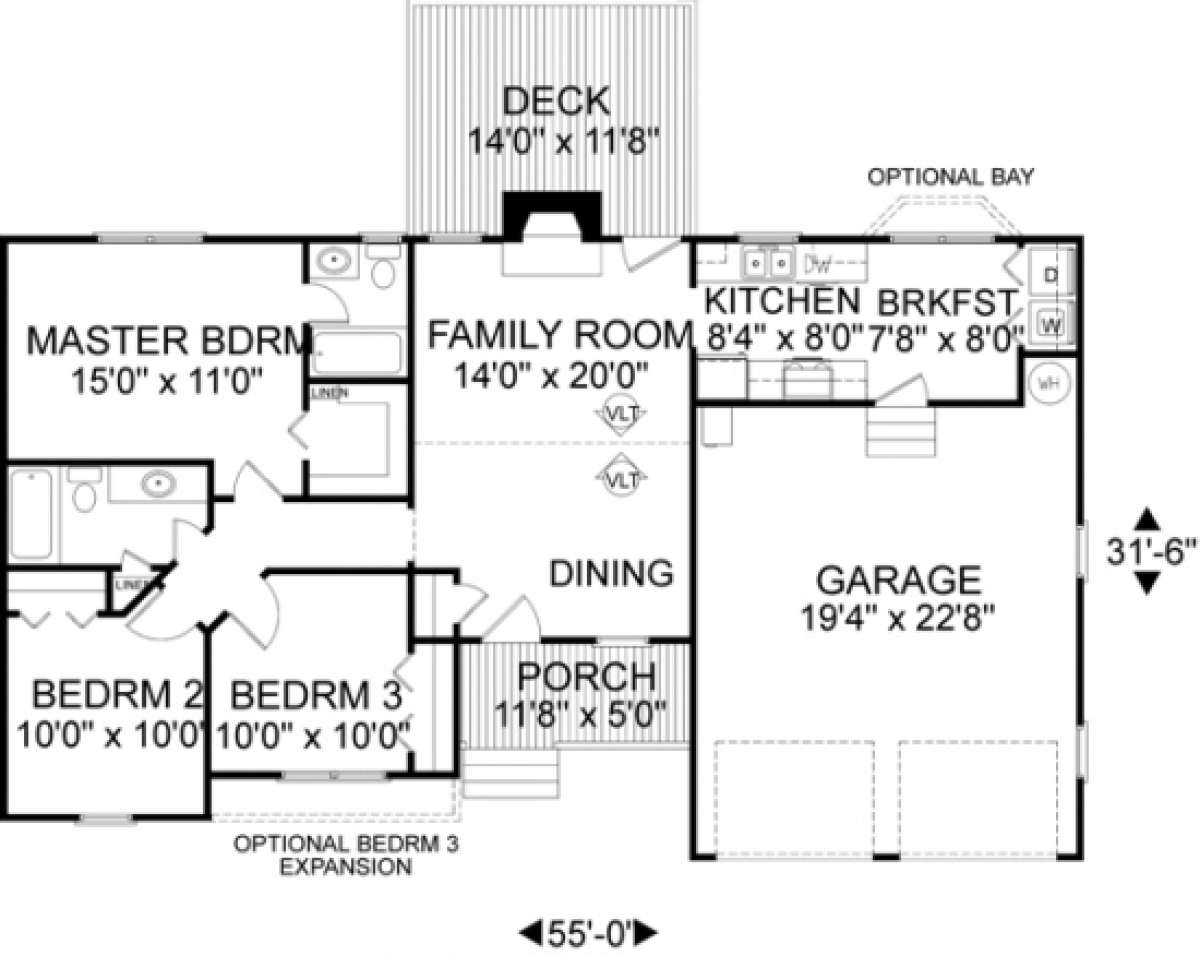

Floorplan for House Plan #036-00009
Ranch House Plan #036-00009 Elevation Photo
Floorplan for House Plan #036-00009

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,069
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 55'
Depth 31' 6"

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan for House Plan #036-00009
Floorplan
Floorplan for House Plan #036-00009
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A charming front covered porch and rear deck frame this home’s living spaces beautifully and provide additional space in which to entertain and relax. The family and dining room area is an open, large vaulted space and includes a fireplace and access to the rear deck. The kitchen and breakfast area are corridor style and include the option of a bay window and the W/D are conveniently tucked away. This is a three bedroom, two bath home with a shared hall bath for two of the bedrooms. The master bedroom is oversized and includes a private bath and walk-in closet. A two car garage completes the home and makes this home ideal for young families, empty nesters or a vacation home.
