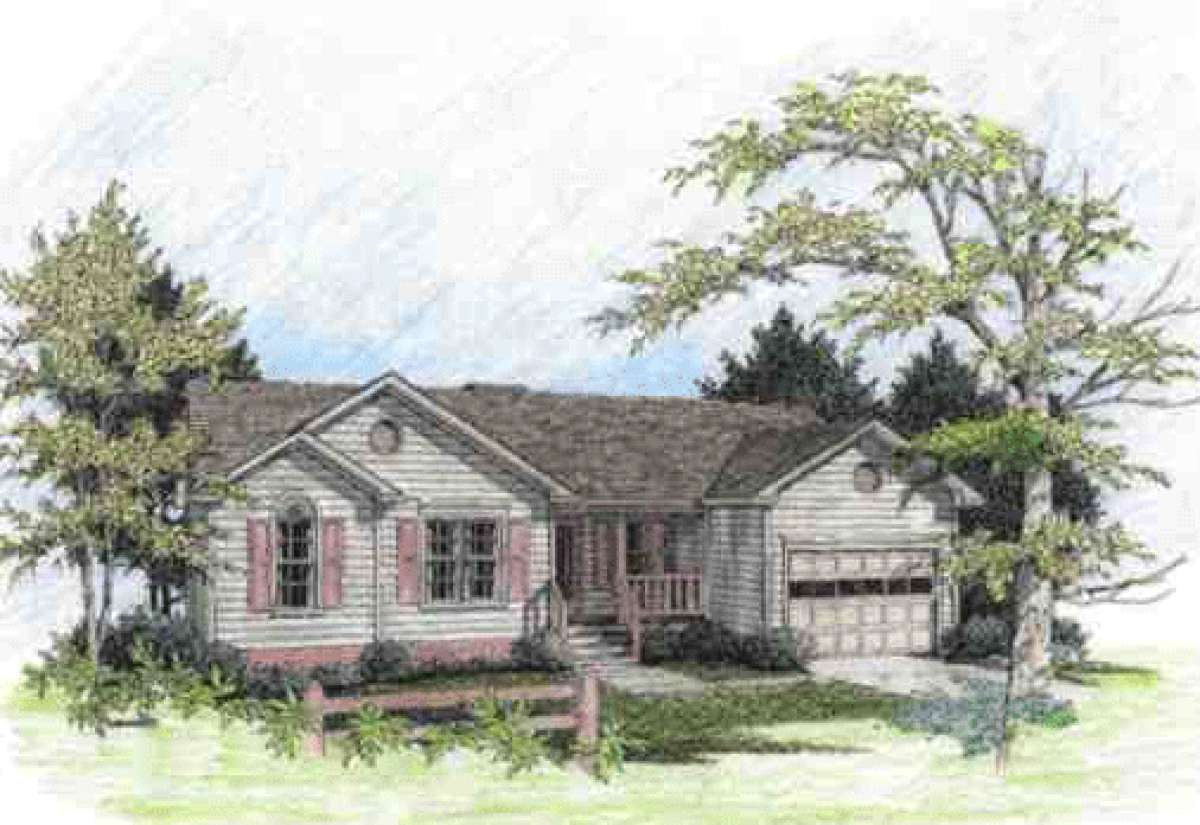

Ranch House Plan #036-00004 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 997

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 49' 6"

Depth 33' 6"

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

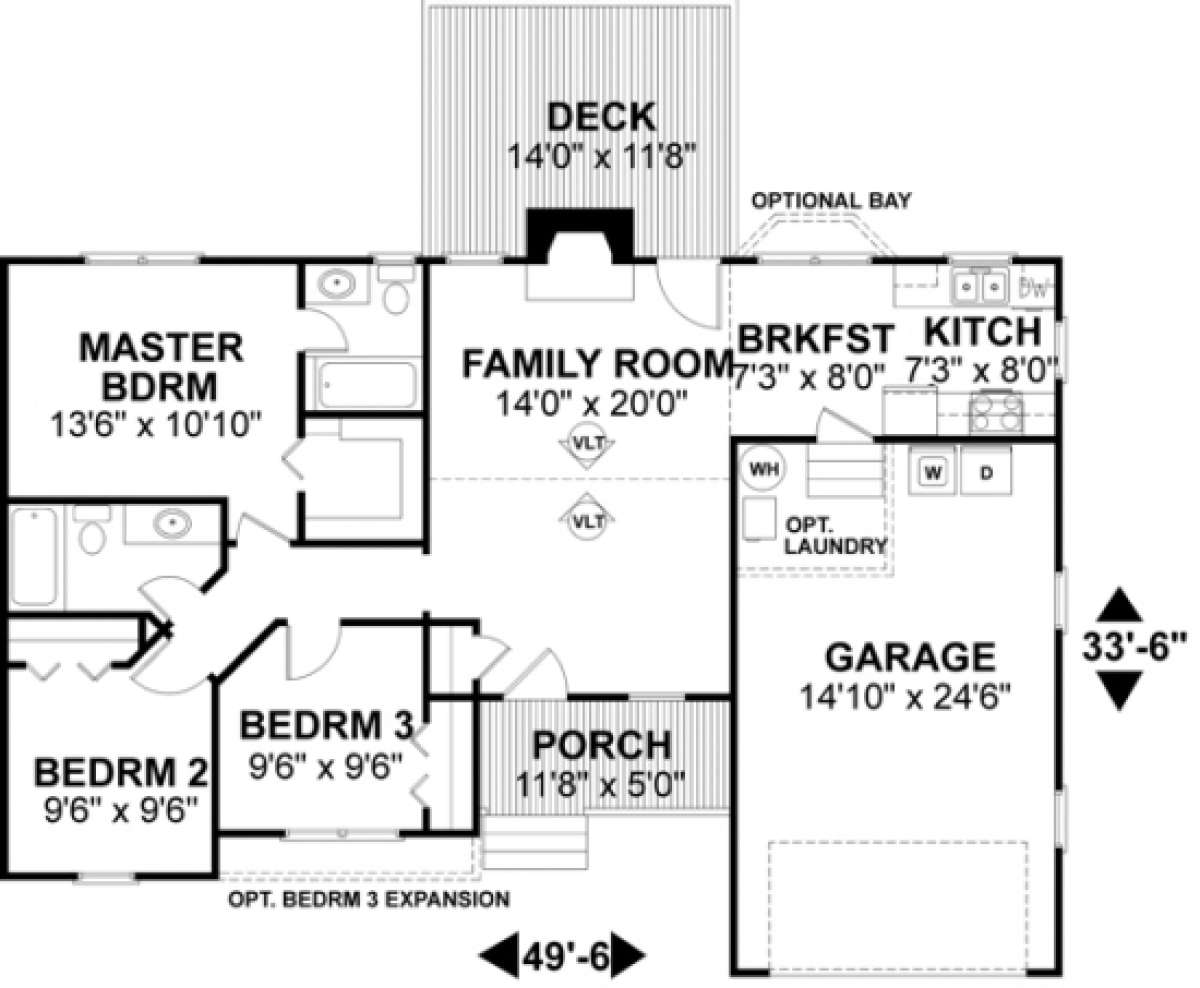

Floorplan

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This three bedroom, two bath ranch home is perfect for a small family. The covered front porch is aesthetically pleasing and provides a beautiful entry into the home. The vaulted great room is massive with a fireplace place and provides access to the rear deck. The kitchen and breakfast room are a nice size and there is an optional bay window designed for the breakfast room would allow for additional space. There are three generous bedrooms, two of which share a hall bath and the master has a private bath and large master closet. The two car garage is oversized and has the option of an enclosed laundry room making this house plan a well thought out home in terms of space and amenities.
