Save 15% off your Dream House Plan with our Fall Savings Sale!

Limited plans not eligible for discounts.

Cottage House Plan 035-00633

Sq Ft1,120
1/2 Baths0
Width34' 0"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #035-00633

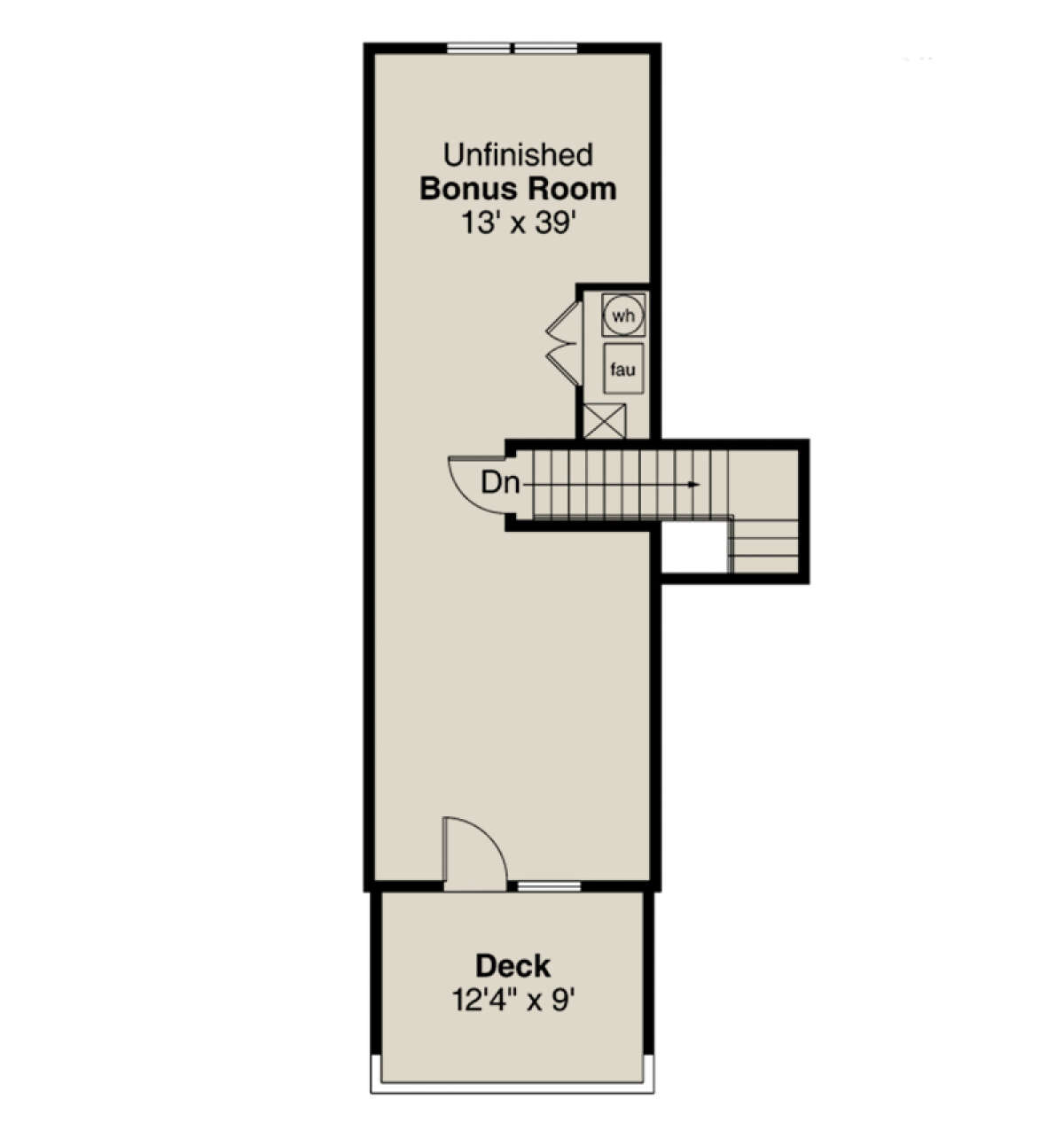

Second Floor for House Plan #035-00633

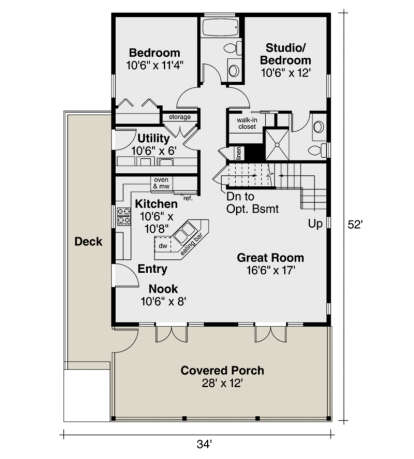

Main Floor
Main Floor for House Plan #035-00633

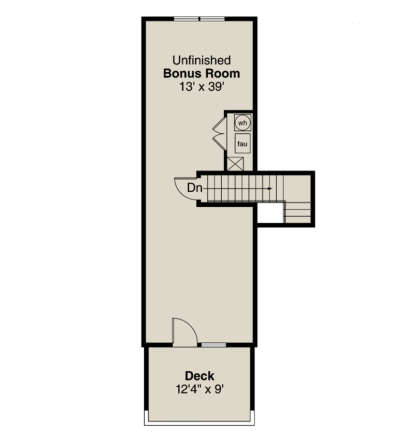

Second Floor
Second Floor for House Plan #035-00633

Frequently Asked Questions


What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

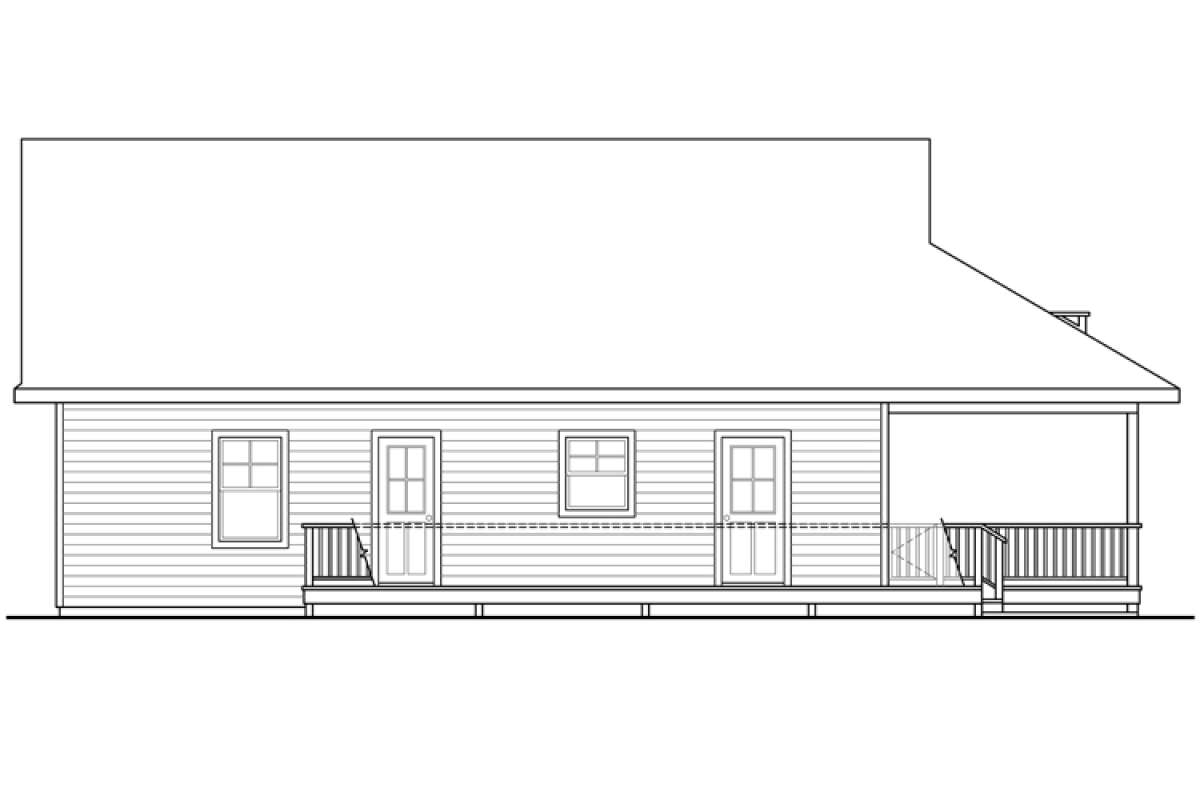

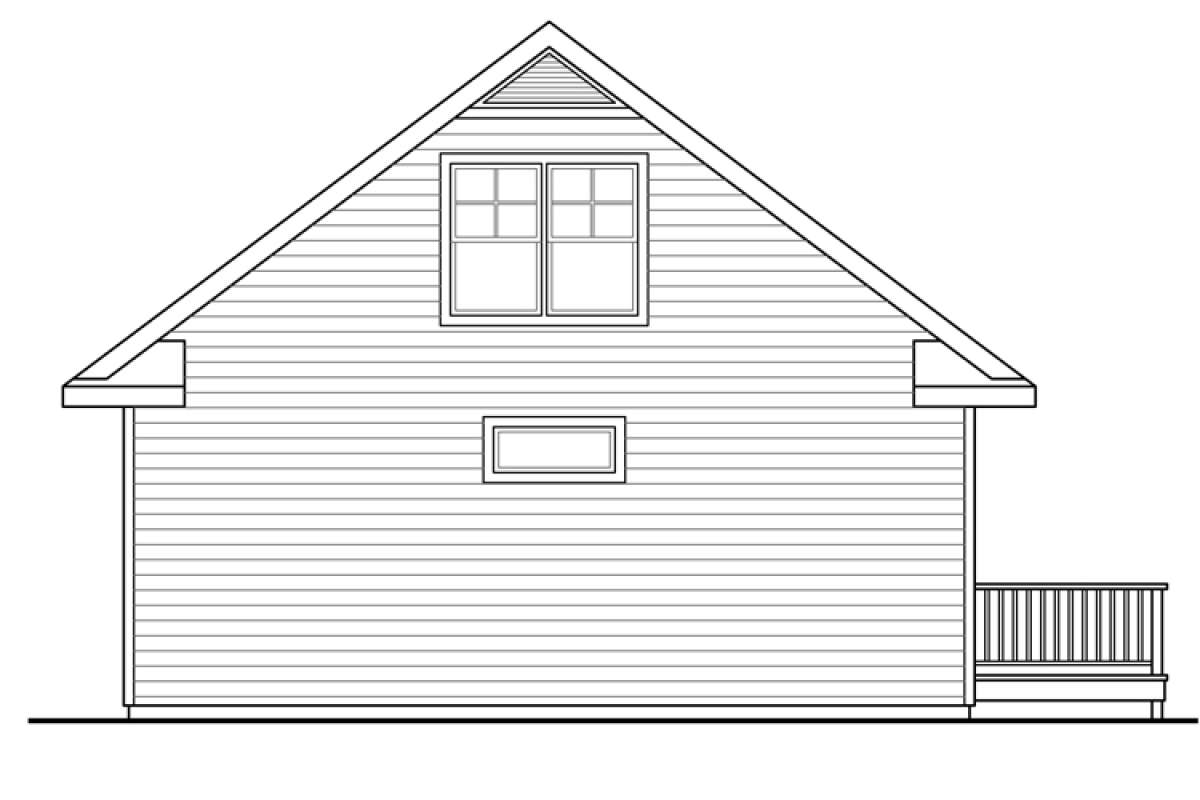

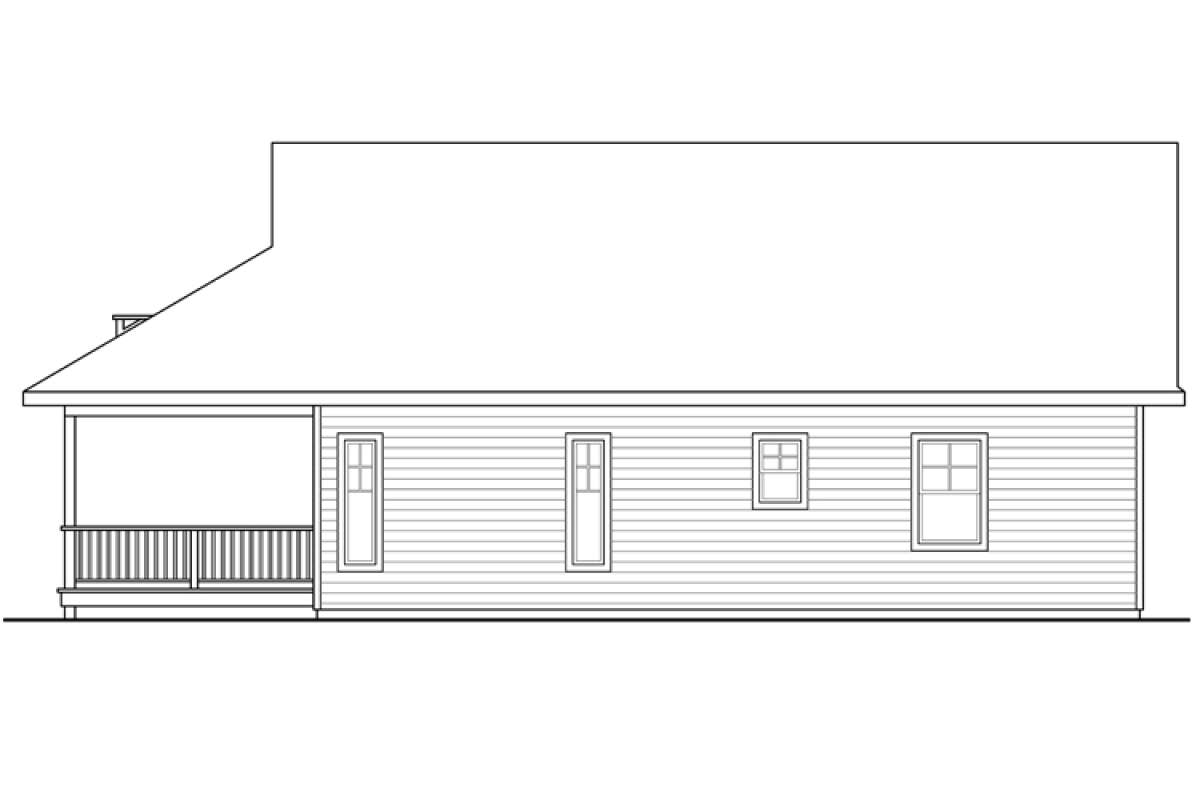

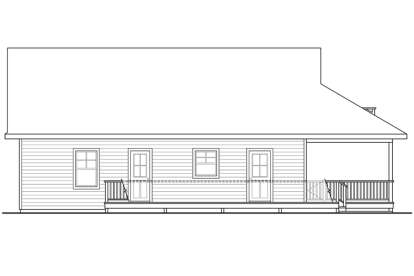

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cottage house plan is highlighted with superior outdoor space, an efficient and flexible floor plan and outstanding design value. The exterior is charming in its simplicity while offering an abundance of outdoor space and curb appeal. The front covered porch is deeply set and widely proportioned, measuring 28’ x 12’; plenty of space for entertaining and relaxing while also offering a double set of French doors accessing the home’s interior. There is a side deck, as well, which runs the length of one side of the home for bar-b-queing, sunbathing or enjoying nighttime star gazing. Overhead, there is a third outdoor space, a large private deck off the unfinished bonus room. The bonus room is quite large featuring approximately 540 additional square feet of living space to the home. This is great expansion space which could be comfortably configured to include a multi-purpose space, a home office, an artist’s studio or perhaps, additional sleeping space for overnight family members and/or guests. The main floor of the home is highlighted with approximately 1,120 square feet of usable living space which incorporates two bedrooms and two baths into the interior space. This house plan is also ideally suited for a narrow property lot, set deep in the woods or on a lakefront property lot with a 34’ width dimension. The home’s interior space offers an open concept accessible from the covered porch through gorgeous French doors and there is a side entry door as well. The open family space includes a large great room, an eat-in nook and a kitchen with plenty of counter and cabinet space and an angled breakfast bar offering additional seating options. The entire space is open, features 9’ ceiling heights and is drenched in sunlight, perfect for family enjoyment. Also, the front covered porch accessibility provides plenty of room to dine alfresco during nice weather. Beyond the common rooms, there is a large utility room with a closet for storage, good counter space and an entry/exit point off the deck which is ideal for maintaining a tidy home environment. The hallway also offers good storage options, a bonus for a home this size. The rear of the home houses the two bedrooms and baths; bedroom one features generous closet space and adjacent bath access where there is a large vanity, toilet area and a tub/shower combination. The second bedroom features a walk-in closet and an en suite bath with linen closet, vanity space and a large shower. This house plan is perfect for a weekend getaway or small family home and offers great storage options, an efficient and open floor plan, outstanding outdoor space and excellent overhead expansion space.
