Cabin Plan 035-00434


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,886
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 97' 4"
Depth 55' 7"

Floorplan Drawings

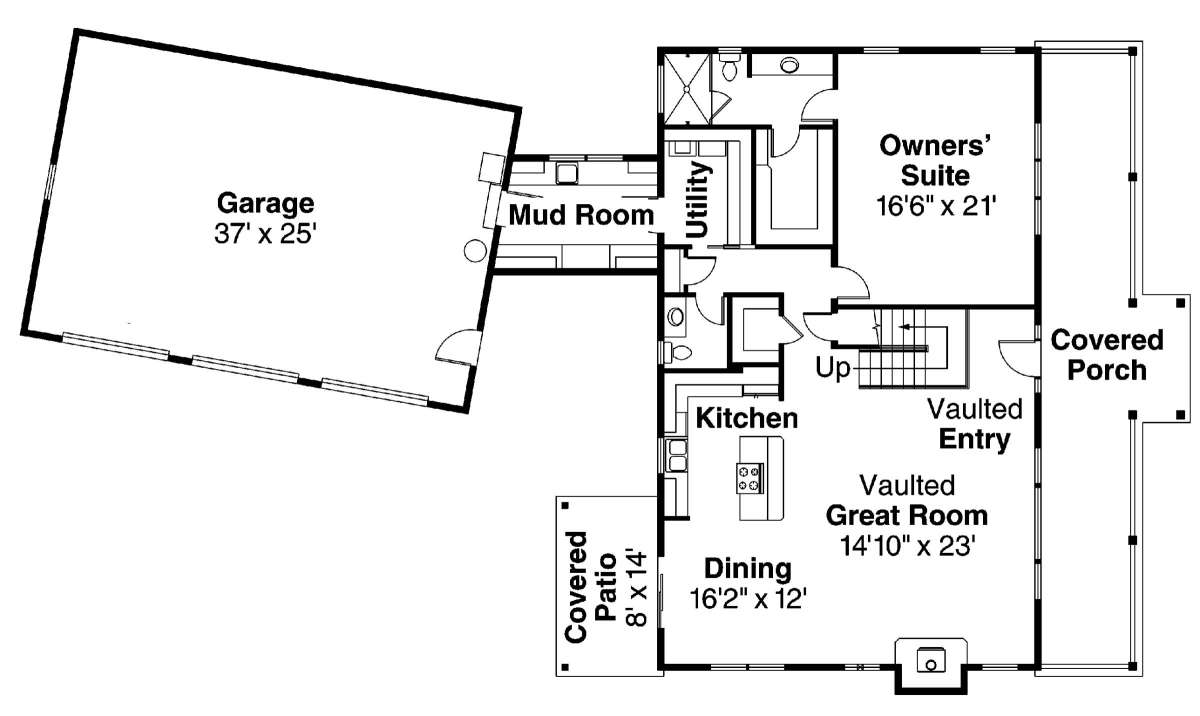

Floorplan 1
Floorplan 1 for House Plan #035-00434

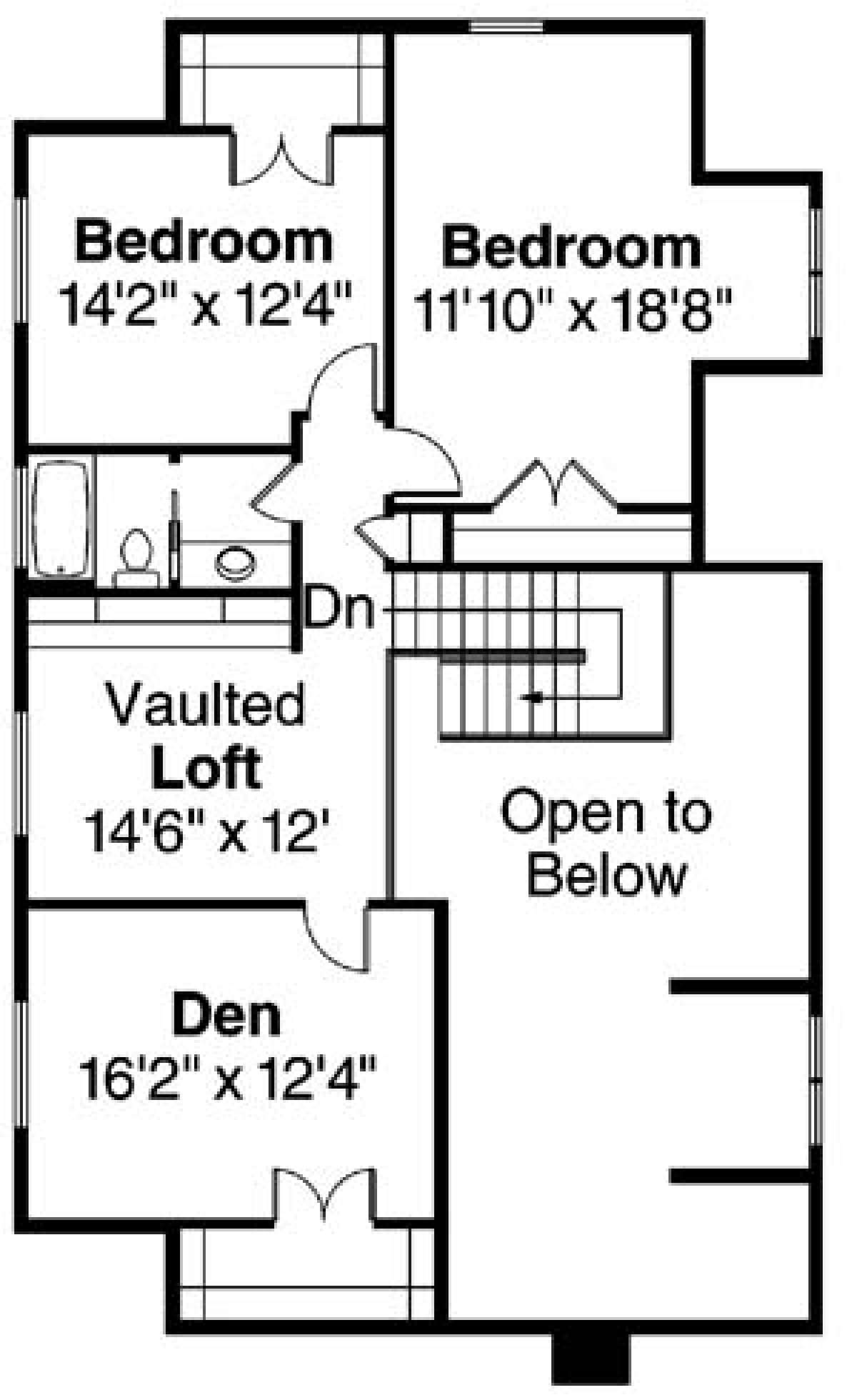

Floorplan 2
Floorplan 2 for House Plan #035-00434

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

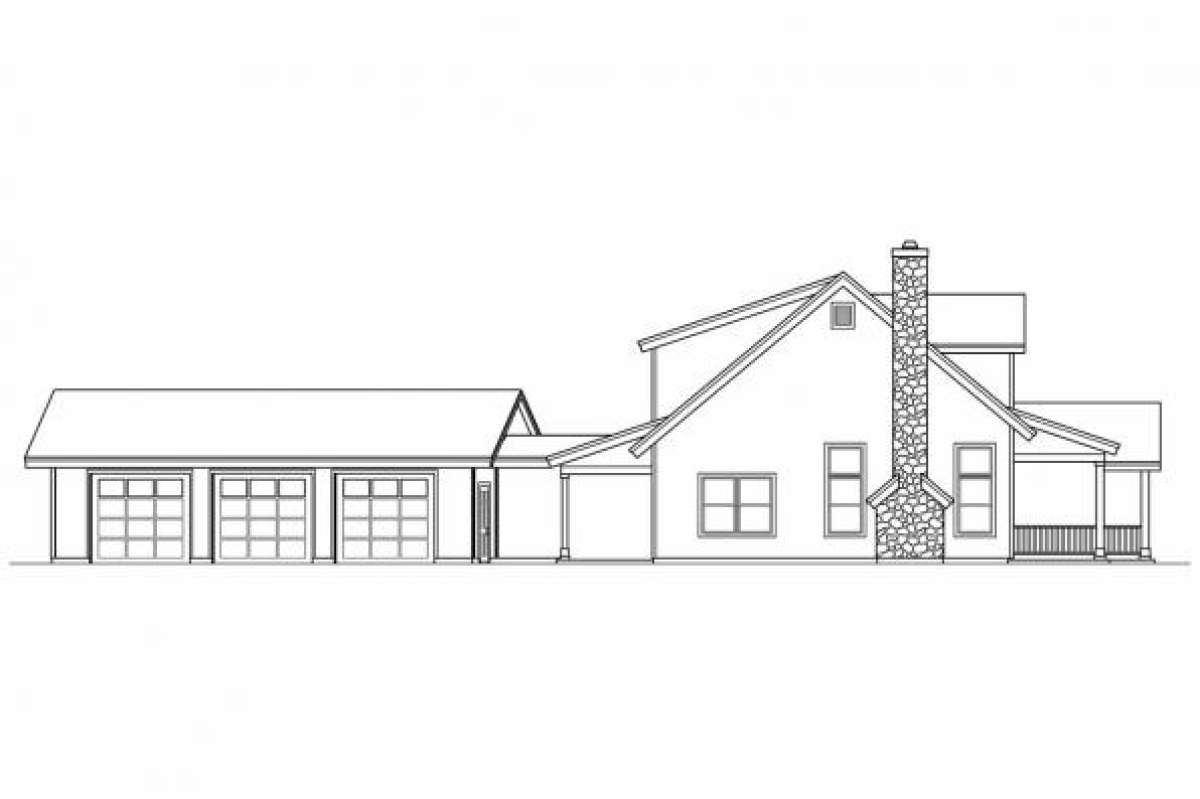

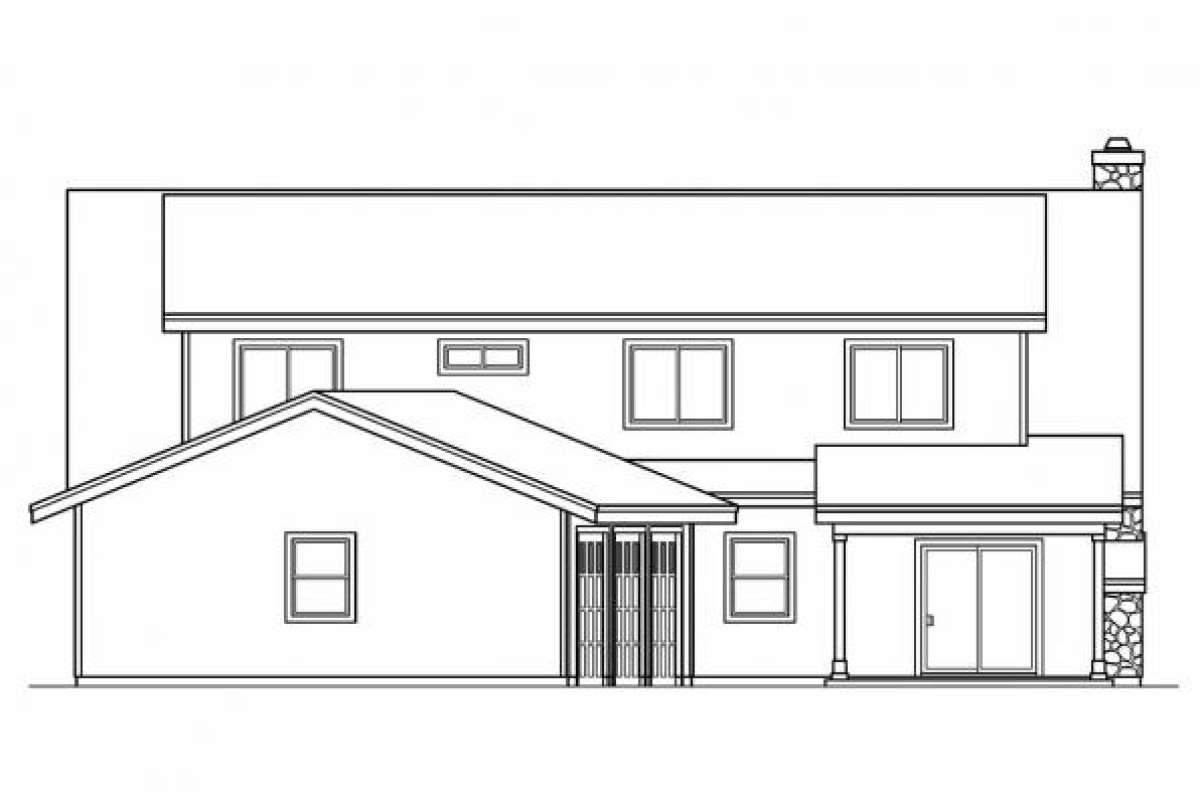

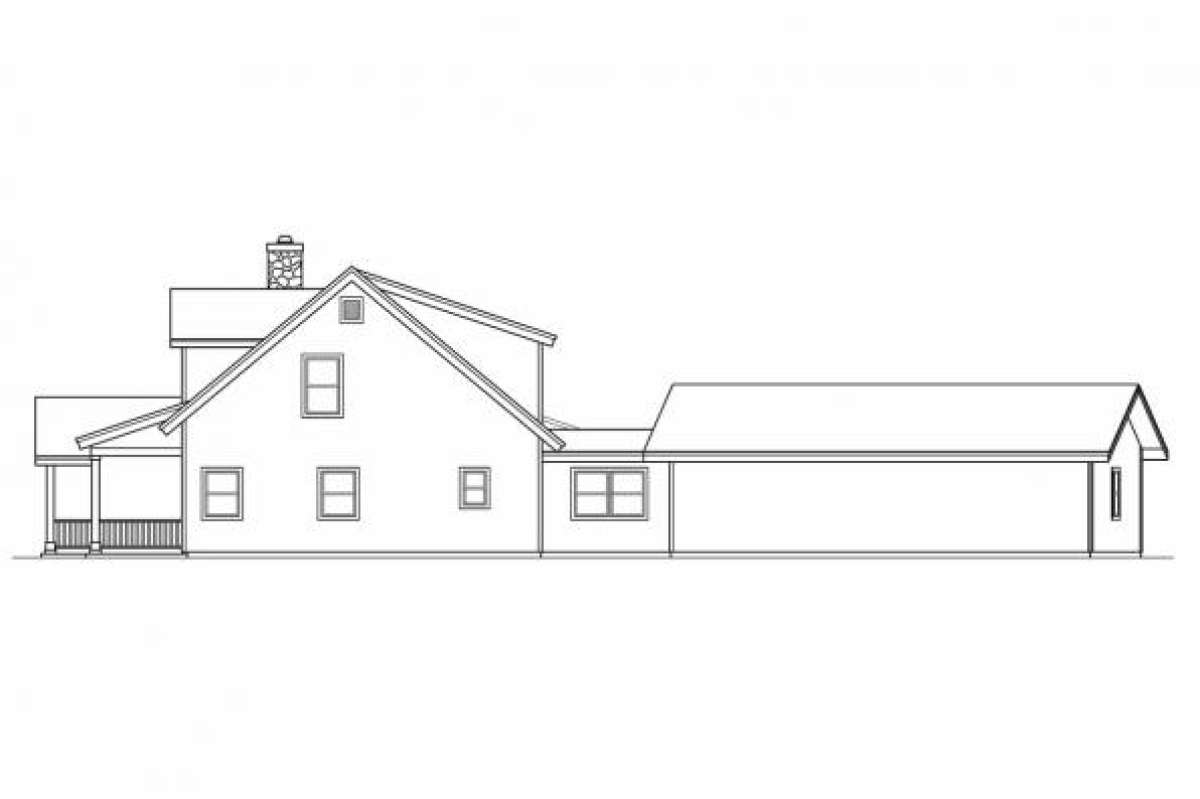

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This rustic Cabin plan features an exceedingly attractive exterior and an interior floor plan that is spacious and family friendly. The facade is highlighted with an abundance of warm exterior features that showcase the welcoming and inviting charm of the home. There are warm wooden beams outlining the extended front covered porch with an overhead gable and a centrally located front entrance. The brick chimney is striking and the overhead dormers add character and visual interest to the exterior. There are approximately 2,886 square feet of living space with three bedrooms, two plus baths and large open common rooms to relax and entertain large groups of family and friends. The front covered porch spans the width of the home and it perfect for welcoming family and visitors into the home. Once inside, there is a vaulted entry, a second story staircase and coat closet as well as the open layout. The open layout includes a vaulted great room with a warming fireplace, a dining space with window views and access to the covered patio, and the gourmet kitchen which boasts of a center island and plenty of counter and cabinet space. At the rear of home is a guest powder room, the family laundry room and a huge mudroom that connects the home to the oversized three car garage where there is fantastic vehicle and storage space. The main level master suite occupies one wing of the home and features a large master bedroom with a triple set of windows overlooking the front covered porch. There is an en suite bath with an extended vanity space, a toilet area and a shower available. The master walk-in closet is conveniently located directly off the bathroom and features plenty of room for clothing and assorted other accessories.

The second floor of the home is perfectly designed for family and guests; there is a large loft overhead which is ideal as a playroom, teen-age lounge or homework station with views onto the main floor. Located directly off the loft is a den which has a sizable closet and could be configured as a fourth bedroom or it could be used as a casual family space. There is a shared hall bath which features a vanity space, toilet area and a tub/shower combination. The two secondary bedrooms are nearby; one measures in excess of 11’ x 18’, has great window views and a sizable closet. The other bedroom is slightly smaller with wonderful window views and a walk-in closet is available. This Cabin house plan features an attractive exterior, a family friendly interior and great outdoor space.
