Ranch House Plan #035-00374 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,484

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 66'

Depth 39'

See What's Included

Select Package

PDF (Single Build)

$2,100.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Single Build, Non-Modifiable)

$1,075.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with the copyright release which allows for making printed copies locally. This option does not allow for modifications to be made to the plans. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build, Non-Modifiable PDF)

$1,325.00

One Complete set of working drawings emailed to you in Non-Modifiable PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,325.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Plus PDF, Unlimited Build)

$2,575.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once and also includes a PDF set!

Select Foundation

Crawlspace Foundation $0.00

Slab Foundation $290.00

Basement Foundation $390.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $55.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $245.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x4 Conversion $290.00

Convert the exterior framing to 2x4 walls.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

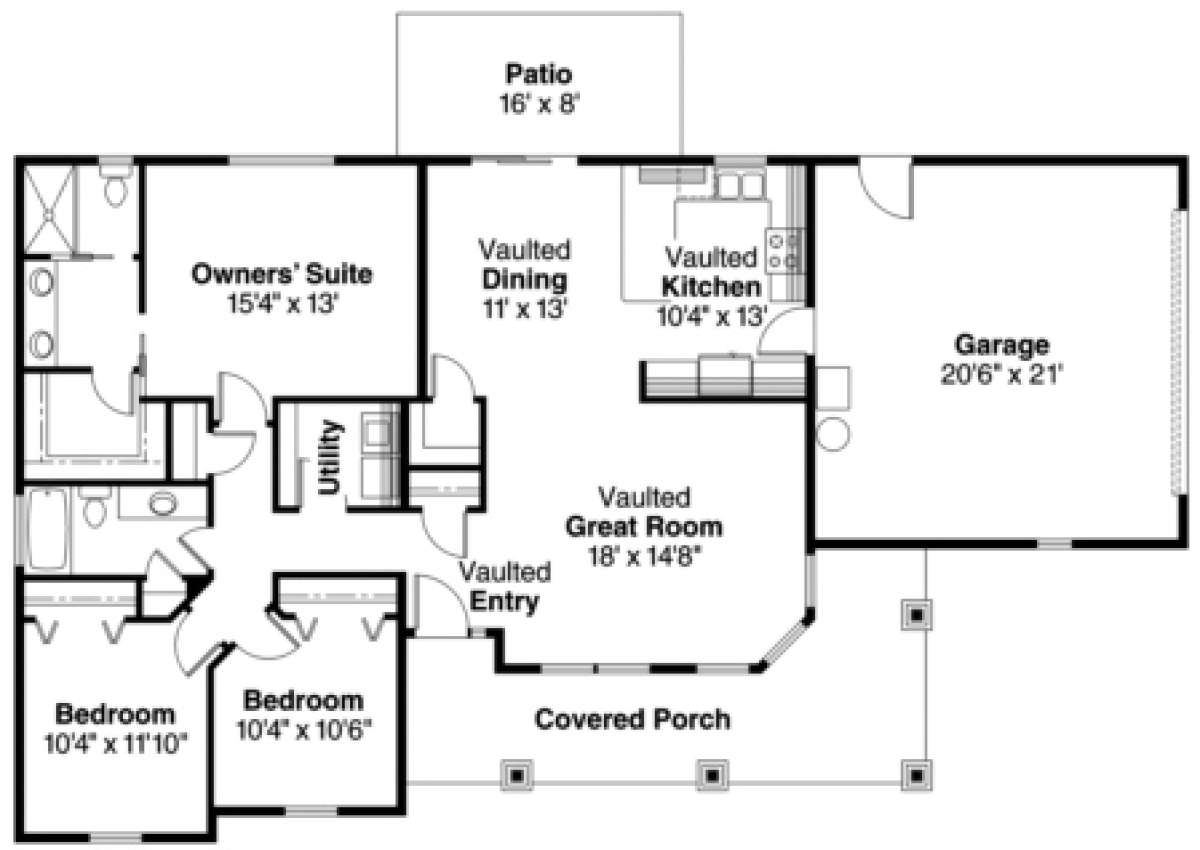

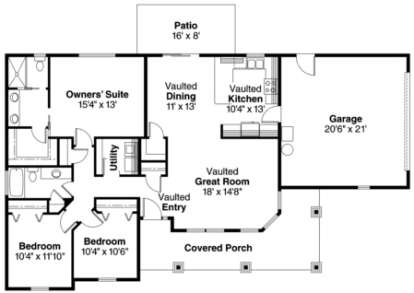

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:

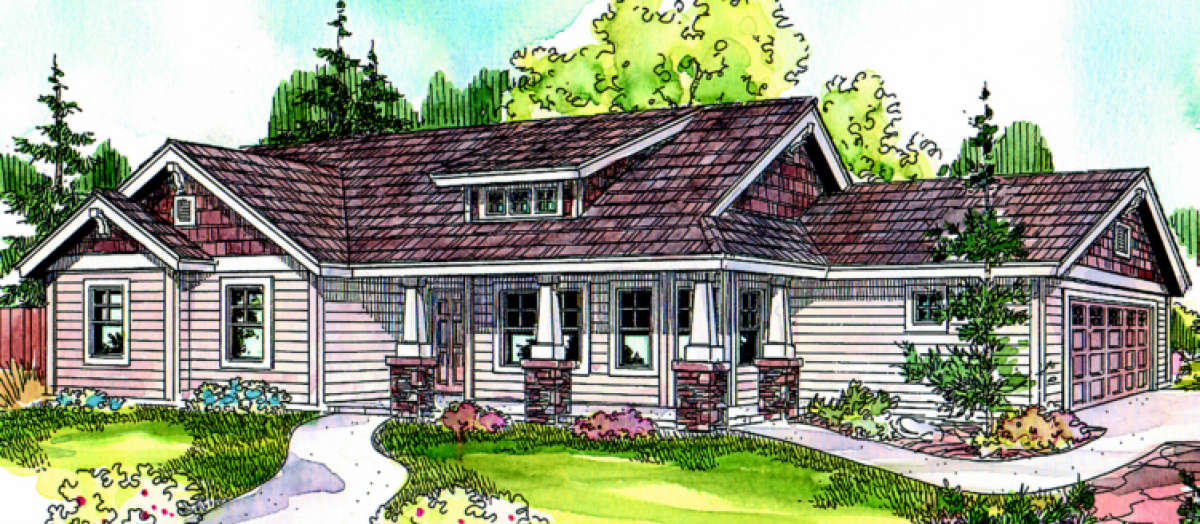

Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
*Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

About This Plan

This attractive Ranch house plan features a great covered front porch entrance with brick pillars and tapered column beams and the interior floor plan is perfect for small families, young professionals and empty nesters. Horizontal siding, wide eaves on the double gables, a multitude of window views and an overhead window shed dormer complement the exterior nicely and the front covered porch is perfect for greeting family and friends. Approximately 1,484 square feet of living space is found in the home’s interior that includes an open floor plan, three bedrooms and two baths. The two car side loading garage features plenty of vehicle and storage space along with a rear pedestrian door allowing for the easy loading/unloading of lawn and sporting equipment. The beautifully designed L-shaped front porch grants access into the home’s open layout where all the common rooms are vaulted along with the entry foyer. Across from the foyer is the coat closet and then the plan showcases a large great room with wonderful window views and great entertaining space. The subsequent dining room and kitchen feature good prep and dining space; the kitchen is highlighted with plentiful counter and cabinet space including a peninsula island for casual dining and there are double sink window views. The dining space includes a walk-in pantry and slider access to the outdoor patio for easy family cook-outs and entertaining opportunities.

The small hallway runs off the common rooms and houses the family bedrooms, baths and utility room. The laundry room is spacious and is conveniently located near the bedrooms and baths. Bedrooms one and two are similar in size; both have window views, large closets and are situated near the shared hall bath where there is an extended vanity, an enclosed linen closet, a toilet area and a tub/shower combination. The master suite contains a spacious bedroom with window views overlooking the rear yard, an attached walk-in closet and an en suite bath that is highlighted with dual vanities, a toilet area and a shower. This Ranch house plan features an attractive exterior and a compact yet, efficient floor plan.
