Ranch House Plan #035-00022 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,634

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 68'

Depth 40'

See What's Included

Select Package

PDF (Single Build)

$2,275.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Single Build, Non-Modifiable)

$1,100.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with the copyright release which allows for making printed copies locally. This option does not allow for modifications to be made to the plans. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build, Non-Modifiable PDF)

$1,350.00

One Complete set of working drawings emailed to you in Non-Modifiable PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,450.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Plus PDF, Unlimited Build)

$2,700.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once and also includes a PDF set!

Select Foundation

Crawlspace Foundation $0.00

Slab Foundation $350.00

Basement Foundation $460.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $55.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $300.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

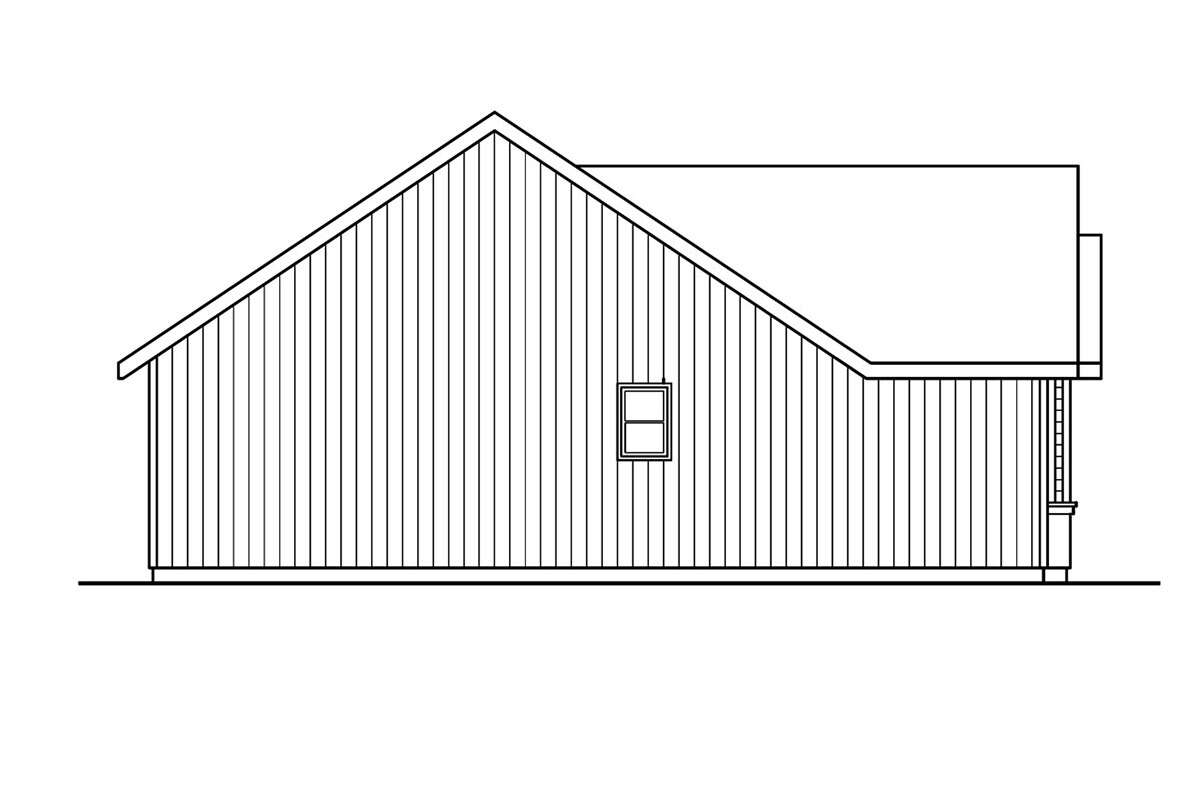

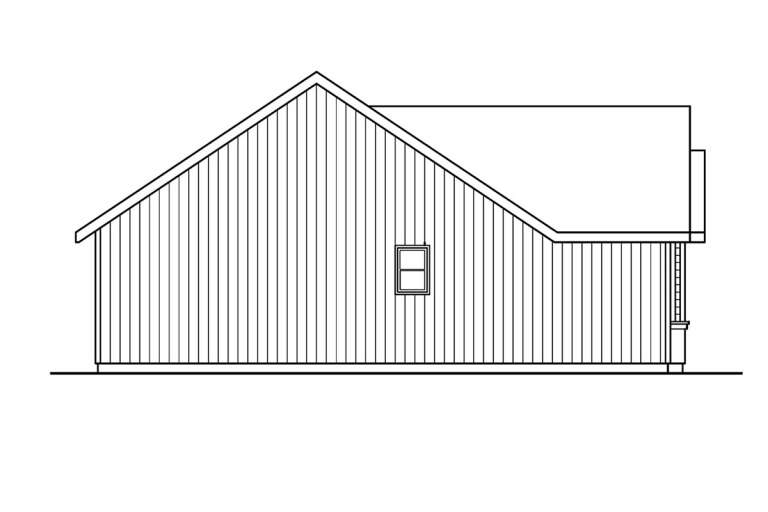

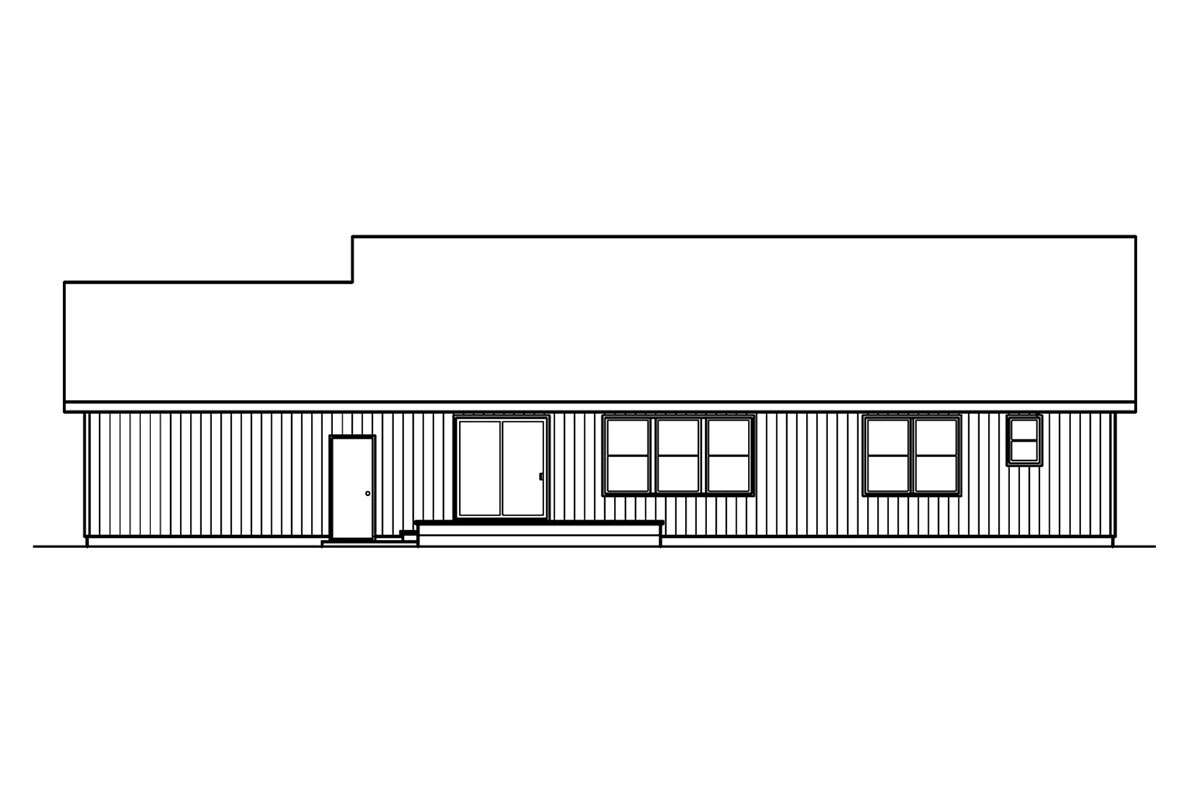

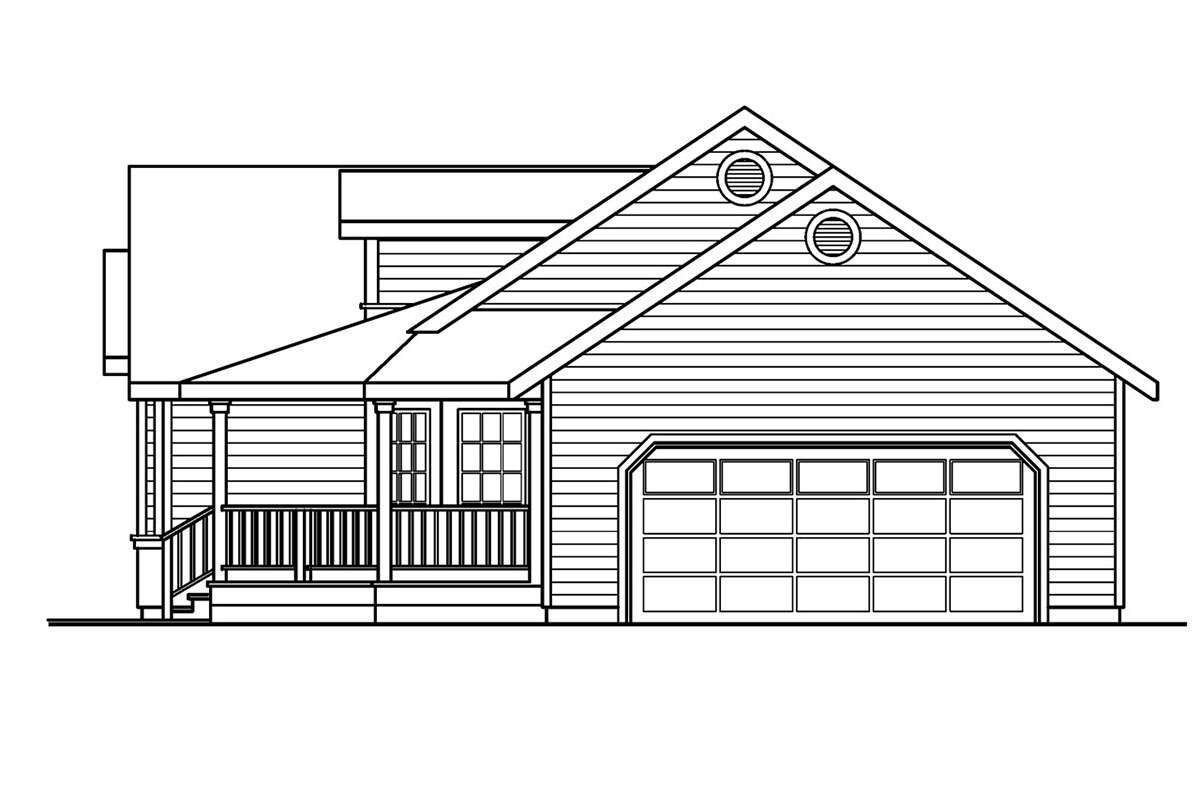

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

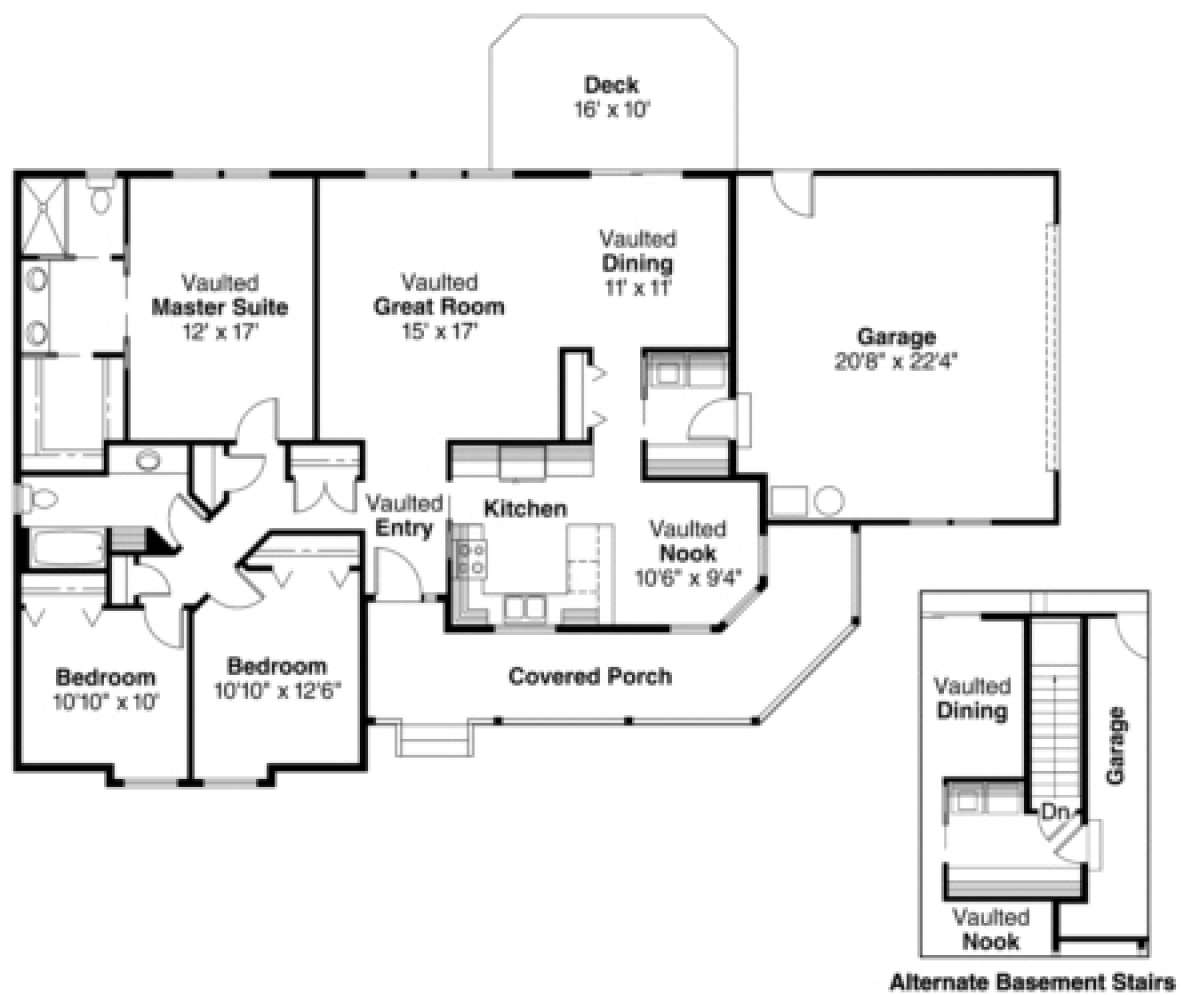

Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
*Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

About This Plan

This Ranch house plan features a comfortable and inviting exterior façade complete with overhead dormers, horizontal siding and a beautifully expansive front covered porch. The front porch is angled, wraps around, is highlighted with open railing and columned beams and features the perfect spot to greet family and friends. The interior floor plan offers approximately 1,634 square feet of living space with three bedrooms and two baths. The two car side loading garage offers good vehicle and storage space for the family’s needs and there is a pedestrian door at the rear of the garage for easy loading and unloading of lawn and sporting equipment. The family laundry room is located on the interior of the home, adjacent to the garage and offers a great environment for maintaining the home’s tidiness. Located directly across from the laundry room is an oversized linen closet or space that could alternatively be used as a pantry. The home’s foundation is currently listed on a crawl space but a slab and basement option are available and there is an image for the alternative basement stair location as well. The main living and dining spaces of the home, including the front foyer, are vaulted which lends an airy and spacious feel to the home. Stepping into the foyer, you are greeted with views into the vaulted great room and dining space; both spaces are large and comfortable, perfect for relaxing with family or entertaining. The great room features a triple window wall while the dining space is highlighted with sliders onto the rear deck. The deck is large and offers the ideal situation for dining outdoors or enjoying the evening sky. The kitchen is highlighted with a peninsula bar and great counter and cabinet space while the adjoining breakfast nook is situated in a bay window overlooking the wraparound porch.

Traveling the hallway to the bedrooms and baths is another closet which could be used for coats, storage or linens and two additional closets are located near the bath, proving to be real space savers. The two secondary bedrooms are located on one side of the hallway; each contains ample floor space, generous closet space and window views. There is a shared bath at the end of the hallway which features a large vanity space, a toilet area and a tub/shower combination. The master suite is rear positioned for privacy and there is a spacious master bedroom which is vaulted and features wonderful window views overlooking the rear yard. The en suite bath is highlighted with dual vanities, a toilet area and a corner shower with an attached master walk-in closet that is spacious. This lovely Ranch house plan features a welcoming exterior façade, an efficient floor plan with minimal waste and great outdoor space designed for family and friends.
