Northwest Plan 034-00877

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,792
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 32'
Depth 33'

Floorplan Drawings

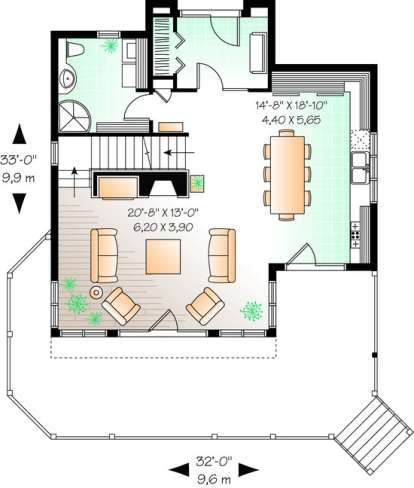

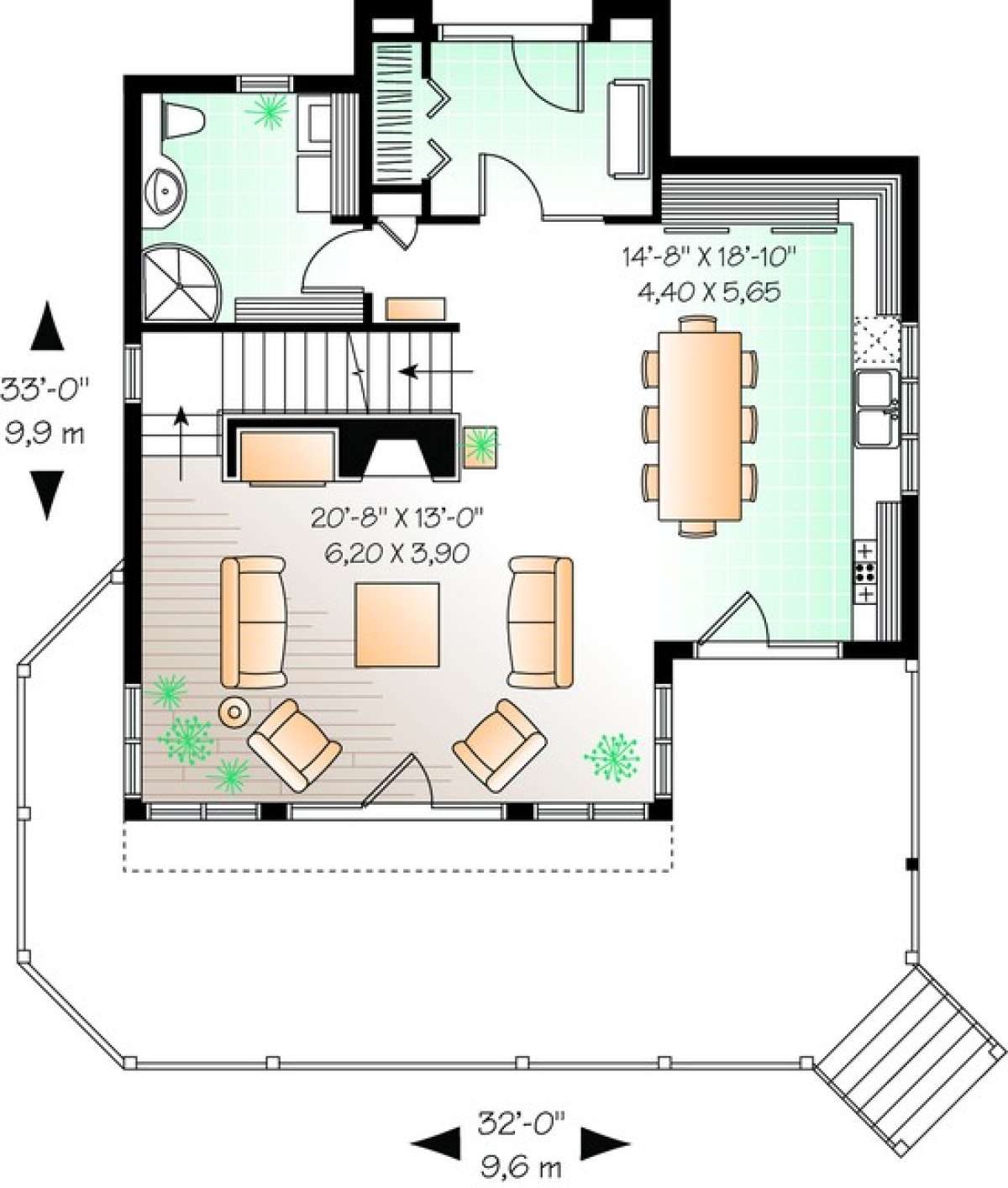

Floorplan 1
Floorplan 1 for House Plan #034-00877

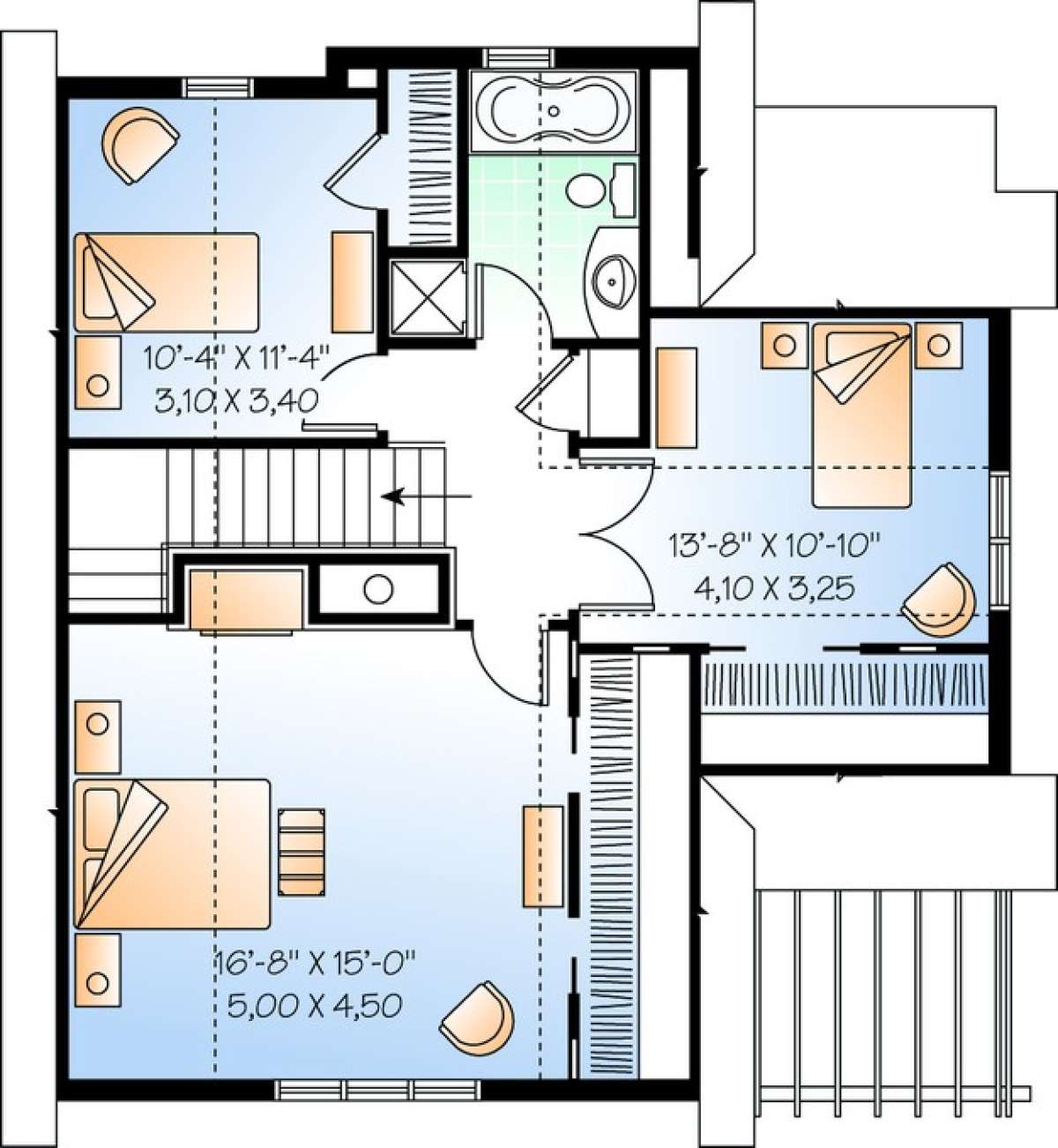

Floorplan 2
Floorplan 2 for House Plan #034-00877


What's Included in these plans?

  • 4 Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  • Construction Details
  • Typical Wall Section

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Northwest house plan features 1,792 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
