Lake Front House Plan 034-00528

Sq Ft874
1/2 Baths0
Width36' 0"
Depth24' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

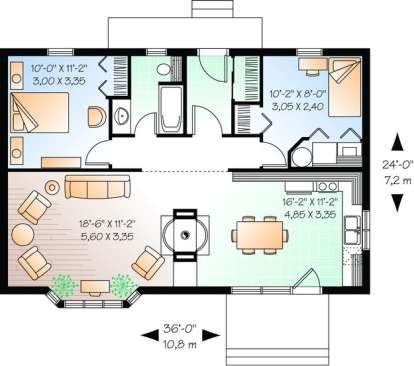

Floorplan 1 for House Plan #034-00528
Floorplan 1
Floorplan 1 for House Plan #034-00528

Frequently Asked Questions


What's Included in these plans?

  • 4 Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  • Construction Details
  • Typical Wall Section


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

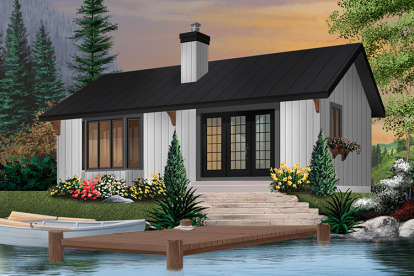

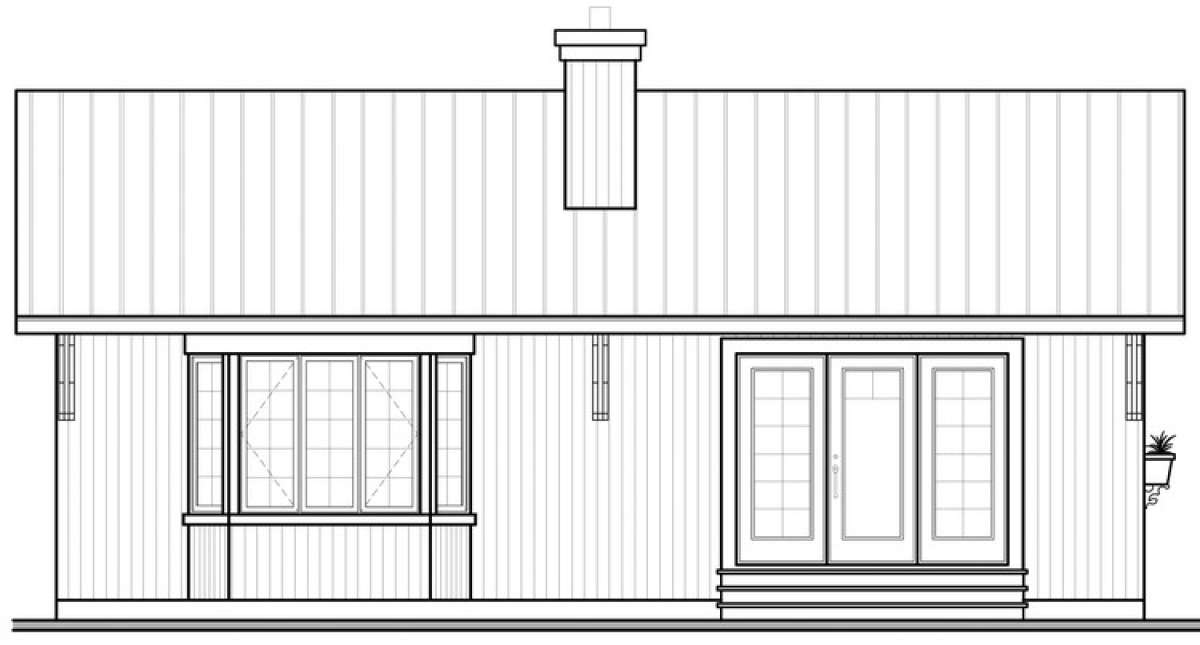

This Lakefront or Mountain View home is the perfect example of a functional and comfortable vacation or forever home where intentional living is desired and appreciated. Whether a love of the outdoors, hiking, fishing or escapism drives the agenda, this 874 square foot home will supply and fuel your request for a purposeful vacation, weekend getaway or forever space to call your own. There are two bedrooms and one bath in this single story home and the 36’ and 24’ width and depth dimensions make the home perfectly suited to be built on a small and/or narrow lot. The attractive exterior features a multitude of window views including a large bay window and a set of triple window doors along with a gabled roof and decorative brackets which line the front of the home. Entrance into the home is through one of the window doors whereupon an open layout is revealed that includes a large living space with wood burning stove and space for optimal furniture placement within the large bayed window. There is an adjacent dining space and a spacious kitchen which features double sink window views and plenty of counter and cabinet space.
The rear hallway features private outdoor access, two bedrooms, the family’s laundry facilities and a bath. Both bedrooms are spacious with generous closet space and the shared hall bath includes a vanity space, a toilet area and a tub/shower combination. This compact home features an efficient and comfortable interior floor plan and an attractive exterior façade.
