Mountain Plan 033-00016


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,114
Beds 3
Bath 2
1/2 Baths 0
Car 1
Stories 1.5
Width 25'
Depth 39'

Floorplan Drawings

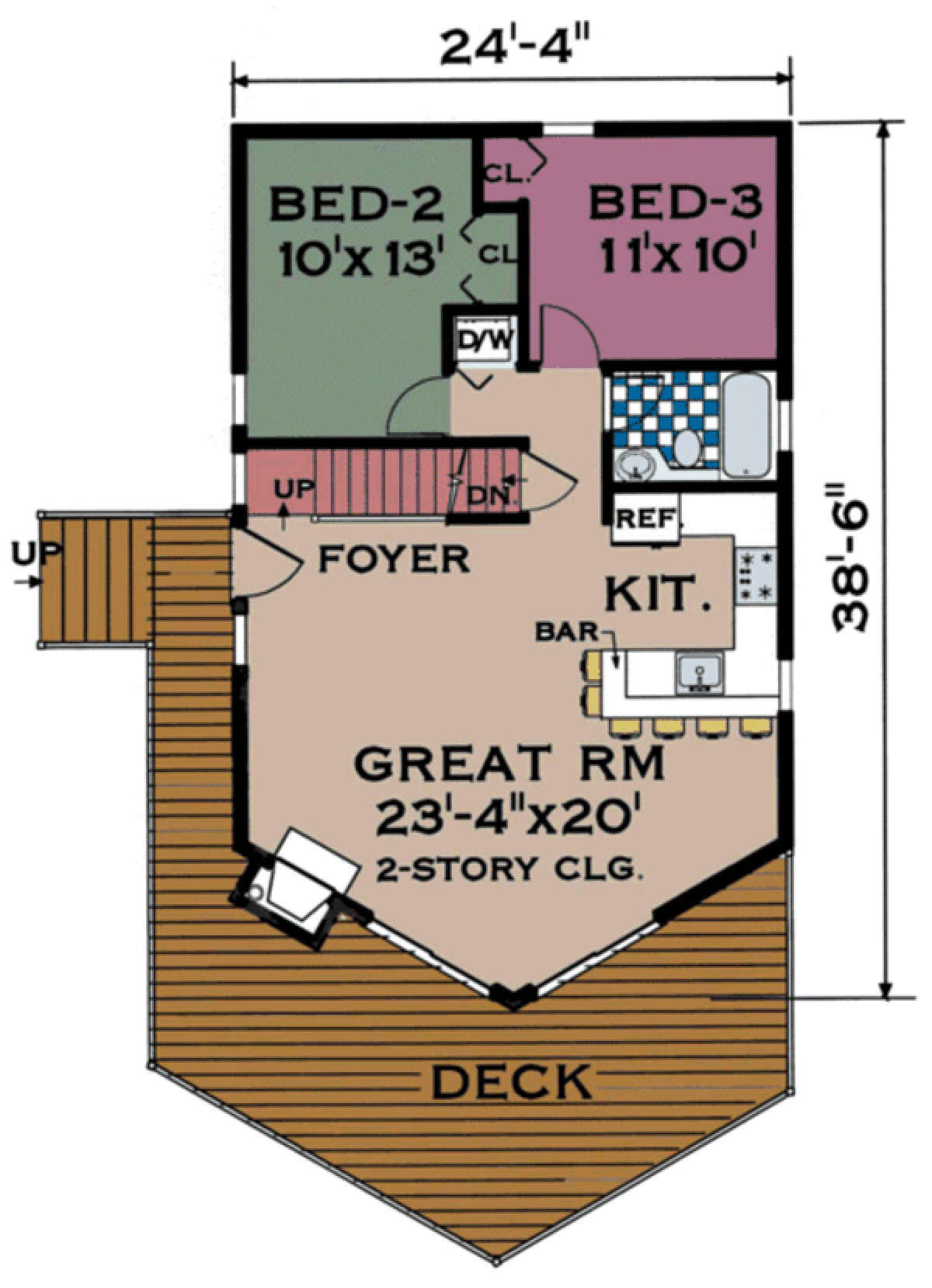

Main Floor
Main Floor for House Plan #033-00016

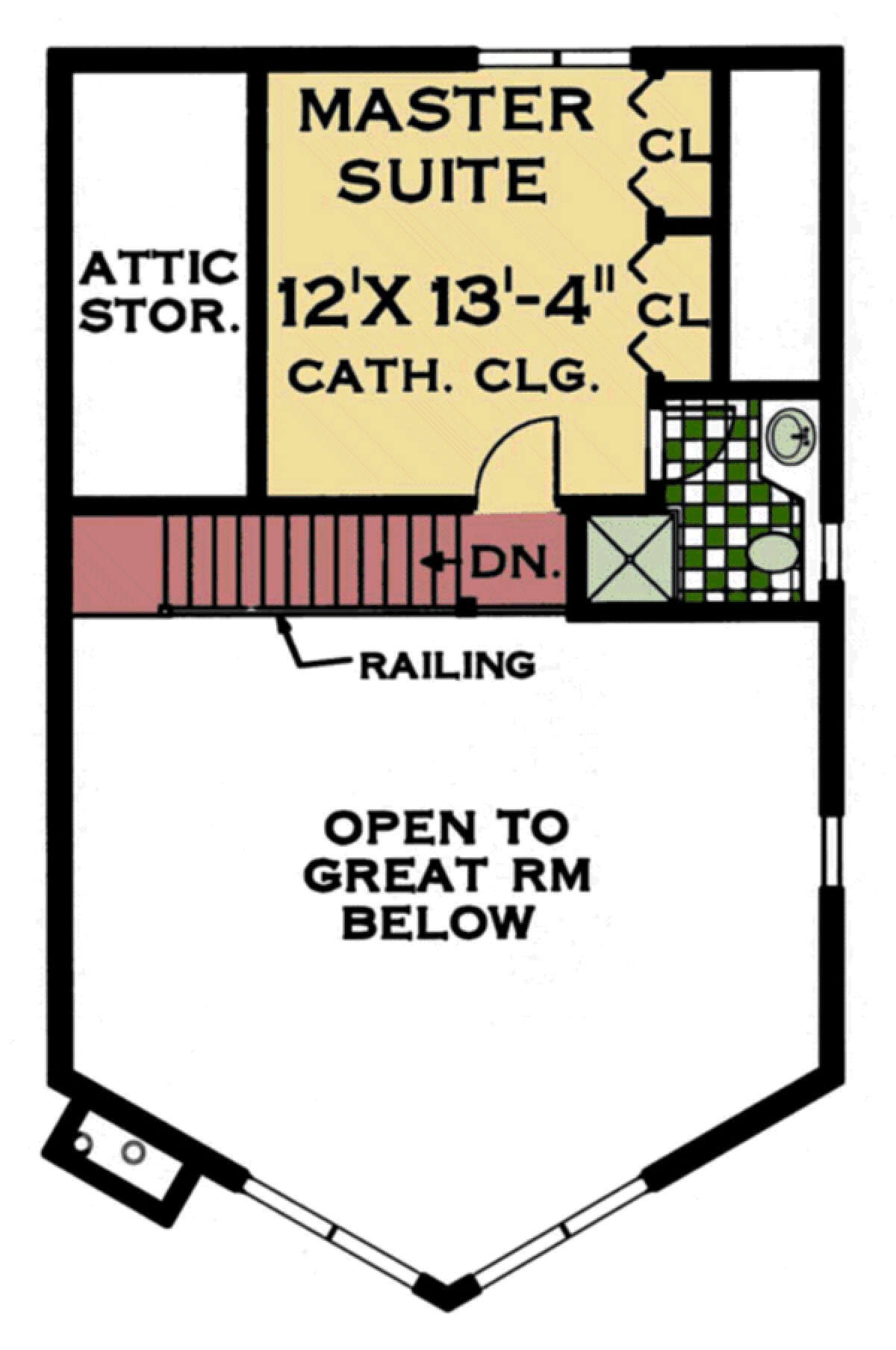

Upper Floor
Upper Floor for House Plan #033-00016

What's Included in these plans?

  • Foundation Plans (1/4" =1') Basement and crawl space
  • Slab on grade plan (1/8"=1')
  • Floor Plans (1/4"=1')
  • All 4 Elevations (1/4"=1')
  • Building Sections (1/4" =1') as needed per plan
  • Kitchen  Elevations (1/4"=1')
  • Miscellaneous Details (1/4" & 1"=1') as needed per plan
  • Roof  Plan (1/4"=1' or 1/8"=1')
  • Specifications and Legends
  • Plumbing Riser Diagram
  • Electrical layout
  • Window and door schedule

Code Compliance: This plan is drawn to meet the International Residential Code or the code at the time the plan was designed. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout. The structure are for stick construction ( studs, joists, beams, etc), All structural members are designed and included on the plans or as per minimum size allowed by code. All steel posts and beams designed is included.
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information, slopes, insulation, structural members,etc.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
These are included for many interior and exterior conditions that require more specific information for their construction.
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any crickets.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

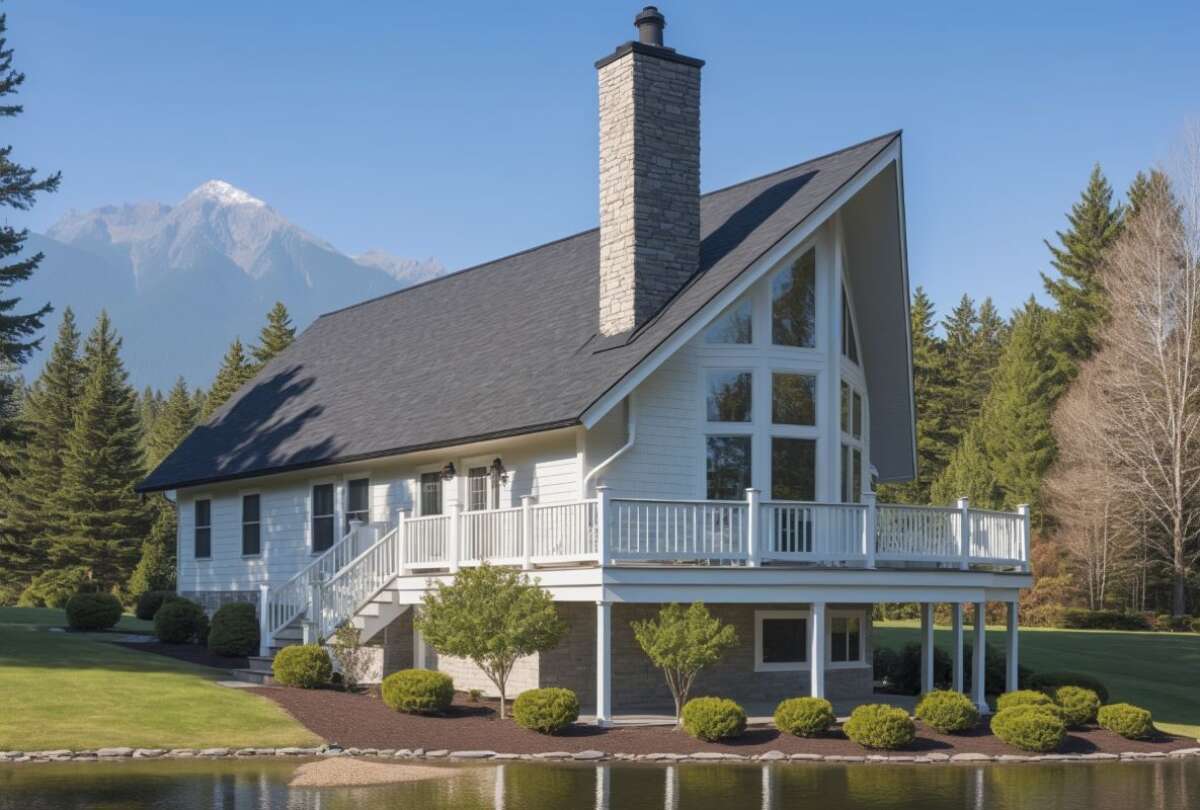

Natural design elements are nicely juxtaposed in this Mountain house plan creating a visually pleasing exterior. A stone chimney rises from the base of the home and through the roofline which in combination with the wood structure exposes functional and practical design elements. Fabulous window inserts culminate into a triangular point creating a focal point that is mimicked and continues onto the outdoor deck where stunning views can definitely be appreciated. The home commands a mountaintop or serene lakefront setting and the 25’ width and 39’ depth are ideal dimensions for a small and/or narrow lot. The interior layout is consistent with the exterior offering stunning and well appointed rooms in the approximate 1,114 square feet of usable living space. The 1.5 storied home incorporates three bedrooms and two bathrooms into the floor plan allowing the home to function either as a vacation or “forever” home. The home features a walk-up to the front entrance and side deck which then expands to wrap around the home beautifully. Entrance into the home showcases a magnificent open space with a greeting foyer, a side staircase and a dramatic two story great room along with a kitchen and casual dining space. The great room measures in excess of 24’x20’, has soaring ceiling heights, a warming fireplace and double access points onto the expansive deck. The floor to ceiling window inserts that open and provide access to the deck are a wonderful way to bring the outdoors in and offer excellent entertaining space. There is a peninsula wraparound bar featuring a multitude of casual dining options and plenty of additional counter and cabinet space within the U-shaped kitchen. The laundry nook is located in the minimal hallway which houses two bedrooms and a bath as well. Both bedrooms offer good floor space, generous closet space and window views. The shared hall bath features an elongated vanity space, a toilet area and a tub/shower combination.
The second story master suite is a gorgeous design with balcony overlooks onto the main living space. The enclosed master bedroom features cathedral ceiling heights, a spacious footprint, double window views and double closets. There is an en suite master bath complete with an extended vanity, a toilet area and a shower. Plentiful attic storage space flanks the master bedroom providing storage for seasonal clothing and other items. The home’s drawings also include a crawl space, slab and unfinished basement level with 344 square feet of expandable space. A bold and striking exterior façade and an interior floor plan featuring a fully functional layout and an expandable lower level combine to create this lovely Mountain home.
