Ranch House Plan #033-00005 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,649

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 62'

Depth 66'

See What's Included

Select Package

PDF (Single Build)

$851.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$604.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

9 Sets (Single Build)

$692.00

PHYSICAL FORMAT
Nine complete sets of working drawings mailed to you. This package comes with a license to construct one home.

Reproducible (Single Build)

$851.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $0.00

Unfinished Basement $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $40.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $50.00

Reverses the plan, however, the text and dimensions will not read correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

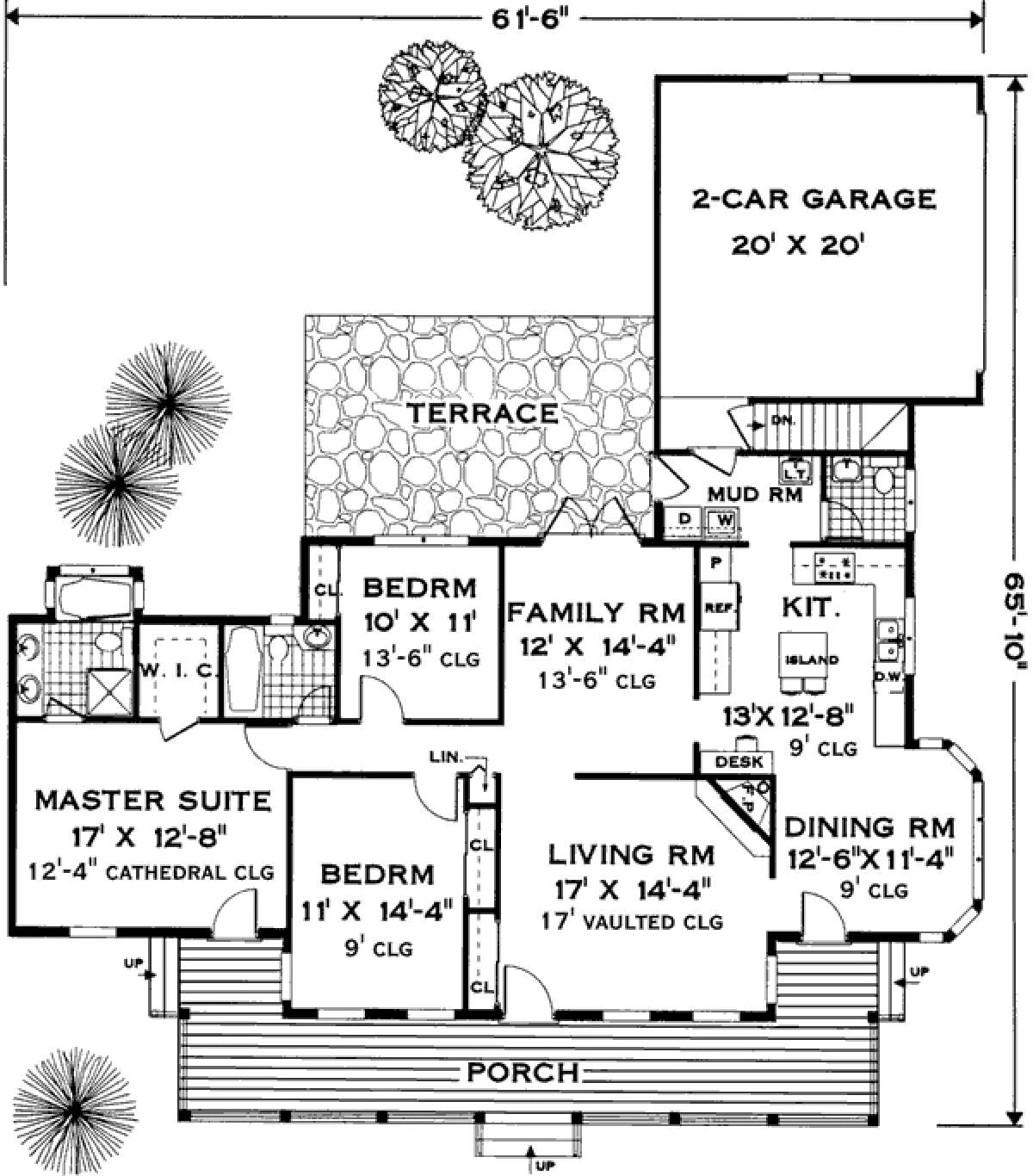

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Foundation Plans (1/4" =1') Basement and crawl space
Slab on grade plan (1/8"=1')
Floor Plans (1/4"=1')
All 4 Elevations (1/4"=1')
Building Sections (1/4" =1') as needed per plan
Kitchen Elevations (1/4"=1')
Miscellaneous Details (1/4" & 1"=1') as needed per plan
Roof Plan (1/4"=1' or 1/8"=1')
Specifications and Legends
Plumbing Riser Diagram
Electrical layout
Window and door schedule

Code Compliance: This plan is drawn to meet the International Residential Code or the code at the time the plan was designed. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout. The structure are for stick construction ( studs, joists, beams, etc), All structural members are designed and included on the plans or as per minimum size allowed by code. All steel posts and beams designed is included.
SET OF ELEVATIONS

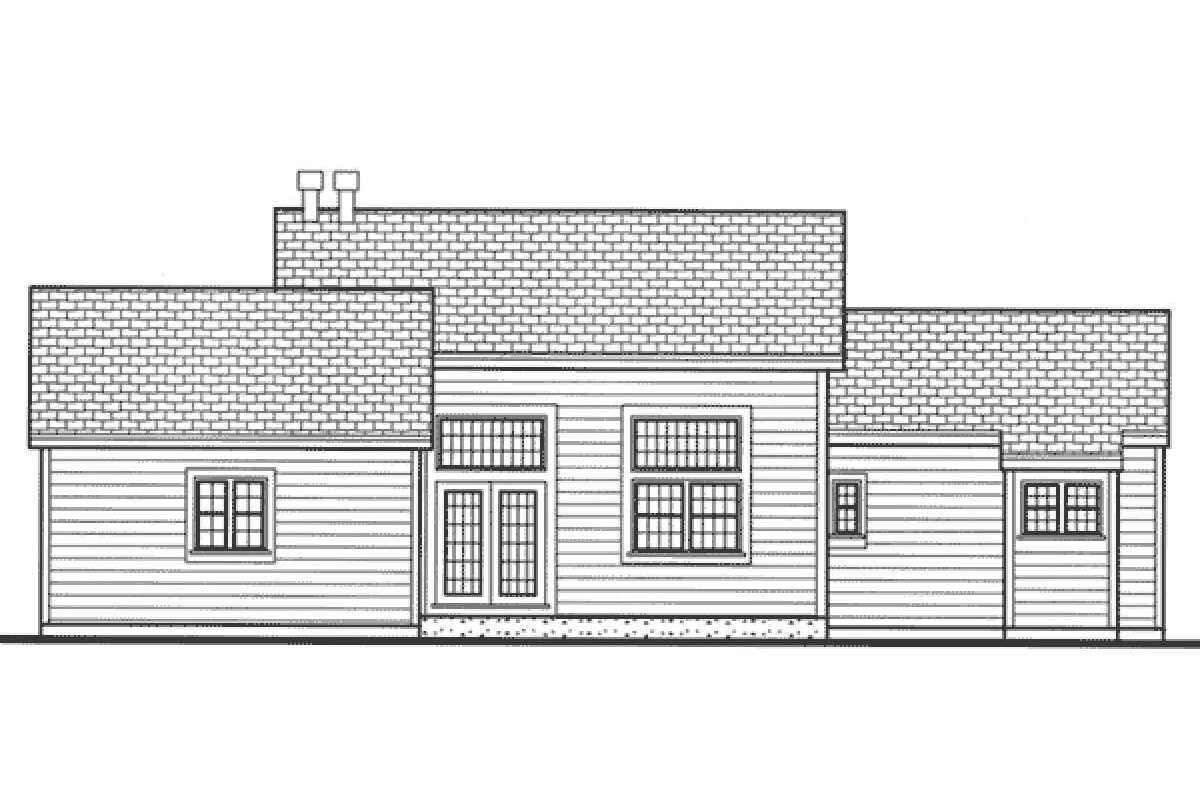

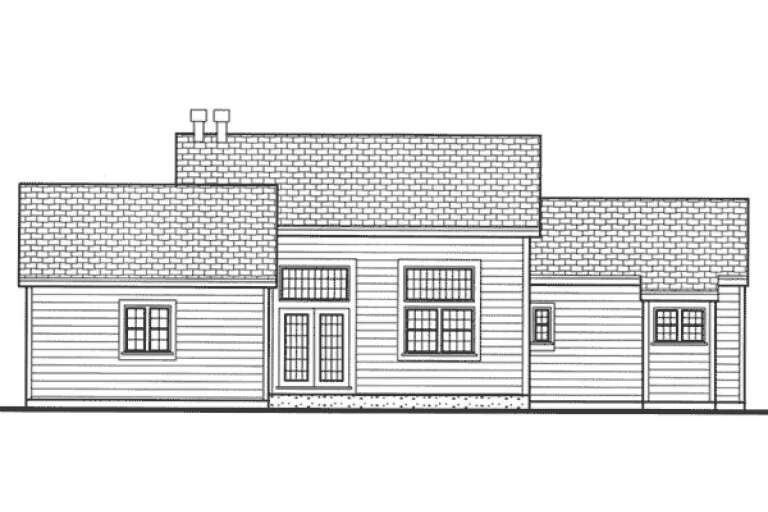

This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
BUILDING SECTION(S)
The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information, slopes, insulation, structural members,etc.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
These are included for many interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any crickets.

Ask Us A Question

About This Plan

This charming exterior exudes warmth and invites family and friends to gather and spend time relaxing on the sprawling front covered porch. The porch is highlighted with open railing, wraparound sides and generously spaced column beams. Beautiful Palladian window accents frame the many window views and the triple window dormers overhead add to the character of the home. An interior floor plan with three bedrooms and two plus baths are situated within 1,649 square feet of usable living space. There is an option for a slab, crawl space or basement foundation in the single story home where, of course, the basement foundation would add additional space, versatility and value to the home. The front porch features three entry/exit points into the home’s interior that include the main entrance, a dining room entrance and a master suite entrance. Walking into the main entrance, a huge coat closet and large living room are revealed which include 17’ vaulted ceiling heights and a handsome fireplace for warmth and ambience. In addition to having a porch entrance, the formal dining room is encapsulated in surrounding window views. The family friendly kitchen features a center island with casual seating, a separate pantry and desk/menu area. The two car side entry garage is located at the rear of the home for unobstructed sight lines and leads to a huge laundry/mudroom with adjacent half bath. A large terrace perfect for relaxing and friendly cook-outs features French door access into the centrally located family room.
The main hallway of the home features two spacious bedrooms with generous closet space and great window views overlooking either the porch or rear terrace. There is a hall linen closet and shared bath for the bedroom’s use. The master suite features a large bedroom with cathedral ceiling heights, private access to the front covered porch and an attached master walk-in closet. There is an en suite bath, as well, chocked full of modern amenities which include dual vanities, a separate shower and a “bump out” soaking tub fully encased in window views. Great outdoor space perfect for entertaining and relaxing, an efficient and functional floor plan and future expansion space seize upon the idea of a model home for families of all sizes.
