Coastal House Plan 028-00111

Sq Ft1,517
1/2 Baths1
Width34' 0"
Depth34' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #028-00111
Floorplan 2 for House Plan #028-00111
Floorplan 3 for House Plan #028-00111

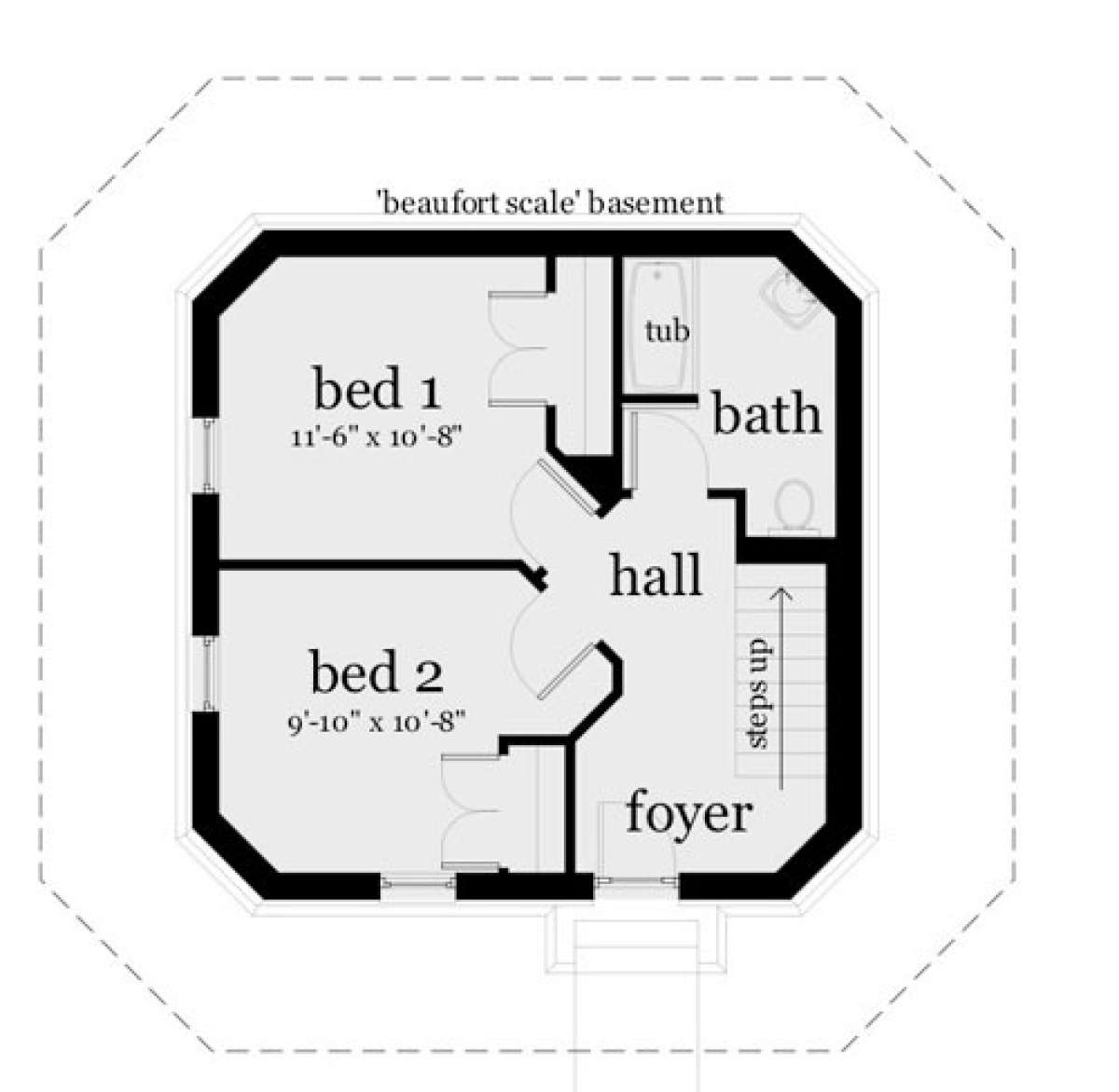

Floorplan 1
Floorplan 1 for House Plan #028-00111

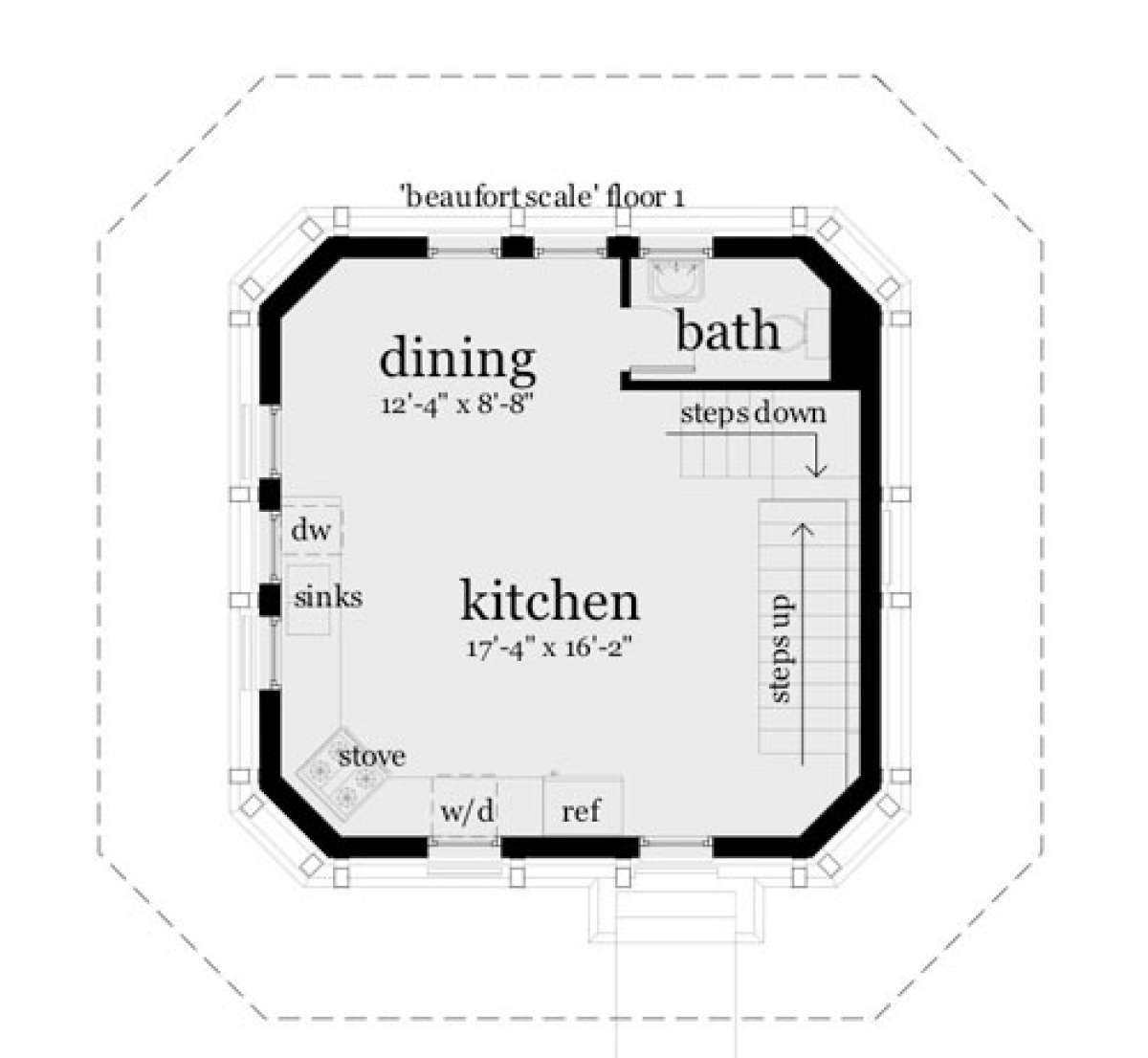

Floorplan 2
Floorplan 2 for House Plan #028-00111

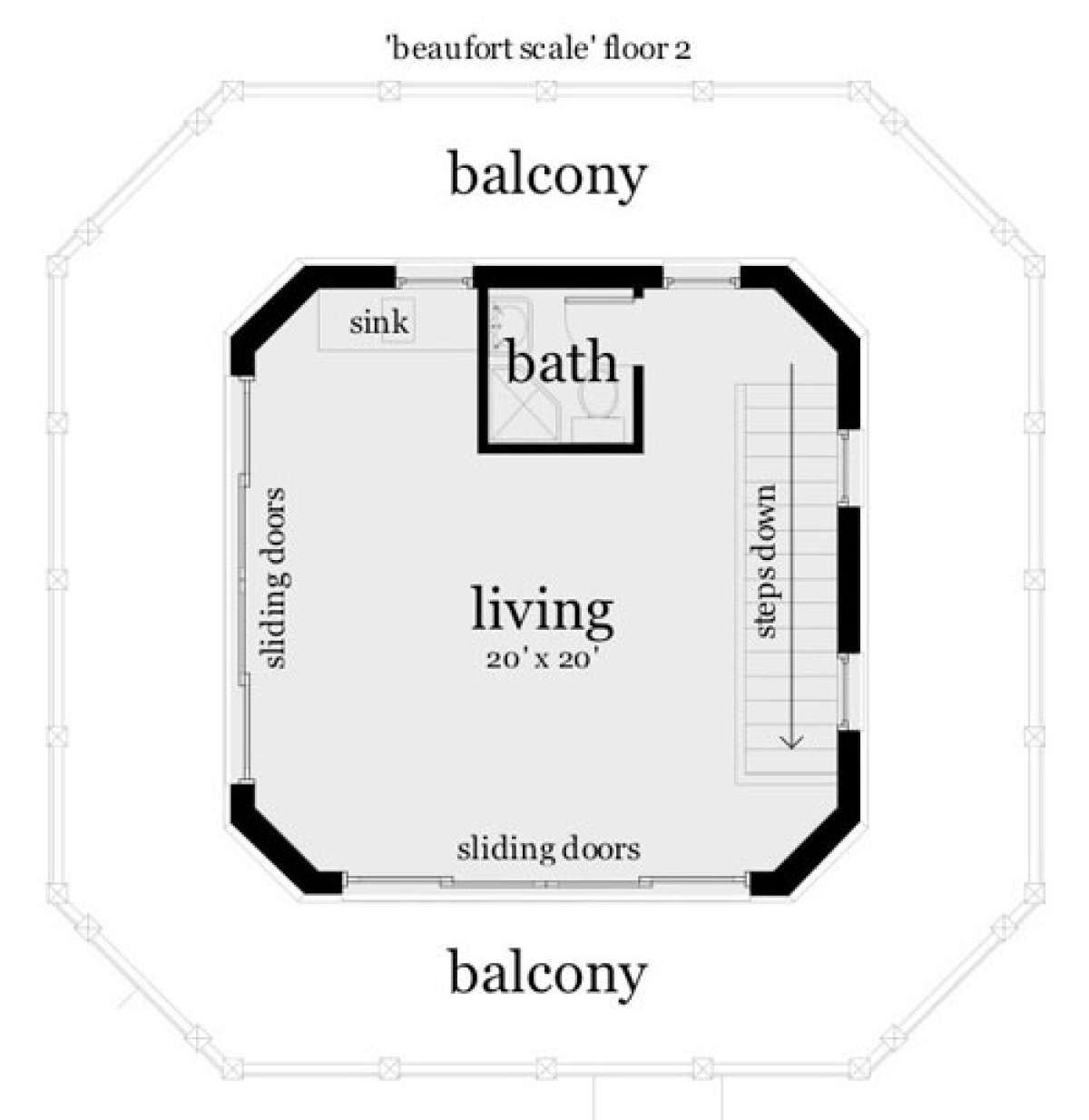

Floorplan 3
Floorplan 3 for House Plan #028-00111

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

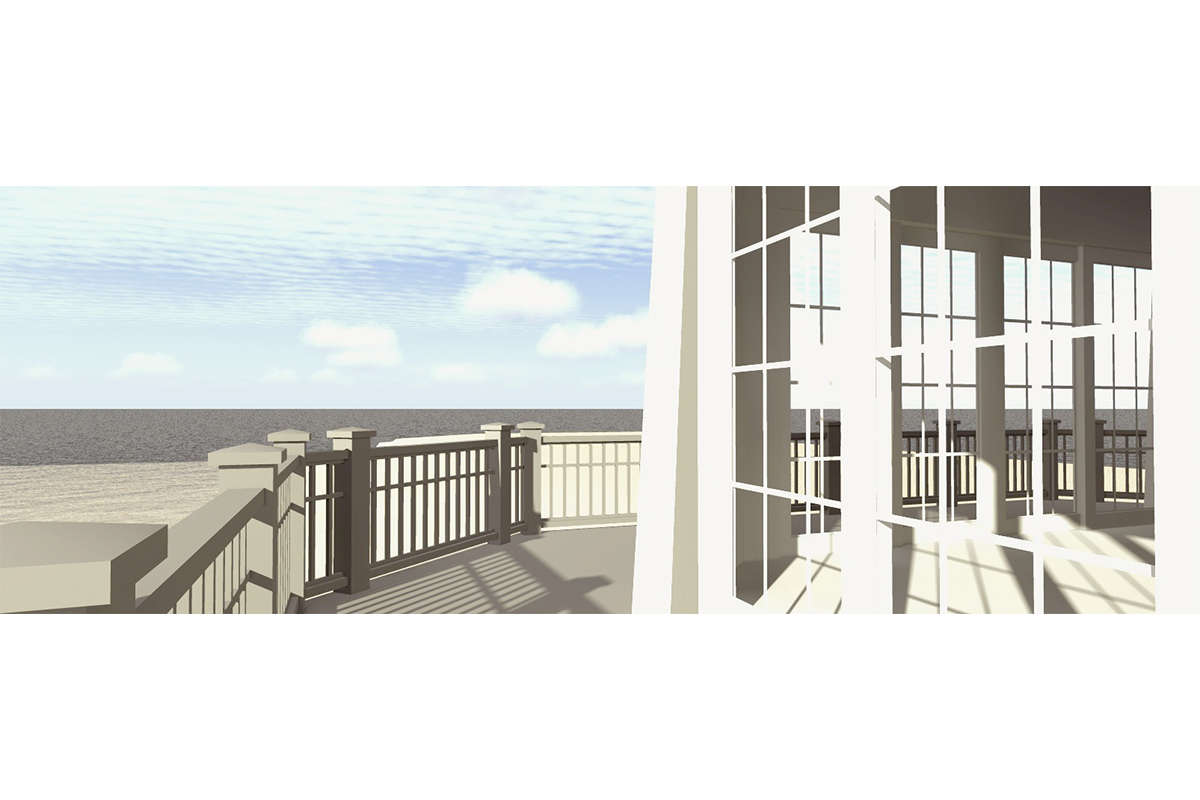

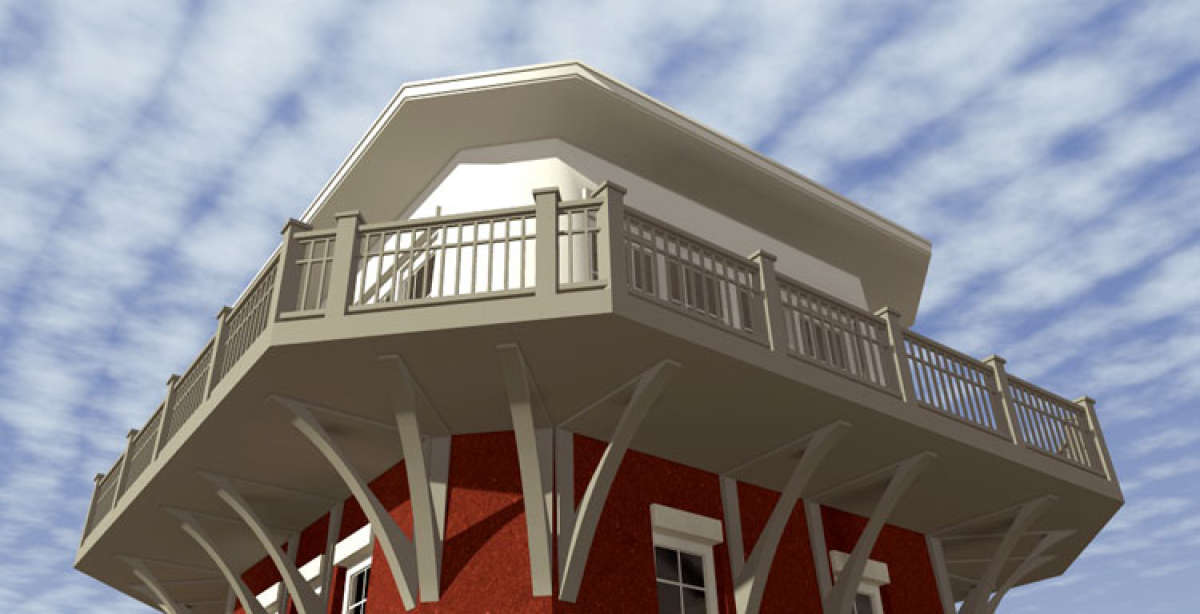

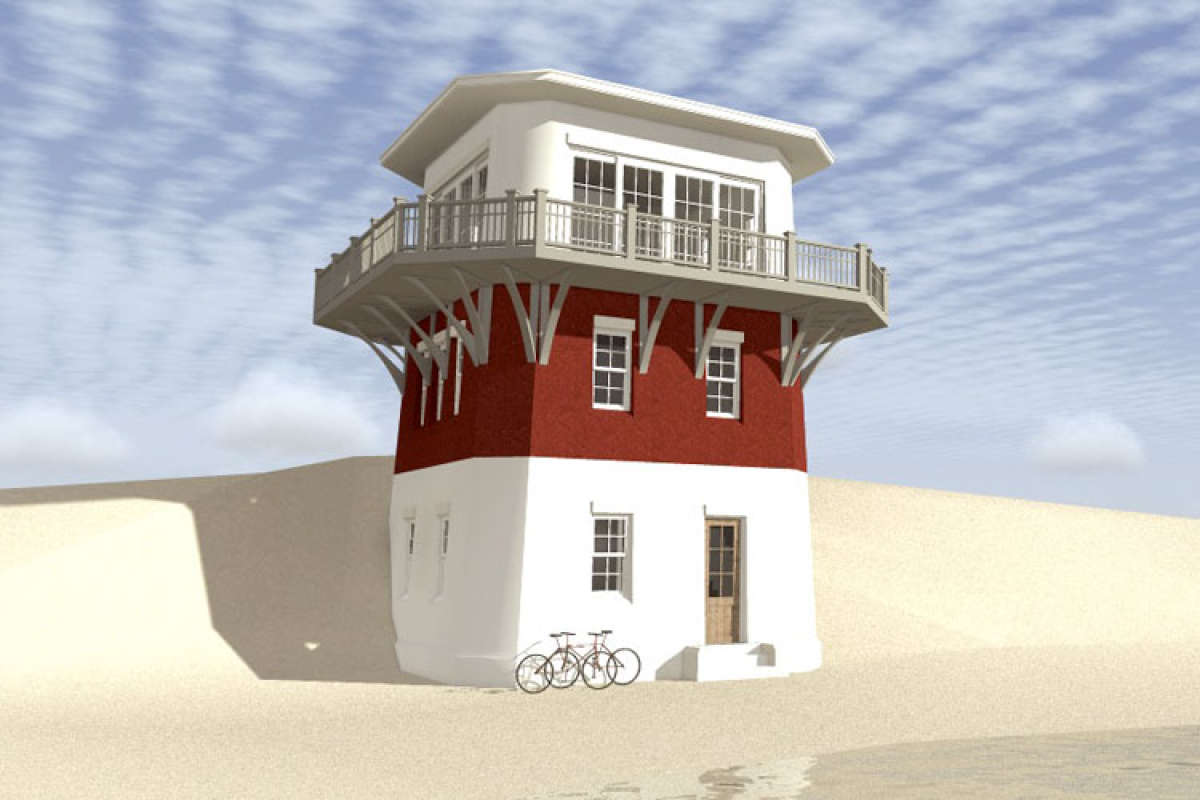

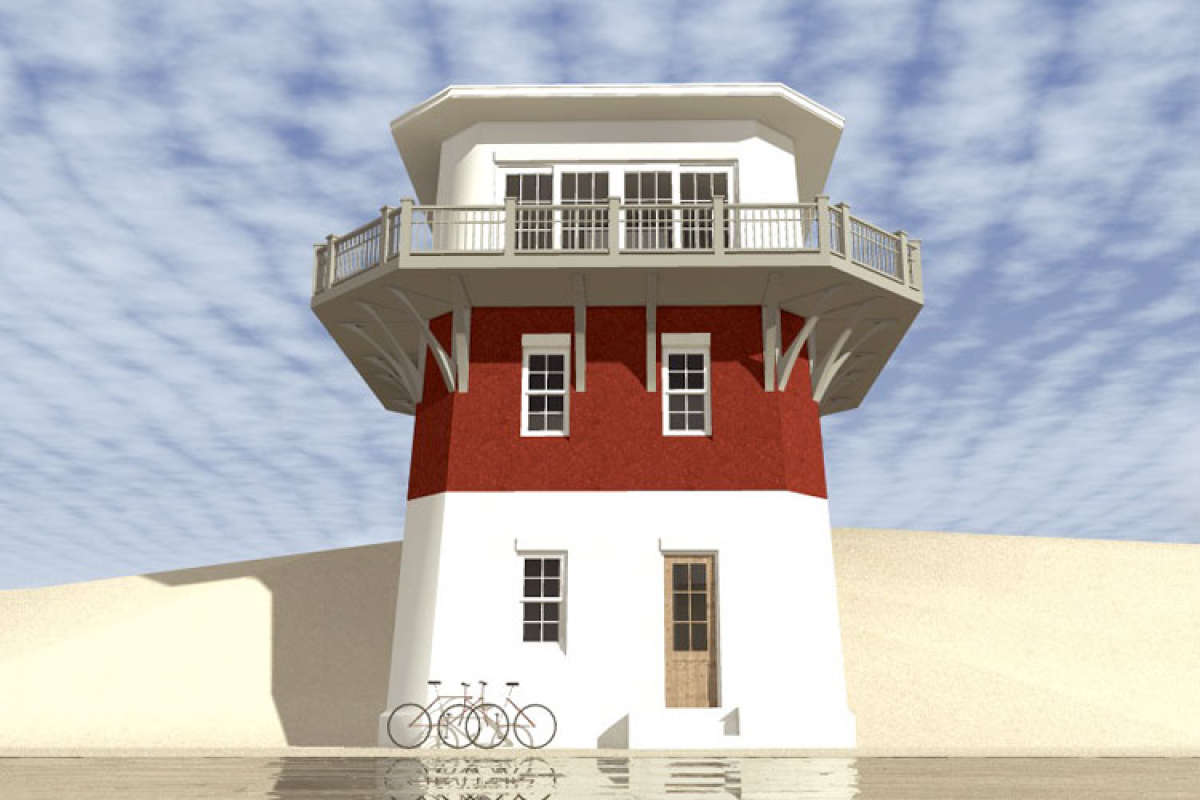

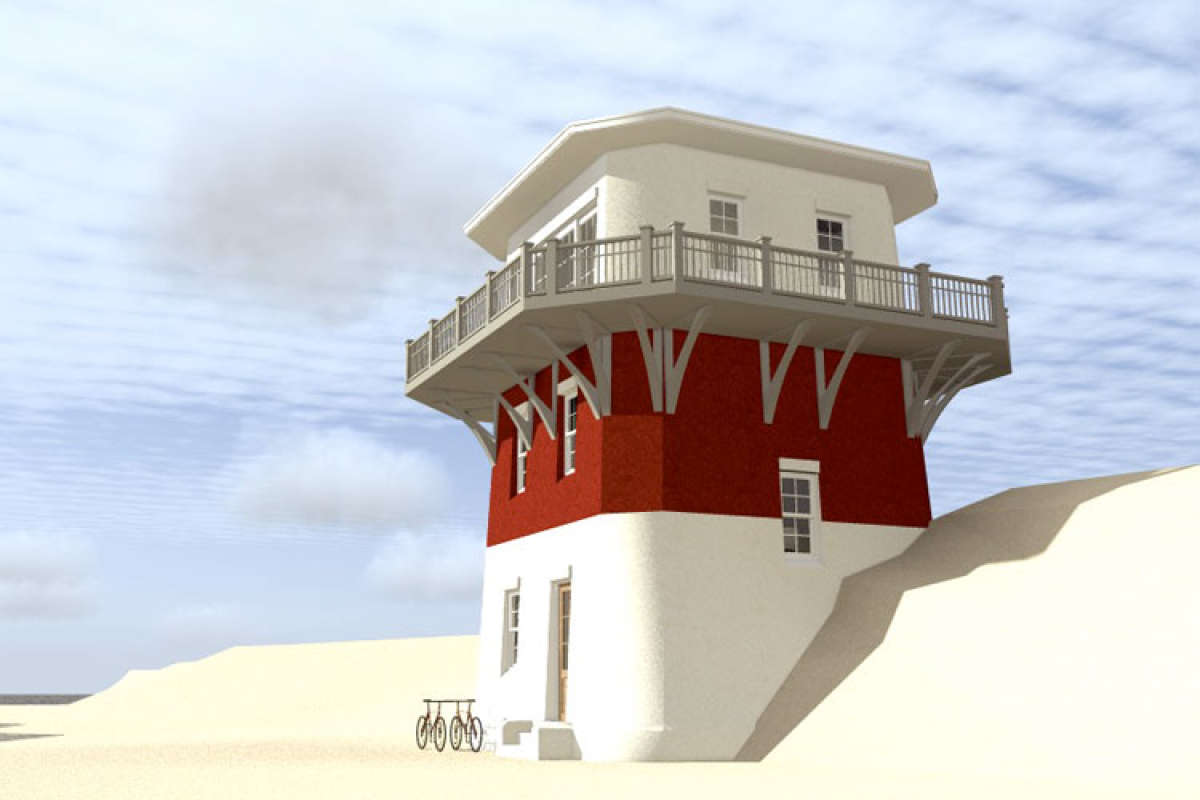

Coastal influences abound in this unique house plan which features an eclectic exterior and an abundance of interior space. The basement foundation supports this towering lighthouse structure in fashionable style and the circular deck is situated off the top floor for commanding views. In the past, lighthouses have marked dangerous coastlines and ensured safe entry into ports and harbors; however, this home functions as a beacon of safety and adventure for beach lovers and recreation buffs. Whether situated on a beach or lakefront property, this aquatic styled home appeals to the adventurous and those seeking dynamic water views. Soaring into the sky, this classically modern lighthouse is vertically voluminous and is consequently ideal for narrow lots as its 34’ width indicates. The home contains 1,517 square feet of living space encompassing three floors and houses two bedrooms and two plus baths. Entry into the home is through an extended hallway which focuses on bedroom space, there are two spacious bedrooms; each contains ample closet space and there is a shared hall bath. The staircase leads to the main dining and eating areas which are comprised of generous dining space with wonderful window views and an enormous kitchen. The gourmet kitchen features a plethora of counter and cabinet space along with an open kitchen design which enhances the spaciousness of the room and allows for limitless furniture placement. A half bath is situated on this floor, as well, for ease and convenience. The third floor of the home is designed for the owner and his/her guests’ maximum viewing pleasure. Double expansive sliding glass door appendages access the wrap around balcony and a large living space, measuring 20’x20’, supports the relaxed atmosphere of the home. An additional full bath is provided for close proximity in case the space incorporates some form of sleeping arrangement as well. This unique home is a fantastic vacation or “forever” home for the discriminating homeowner.
