Coastal House Plan 028-00110

Sq Ft2,616
1/2 Baths1
Width52' 0"
Depth68' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #028-00110
Second Floor for House Plan #028-00110

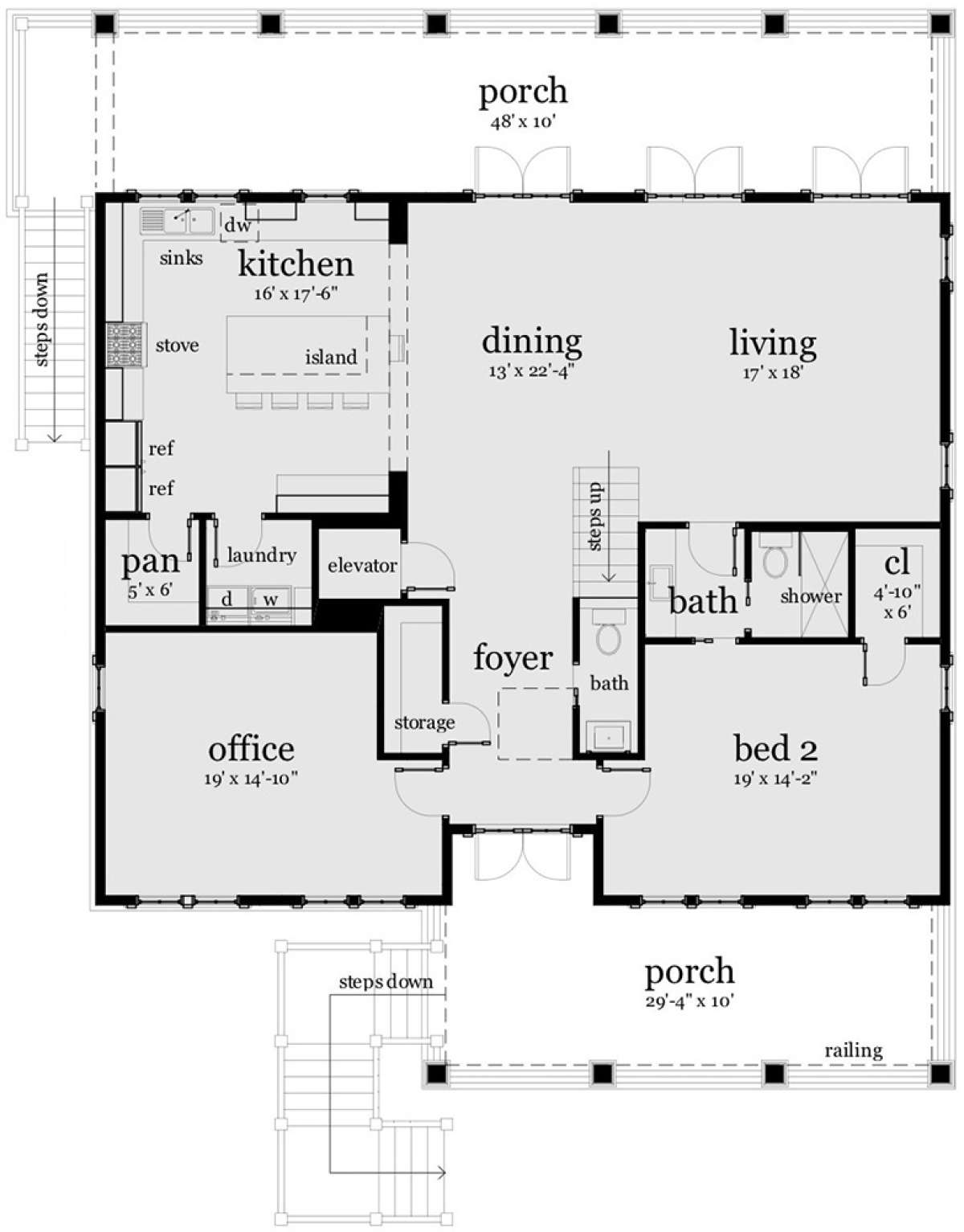

Main Floor
Main Floor for House Plan #028-00110

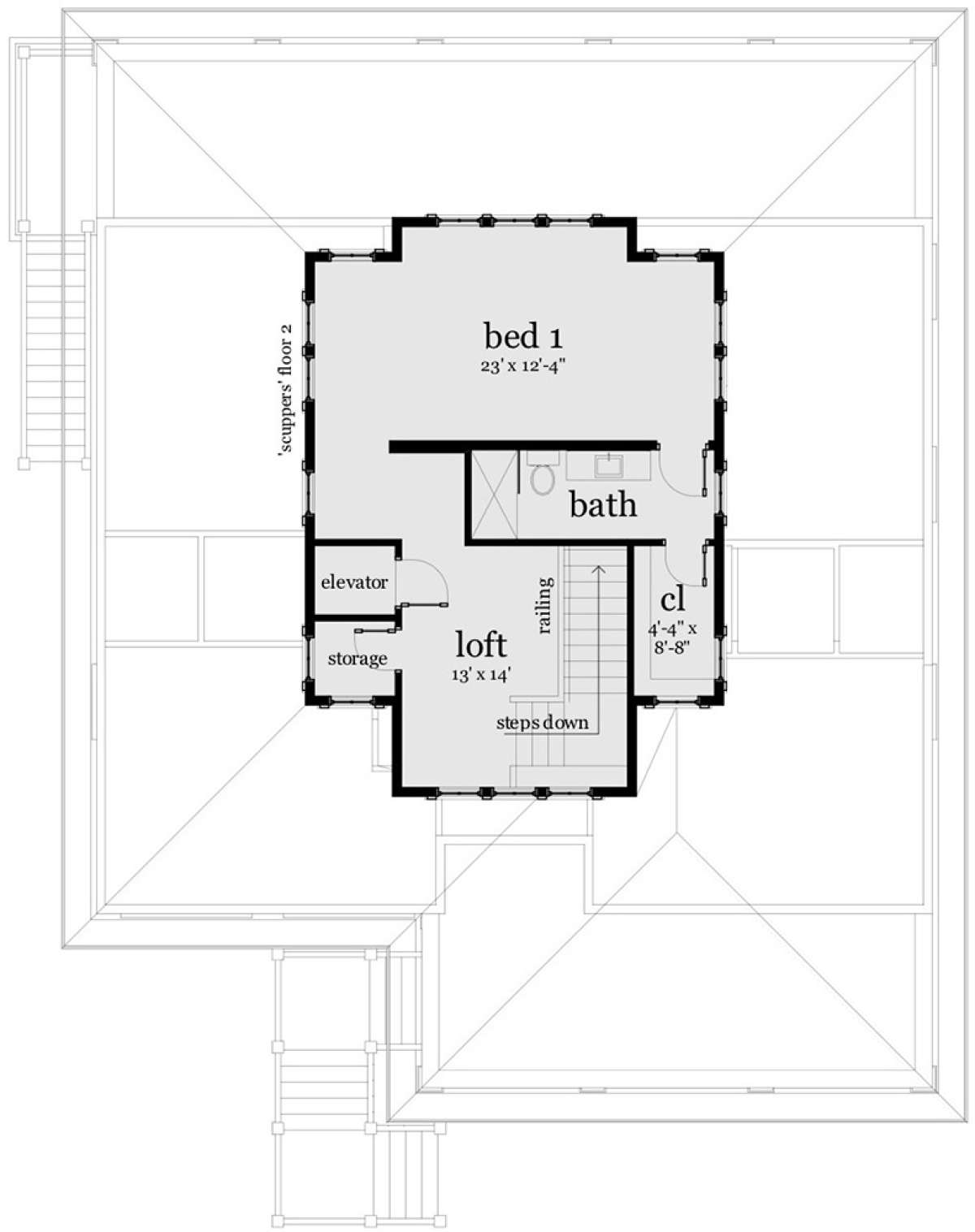

Second Floor
Second Floor for House Plan #028-00110

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Coastal house plan exemplifies superior standards assigned to living a passionate life on the water. Gracious comforts of home blend with casual elegance to create a relaxed atmosphere in which to experience life in serene surroundings. This home captures your imagination with an exciting exterior comprised of cedar shakes, double porches and staircases and decorative railing. The interior floor plan features in excess of 2,600 square feet of living space comprised of two bedrooms and two plus bathrooms. The front covered porch provides French door entrance into the foyer and extends into the living and dining spaces. Both spaces are large and comfortable with impressive views and triple French door access onto the rear covered porch. The gourmet kitchen features a large center island with an abundance of seating options. Double refrigerator space, plenty of additional counter and cabinet space and a walk-in pantry are also available in the kitchen. The foyer is flanked by a private home office; it is a large space ideal for working from home and entertaining clients. The other side of the foyer leads to a bedroom suite. The suite features a spacious bedroom with wonderful window views, a walk-in closet and private bath access. There is a powder room for guests along with additional storage, a family utility room and residential elevator situated on the main floor.
The top floor tower is exclusively designed as the owner’s suite. Commanding views surround the suite and remain for the homeowner’s enjoyment and pleasure. An enormous open bedroom measures in excess of 23’x12’; there is an attached master bath with shower and a walk-in closet. The adjoining loft is situated on the second floor landing and provides additional space in which to relax and enjoy the views. This house design is ideal for a small family or couple who enjoys stylish coastal living with modern amenities and outstanding outdoor space.
