Modern Plan 028-00104

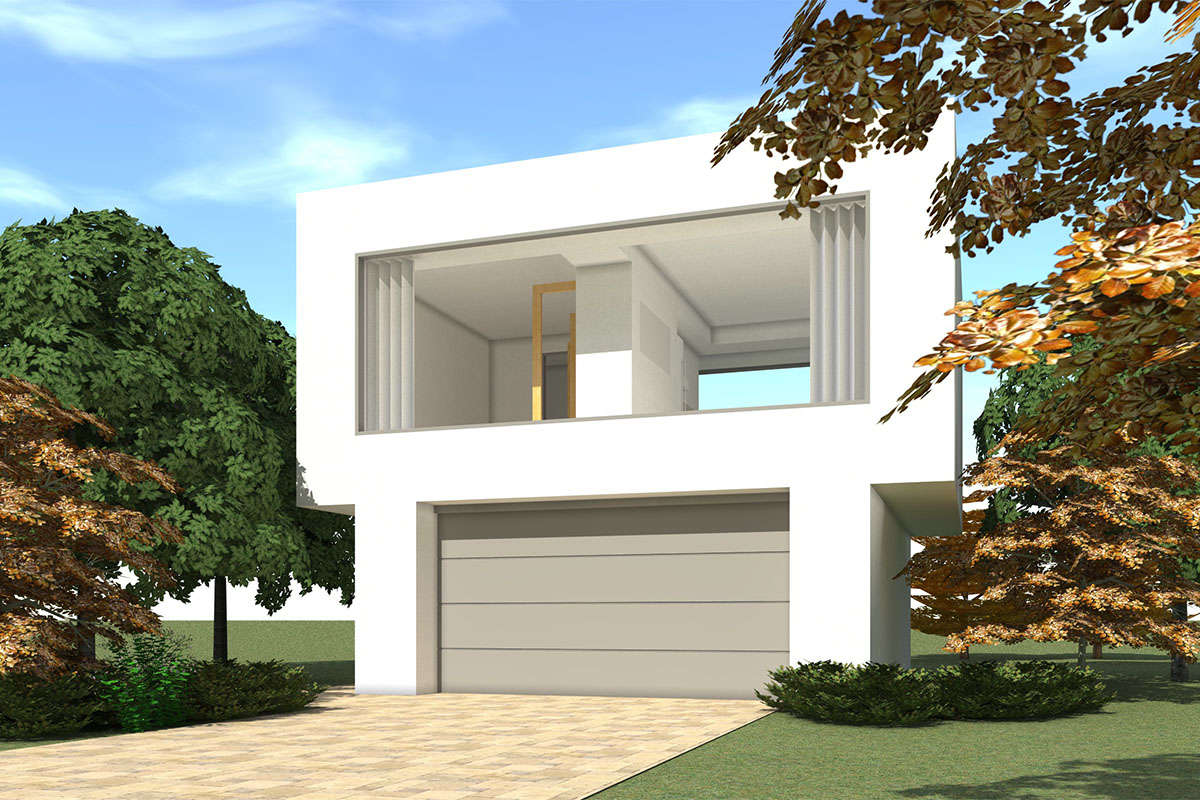

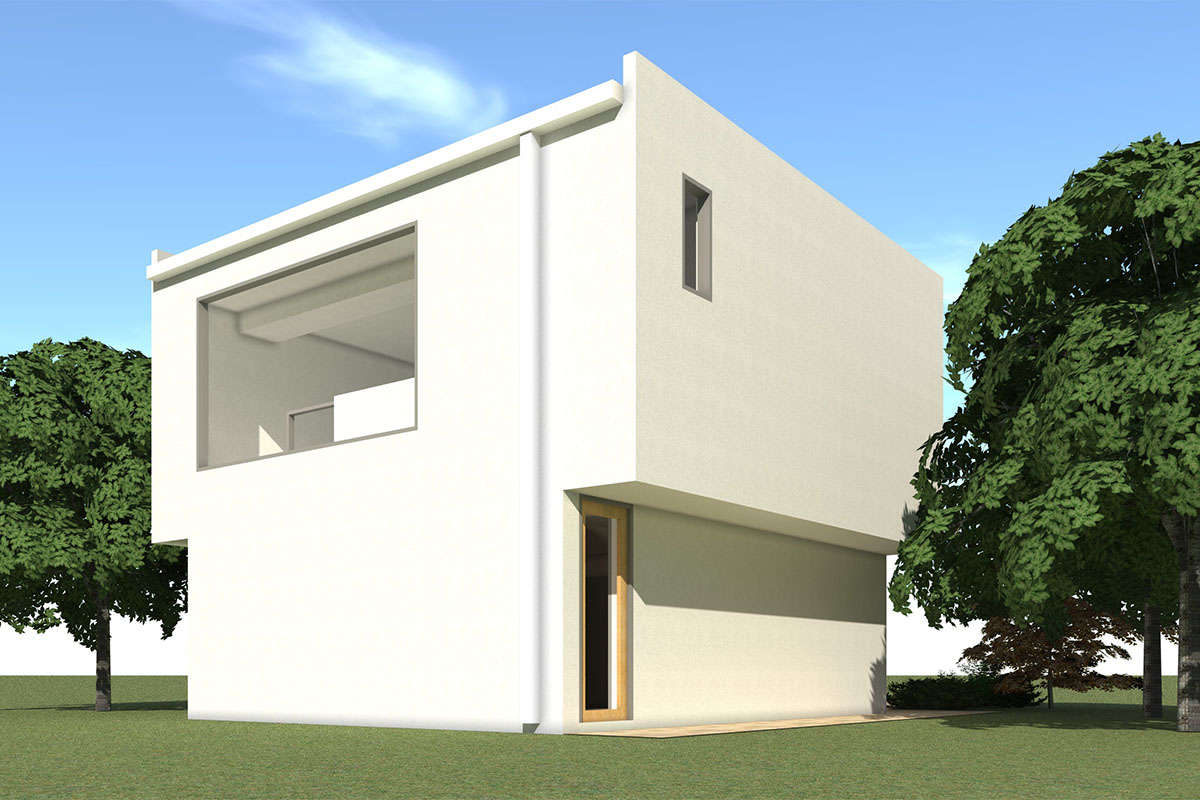

Modern House Plan #028-00104 Elevation Photo
Modern House Plan #028-00104 Elevation Photo
Main Floor for House Plan #028-00104
Garage for House Plan #028-00104
Modern House Plan #028-00104 Elevation Photo
Modern House Plan #028-00104 Elevation Photo
Main Floor for House Plan #028-00104
Garage for House Plan #028-00104

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 784
Beds 1
Bath 1
1/2 Baths 0
Car 2
Stories 2
Width 28'
Depth 28'

Floorplan Drawings

 PRINT  DOWNLOAD
Main Floor for House Plan #028-00104
Garage for House Plan #028-00104

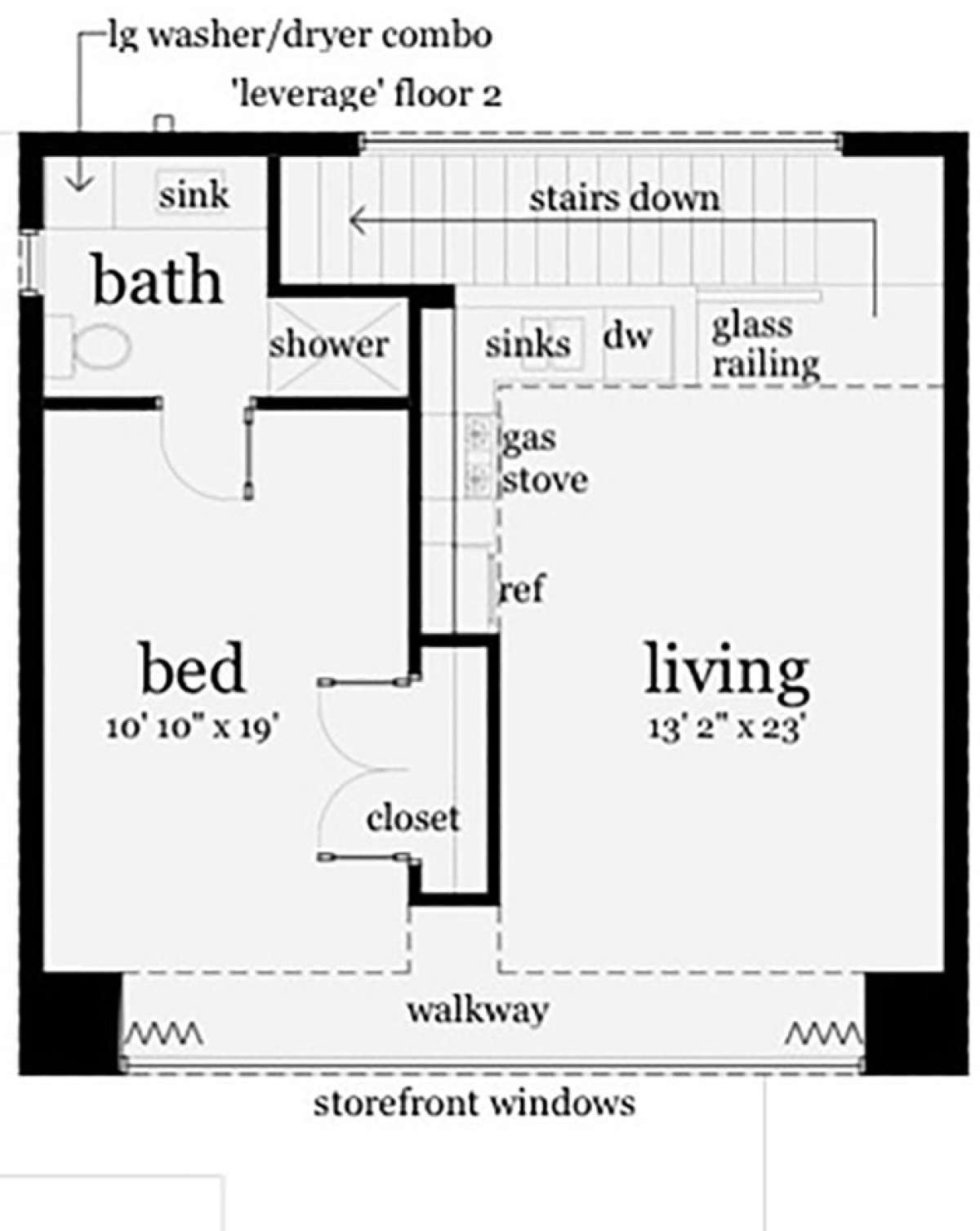

Main Floor
Main Floor for House Plan #028-00104

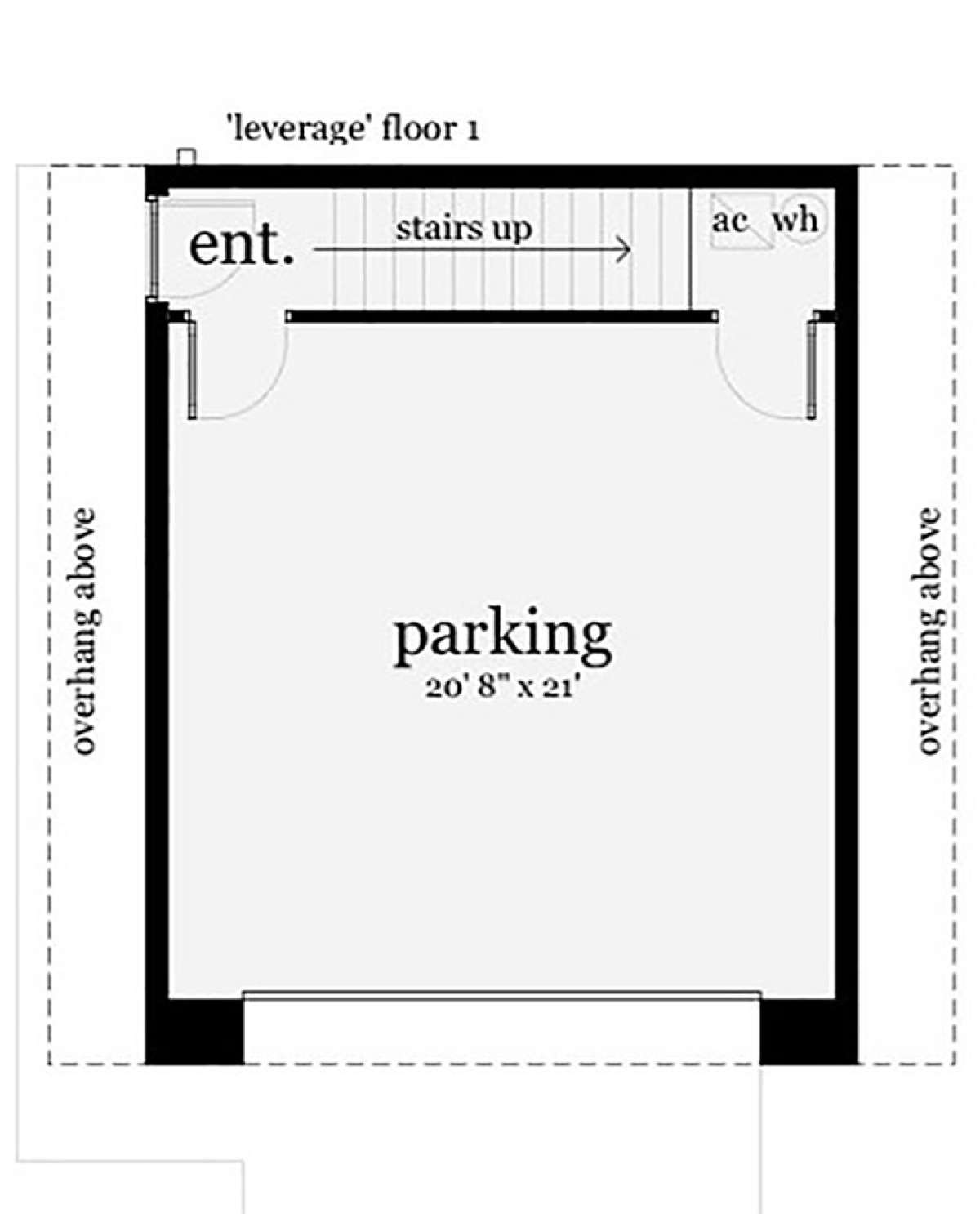

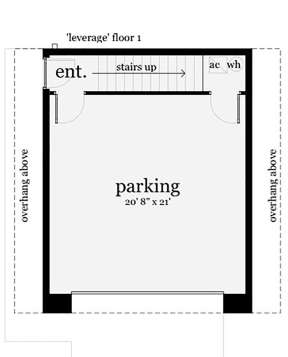

Garage
Garage for House Plan #028-00104
Images copyrighted by the designer.


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This modern house plan is a superior example of form and function merging in an exemplary fashion. Ideal for a narrow lot, the home’s width is measured at 28’; yet, a spacious interior and two car garage is offered in the house plan. The combined space features approximately 784 square feet of heated space and the garage is in excess of 583 square feet. The drive under garage features an interior access point into the home and there is an exterior access point as well. As you ascend the staircase to the main living quarters, you come upon the kitchen and dining areas. This area features glass railing and the rear and side walls contain cabinet, counter and appliance space. The adjacent living room is quite spacious with fantastic storefront window views. A barrier wall separates the living and sleeping areas; the bedroom is large and contains ample closet space along with a rear private bath. The bath features a sink vanity, toilet area, a large shower and there is enough space for a stackable washer and dryer, as well. This modern home features a bold exterior façade and an interior floor plan suitable for a couple, whether as a forever or vacation home.
