Modern House Plan 028-00083

Sq Ft3,820
Beds5
Baths3
1/2 Baths1
Stories2
Cars2
Width44' 0"
Depth78' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #028-00083
Floorplan 2 for House Plan #028-00083
Floorplan 3 for House Plan #028-00083
Floorplan 1
Floorplan 1 for House Plan #028-00083
Floorplan 2
Floorplan 2 for House Plan #028-00083
Floorplan 3
Floorplan 3 for House Plan #028-00083


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

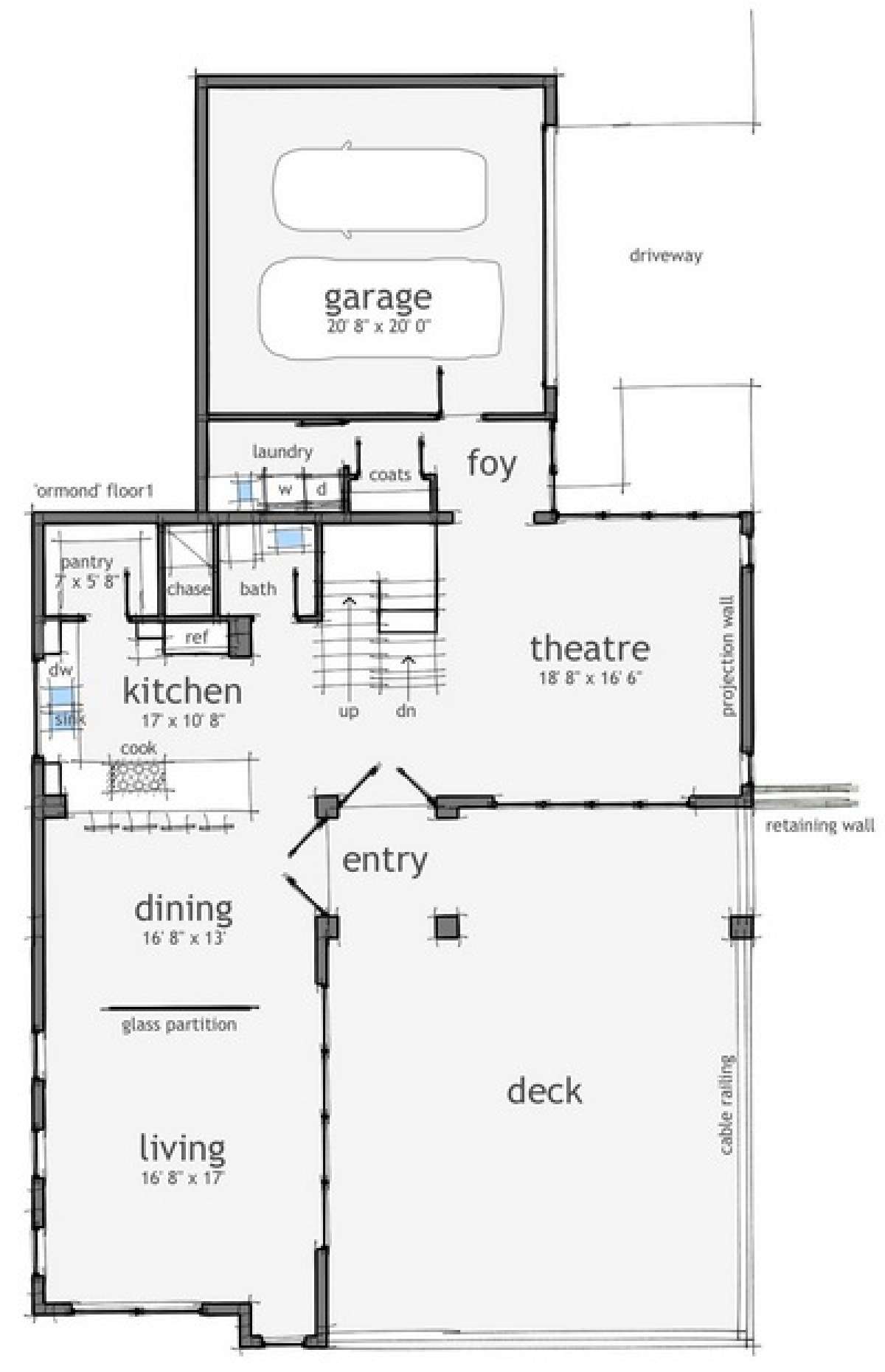

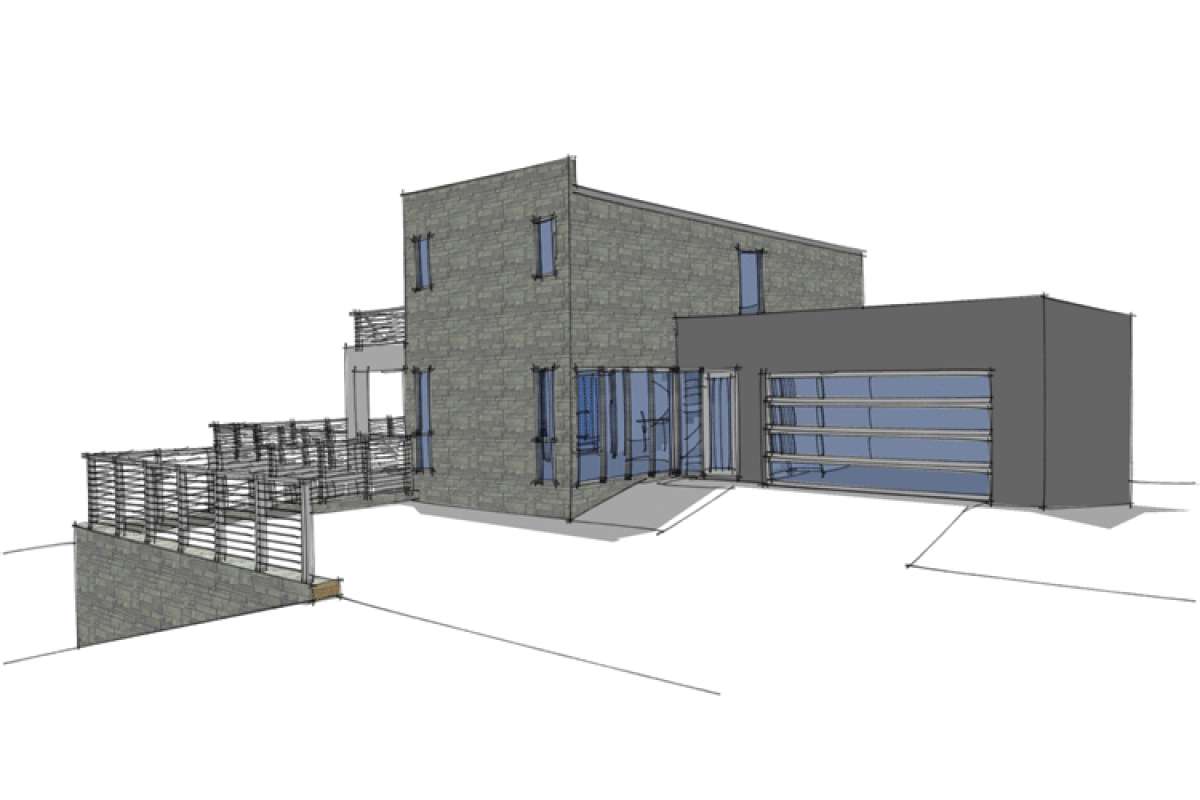

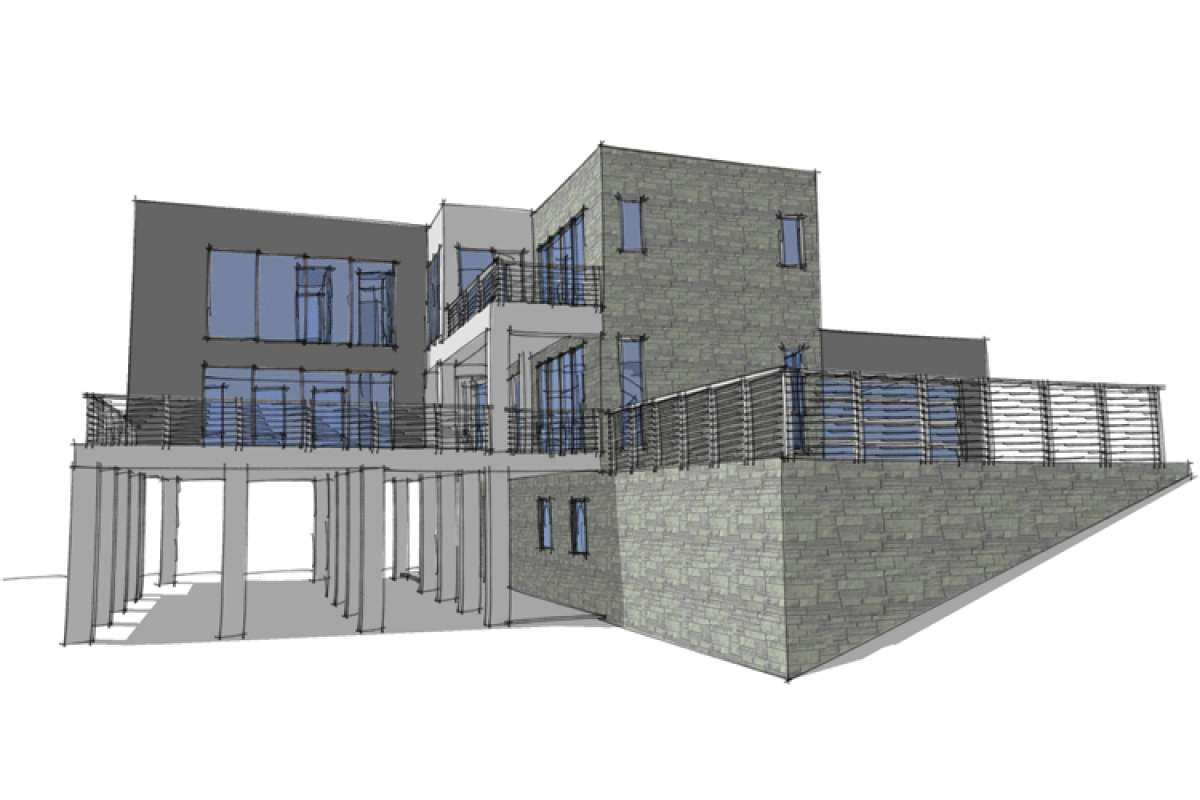

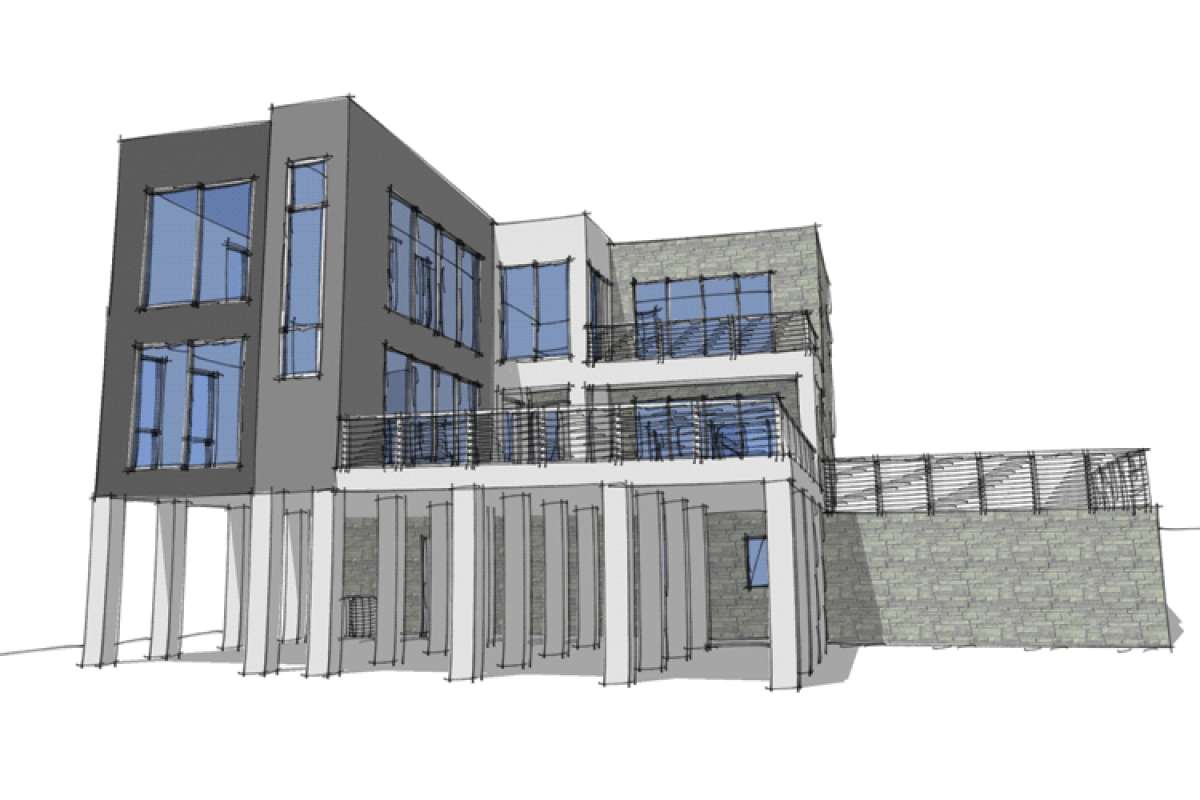

This modern house plan features linking architectural elements such as glass inserts, a brick and piling foundation along with cable railing to beautifully blend the exterior fa├žade of the home together. Enormous ceiling to floor glass inserts, an open concept design and soaring ceiling heights infuse the home with light and spaciousness. There are in excess of 3,800 square feet of living space in the home occupying three floors and incorporating five bedrooms and three plus bathrooms. The rear courtyard garage entrance prevents distracting sight lines and adds an additional 455 square feet to the expansive home. The common living spaces feature open living and dining rooms separated by a glass partition wall; these spaces along with a theatre room envelop the outdoor space which boasts of an enormous deck with cable railing. The gourmet kitchen features a breakfast bar which opens onto the dining room, a walk-in pantry and plenty of additional counter and cabinet space. A powder room for guests, coat closet and the large utility room complete the main living floor of the home.

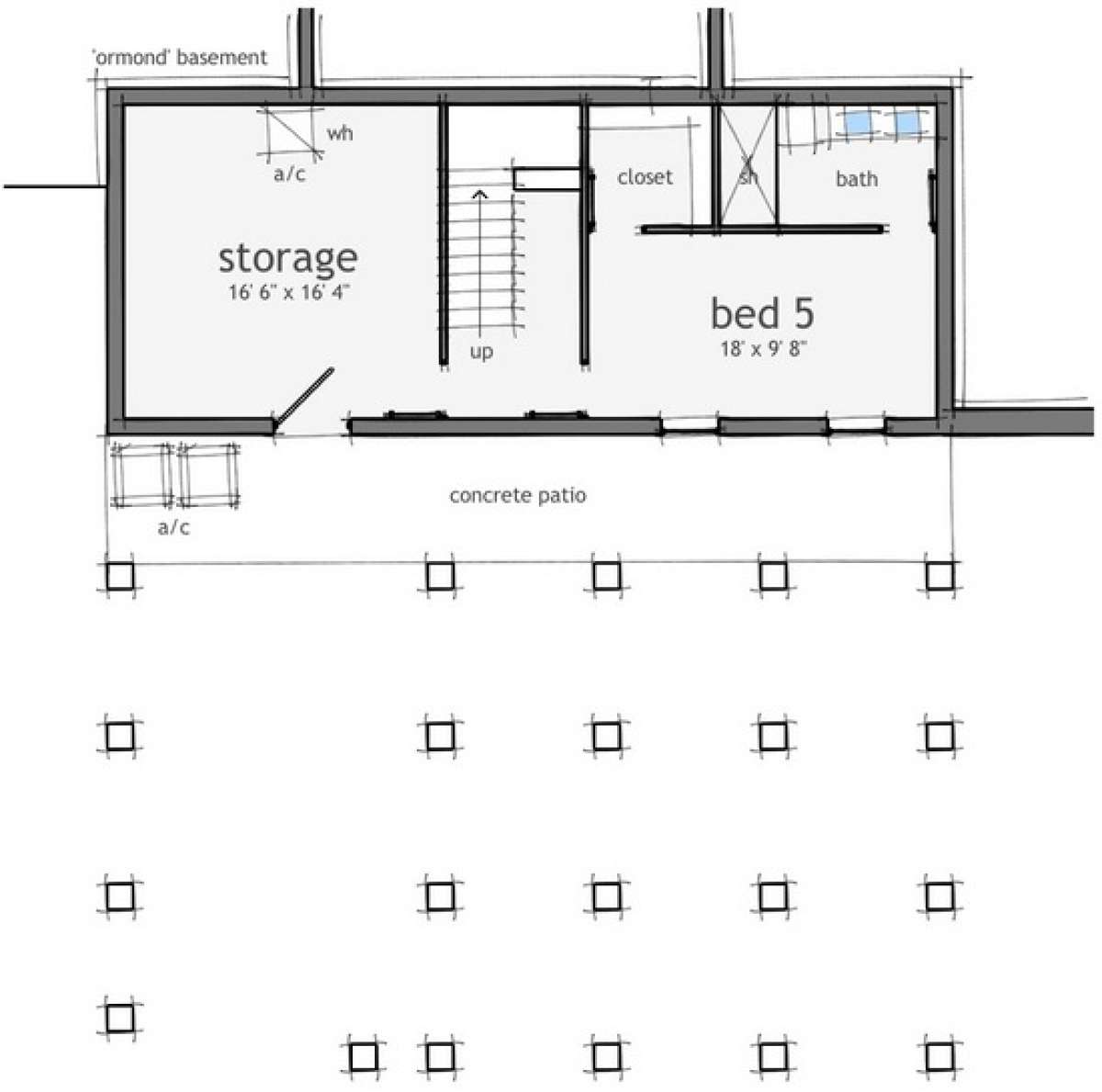

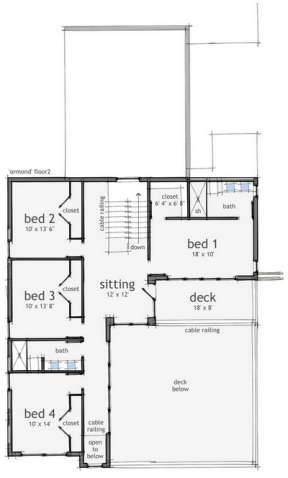

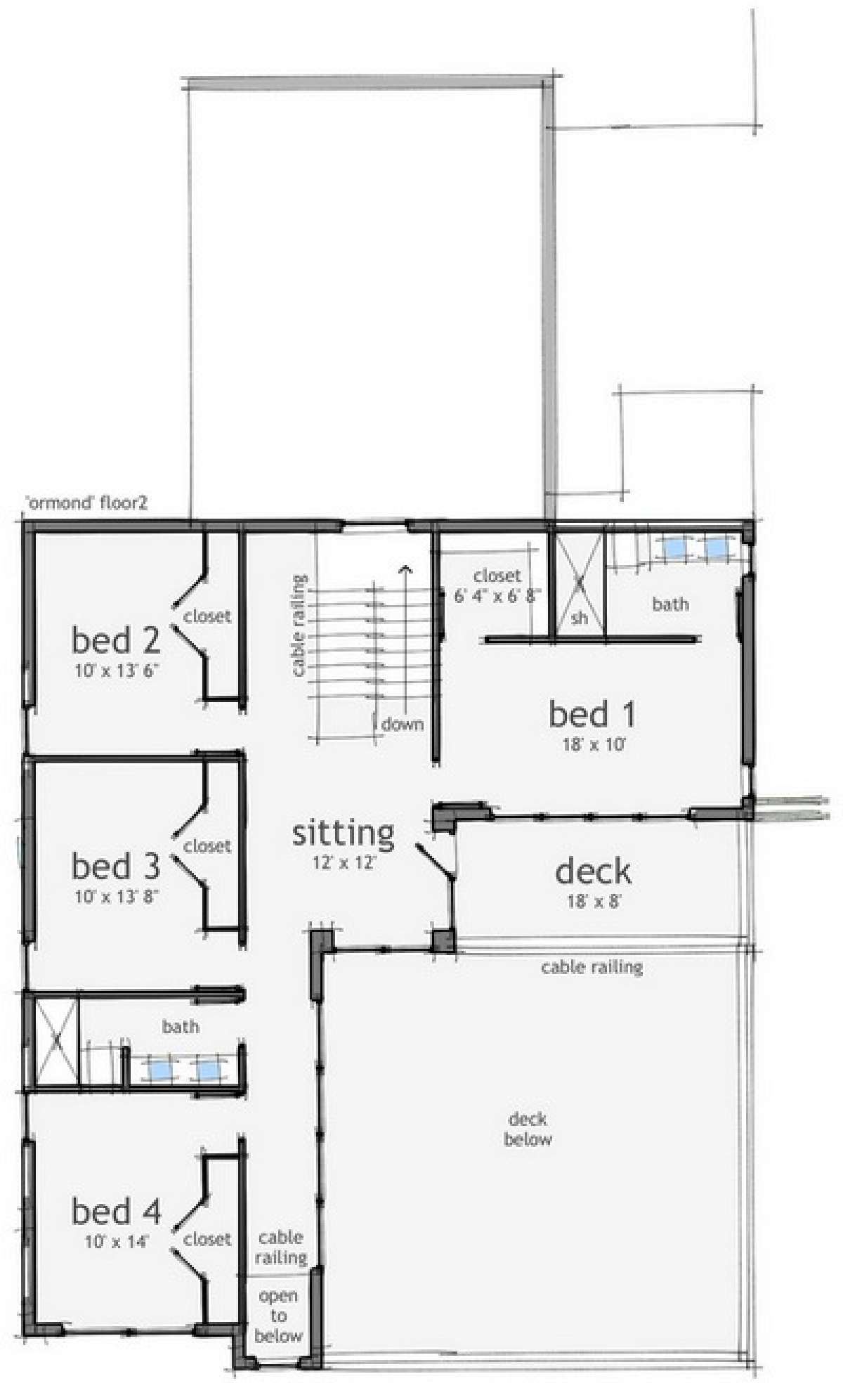

The terrace level of the home features enormous storage space, access to the patio and the fifth bedroom which boasts of a large space with an open closet and private bath with double sinks, a shower and a private toilet area. The second floor of the home is highlighted by a central sitting area where deck access is available. This smaller second floor deck overlooks the lower deck below and features cable railing. Three spacious family styled bedrooms boasts of ample closet space and there is a shared hall bath with double sinks. The master suite features a large bedroom with private access to the outdoor deck. An oversized walk-in master closet is featured along with an elegant master bath. The bath is highlighted by dual vanities, a shower and a private toilet area. This modern home features architectural and structural design elements designed for visual interest while incorporating a comfortable and versatile interior floor plan.
