Craftsman House Plan 028-00080

Sq Ft1,586
1/2 Baths0
Width25' 0"
Depth49' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #028-00080
Floorplan 2 for House Plan #028-00080

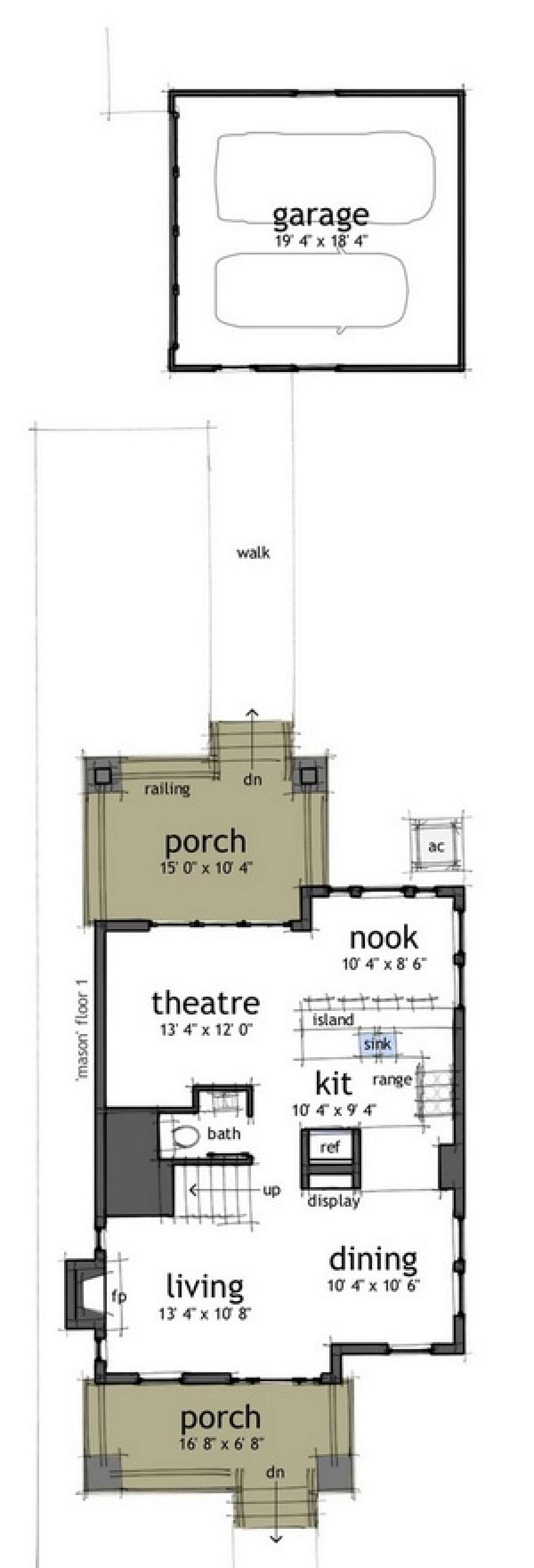

Floorplan 1
Floorplan 1 for House Plan #028-00080

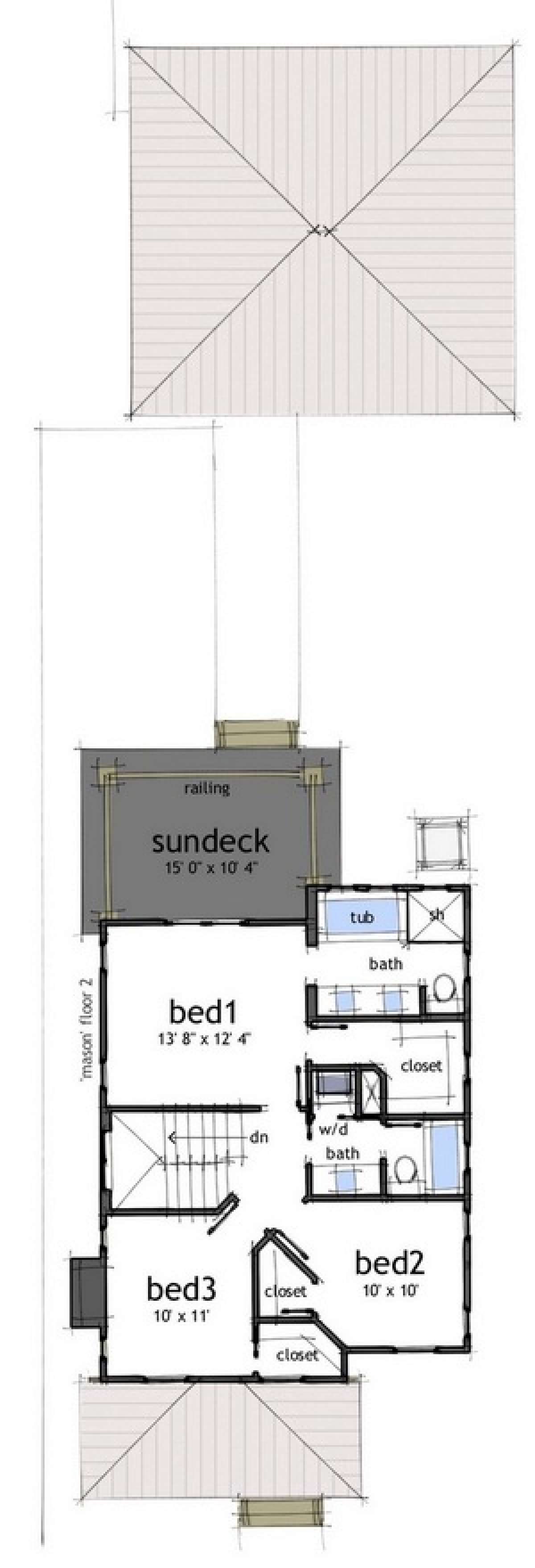

Floorplan 2
Floorplan 2 for House Plan #028-00080

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

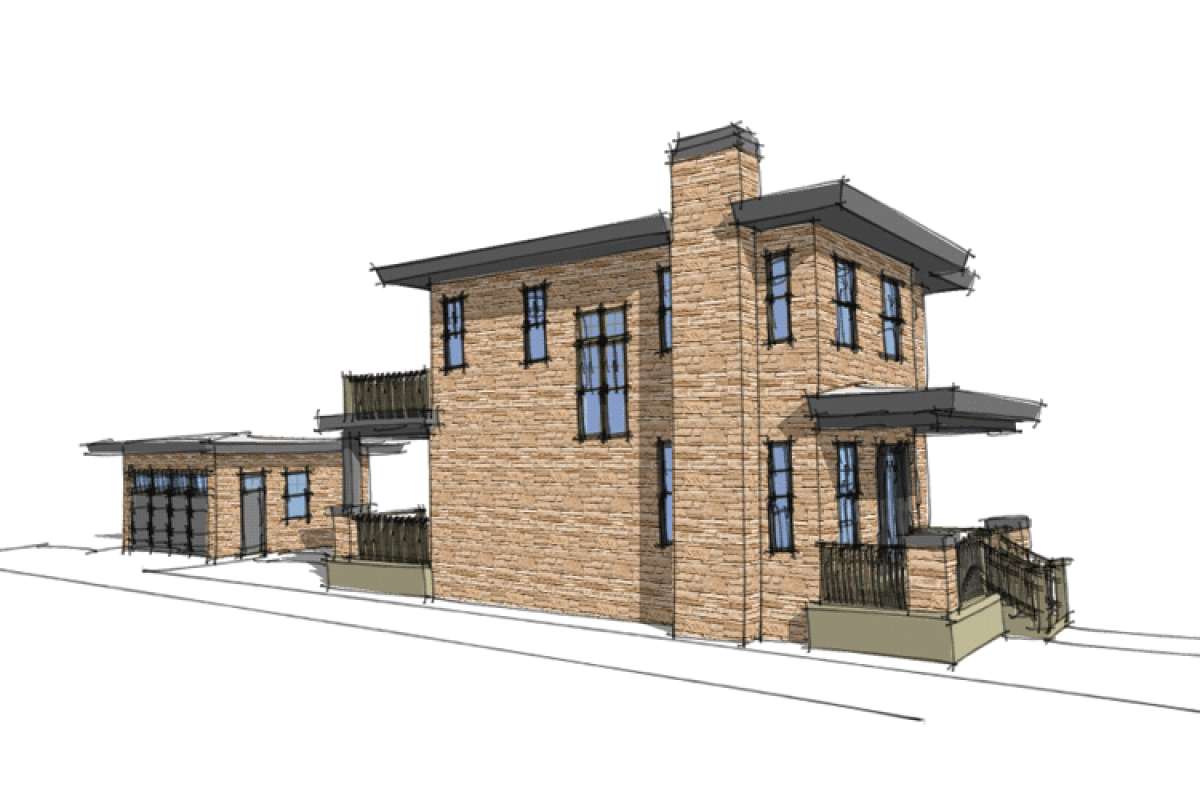

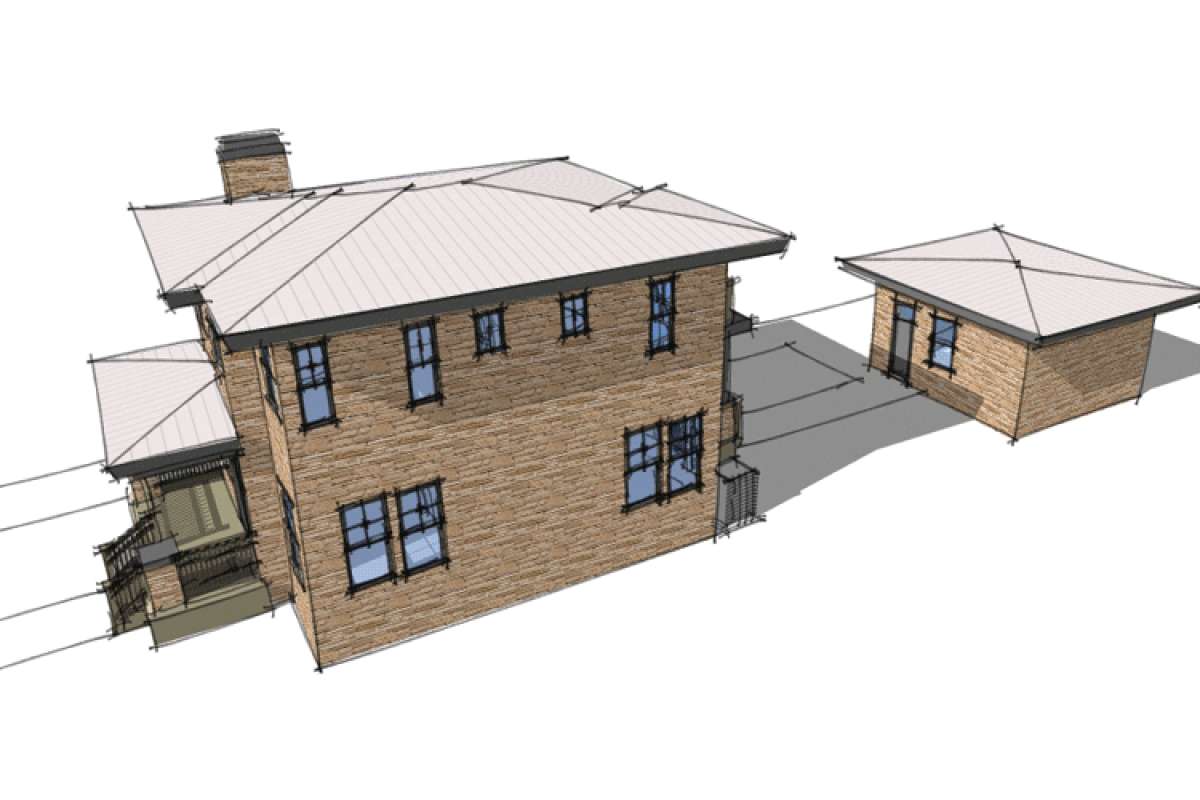

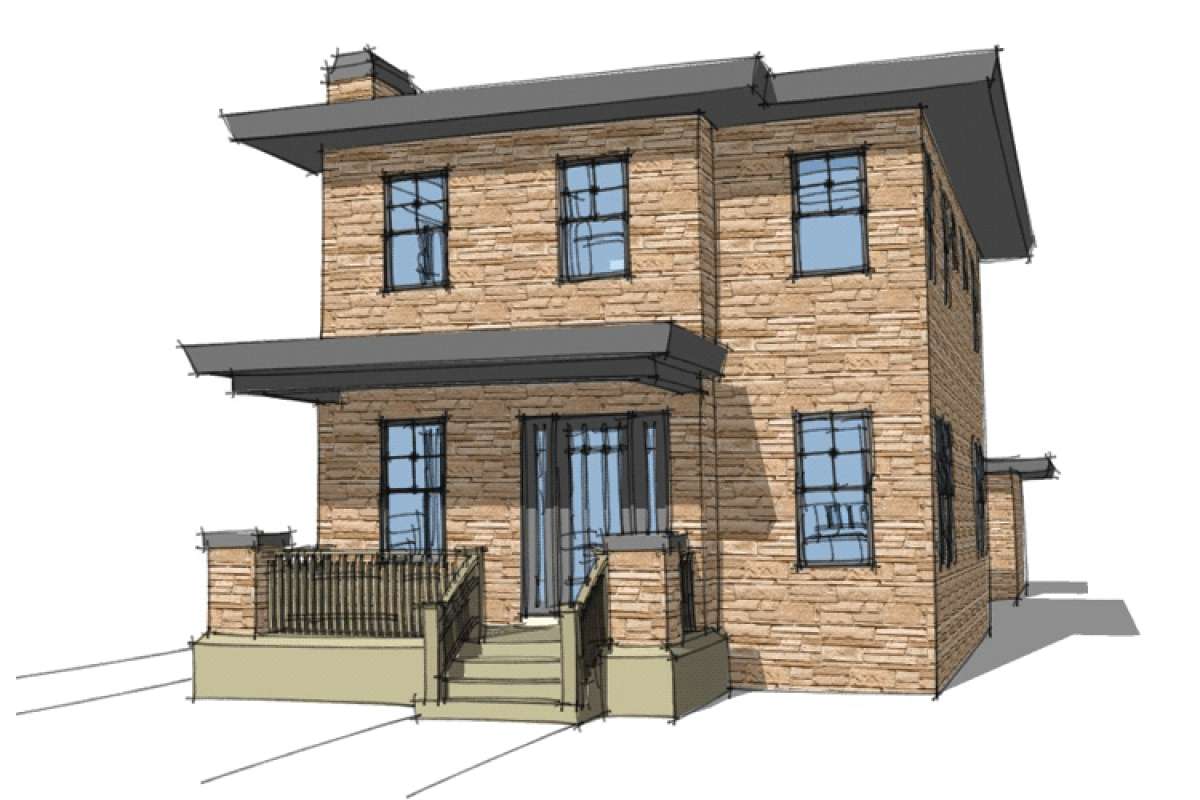

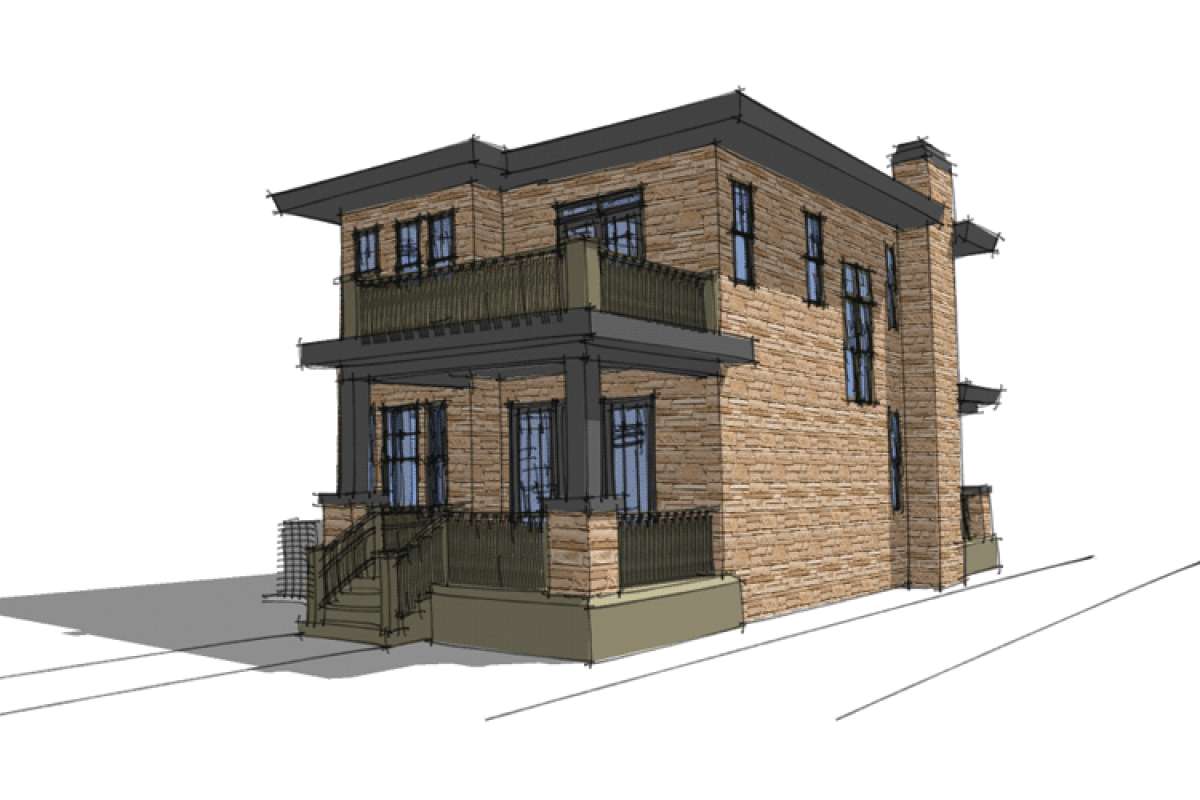

This spacious home combines old world charm and a modern interior floor plan. The stylish brick exterior features three covered porches, an outdoor chimney feature and a detached two car garage. The 25’ width of the home makes it ideally suited for a narrow lot while still maintaining the character and charm of the home. There are approximately 1,580 square feet of living space in the home which contains three bedrooms and two plus bathrooms. The front covered porch leads to the family living space which features a fireplace and is open to the formal dining room which contains a display niche. The family friendly kitchen boasts of a breakfast bar off the kitchen island, plenty of additional counter and cabinet space and opens onto the casual breakfast nook which is bright and airy. The media/theatre room is situated at the back of the home, is a large space and provides family entertaining and relaxing space. There is a back covered porch accessible from the media room and the rear of the home features family friendly design elements and outstanding entertaining space. There is a powder room for guests and a staircase leading to the second story landing.
Three family styled bedrooms and the laundry nook are situated upstairs. Bedrooms two and three are spacious with ample closet space; share a hall bathroom and the third bedroom features a handsome fireplace. The master suite is situated the rear of the home for privacy and features a large bedroom with an oversized walk-in master closet. There is private access to the second floor sundeck which is spacious and features decorative railing. The master bath is elegantly designed and is highlighted by dual vanities, a separate shower, tub and a private toilet area. This brick home features outstanding outdoor space and a fully functional interior floor plan.
