Southwest House Plan 028-00071

Sq Ft2,271
1/2 Baths1
Width44' 0"
Depth64' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #028-00071
Floorplan 2 for House Plan #028-00071

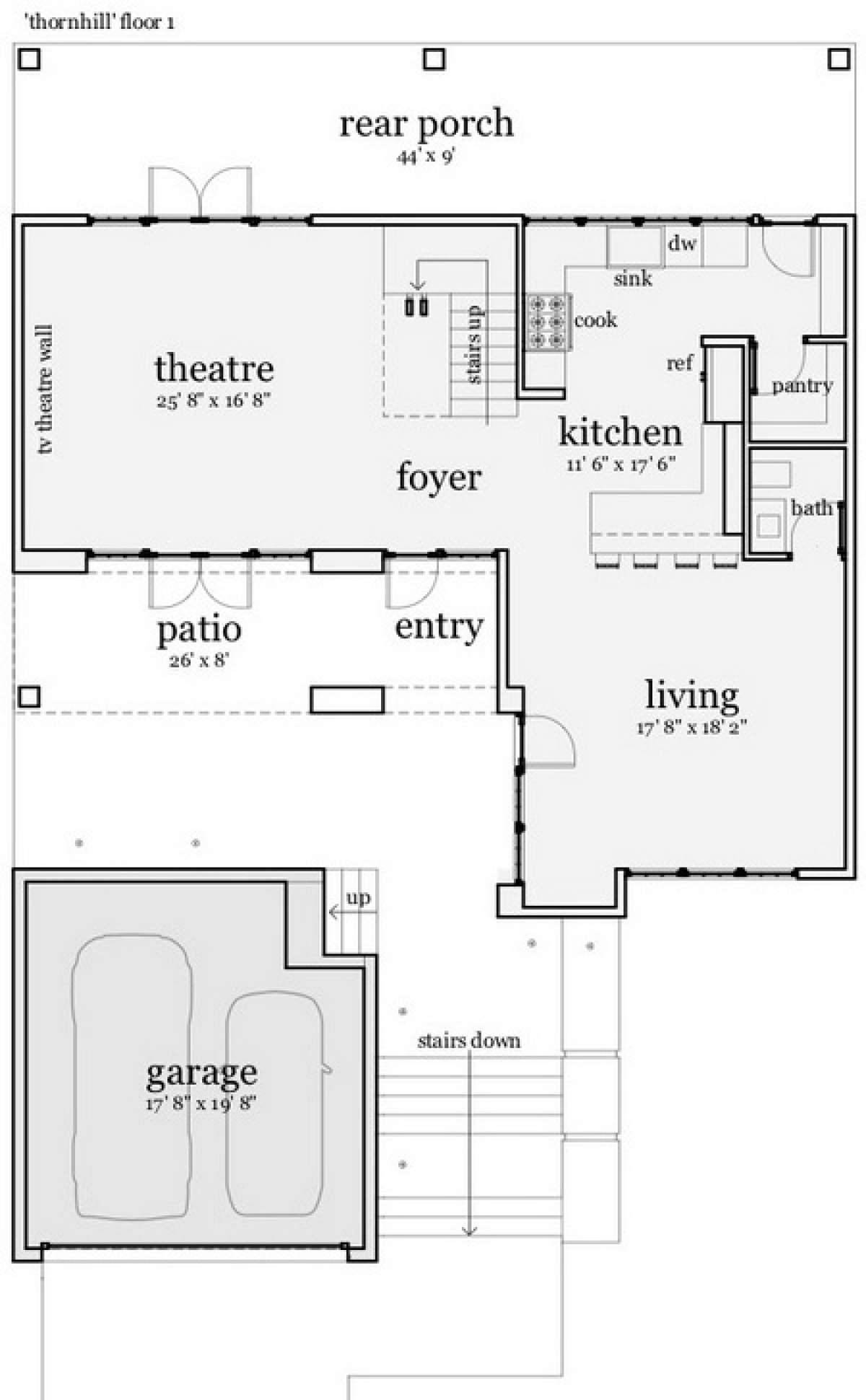

Floorplan 1
Floorplan 1 for House Plan #028-00071

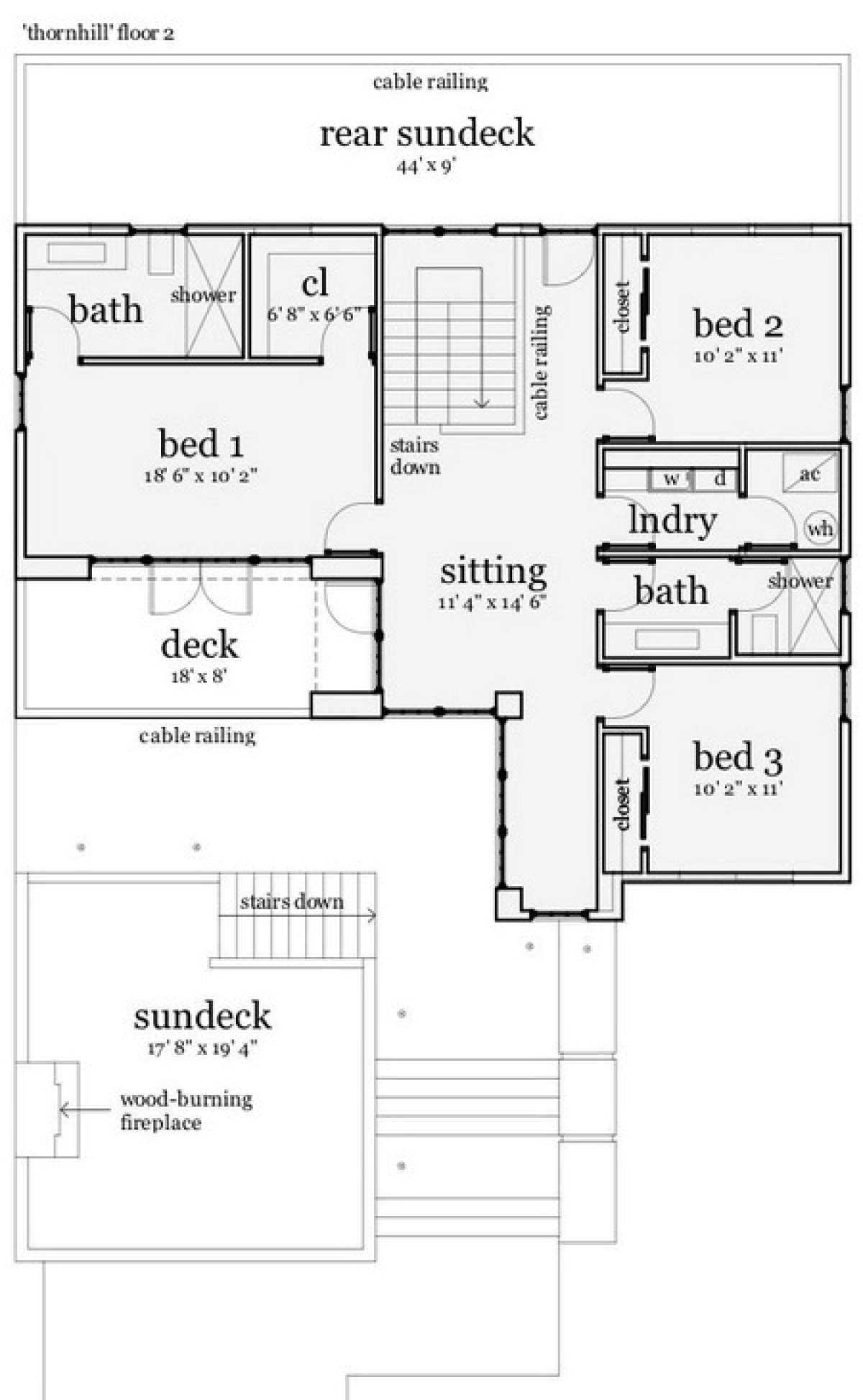

Floorplan 2
Floorplan 2 for House Plan #028-00071

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

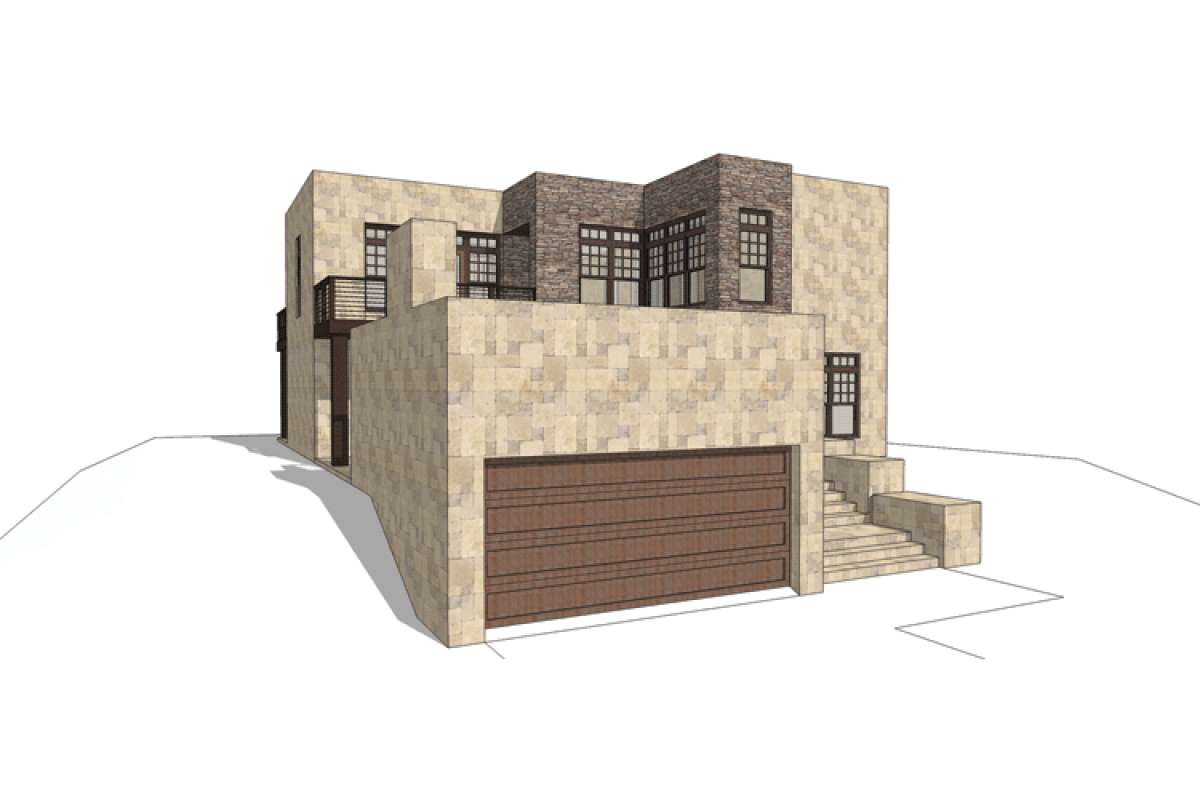

Private and plentiful outdoor space, a contemporary floor plan and a dynamic exterior façade combine to create this modern house design. This Southwestern house plan is reminiscent of an adobe styled home with a durable, boxy exterior, functional roof space and load bearing walls which offer significant thermal advantages. The front and center 390 square foot garage does double duty as the roof contains a spacious sun deck with a wood burning fireplace and an exterior staircase provides access. The main exterior staircase is adjacent to the garage and opens onto a private patio with multiple access points into the home. The open concept floor plan features a large living space with an abundance of window views and is open to the gourmet kitchen. The kitchen space is, once again, quite large and features an oversized breakfast bar, an abundance of additional counter and cabinet space, a separate walk-in pantry and rear patio access. The foyer has a separate entrance point, is spacious and houses the second story staircase. The family media room has French door access to the front patio, features an enormous theatre wall for viewing and provides French door access to the rear patio, as well. The combination of common living spaces and outdoor spaces feature fantastic entertaining areas for large gatherings of family and friends. A powder room for guests completes the main level of living. The second story staircase features cable railing and spills into the common sitting area with access to the rear sundeck which spans the width of the home. The common space could function as a family lounge, playroom or multi-purpose family room. The laundry room is situated on the second level for ease and convenience. There are two spacious bedrooms with ample closet space and a shared hall bath. The master suite features a sumptuous bedroom with an oversized walk-in closet. The master bath is highlighted by a large sink area, shower and toilet. French door access leads to the front facing private deck which adds function and form to the dramatic master suite. This modern home is uniquely designed and offers outstanding outdoor space, a functional floor plan and a bold exterior.
