Craftsman House Plan 028-00062

Sq Ft1,886
1/2 Baths1
Width27' 0"
Depth62' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

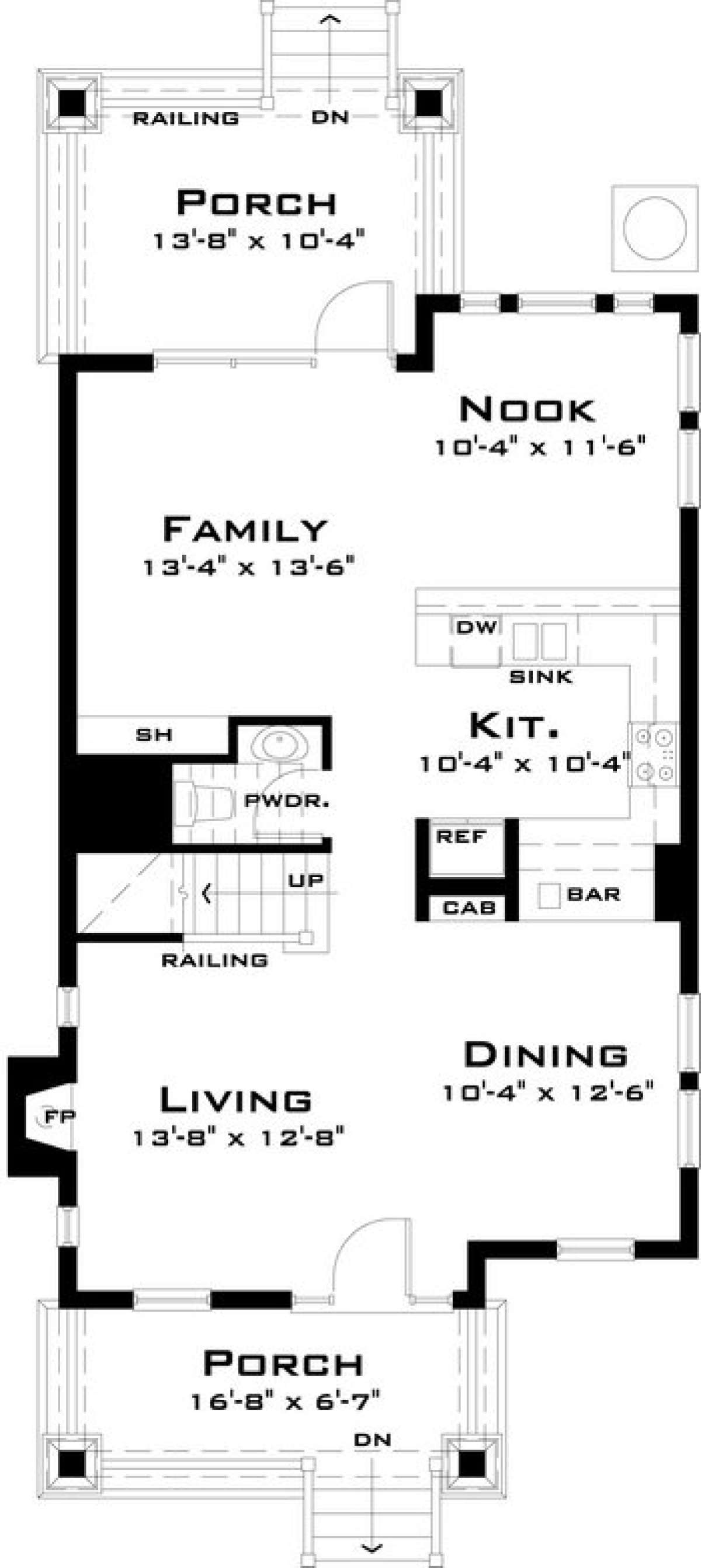

Floorplan 1 for House Plan #028-00062

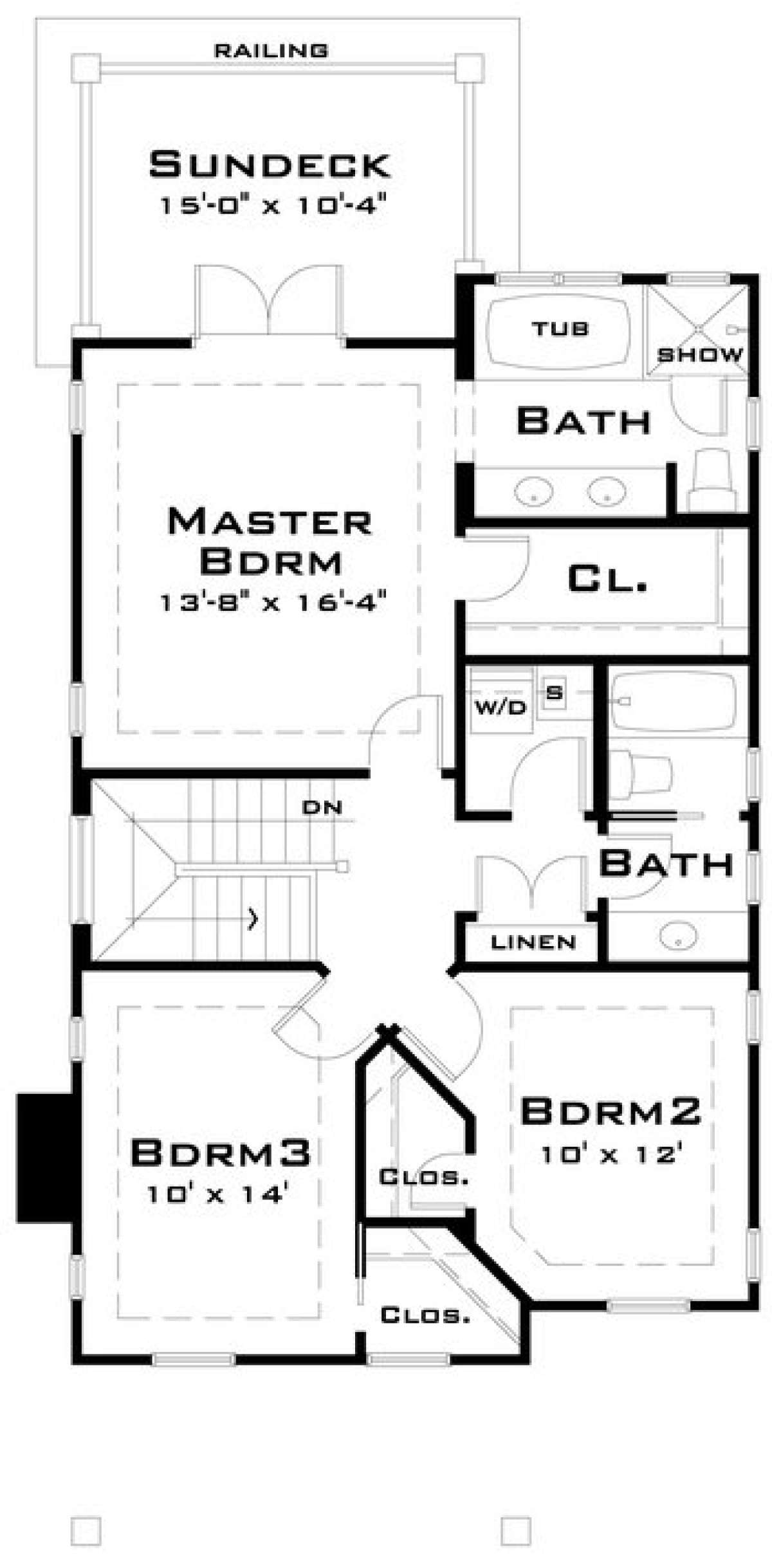

Floorplan 2 for House Plan #028-00062

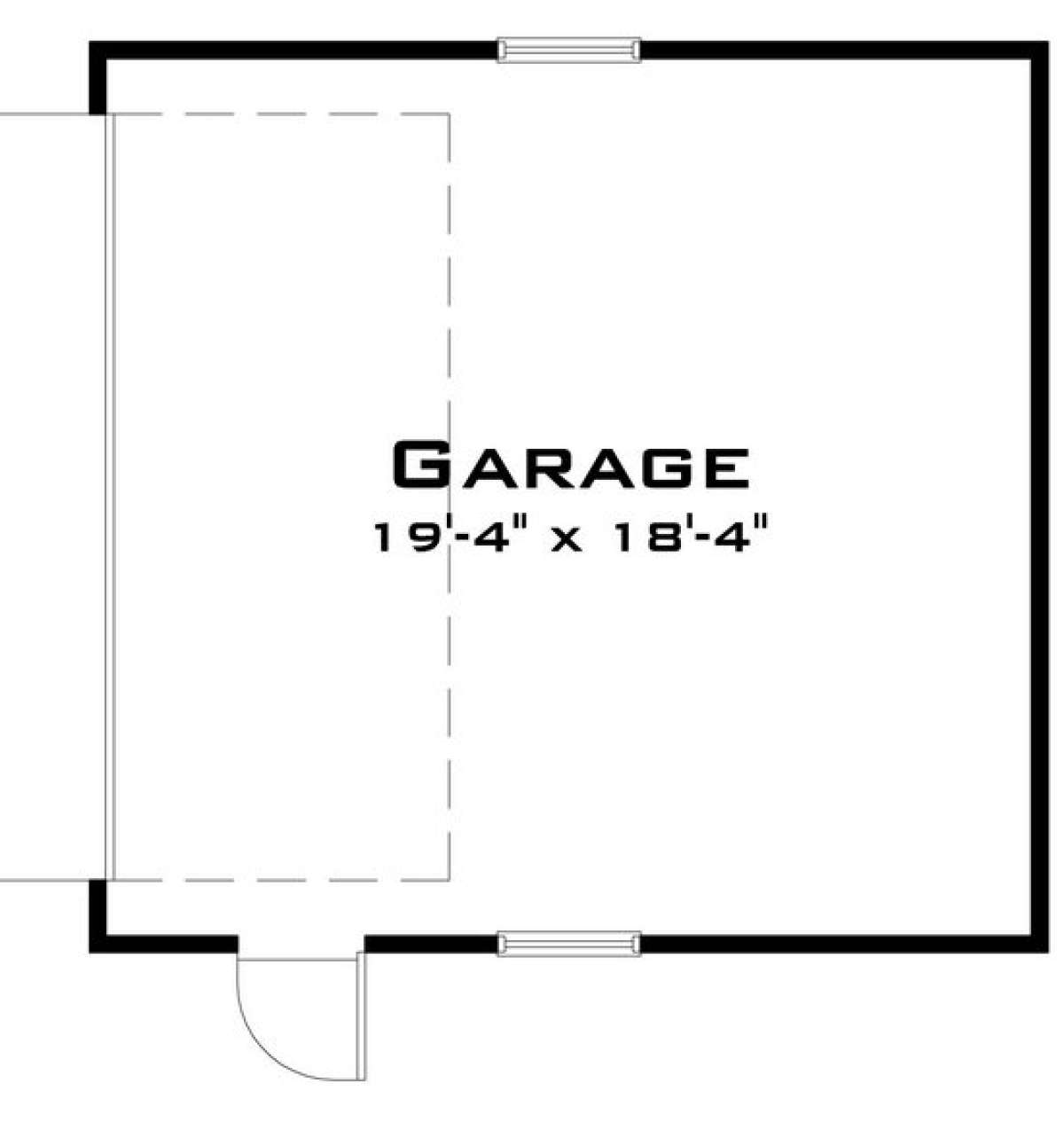

Floorplan 3 for House Plan #028-00062
Floorplan 1
Floorplan 1 for House Plan #028-00062
Floorplan 2
Floorplan 2 for House Plan #028-00062
Floorplan 3
Floorplan 3 for House Plan #028-00062

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

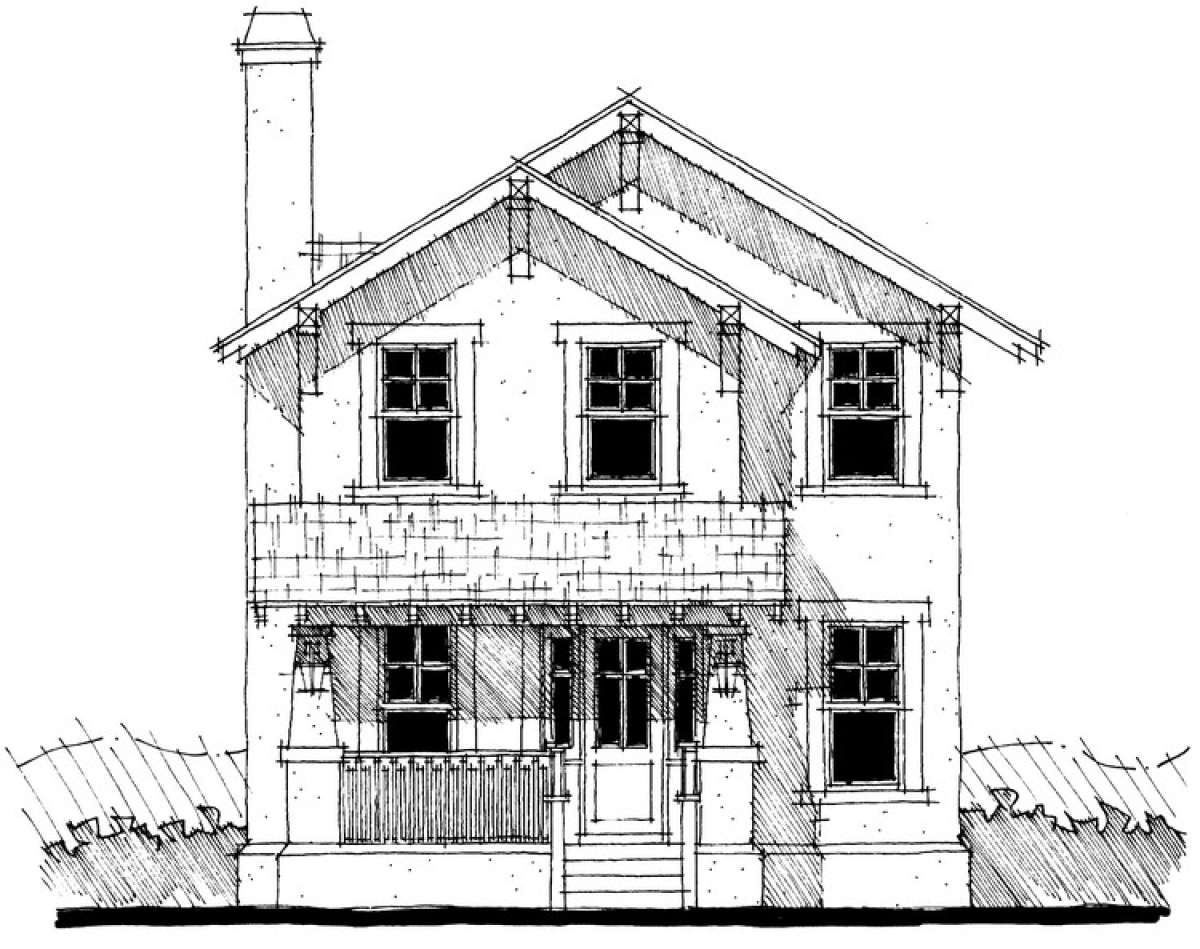

This dual story home features 943 square feet on both levels for a total of 1,886 square feet of living space in this Craftsman style home. The width of the home is 25’ making it perfect for a narrow lot and there is a detached two car garage which sits at the rear of the home and out of the sight line. The exterior façade features an inviting front covered porch highlighted with tapered beams, open railing and an overhang punctuated with exposed rafters. An open concept design highlights the first floor living space making for effortless and enjoyable entertaining. The front porch leads into the large living room which boasts of a handsome fireplace. There is a formal dining room with wonderful window features, built-in cabinetry and a bar area. The U-shaped kitchen offers plenty of cabinet and counter space along with a breakfast bar which is open to the breakfast nook. The breakfast nook is bright and airy with double side window views and opens onto the family room which is quite spacious with built-in shelving and provides access to the rear covered porch. A powder room for guests and the second story staircase is centrally located.
There are two family bedrooms upstairs along with the master suite. Additionally, a shared hall bath with plenty of counter space, a spacious linen closet and a laundry nook are situated at the top of the landing. Two family style bedrooms are spacious and each is highlighted by a trey ceiling accent and walk-in closet. French door access to the rear sundeck is a feature of the master suite along with a large bedroom with trey ceiling. An oversized master walk-in closet is situated off the bedroom and there is an elegantly designed master bath. Dual vanities, a private toilet area, separate shower and tub are highlighted in the master bath. This stylish Craftsman home features an abundance of outdoor space, a functional floor plan and a striking exterior façade.
