Mediterranean House Plan 028-00058

Sq Ft2,988
1/2 Baths0
Width35' 0"
Depth66' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Basement Floor for House Plan #028-00058
First Floor for House Plan #028-00058
Second Floor for House Plan #028-00058

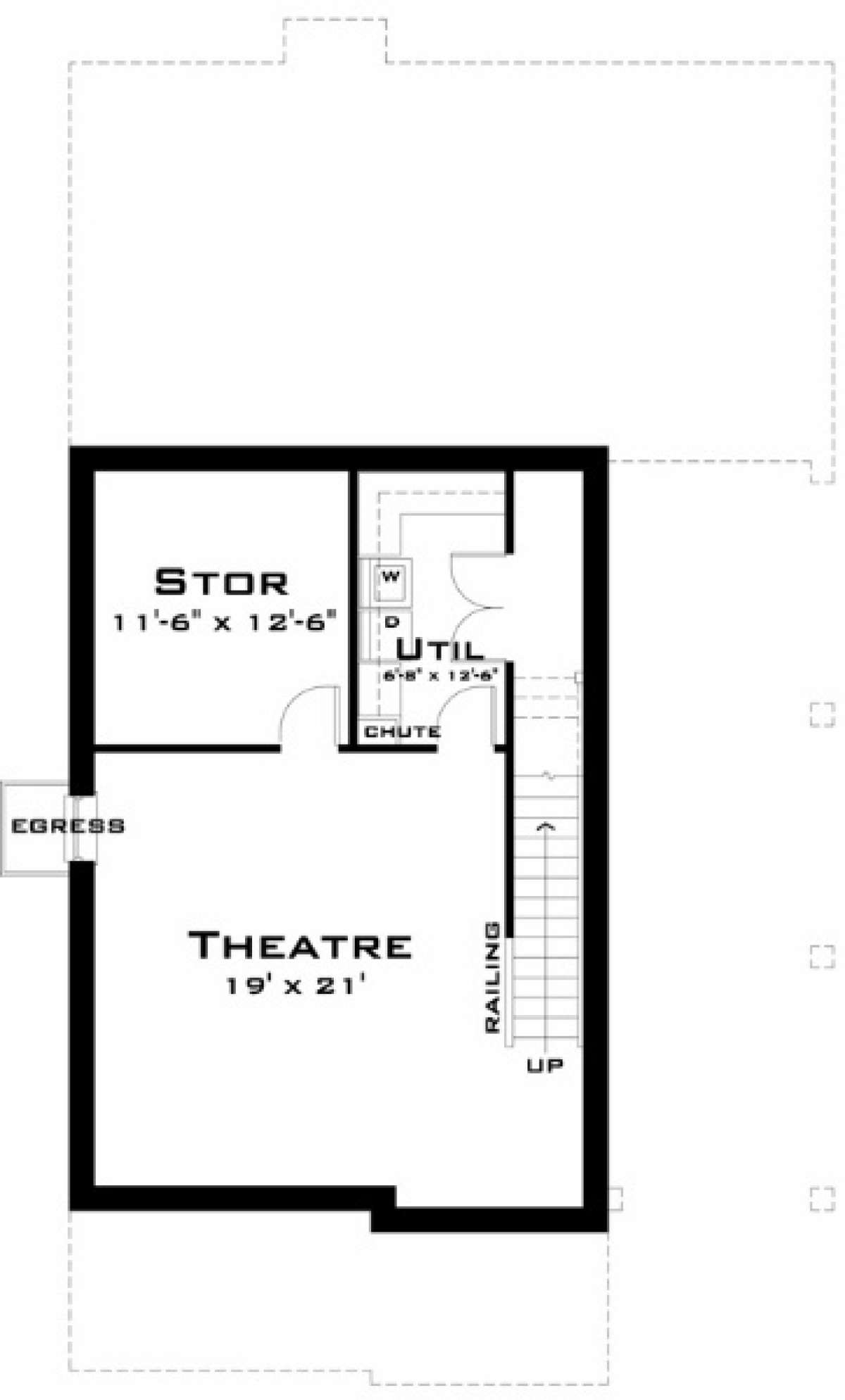

Basement Floor
Basement Floor for House Plan #028-00058

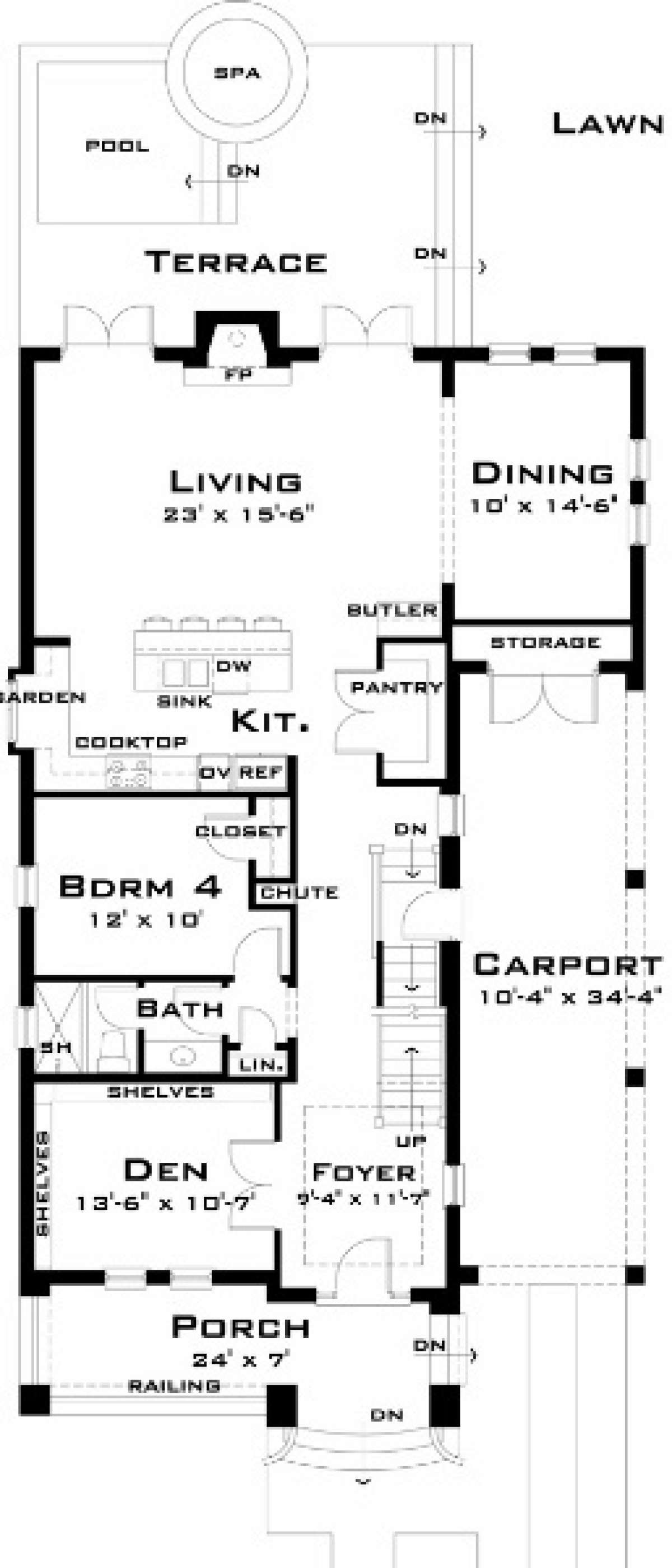

First Floor
First Floor for House Plan #028-00058

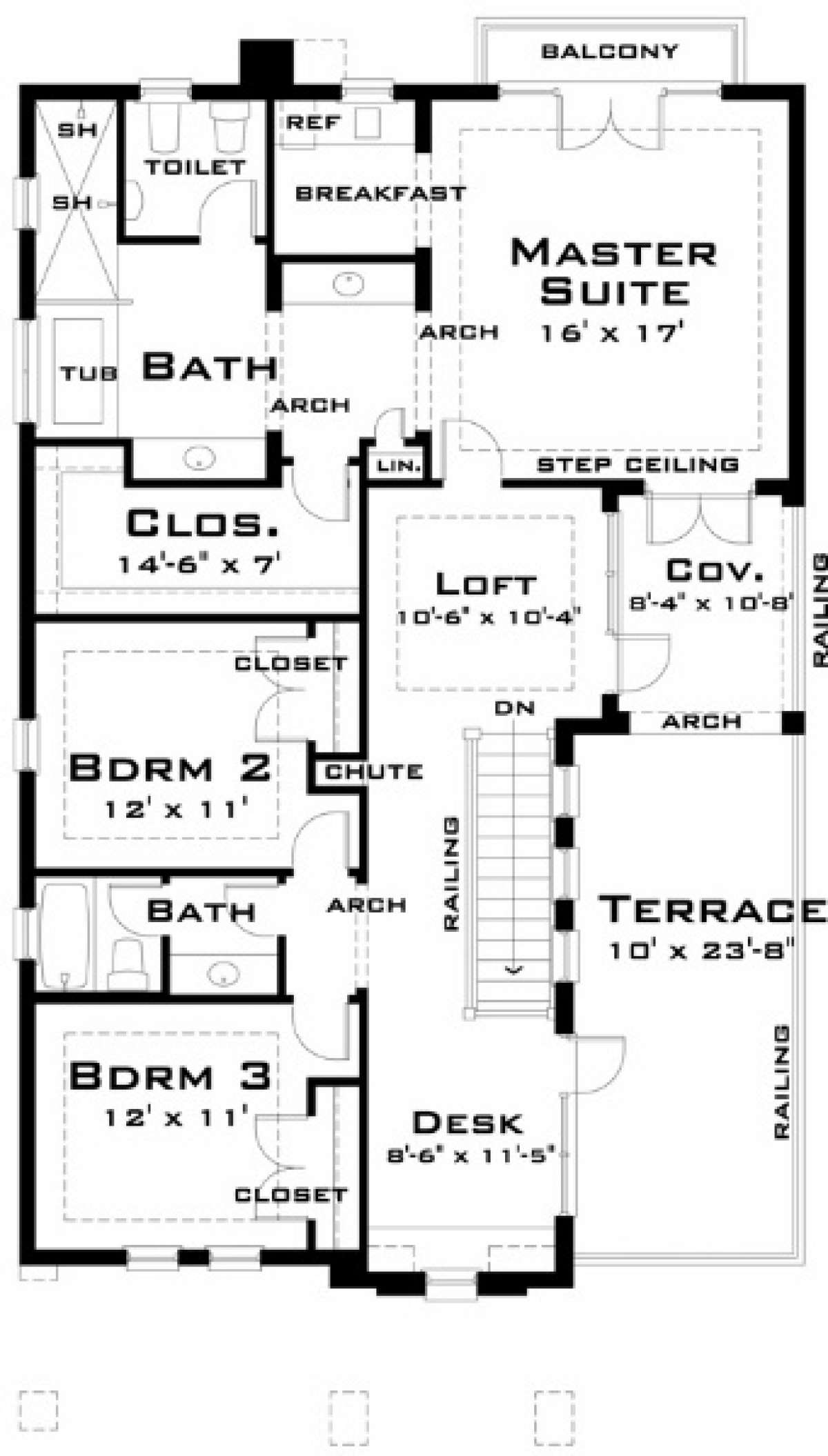

Second Floor
Second Floor for House Plan #028-00058

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

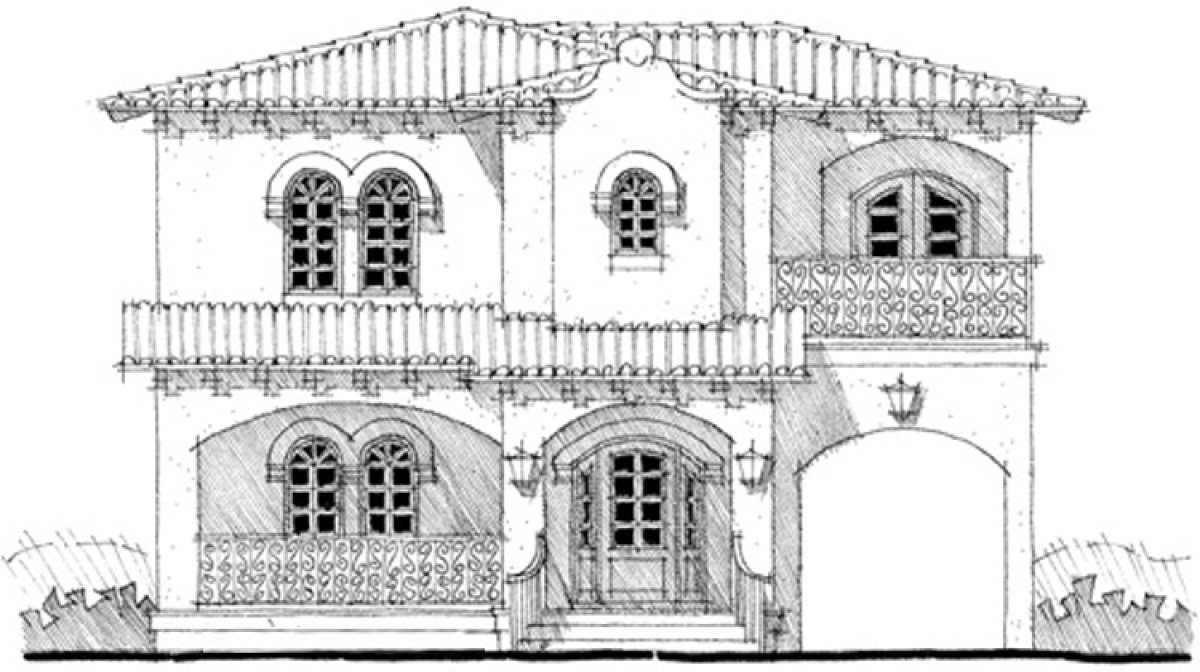

Tiled roofing, decorative iron work and a grand covered entrance are showcased in this Mediterranean house plan. Covered balconies and outstanding outdoor space provide generous entertaining options whether hosting special family occasions or large gatherings of friends. The grand covered entrance into the home is punctuated with iron railing and a front door highlighted with individual window panes. The interior floor plan is approximately 3,000 square feet and contains four bedrooms and three baths on two floors. Additionally, there is a finished basement which features an immense media room, measuring 19’x21’, enormous storage space and the family utility room with loads of counter space and a laundry chute for ease and convenience. The main level of the home is accessed through the front covered entrance into the spacious foyer which houses the second story staircase and opens onto the den. The private den features two sided built-in shelving and is ideal for a home office and/or entertaining intimate friends and/or business associates. The fourth bedroom or guest suite is situated on the main floor and features a spacious bedroom, ample closet space and private access to the full hall bath. The main family common areas are located at the rear of the home for privacy and include the kitchen, dining area and living room. The living room is an enormous space and features a rear wall fireplace flanked on both sides by French door access to the terrace and lawn. This is a great space with room for a pool and spa and, an abundance of yard and entertaining space. The living room is open to the dining room which has wonderful window views and a butler’s pantry. The delightful kitchen is a chef’s dream with large center island containing a sink and prep space along with a breakfast bar, plenty of additional counter and cabinet space and an oversized walk-in pantry. An elongated carport with additional storage space completes the main level.
The second story floor contains amazing family space with three bedrooms, two bathrooms and common areas. The landing features a loft area and access to the covered porch which subsequently extends to an enormous outdoor terrace. The opposite end of the terrace provides access into the work/study area of the second story landing. This combination of work, study and play area is ideal for family time and relaxation. Two spacious bedrooms each contain ample closet space and share a jack and jill bathroom. The master retreat is a gorgeous arrangement and features a large footprint. The master bedroom is quite large with a trey ceiling and double private access points onto the common covered porch and rear private balcony. There is a morning room off the bedroom, containing a refrigerator which is ideal for preparing coffee, other beverages and casual food preparation. The master bath is simply stunning with dual separate vanities, a linen closet, tub area, a separate shower and a compartmentalized toilet. An oversized walk-in closet sits at the rear of the space for privacy and convenience. This family home has a bold exterior façade, an interior floor plan that is versatile and comfortable and an abundance of outdoor space.
