Craftsman House Plan 028-00038

Sq Ft1,586
1/2 Baths1
Width25' 0"
Depth49' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #028-00038
Second Floor for House Plan #028-00038
Detached Garage for House Plan #028-00038

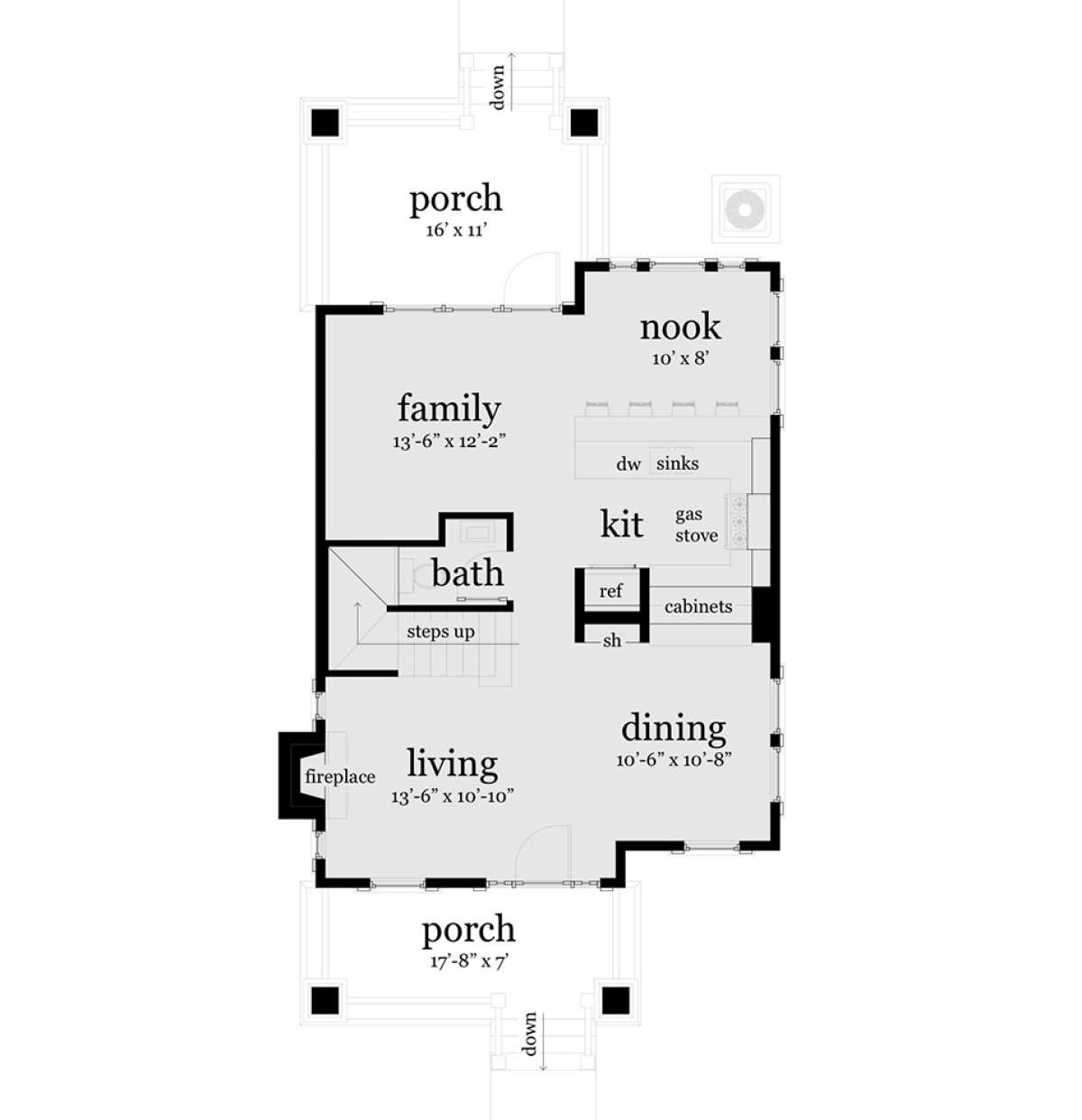

Main Floor
Main Floor for House Plan #028-00038

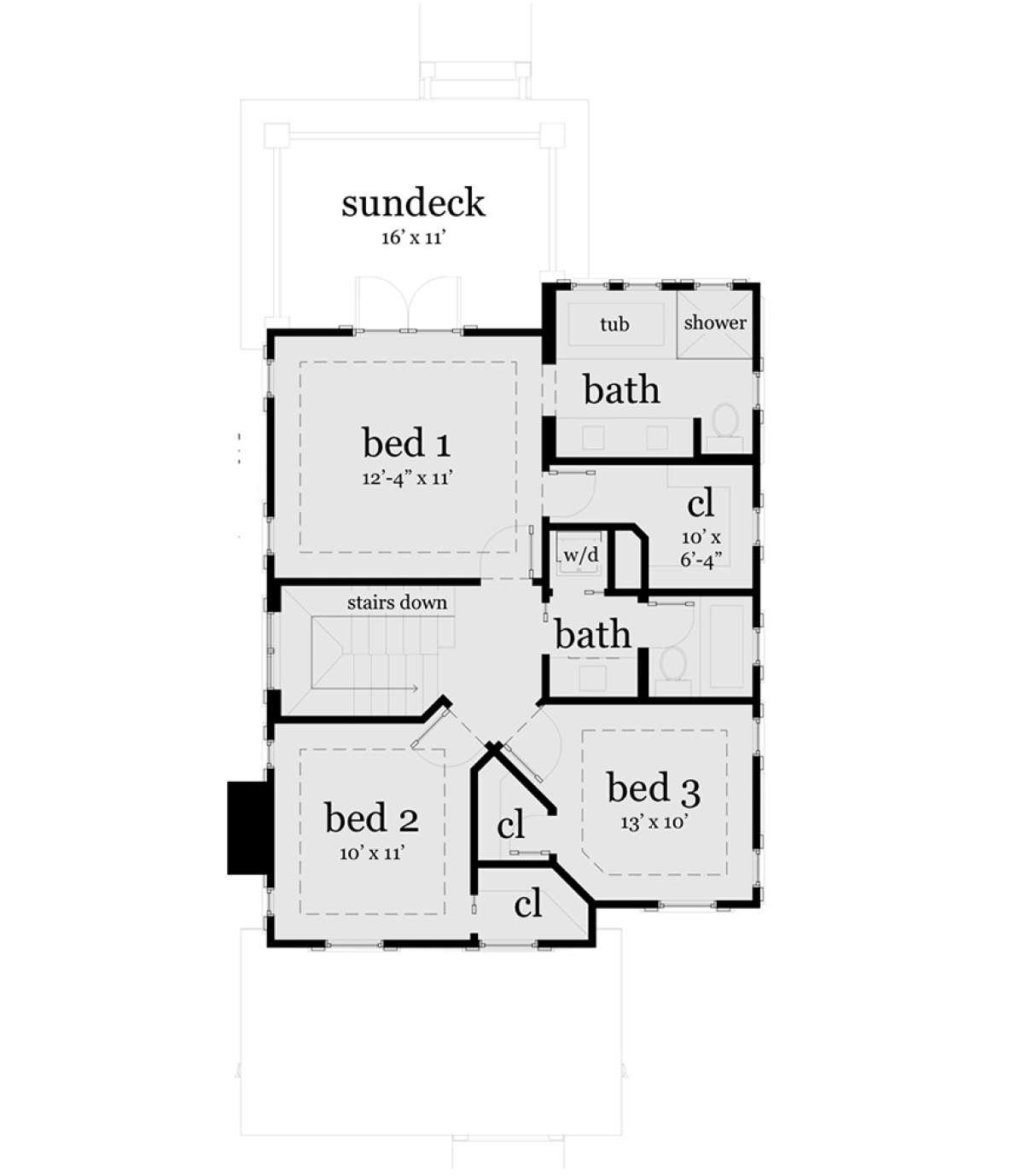

Second Floor
Second Floor for House Plan #028-00038

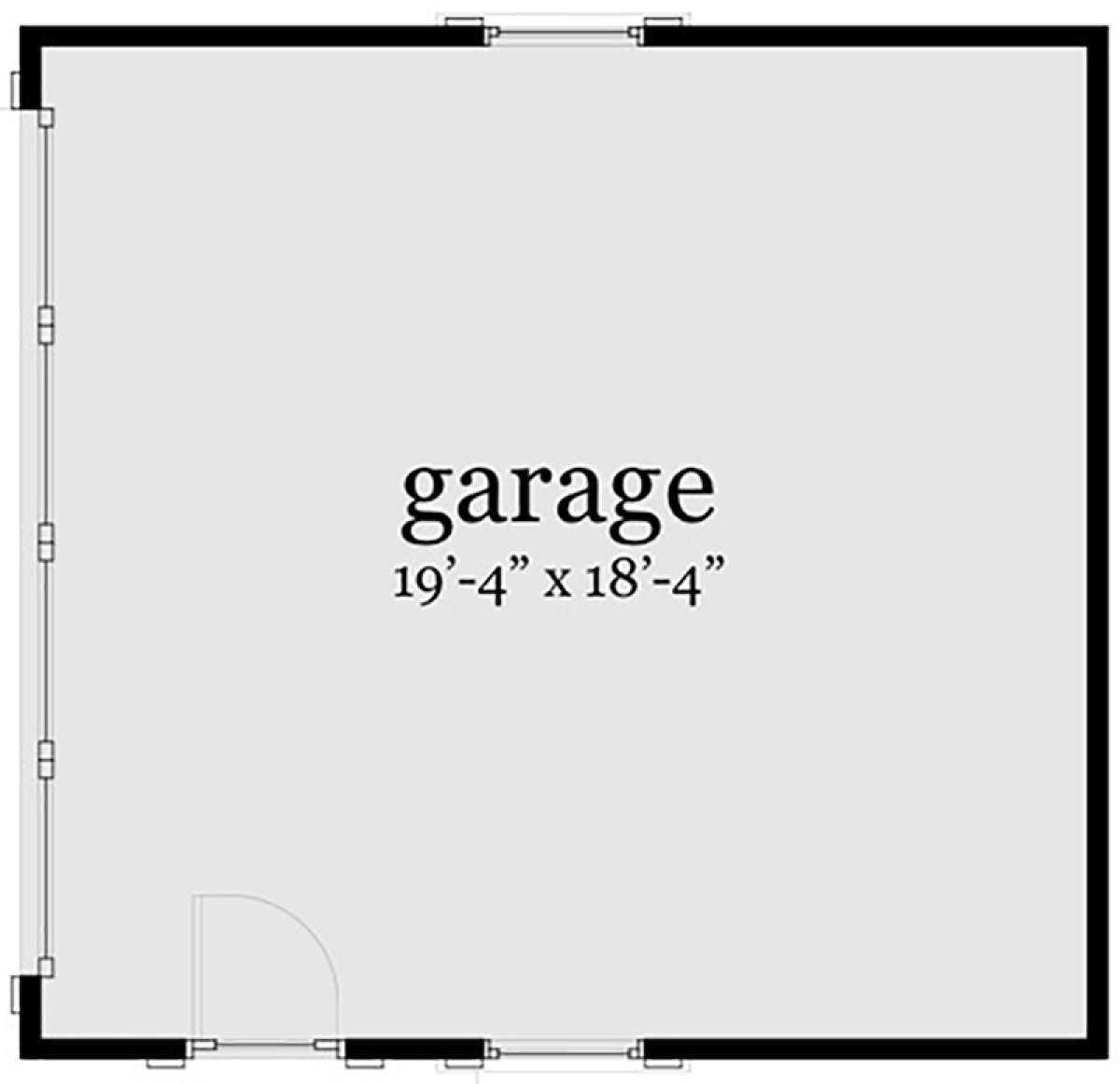

Detached Garage
Detached Garage for House Plan #028-00038

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

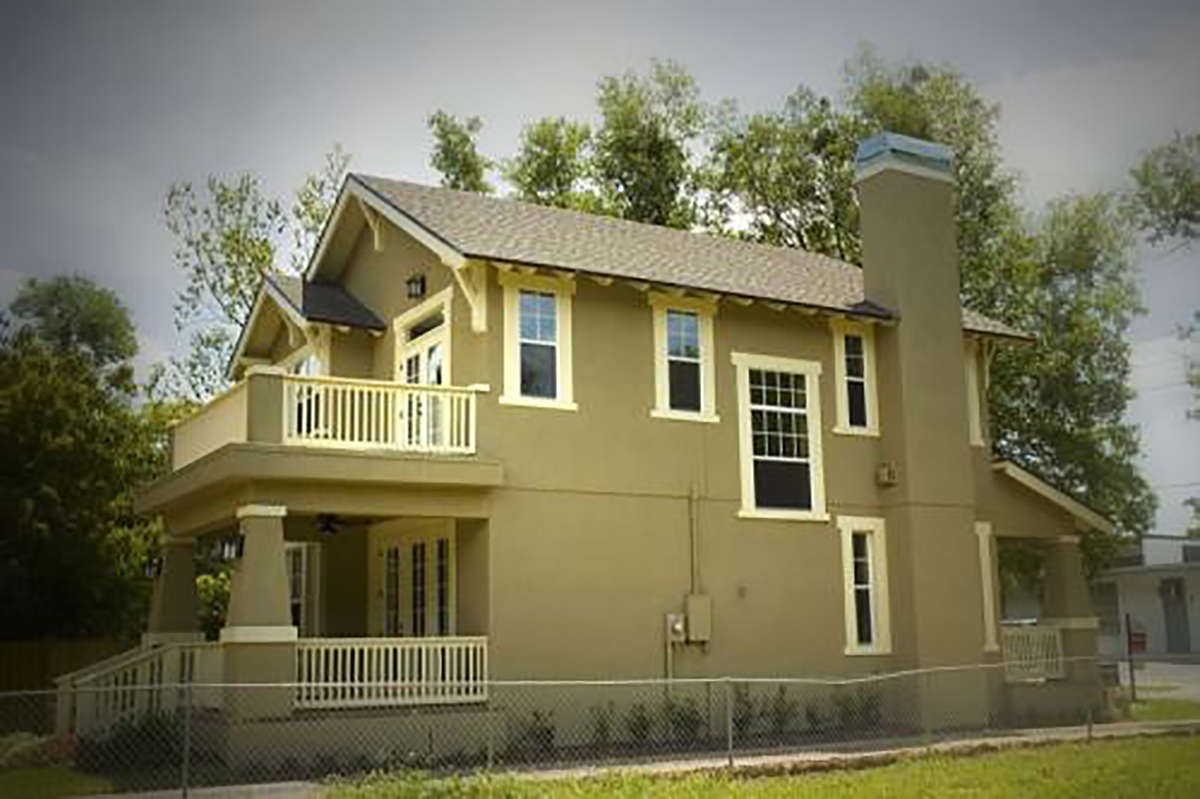

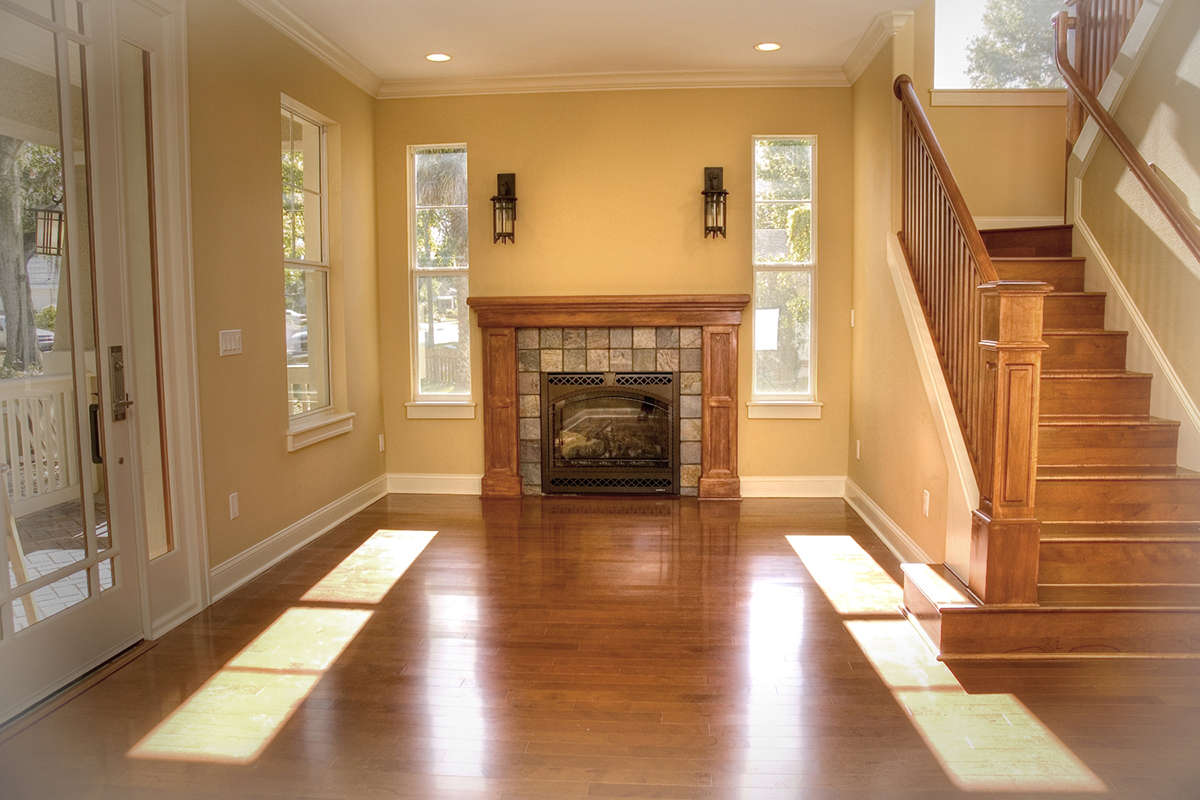

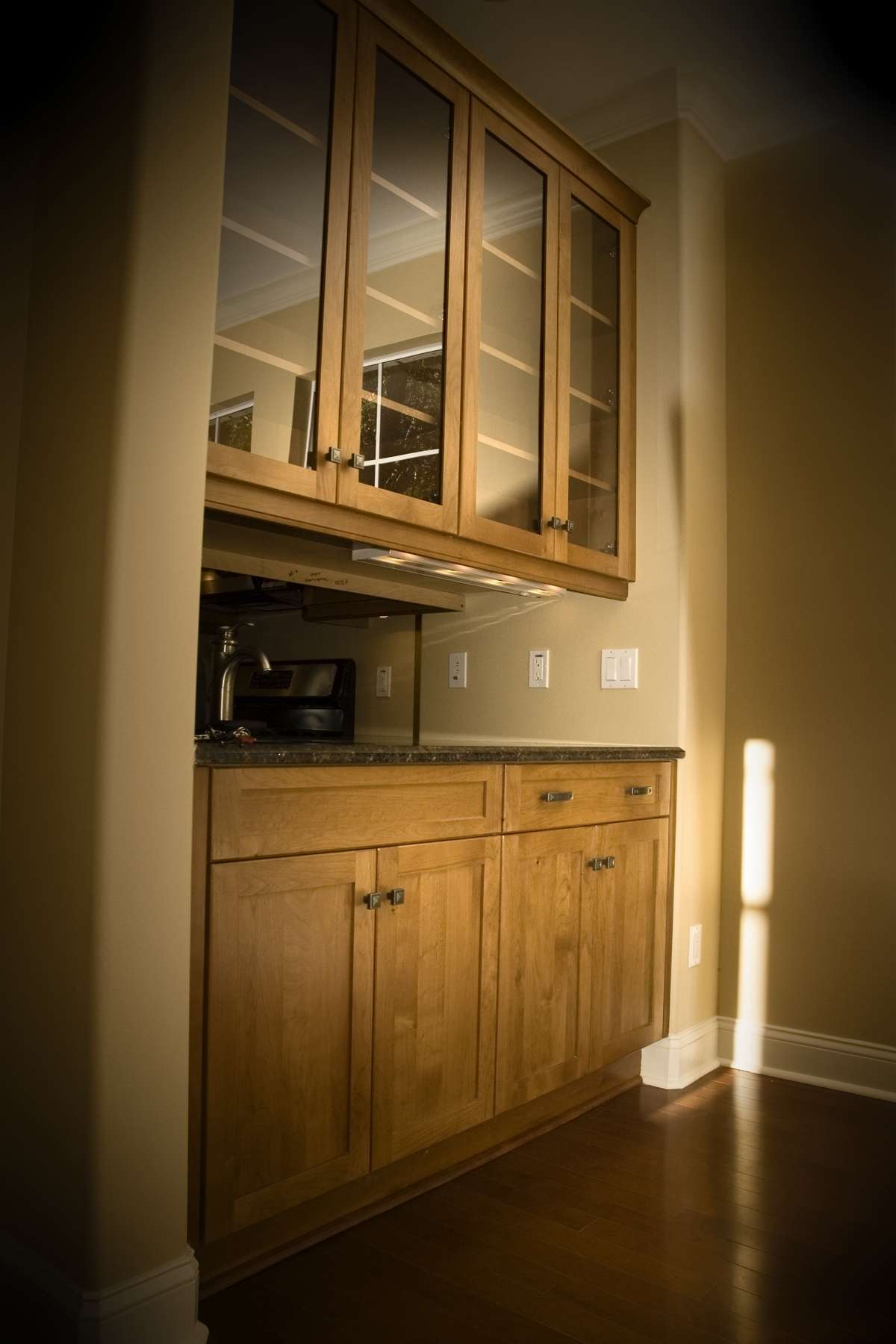

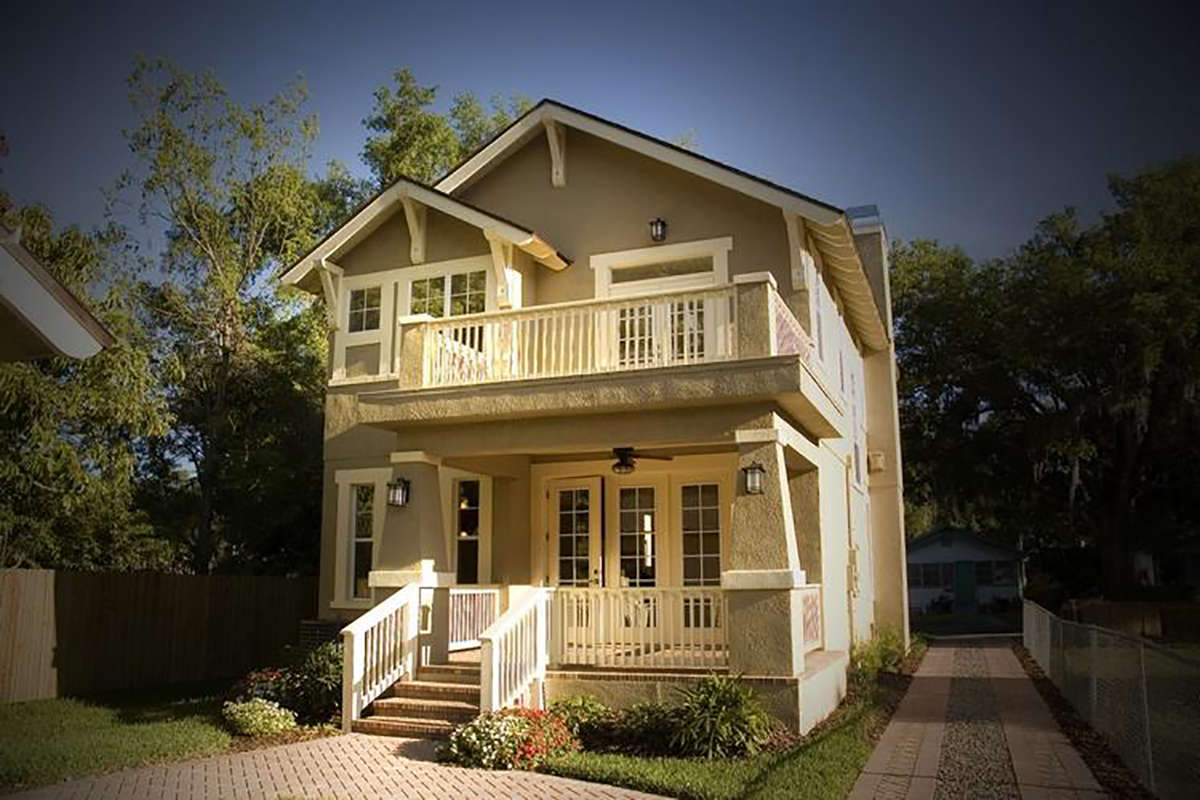

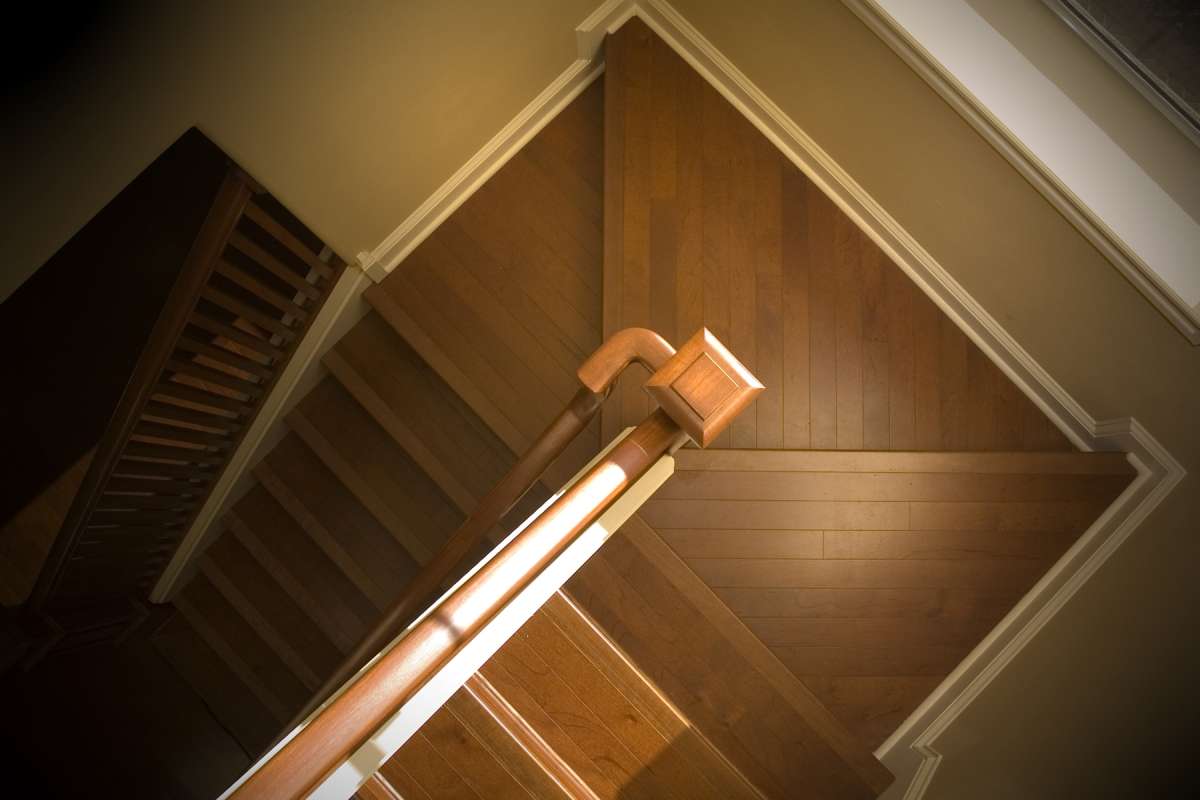

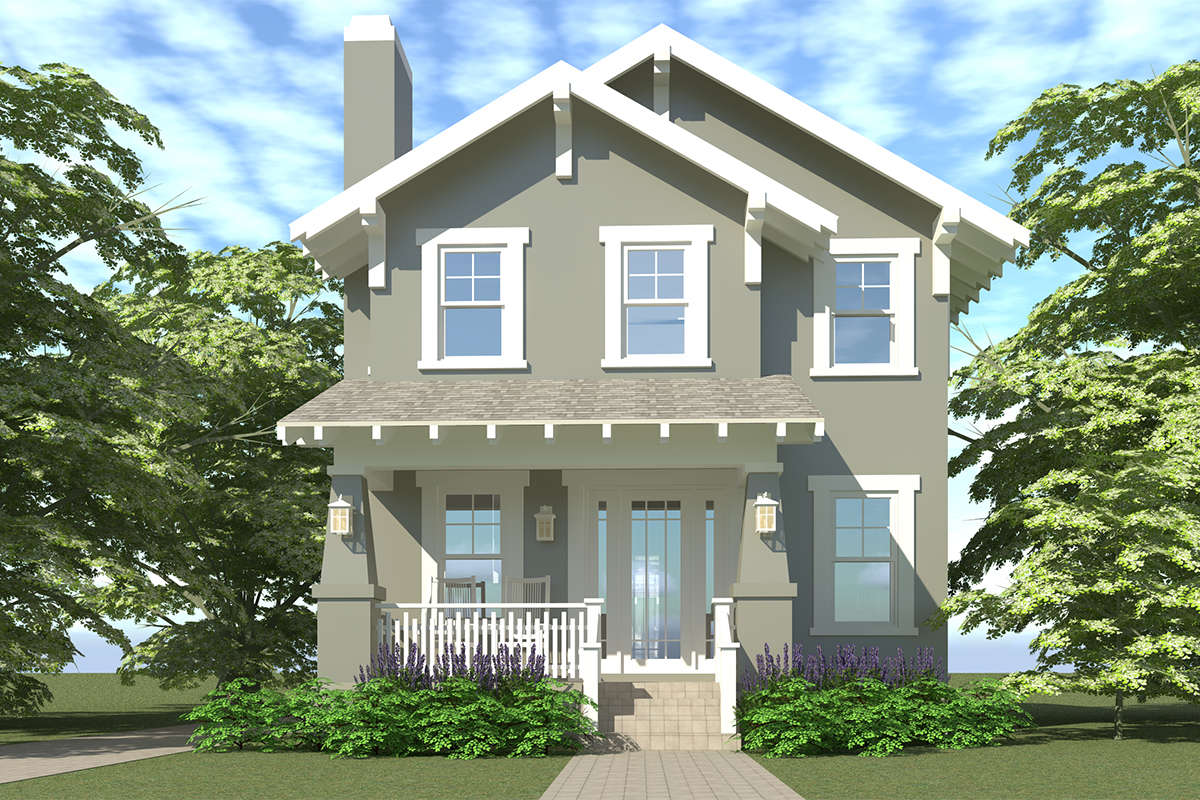

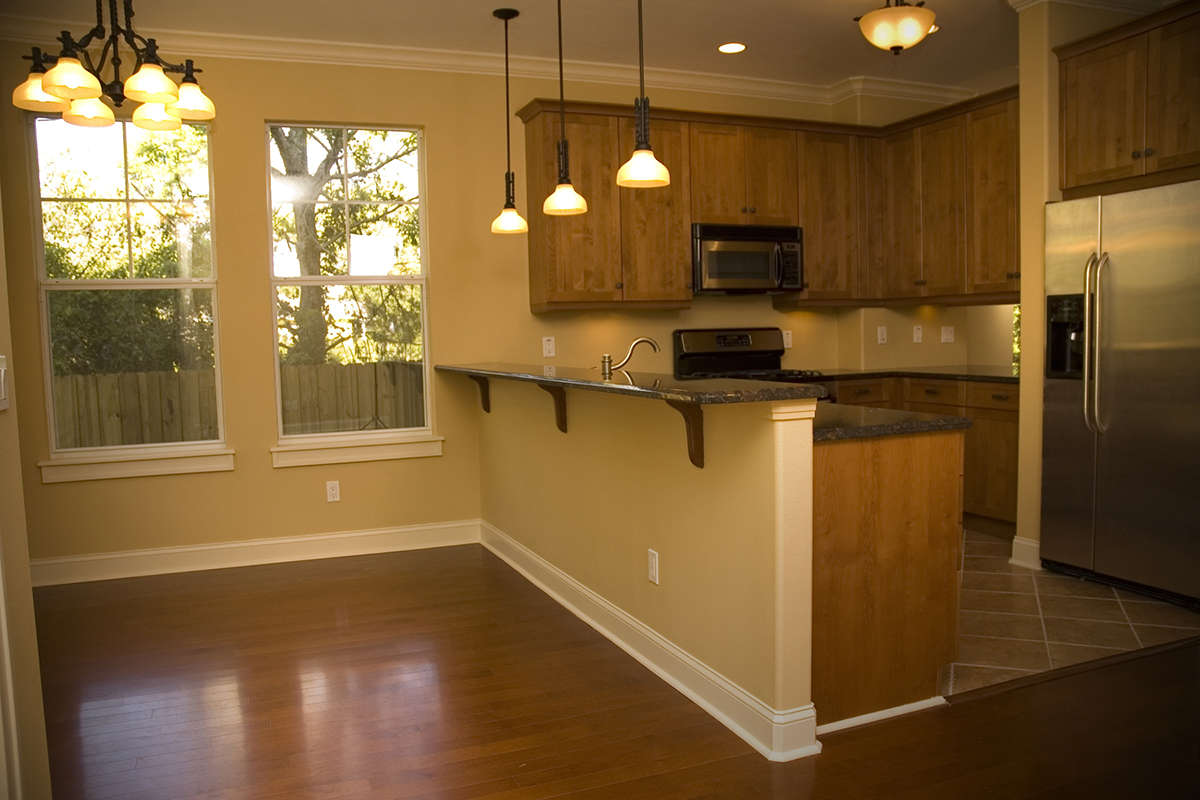

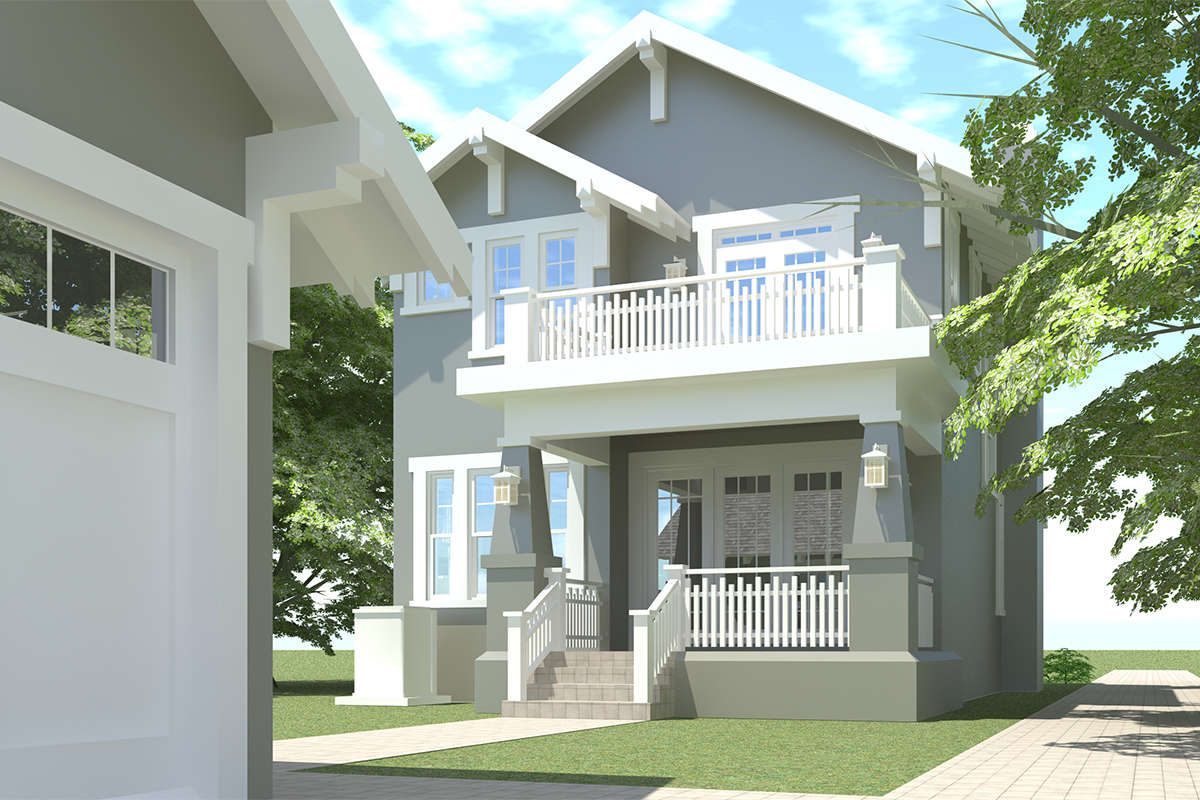

This is a great family home perfectly suited for a narrow lot with its 25’width. Second story family bedrooms and a first floor open concept dominant this Craftsman style design. A fantastic covered front porch has an overhang with exposed rafters, open railing and tapered columns. Exposed rafters continue the length of the home, there are decorative brackets in the gables and double rear porches add to the charm and character of the home. The interior floor plan features in excess of 1,580 square feet of living space with three bedrooms and two plus bathrooms. A detached two car garage is spacious and mirrors the house design. The front covered porch leads to the open living and dining rooms; both have beautiful window views and the living room boasts of a fireplace while the dining room has a built-in china cabinet and bar area. This is great entertaining space for large groups of family and friends. There is a powder room for guests and a staircase leading to the second story of the home. The kitchen has plenty of cabinet and counter space along with an open breakfast bar adjacent to the breakfast nook which is brightly surrounded on two sides by windows. The family room is situated at the rear of the home for privacy and offers access to the expansive back covered porch.

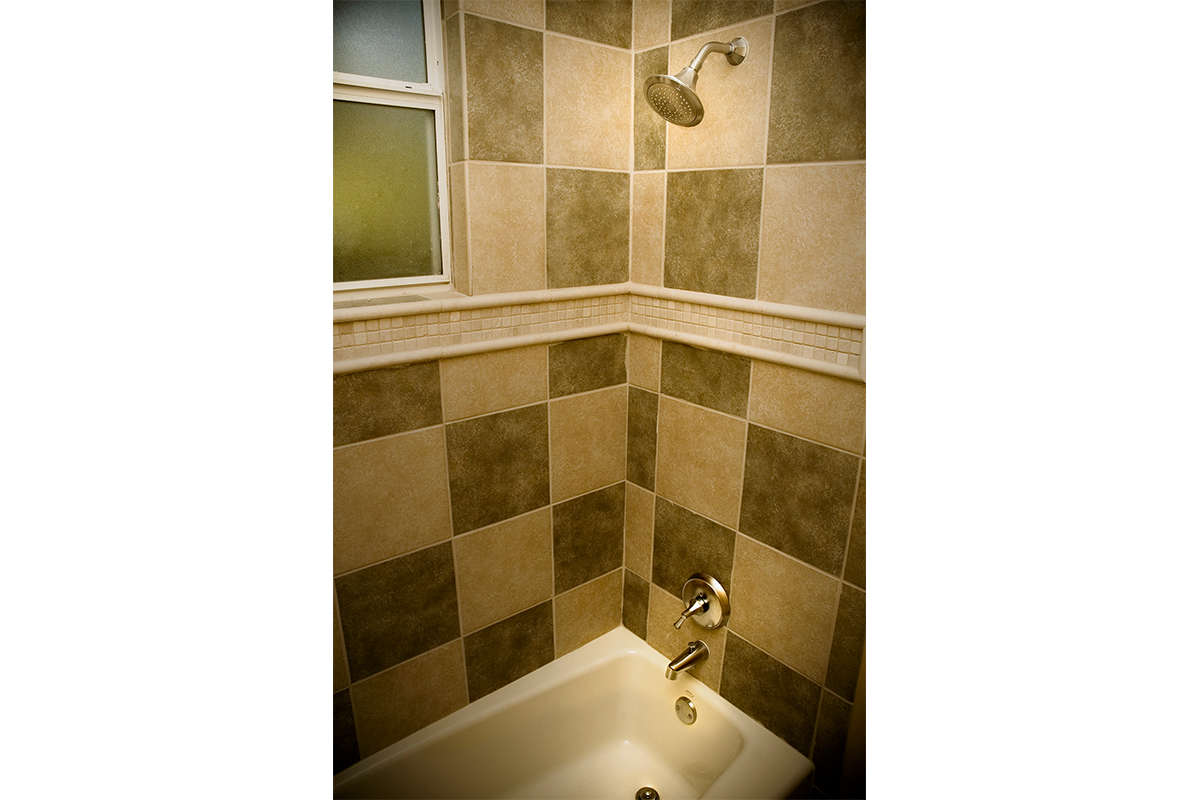

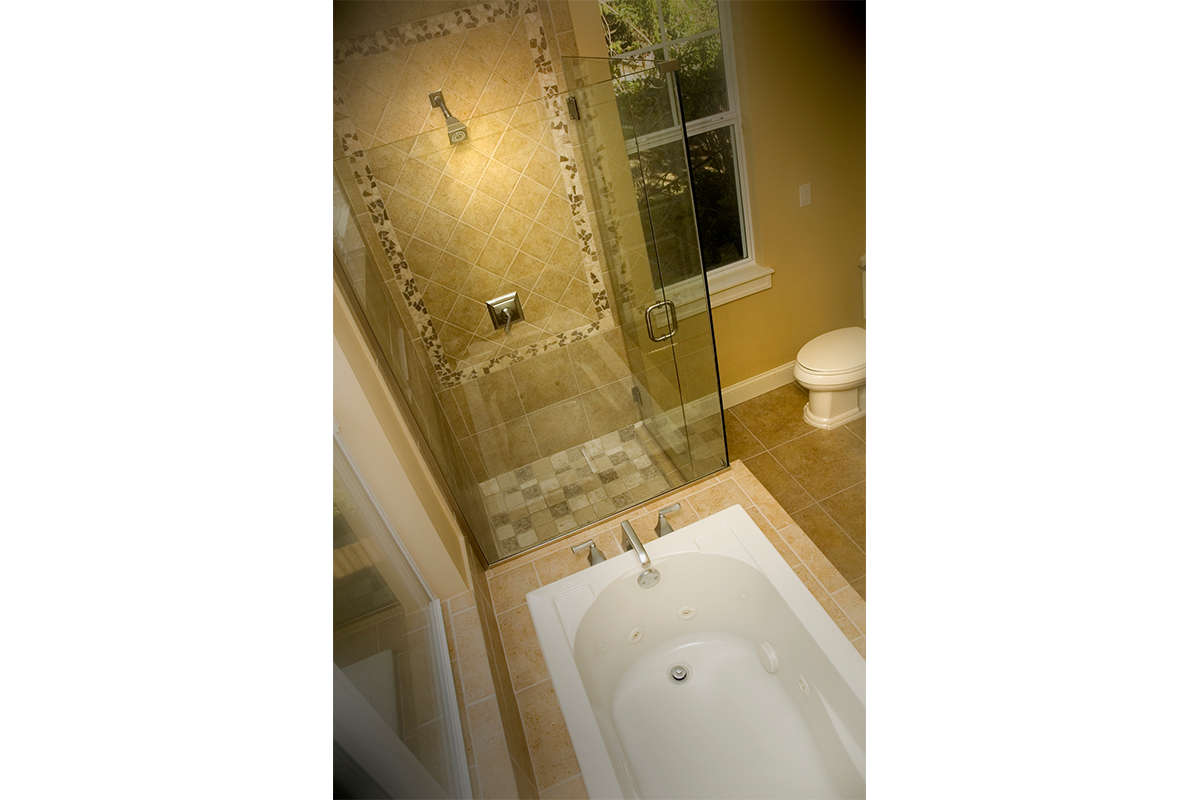

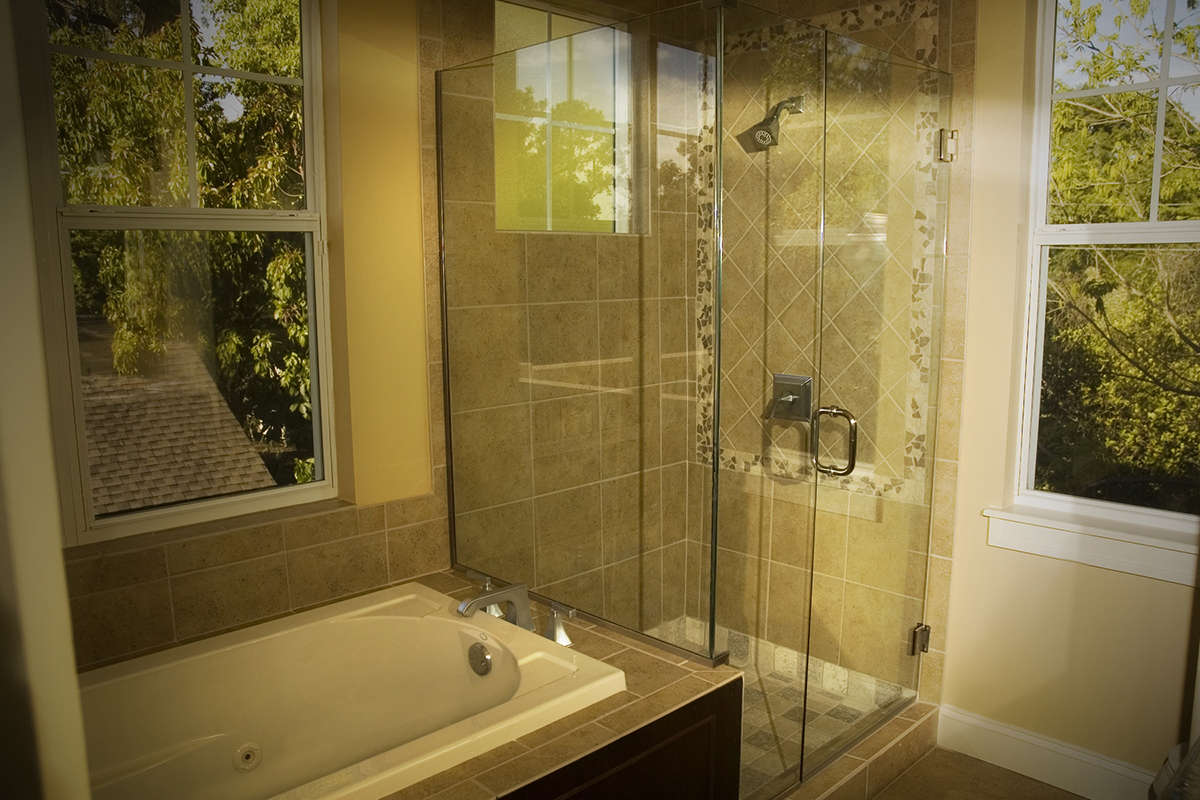

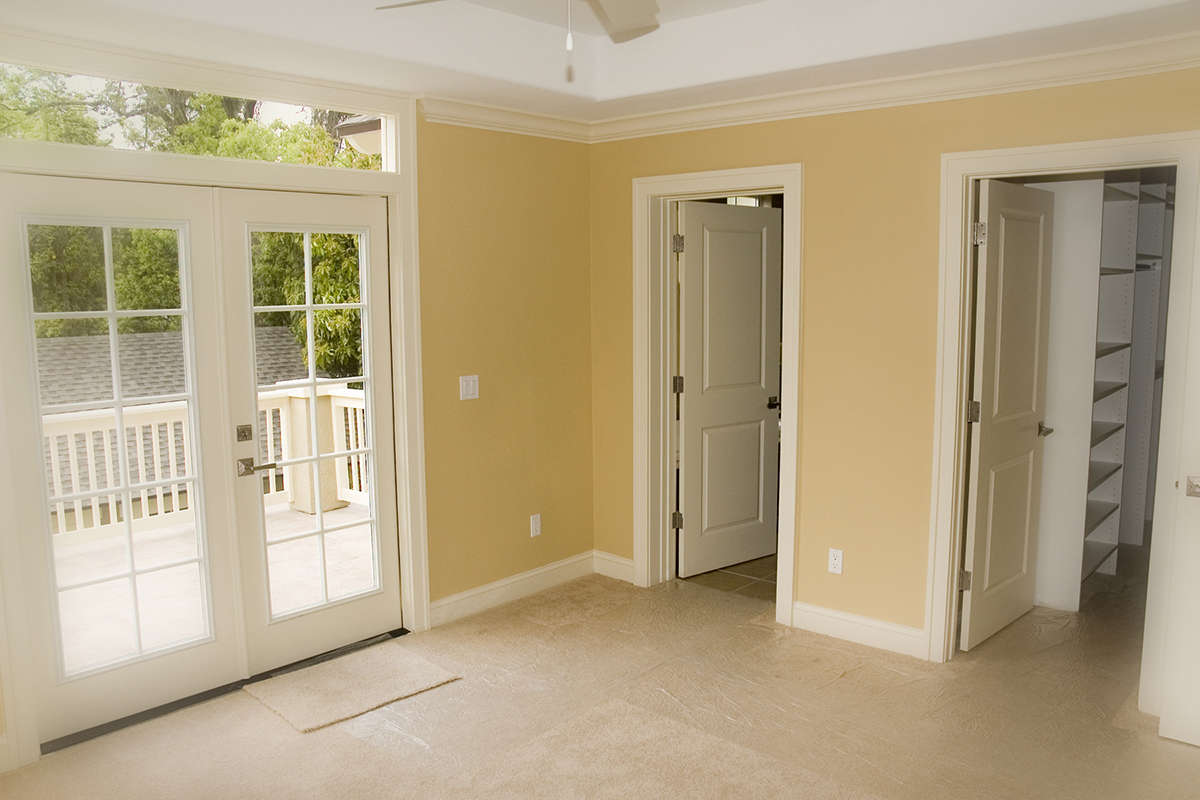

The second story landing fans out in multiple directions and includes two family size bedrooms; each with a walk-in closet. There is a shared hall bath with ample counter space, a toilet area and bath along with the family laundry nook. The master retreat is spacious with a trey ceiling accent bedroom, an oversized walk-in master closet and French door access to the private sundeck. The master bath features dual vanities, a separate shower, tub and a private toilet area. Great space abounds in this family home which is highlighted by an abundance of outdoor space and an interior floor plan which is comfortable and functional.
