Coastal House Plan 028-00035

Sq Ft1,965
1/2 Baths0
Width40' 0"
Depth78' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

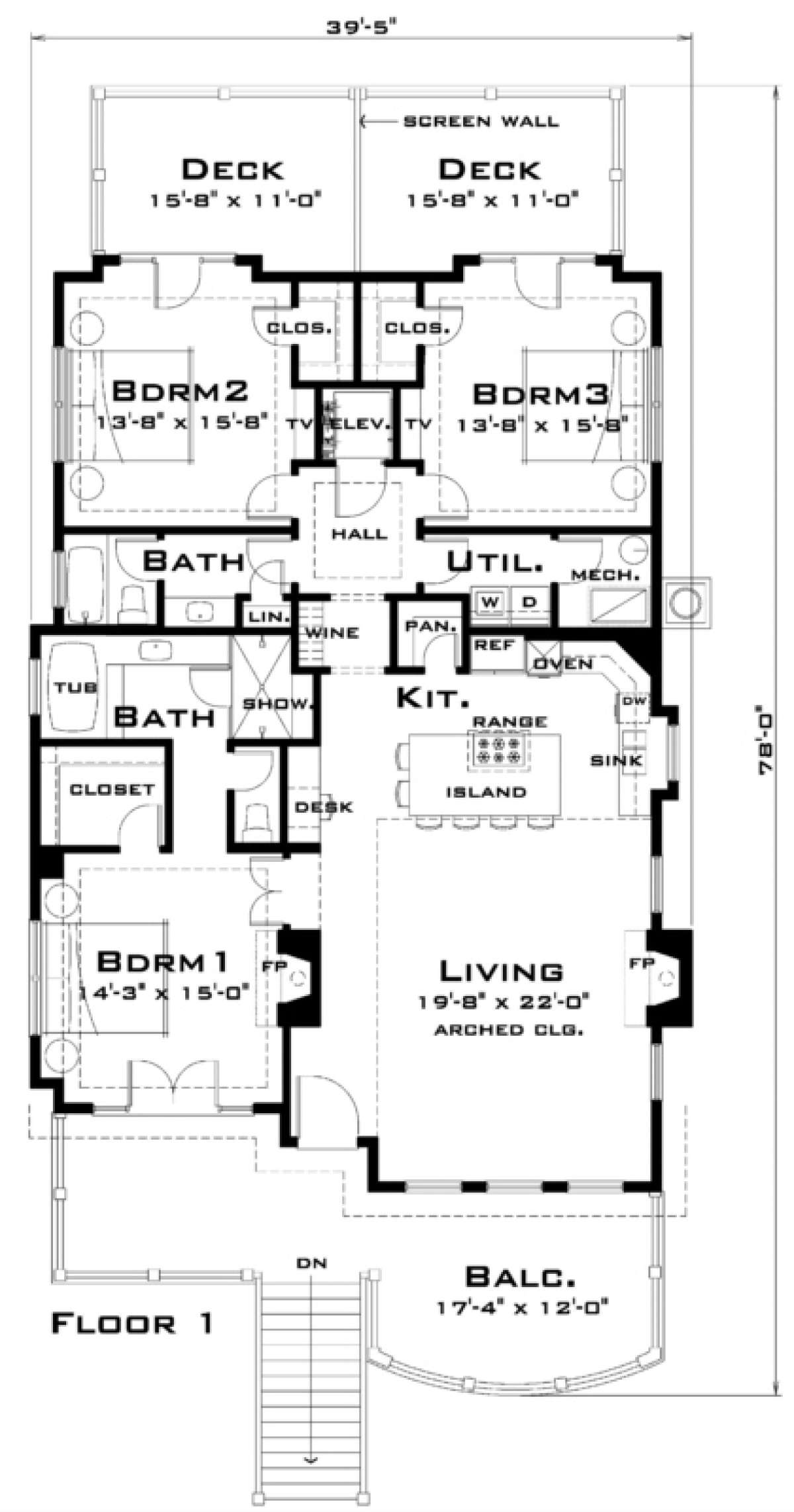

Floor Plan for House Plan #028-00035

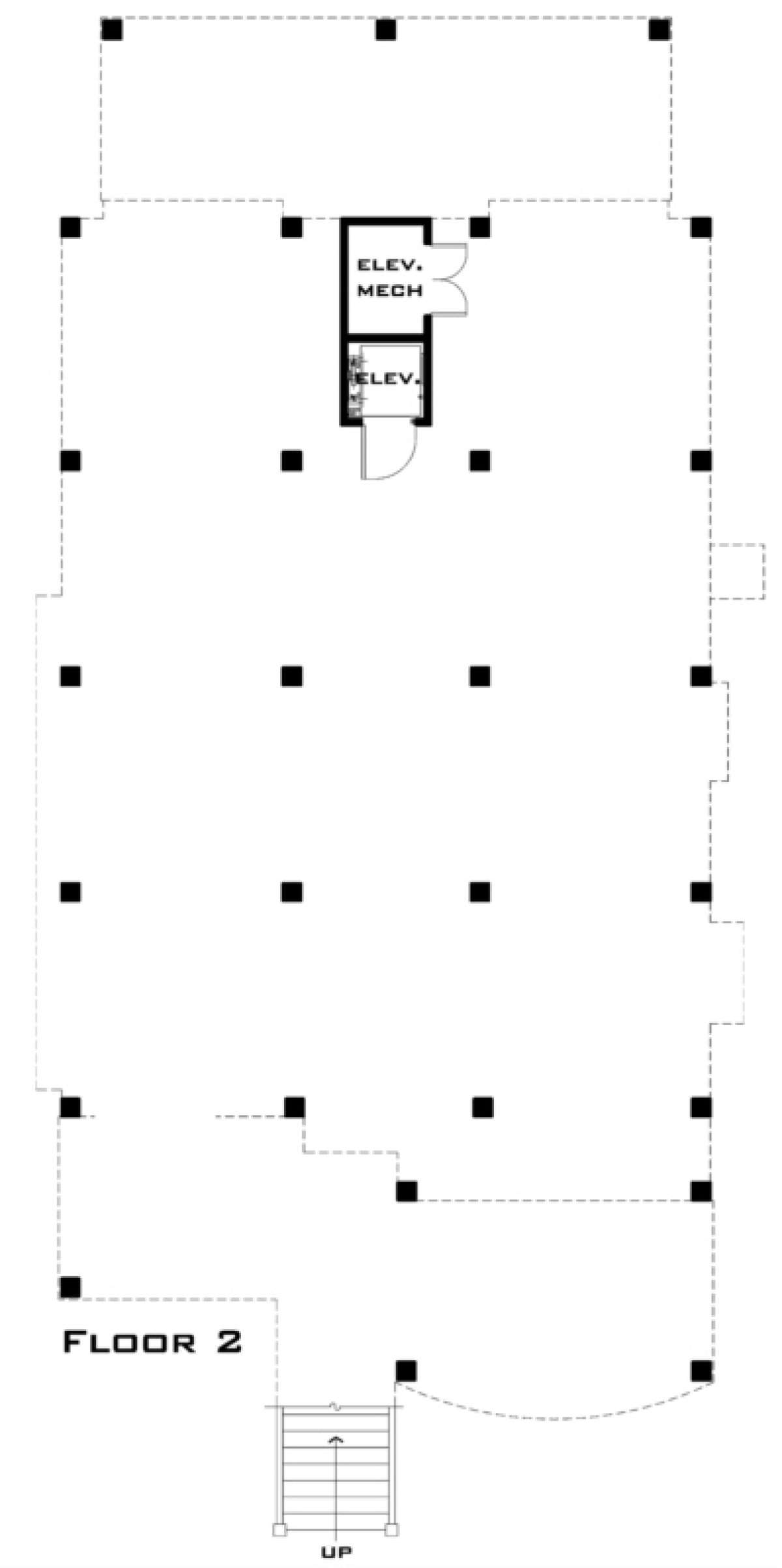

Ground Level for House Plan #028-00035
Floor Plan
Floor Plan for House Plan #028-00035
Ground Level
Ground Level for House Plan #028-00035

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

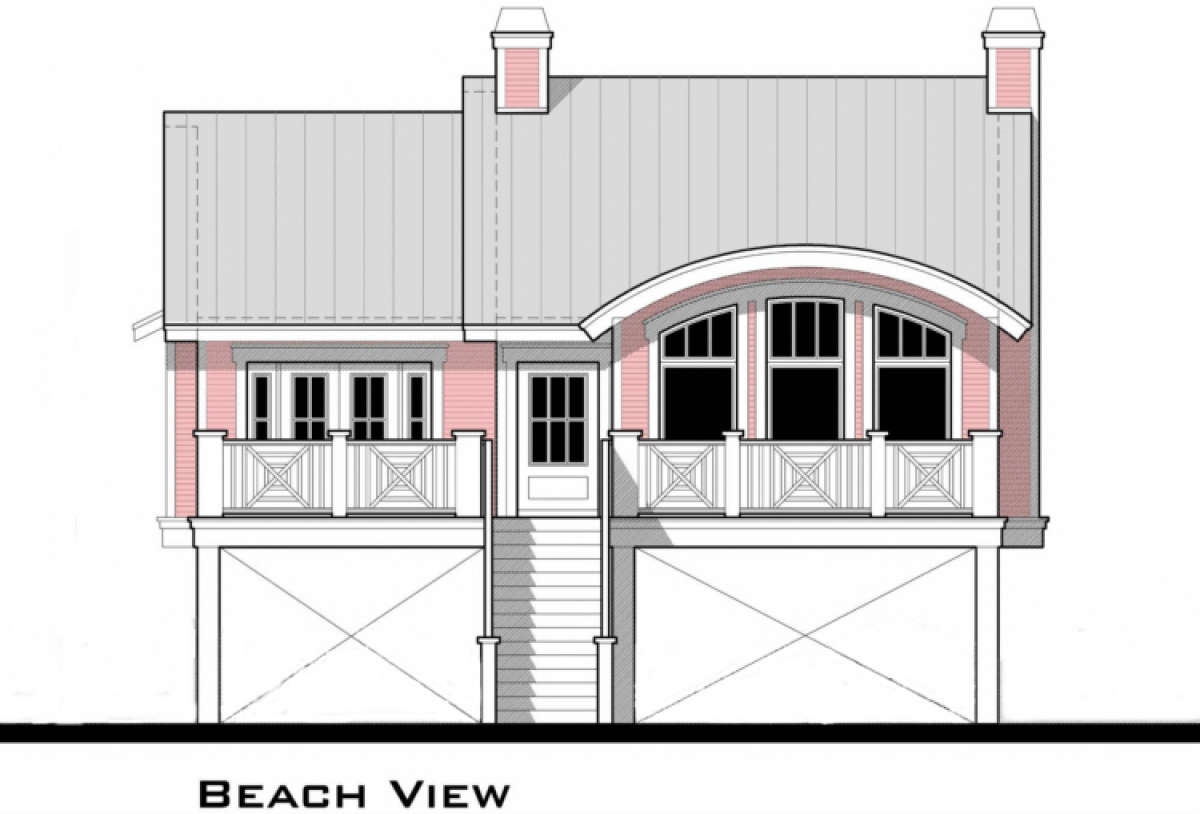

This Coastal house plan is designed in the classic Florida cracker beach fashion. A gorgeous exterior façade is highlighted by front and rear porches, decorative railing and a gracefully bowed window feature atop the front balcony. There are three bedrooms and two baths in approximately 1,965 square feet of living space. Covered ground floor parking is accessed on either side of the home and an elevator is accessible to the main floor. An expansive porch leads to the foyer which opens onto the common living spaces which are designed to offer the most advantageous oceanfront views. The living room ceiling is barrel vaulted to match the exterior roof lines, contains a wood burning fireplace and is open to the kitchen. The gourmet kitchen features an enormous center island with cook top and a wraparound breakfast bar. A plethora of additional counter and cabinet space, a separate walk-in pantry and desk area are further highlighted in the kitchen. There is a separate wine storage area off the kitchen and an adjacent utility room.
Two rear family style bedrooms are oversized; each contains ample closet space, a television niche and provides access to the double deck. Each deck area measures in excess of 15’x11’ and there is a separation wall for privacy. Bedroom one is situated at the front of the home for optimal outdoor views and access. French door access to the ocean view front porch is provided and there is a handsome fireplace in the spacious bedroom along with an oversized walk-in closet. The bath is elegant and features an abundance of counter space, a separate shower, a tub and a compartmentalized toilet. This Coastal home is a lovely vacation or forever home which offers a striking exterior and an interior floor plan designed for beach living.
