Craftsman House Plan 009-00286EXCLUSIVE PLAN

Sq Ft2,258
1/2 Baths1
Width31' 0"
Depth55' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #009-00286
Second Floor for House Plan #009-00286
Optional Third Floor for House Plan #009-00286

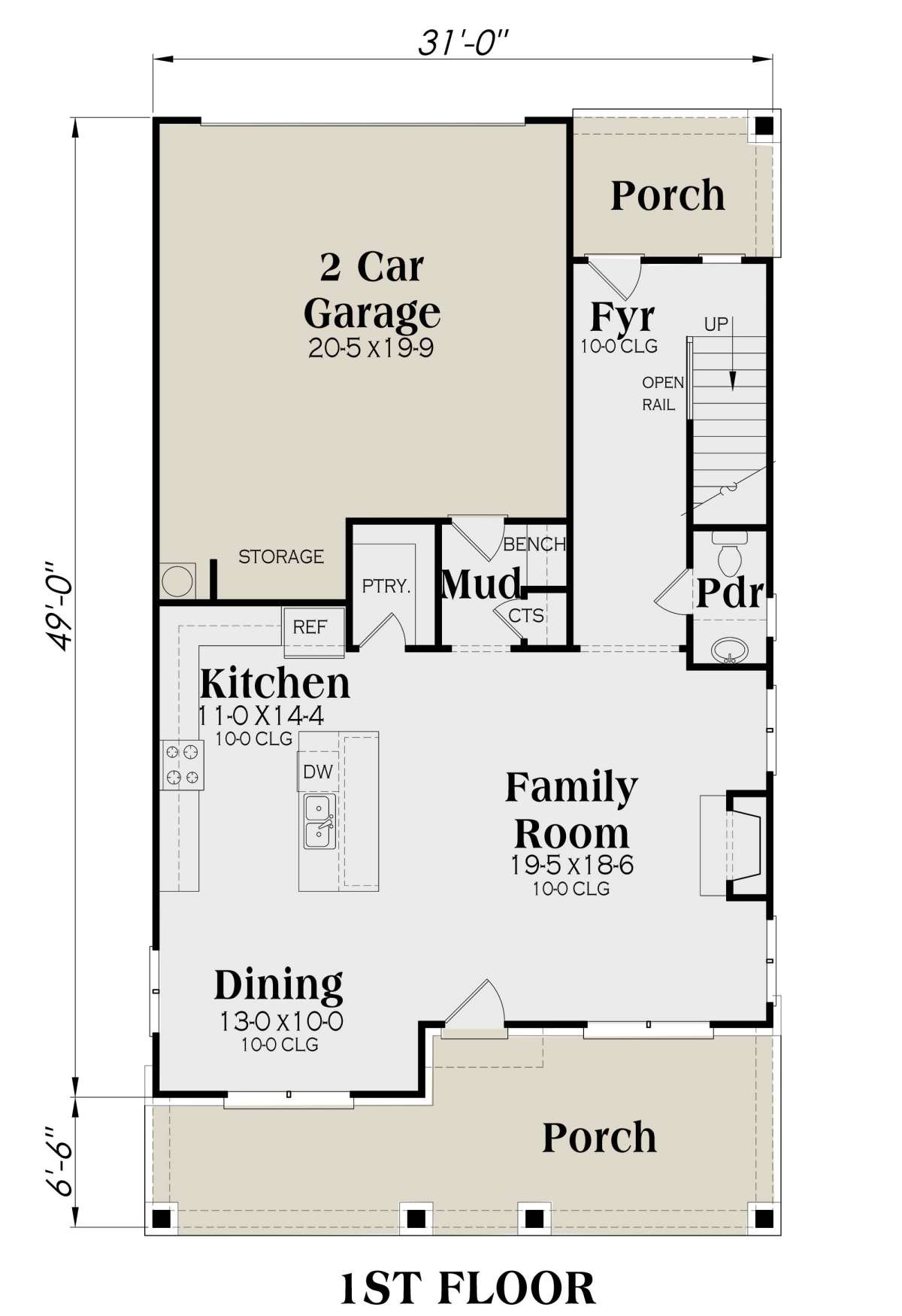

Main Floor
Main Floor for House Plan #009-00286

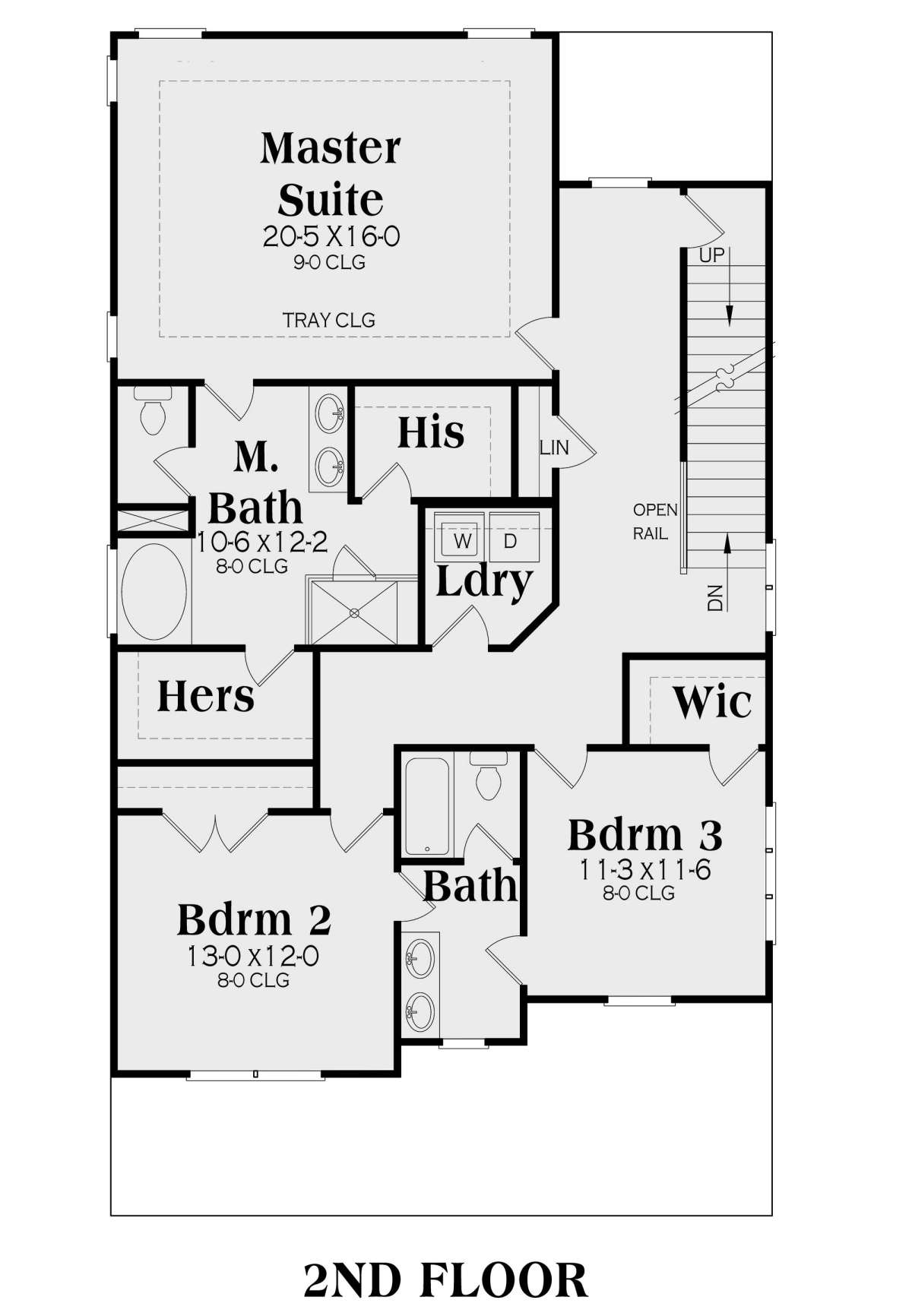

Second Floor
Second Floor for House Plan #009-00286

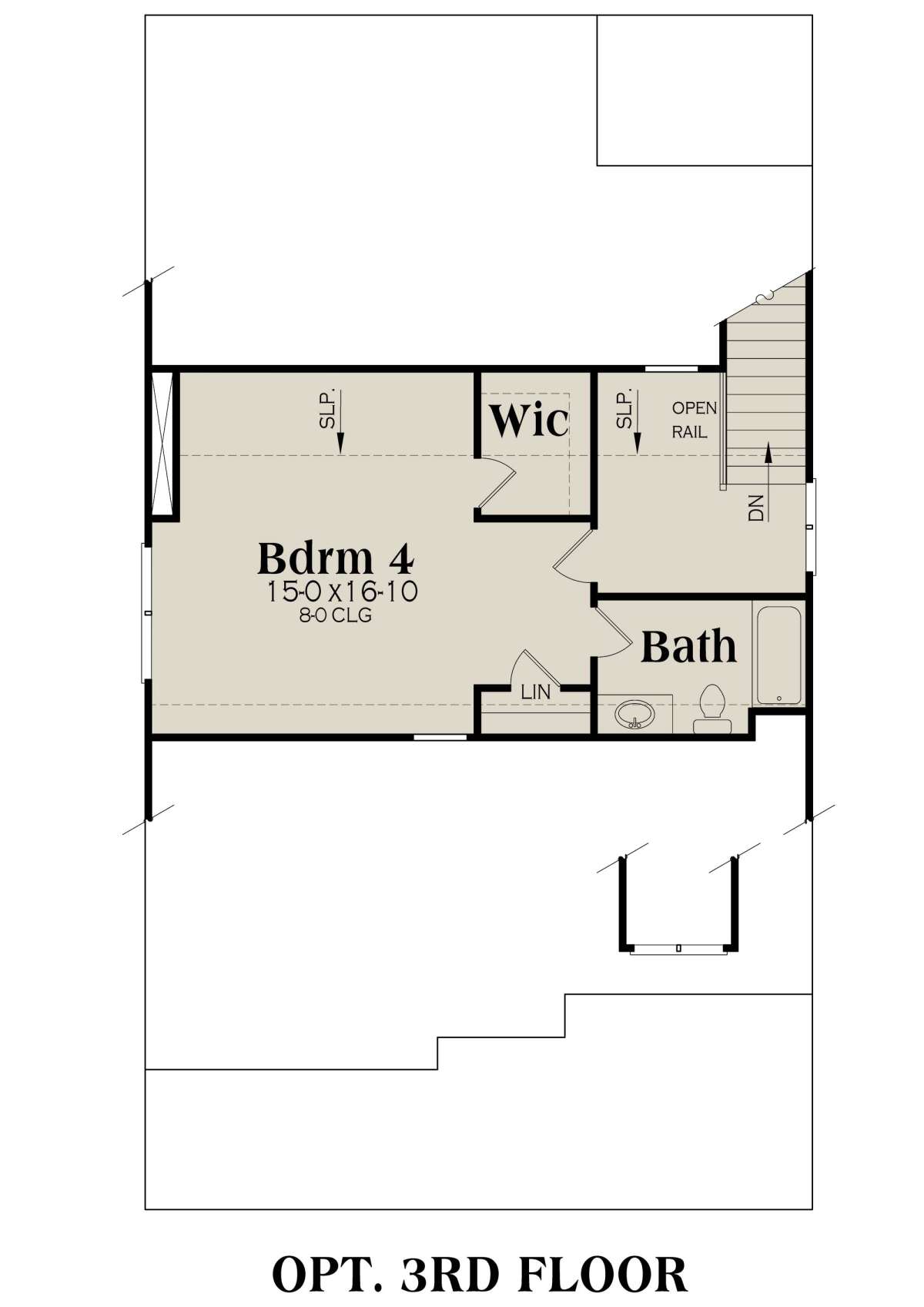

Optional Third Floor
Optional Third Floor for House Plan #009-00286

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

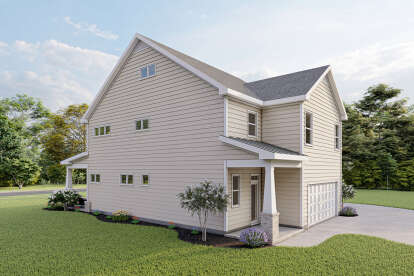

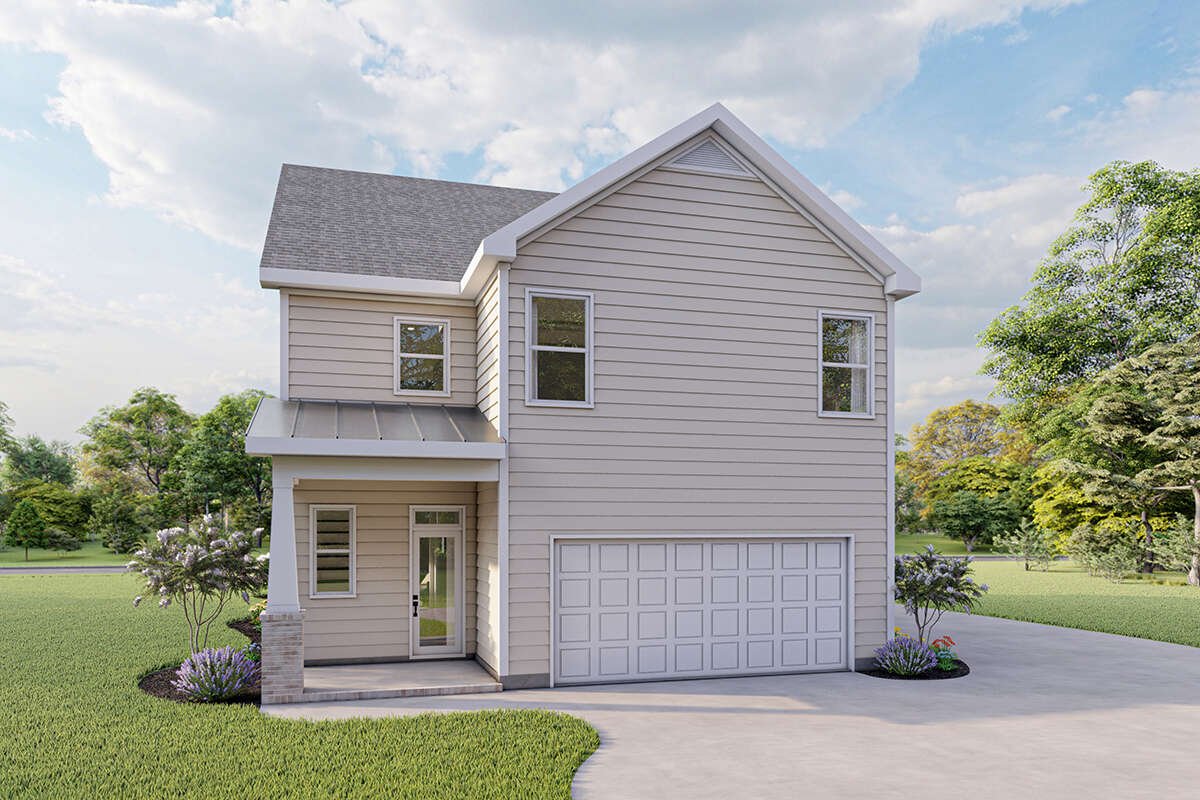

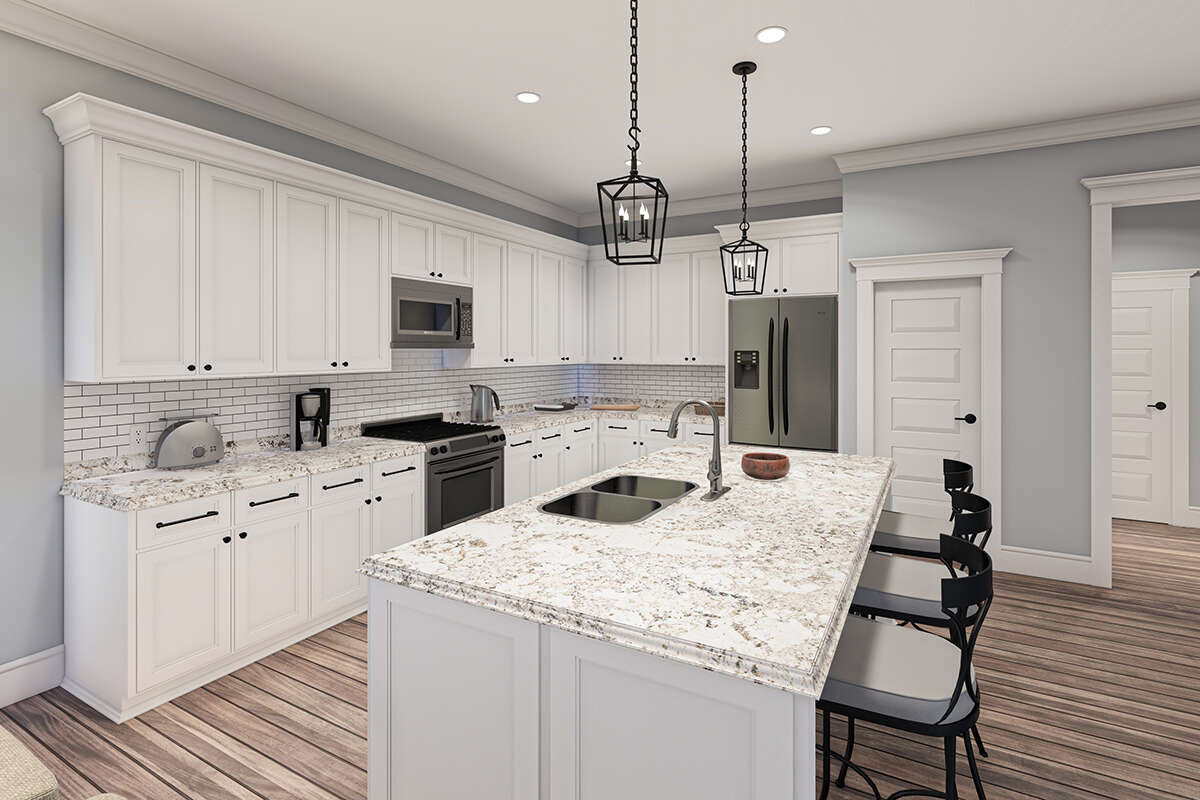

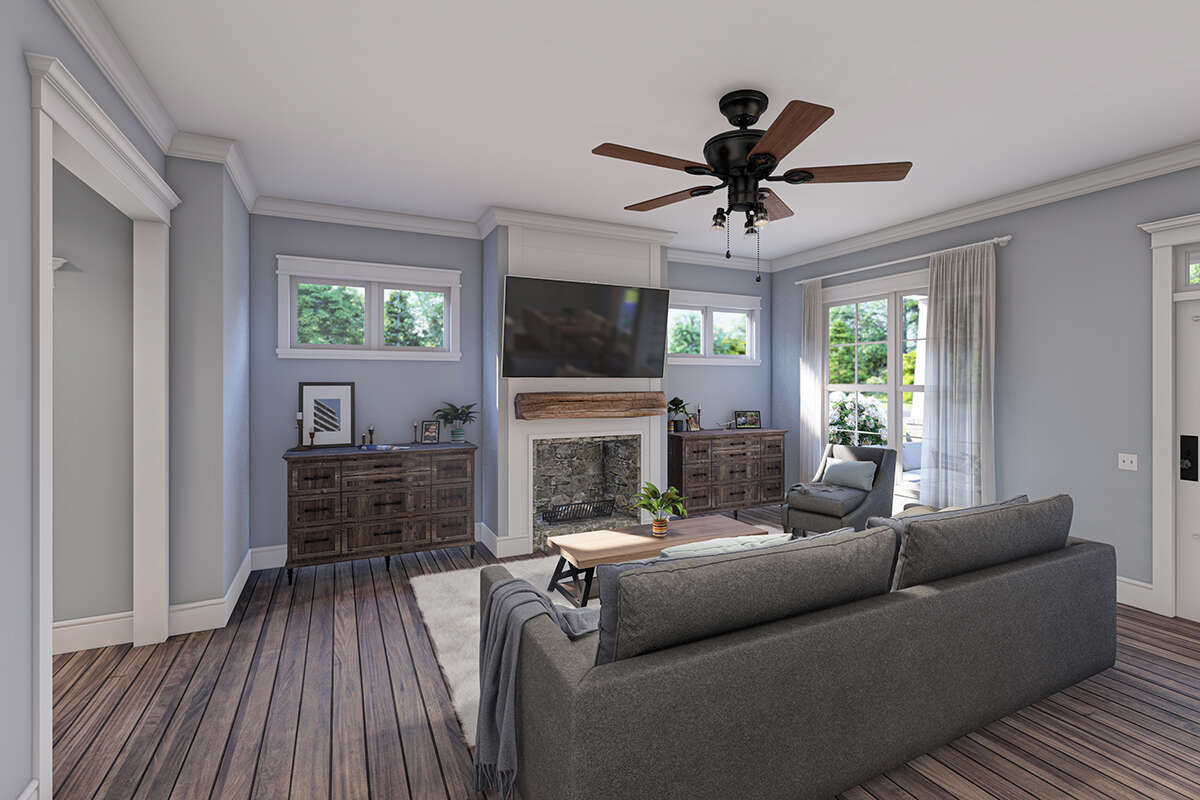

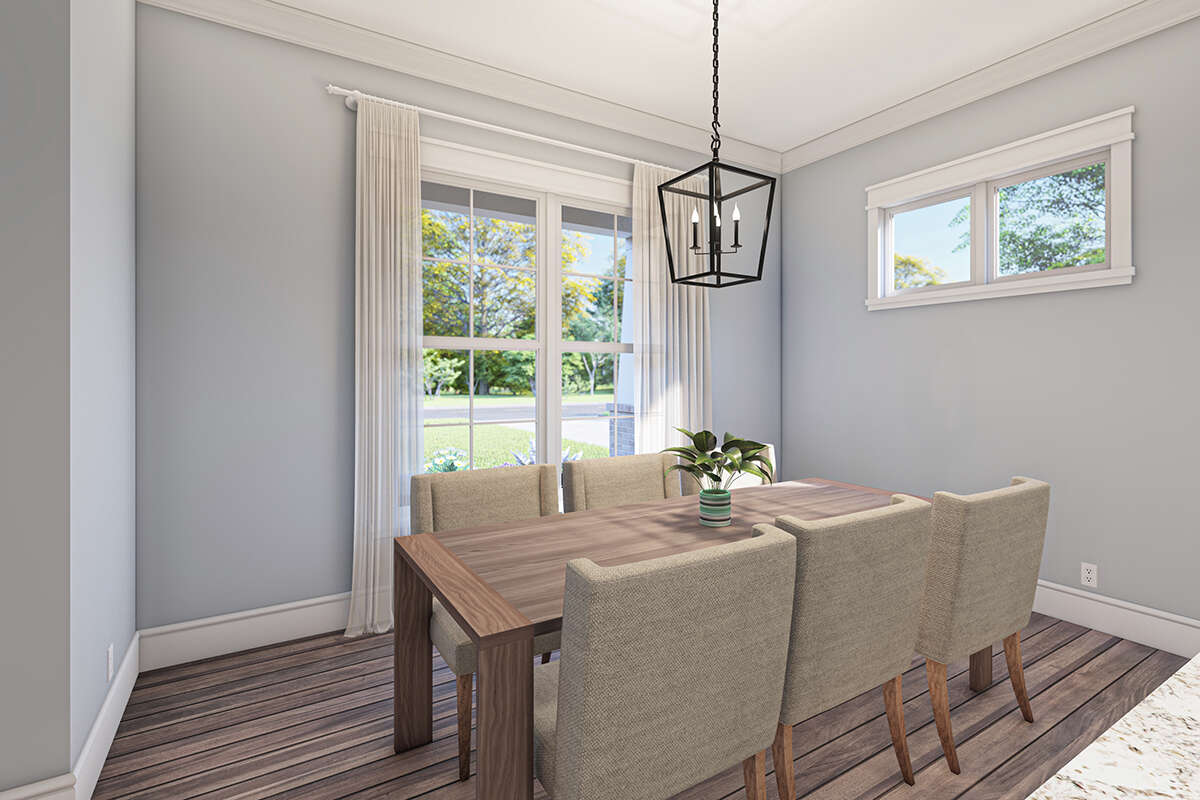

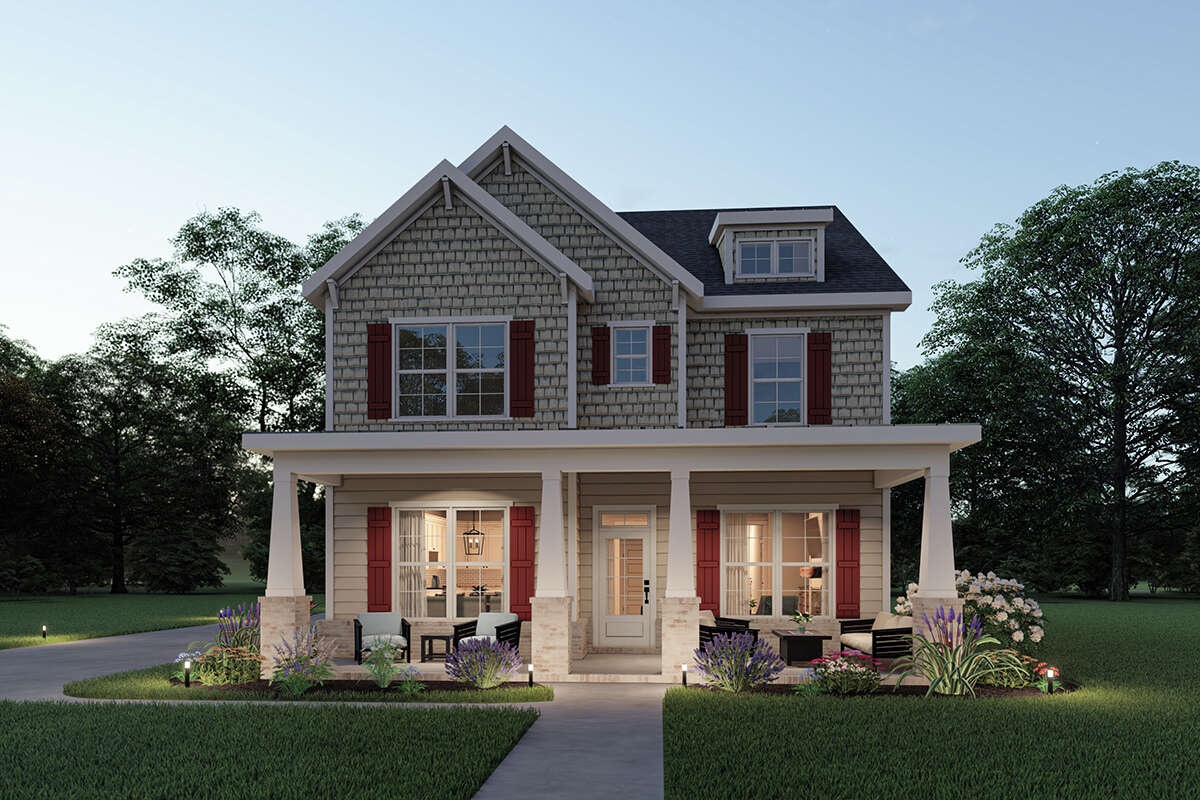

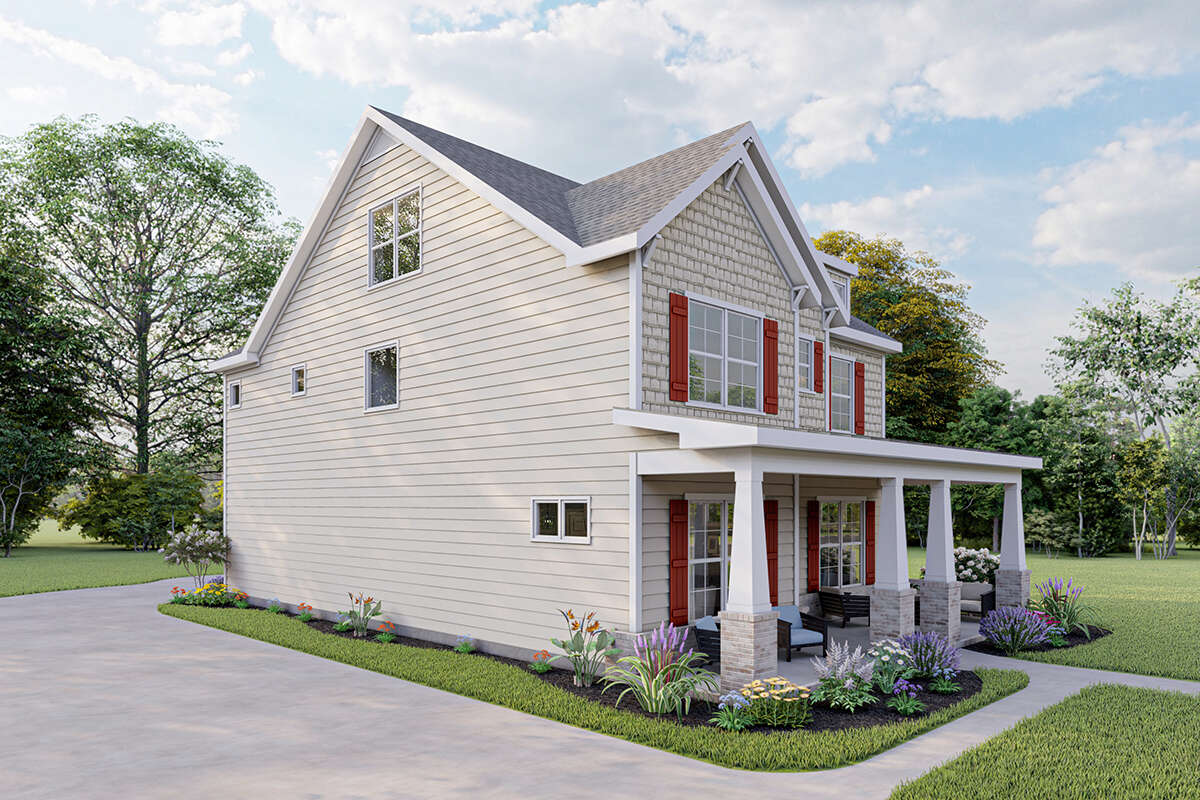

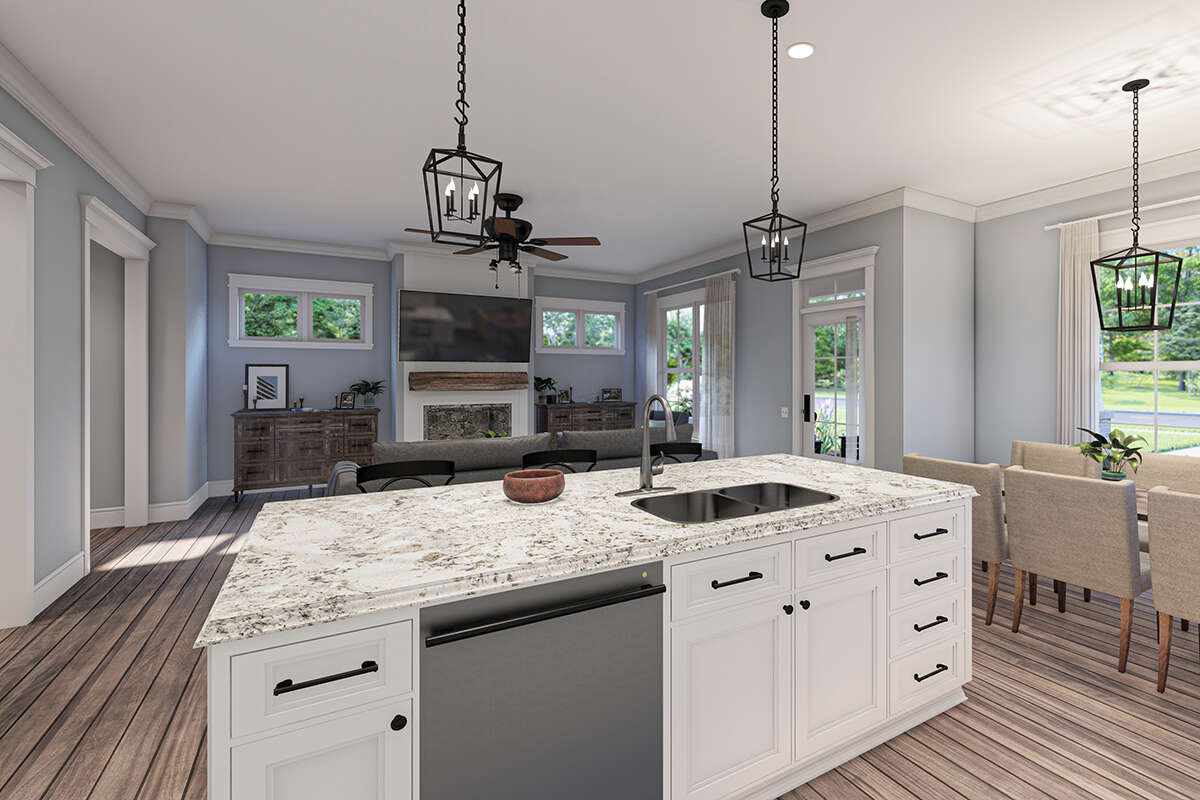

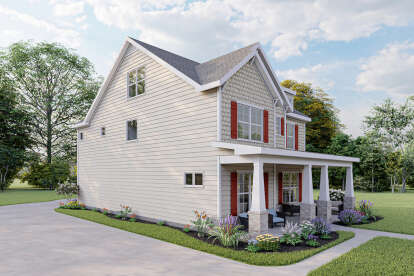

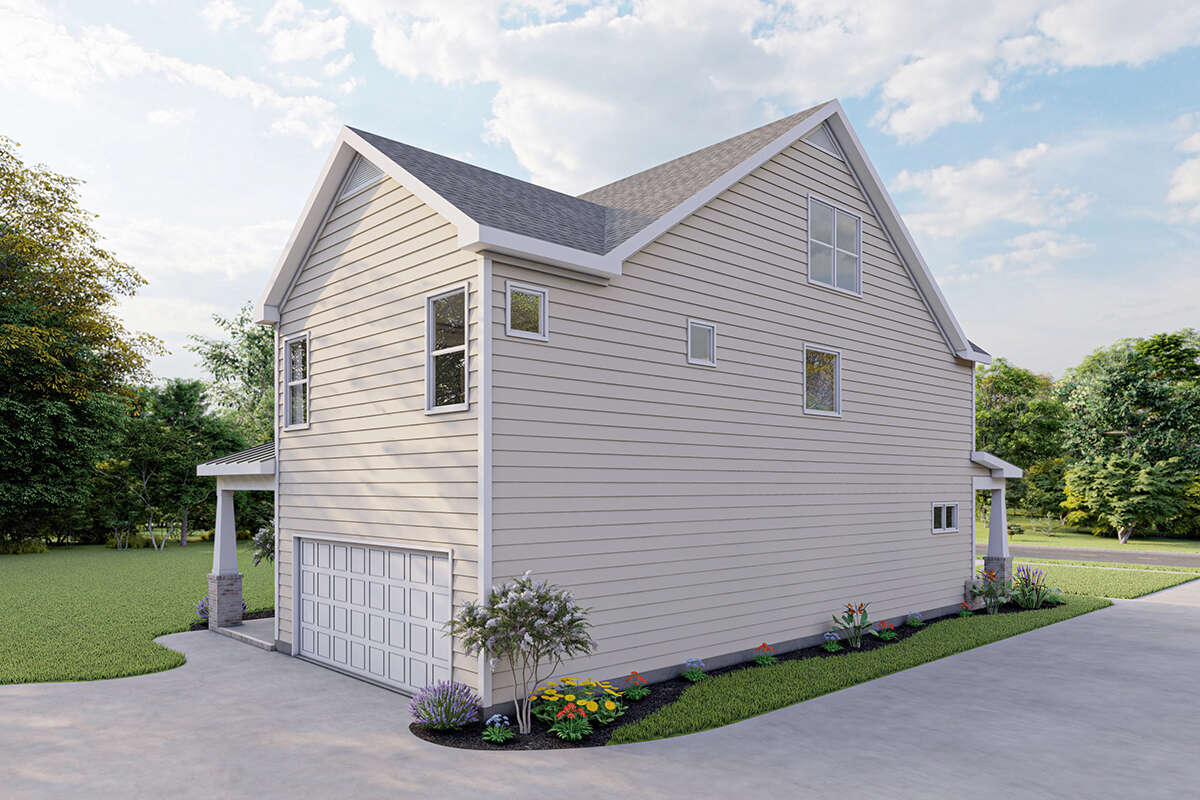

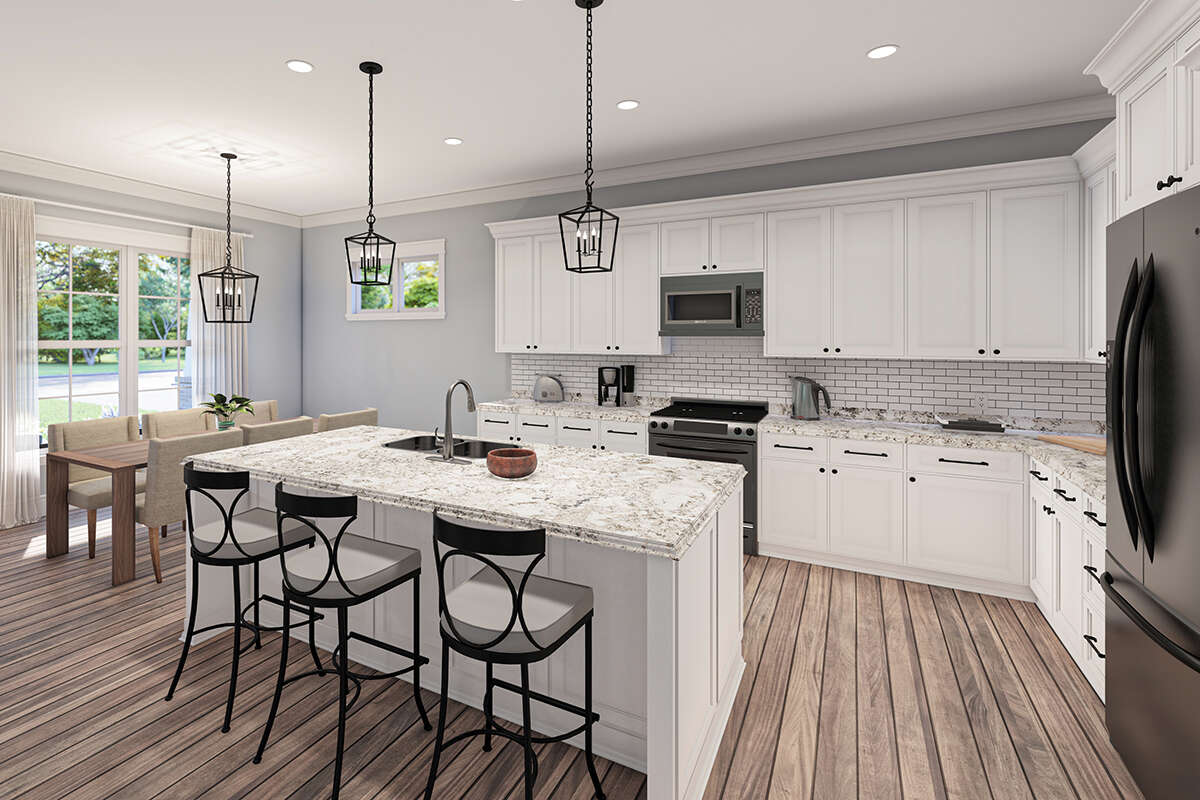

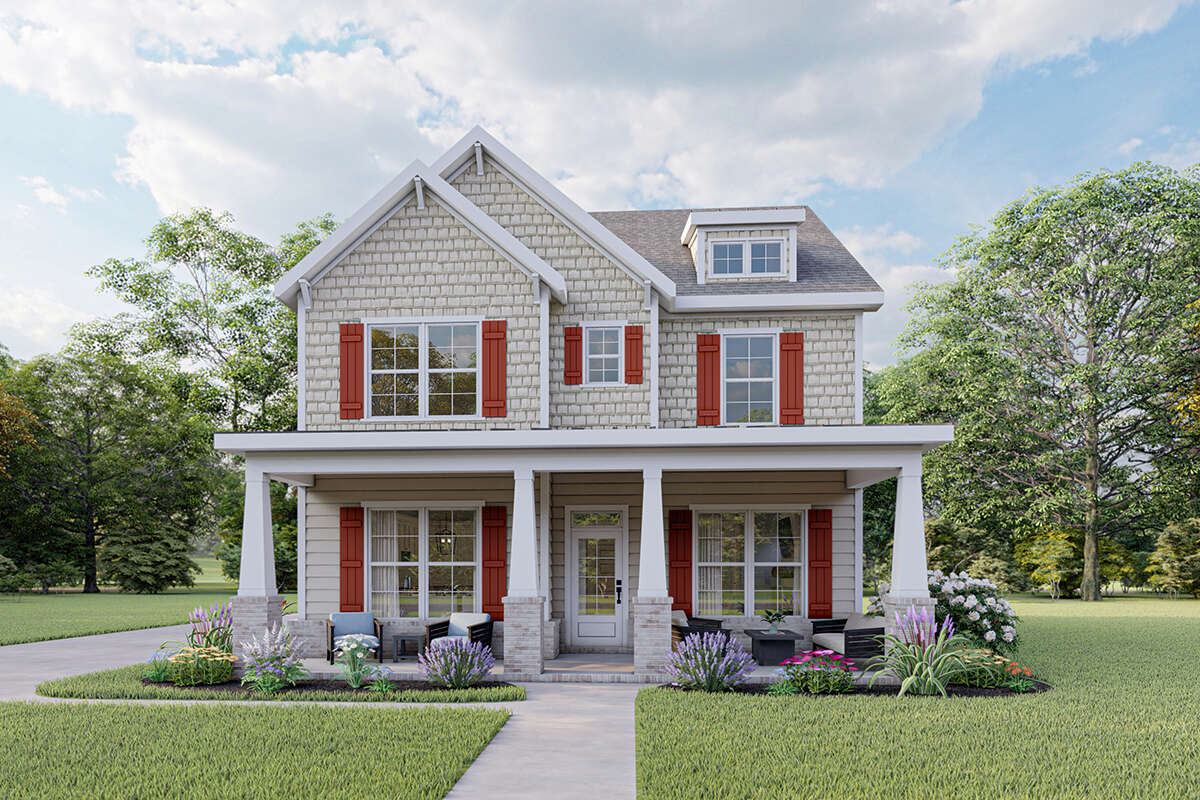

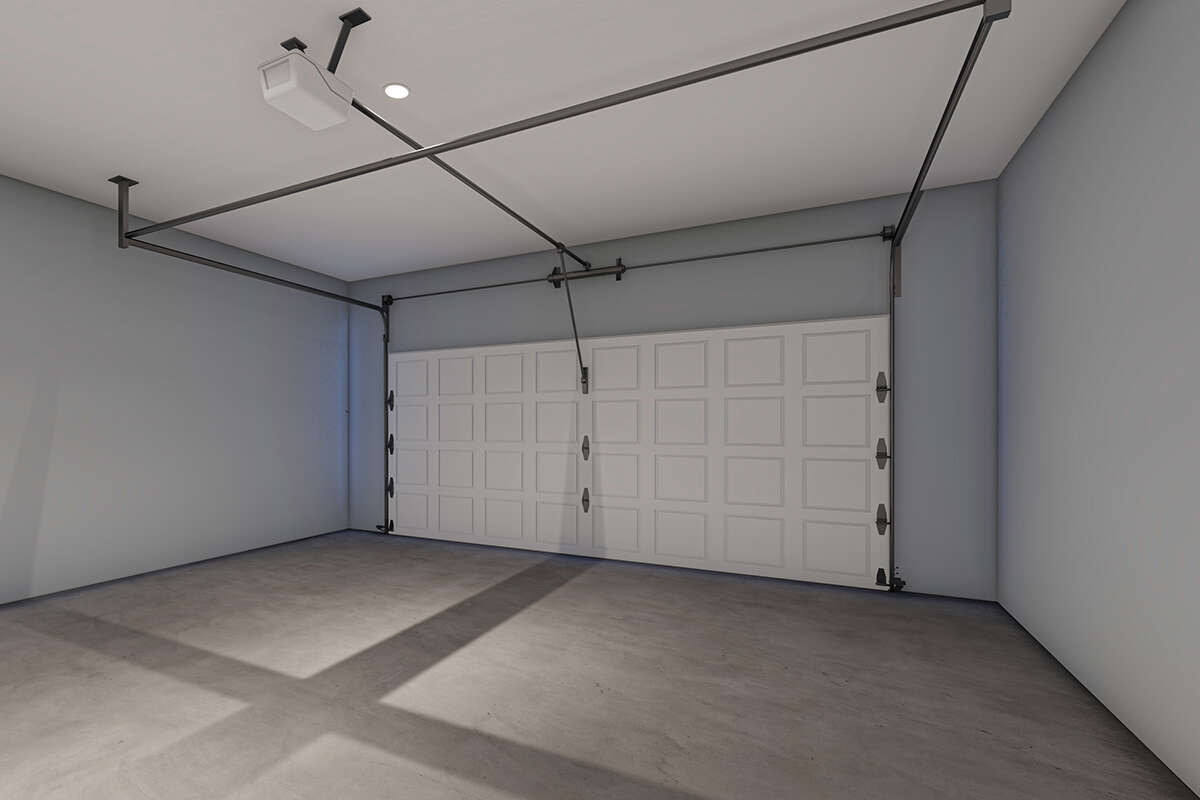

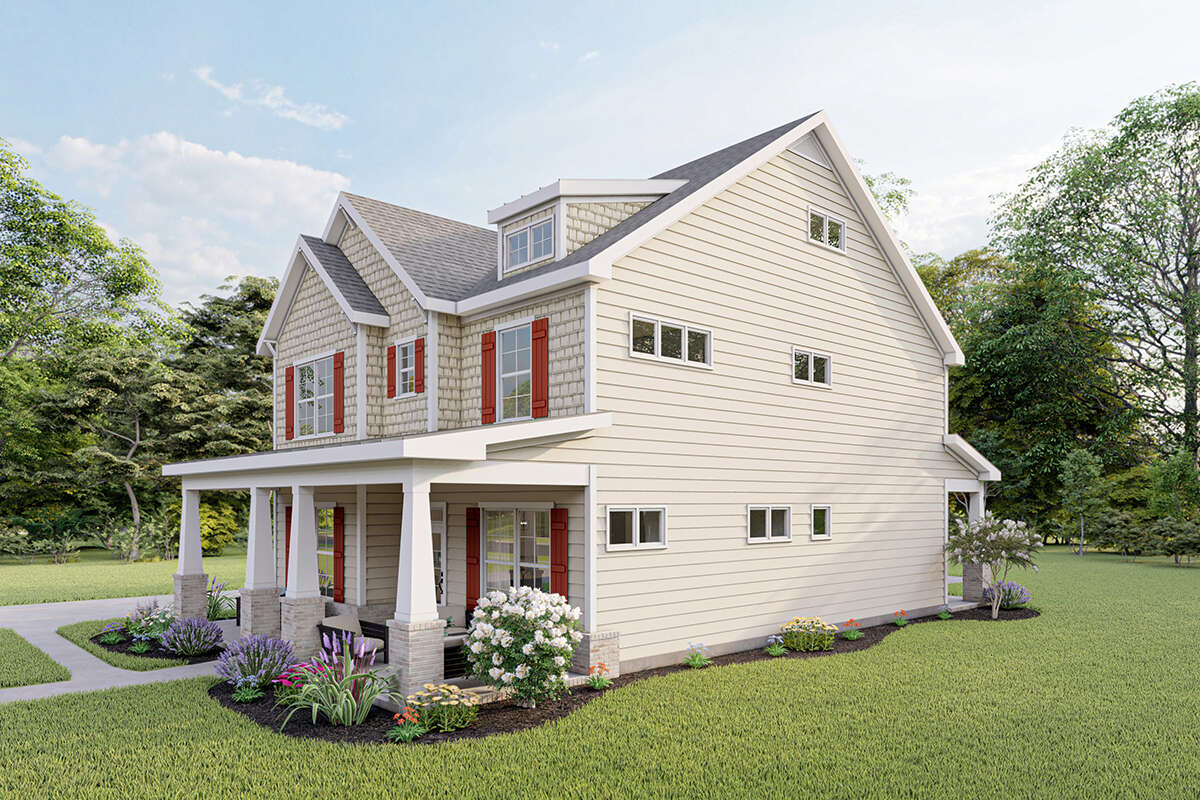

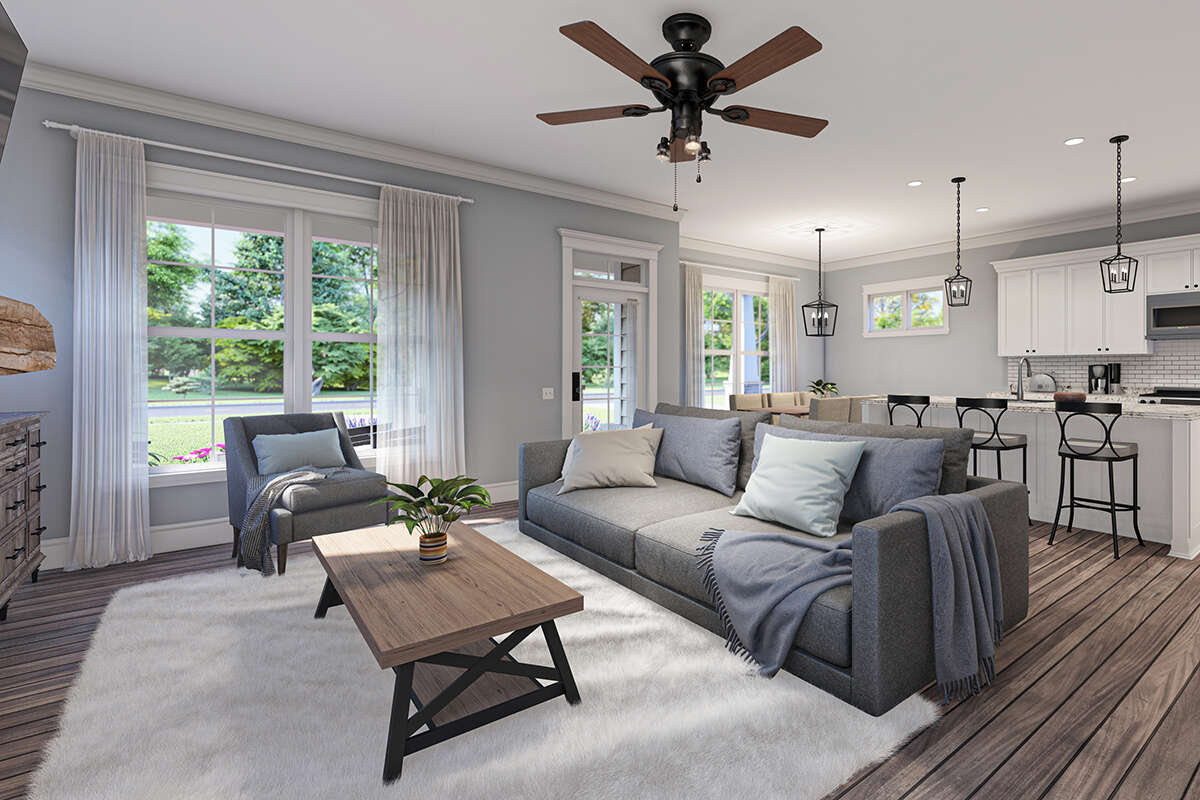

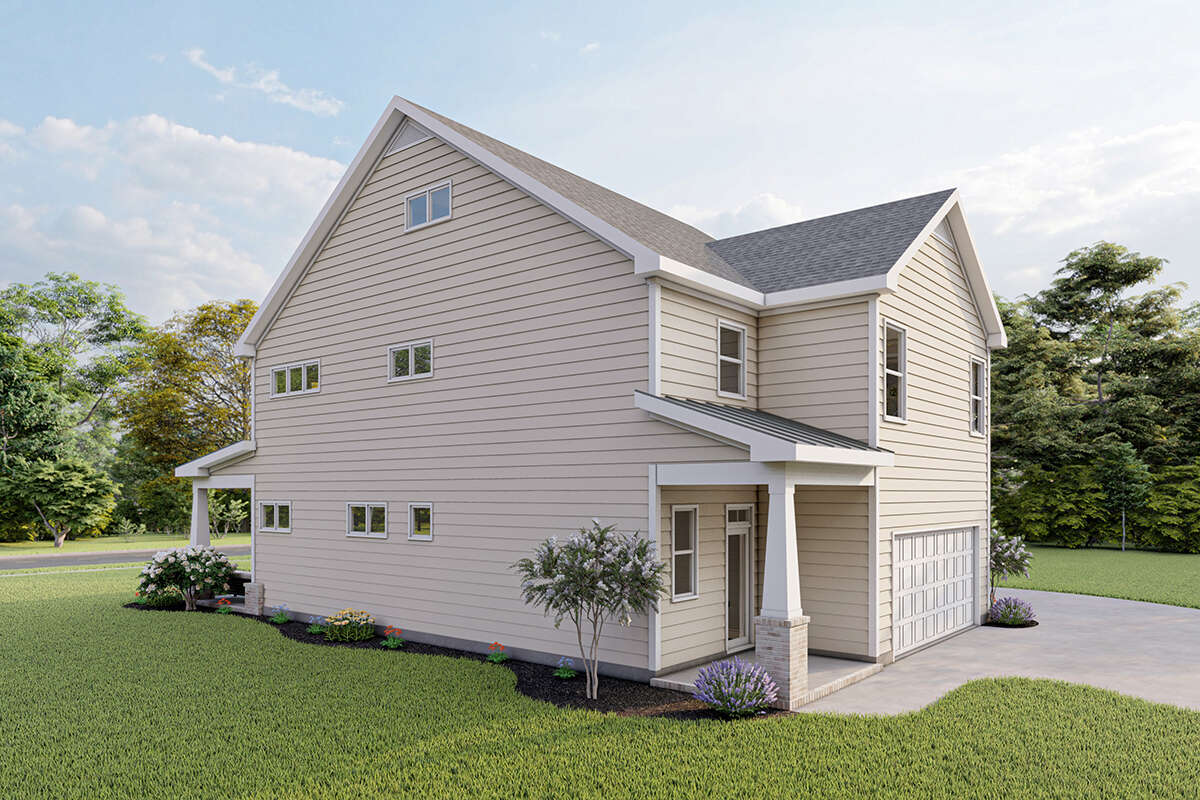

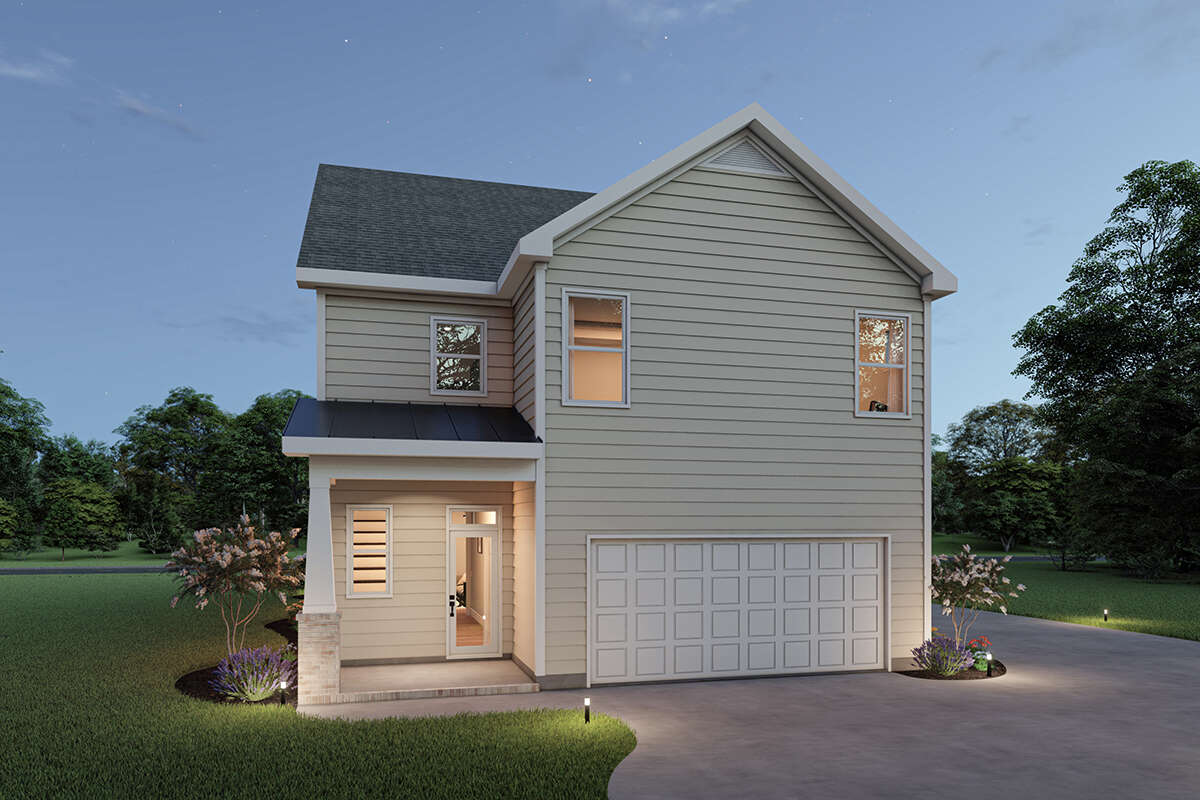

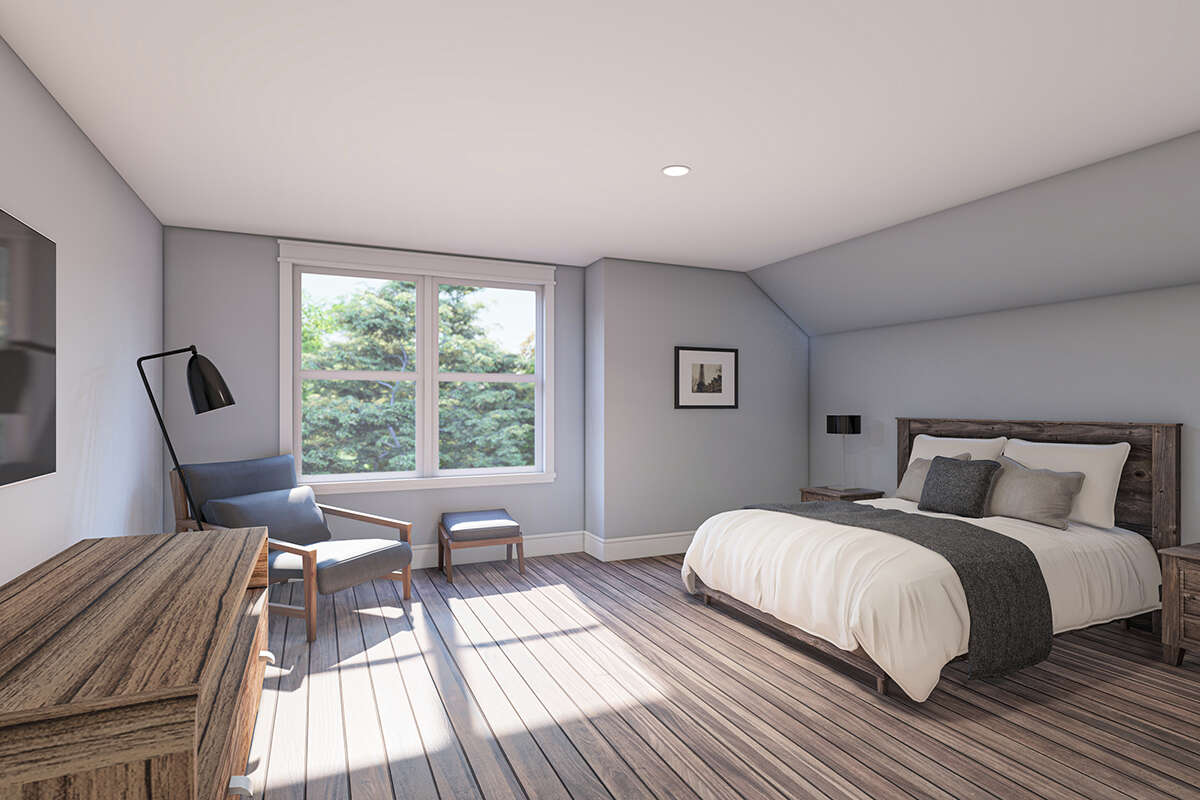

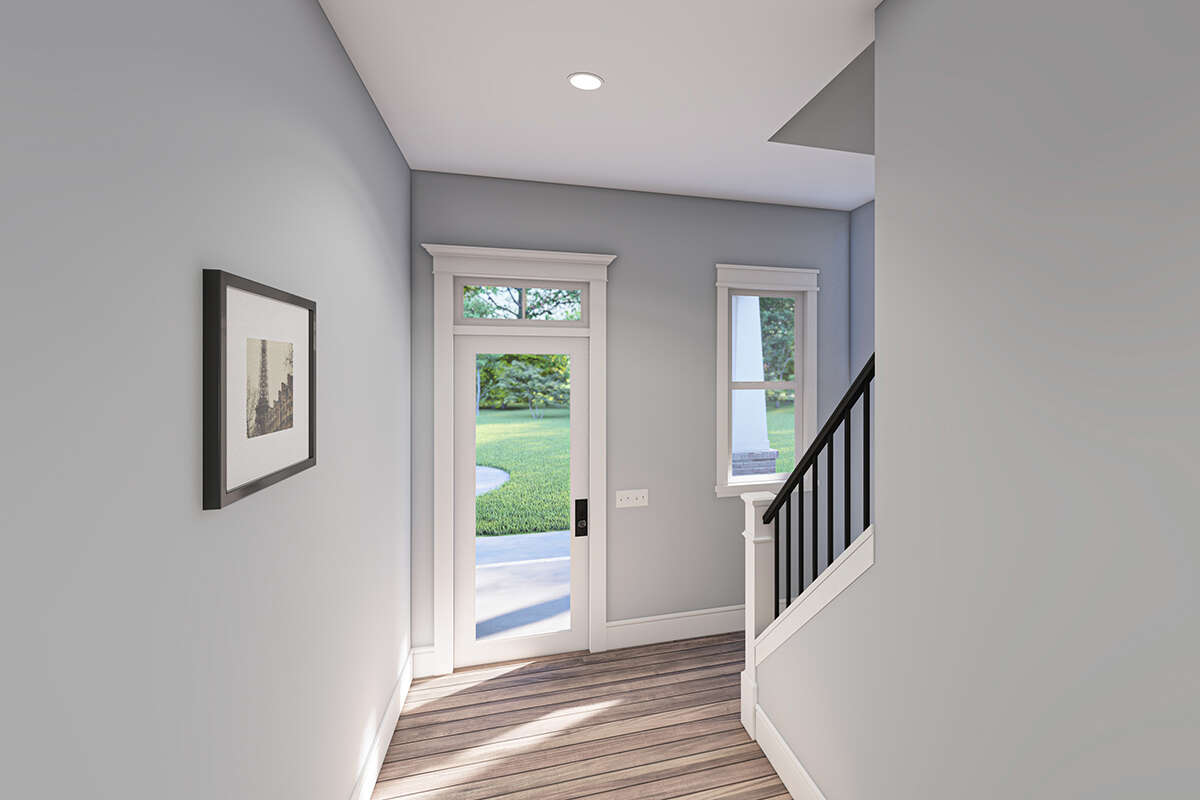

Looking to build on a narrow lot? Consider this exclusive Craftsman house plan. A combination of natural wood shingle and vinyl siding combined with board and batten window shutters and a brick perimeter skirt harmoniously bring together a strong architectural design. The interior layout is perfect for building on a narrow lot as the main level provides a dedicated family space, while the second level houses the sleeping quarters that keeps the family close. The two car garage is located on the rear of the home for privacy and contains room for a storage area and convenient entrance to the mudroom. Its walk-up front covered porch is spacious in function and leads straight into the family room providing a sense of the open floor concept. Regardless if you’re in the kitchen, family room, or dining area, the configuration of this layout allows your family to never miss a beat. Window views run throughout the family room and dining area making for the main floor to remain bright and airy, while the fireplace functions to keep the area warm during chilly nights. A walk-in pantry, center island, and an L-shaped counter allow for plenty of cooktop and storage space in the kitchen. The foyer houses access to the guest powder room and the rear porch before opening to the staircase to the second floor. The master suite if the first room off the landing and it features a 9-foot ceiling with tray ceiling design, window views to keep the room bright, a master bathroom, and his and her walk-in closets. Bedroom #2 and #3 are similar in size and share Jack and Jill bathroom with a shower/tub combination, and ample closet space. The linen closet is adjacent to the laundry room, which completes the second floor. If you’re needing another room for your family or would like to add a guest room, this house plan allows for an optional third floor, which houses a fourth bedroom, full private bathroom, linen closet, a walk-in closet, and an 8-foot ceiling. Consider this exclusive Craftsman house plan if you’re needing a plan with options, as it provides great potential for your growing family’s needs.
