Craftsman House Plan 009-00217

Sq Ft4,242
Beds4
Baths5
1/2 Baths0
Stories2
Cars3
Width71' 0"
Depth91' 6"

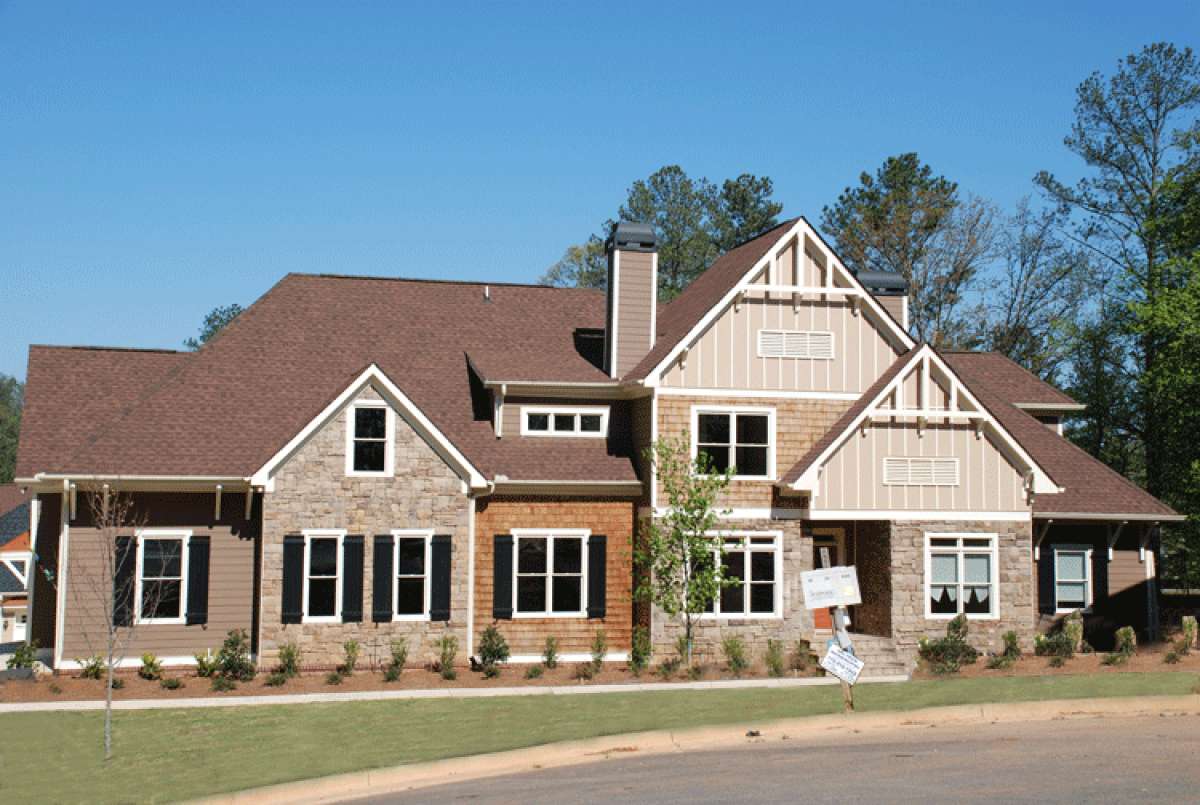

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

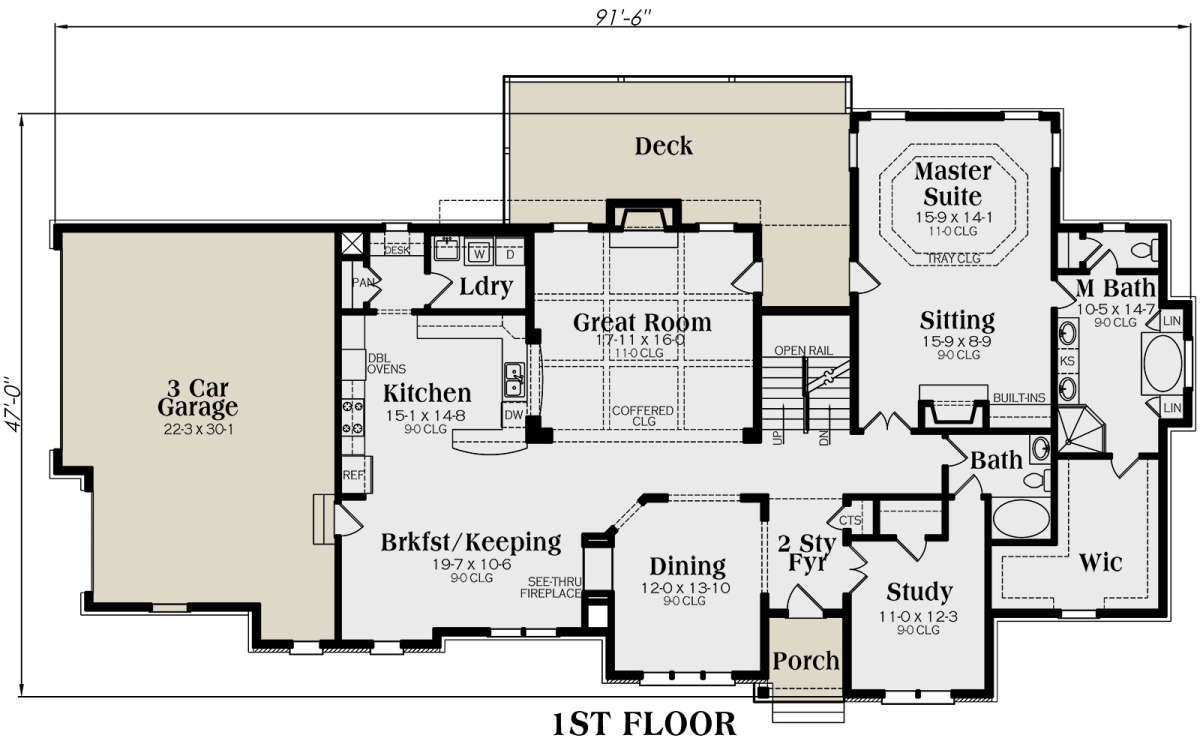

Main Floor for House Plan #009-00217

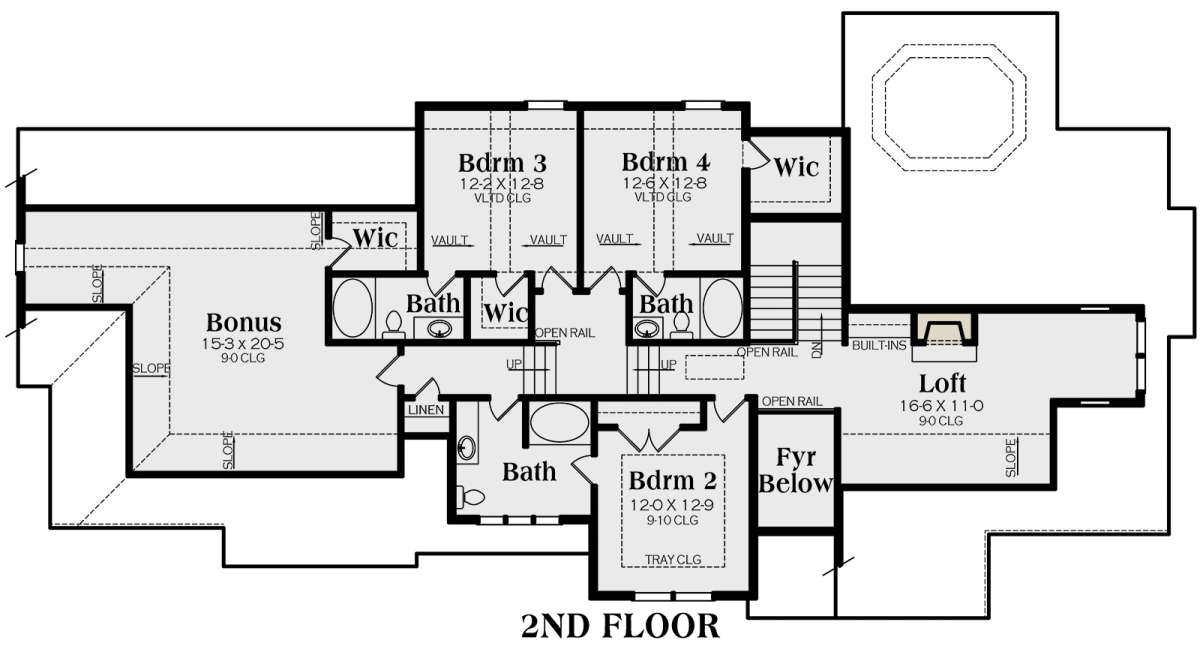

Second Floor for House Plan #009-00217
Main Floor
Main Floor for House Plan #009-00217
Second Floor
Second Floor for House Plan #009-00217


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A plethora of space takes center stage in this impressive floor plan. There are approximately 4,200 square feet of living space in this home with a main level master suite and three additional bedrooms along with four plus bathrooms. The unfinished basement foundation further increases the home potential living space and versatility. The Craftsman inspired exterior façade is striking with its use of exposed rafters, brick, board and batten alongside the covered front porch. The two story foyer is open to the formal dining room and provides French door access into the private study with access to the private bath. An enormous family room boasts of a gorgeous coffered ceiling, rear wall fireplace and rear deck access. The family friendly keeping room features a large space to gather as a family and there is a see-thru fireplace into the dining room. The keeping room is open to the gourmet kitchen which is a chef’s delight with a breakfast bar, walk-in pantry and an abundance of counter and cabinet space. The main floor master suite is accessible through French doors and is elegantly designed with a large master bedroom with an additional sitting area which features a fireplace and built-in cabinetry. The master bath has a large footprint with separate dual vanities, double linen closets, a garden tub, separate shower and a compartmentalized toilet. For privacy, the oversized master walk-in closet sits at the rear of the master bath. A family laundry room with sink area and three car, side entry garage completes the main level of the home.
Upstairs, the theme of spaciousness continues with more family bedrooms, three full baths and additional space. The second bedroom features ample closet space and private access to the full hall bath. Bedrooms three and four each have a walk-in closet, are vaulted, and have private full baths. An enormous bonus room with walk-in closet and large loft space is situated at each end of the bedrooms respectively. These two additional spaces would be ideal for a playroom, homework station for the children or multi-purpose family rooms. This home has a functional and spacious floor plan for a large, active family.
