Craftsman Plan 009-00136

EXCLUSIVE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,293
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 40'
Depth 52'

Floorplan Drawings

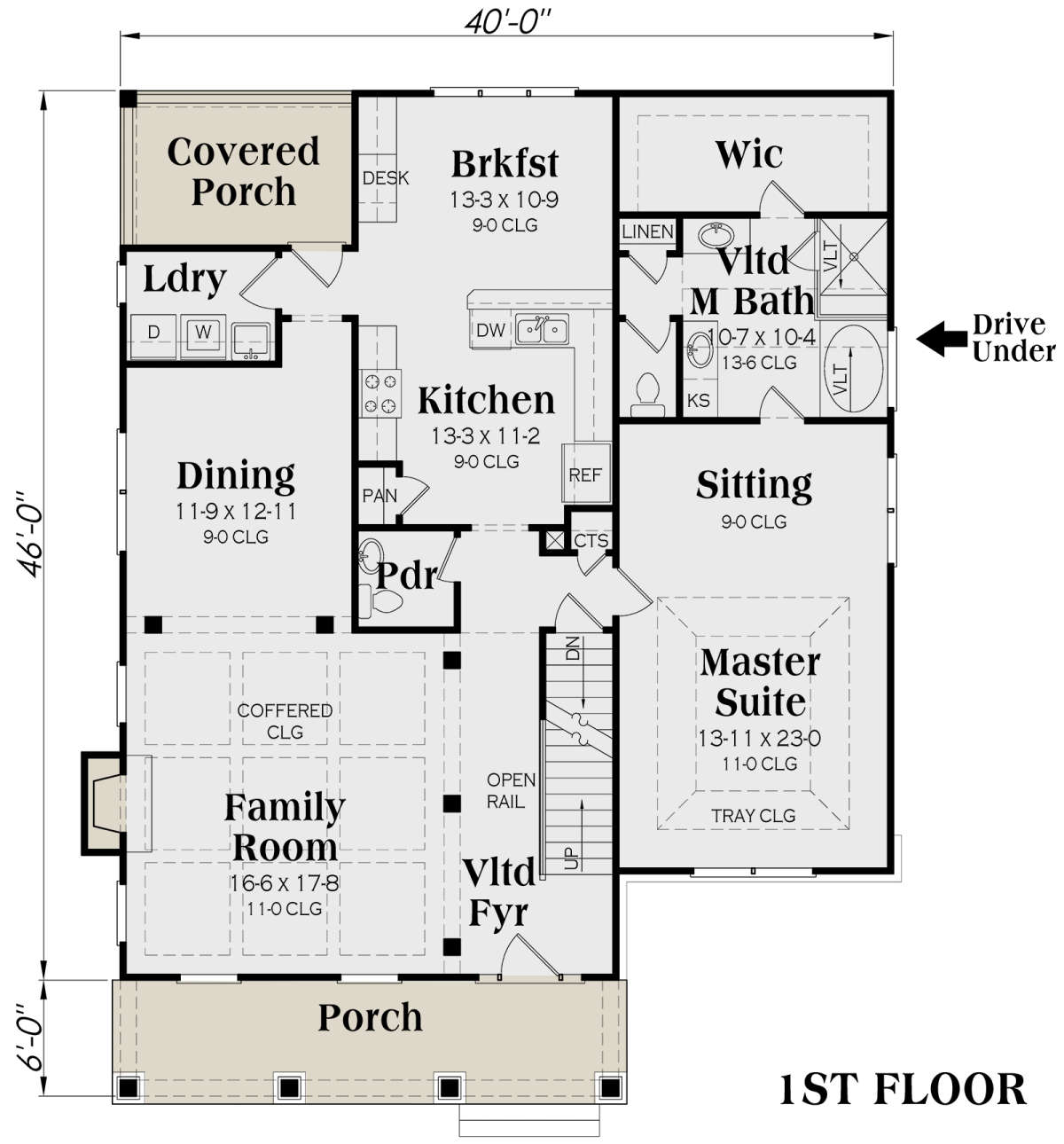

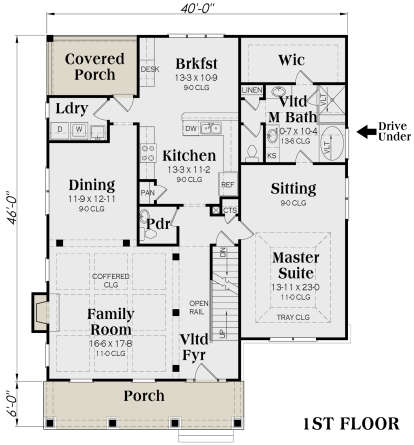

Main Floor
Main Floor for House Plan #009-00136

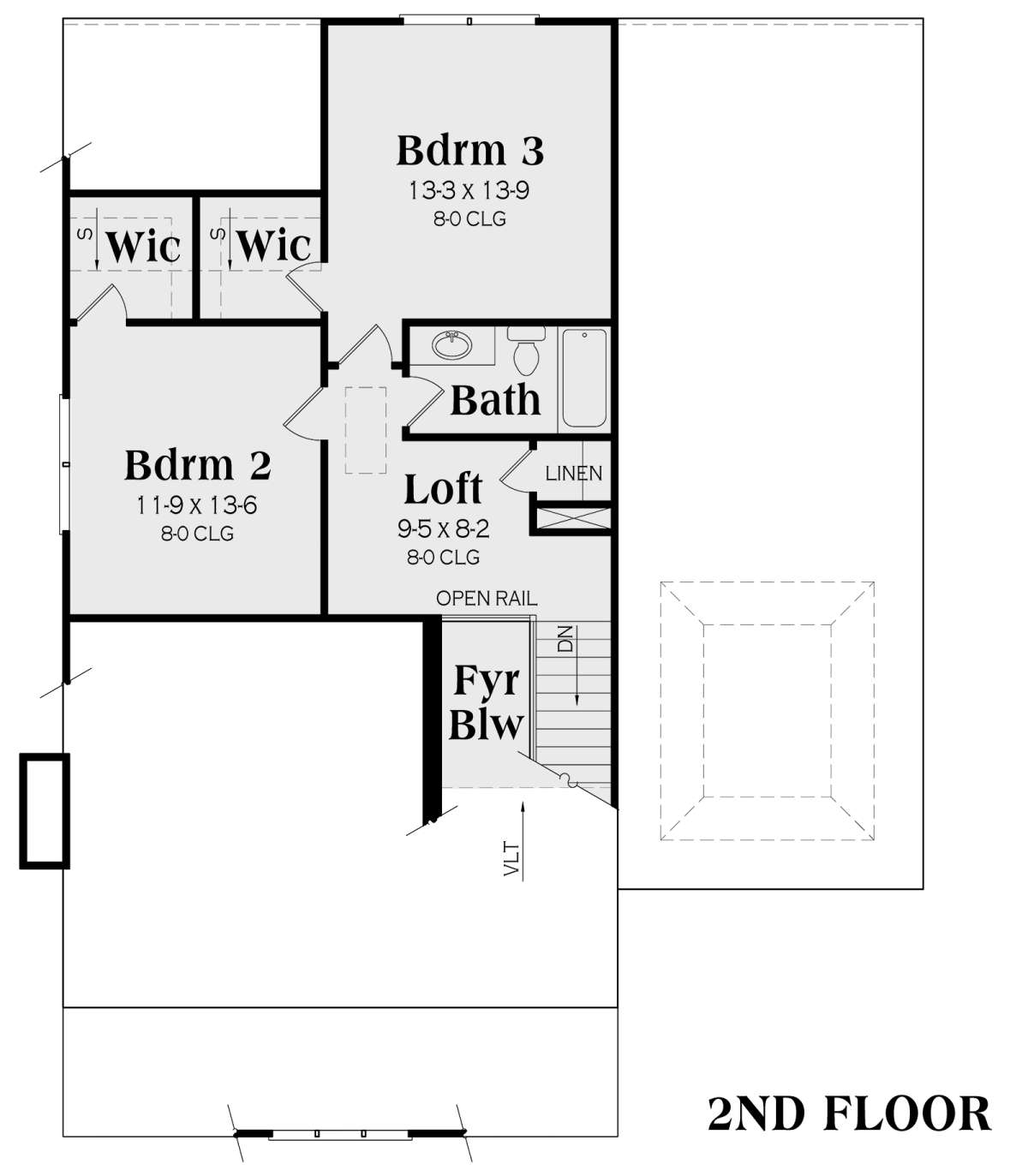

Second Floor
Second Floor for House Plan #009-00136


What's Included in these plans?

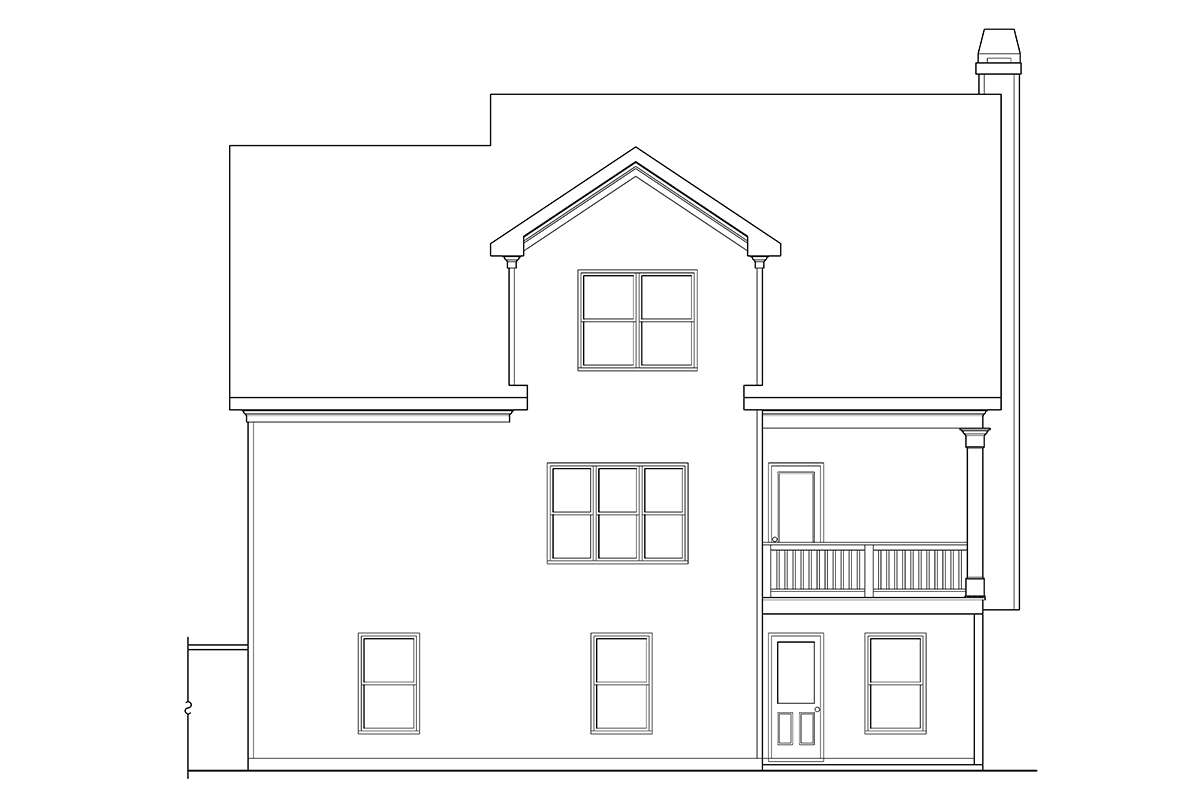

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

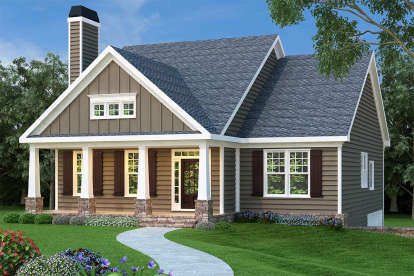

Plan 009-00136 highlights the Craftsman style home beautifully and is ideally suited for a narrow lot with its 40’ width size. The tapered columns with stacked stone finish, triple window dormer and front covered porch lend the home character and style. The gorgeous front door is highlighted with window accents and leads to the dramatic vaulted foyer. The living room is equally dramatic with beautiful coffered ceilings, column details and a stately fireplace. The formal dining room is open to the living room which makes this an outstanding space in which to entertain or relax with family and guests. The chef’s kitchen has a separate pantry, breakfast bar and is open to the breakfast room with a triple wall window view of the rear yard. A large covered deck is adjacent to the breakfast room/kitchen and would be a lovely place to have morning coffee or relax at night. The main floor master suite occupies one side of the home and features an enormous master bedroom with trey ceiling and an additional sitting area with side yard views. The vaulted master bath is elegantly appointed with a garden tub, separate shower, separate his and her vanities and a private toilet area. The oversized walk-in master closet sits at the rear of the space for privacy. A powder room for guests and a large utility room with a sink area completes the first floor of the home. A two car, drive under garage is also included in the house plan. The open loft sits at the top of the staircase and makes a great space for children; either as a playroom or homework station. There are two spacious bedrooms, each with a walk-in closet, that share a hall bath and linen closet. This home has approximately 2,300 square feet of living space and is both functional and comfortable.
