Craftsman House Plan 009-00133

Sq Ft2,133
1/2 Baths1
Width47' 0"
Depth52' 0"

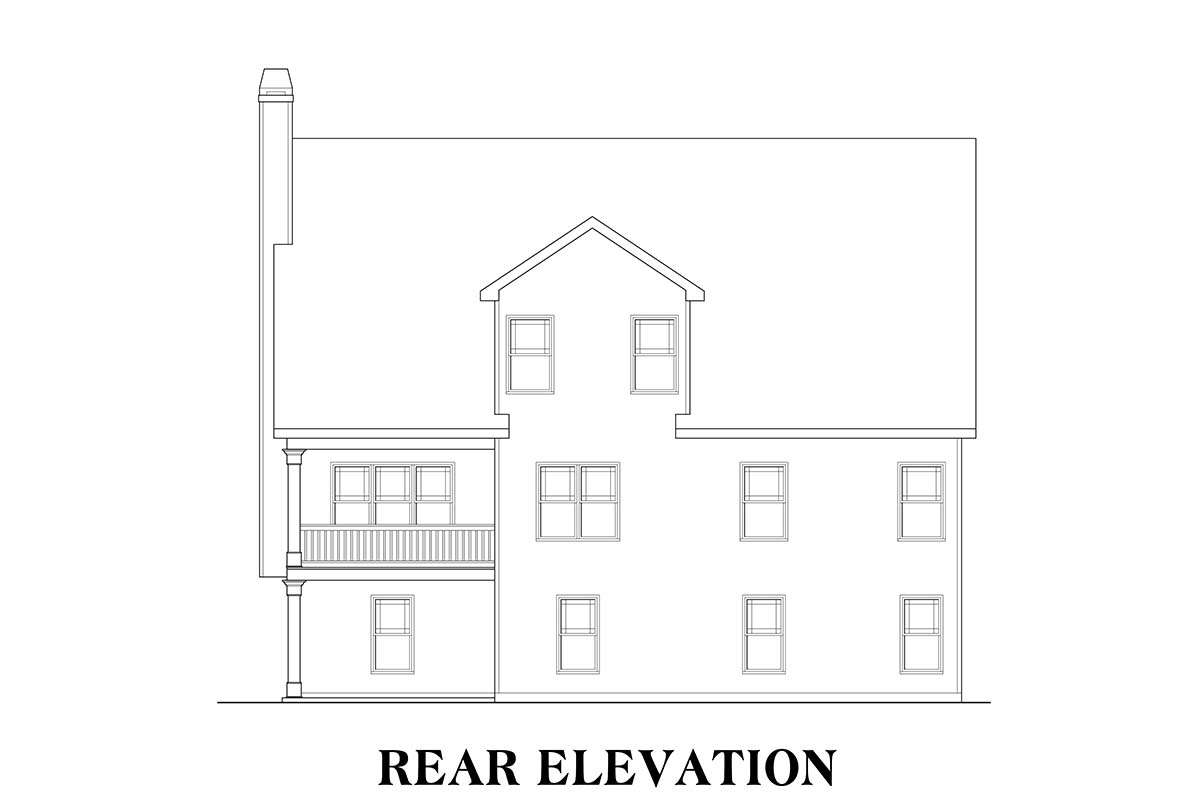

Craftsman House Plan #009-00133 Elevation Photo

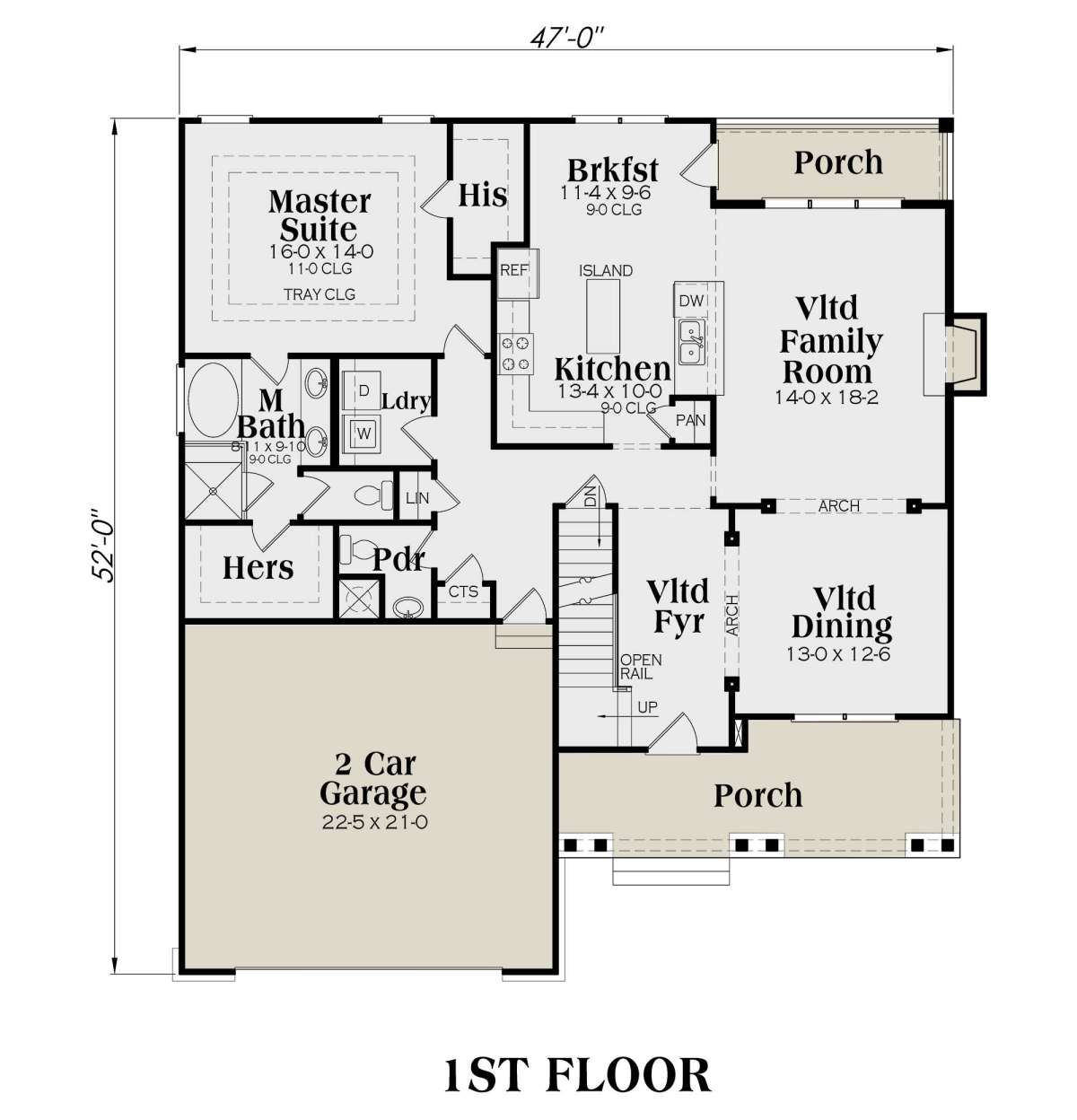

Main Floor

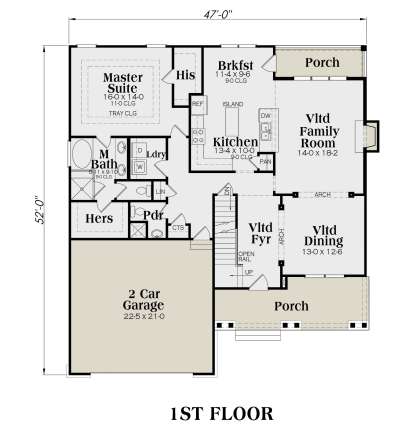

Main Floor for House Plan #009-00133

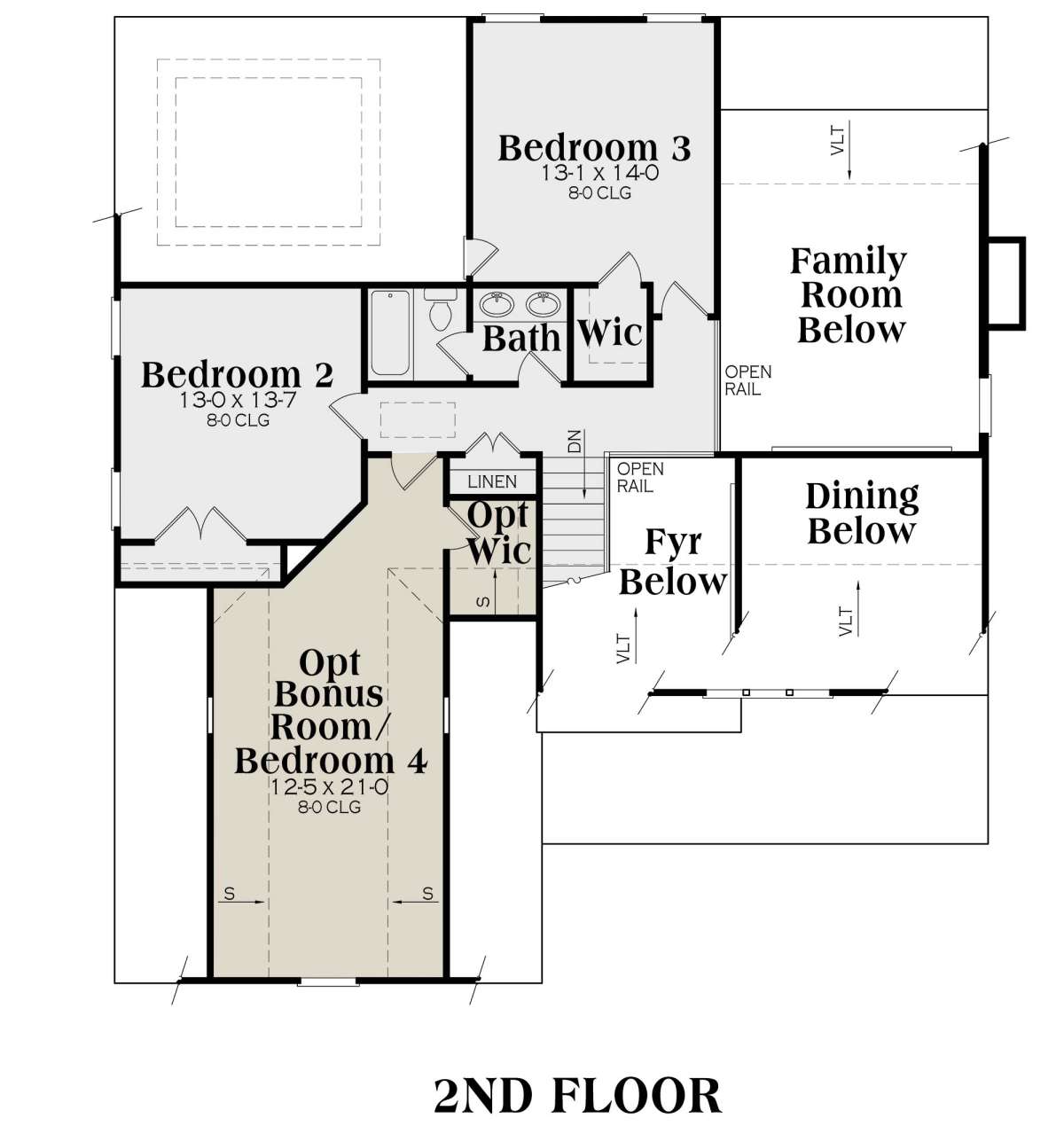

Second Floor
Second Floor for House Plan #009-00133
Craftsman House Plan #009-00133 Elevation Photo
Craftsman House Plan #009-00133 Elevation Photo
Main Floor for House Plan #009-00133
Second Floor for House Plan #009-00133
Craftsman House Plan #009-00133 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #009-00133
Second Floor for House Plan #009-00133
Main Floor
Main Floor for House Plan #009-00133
Second Floor
Second Floor for House Plan #009-00133

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman styled home features an exterior that includes classic architectural design elements that include a covered front porch, tapered columns atop stacked stone and dormer windows. This classic design presents an inviting and aesthetically pleasing exterior façade that is welcoming and inviting to family and friends alike. The interior floor plan houses four bedrooms and two plus bathrooms in approximately 2,100 square feet. The house foundation offers crawl space, a slab or an unfinished basement option which increases the square footage by 1,534 square feet. In addition to the foundation choices, there is an optional bonus room on the second story which is equal to 350 square feet. Clearly, this home plan offers a range of options to increase the versatility and comfort level of the home. The vaulted foyer contains a side staircase to the second story and is also open to the formal dining room through an archway feature which continues into the vaulted family room. These two spaces are open and ideal for entertaining with a handsome fireplace in the family room and a triple window feature overlooking the rear porch. The breakfast room is highlighted by rear yard window views and provides access to the porch. The gourmet kitchen is an outstanding use of space with its large center island, separate pantry and an abundance of additional counter and cabinet space. The master suite features an elegant design with a trey ceiling master bedroom measuring 14’x16’ and “his” walk-in closet sits off the master bedroom. The master bath is highlighted by dual vanities, a separate shower, garden tub and a compartmentalized toilet while “her” oversized walk-in closet sits at the rear of the bath for privacy. A two car garage, laundry room and powder room for guests complete the main level of living in the home.
As you travel the staircase, you are greeted with bedroom three which offers a walk-in closet. A shared hall bath with double vanities and a linen closet separates bedroom two and bedroom three which is spacious and provides ample closet space. The optional bonus room is an enormous space which could be used as a fourth bedroom with walk-in closet or a multi-purpose room for the family. This home’s interior floor plan is exceptional with a plethora of expansion options and an exciting exterior façade.
