Craftsman House Plan 009-00130EXCLUSIVE PLAN

Sq Ft2,372
1/2 Baths0
Width47' 0"
Depth46' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

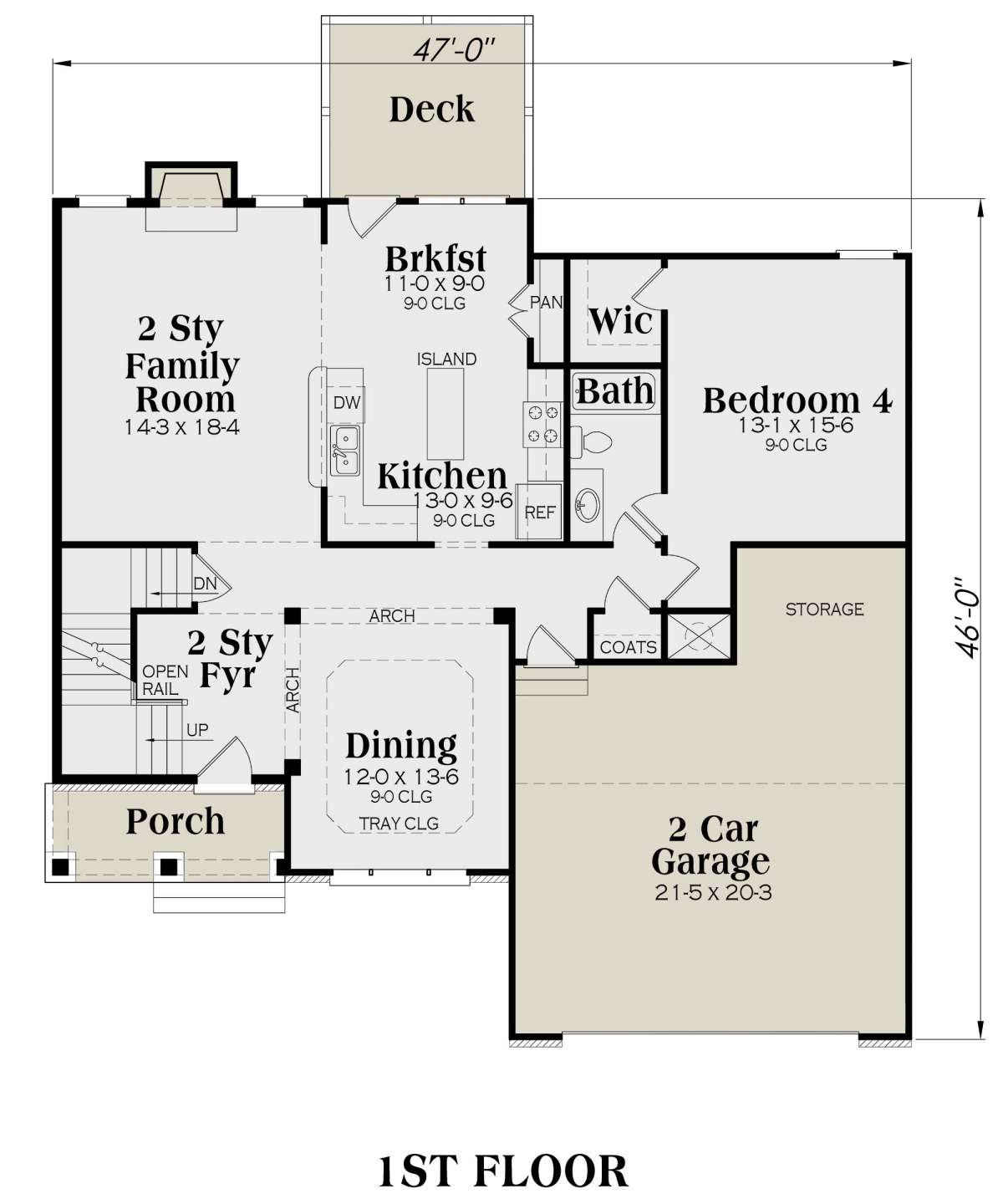

Main Floor for House Plan #009-00130

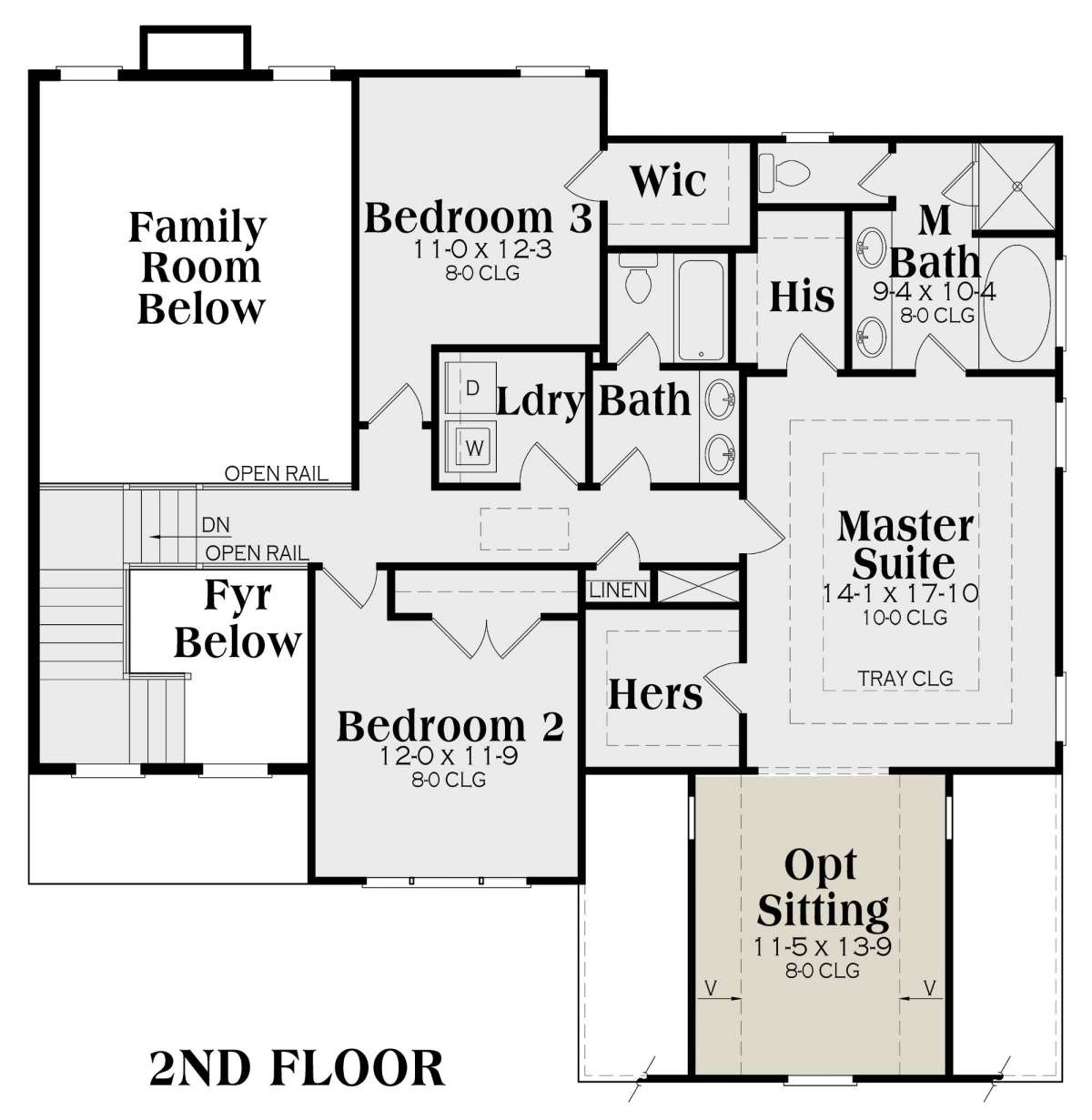

Second Floor for House Plan #009-00130
Main Floor
Main Floor for House Plan #009-00130
Second Floor
Second Floor for House Plan #009-00130

Frequently Asked Questions


What's Included in these plans?

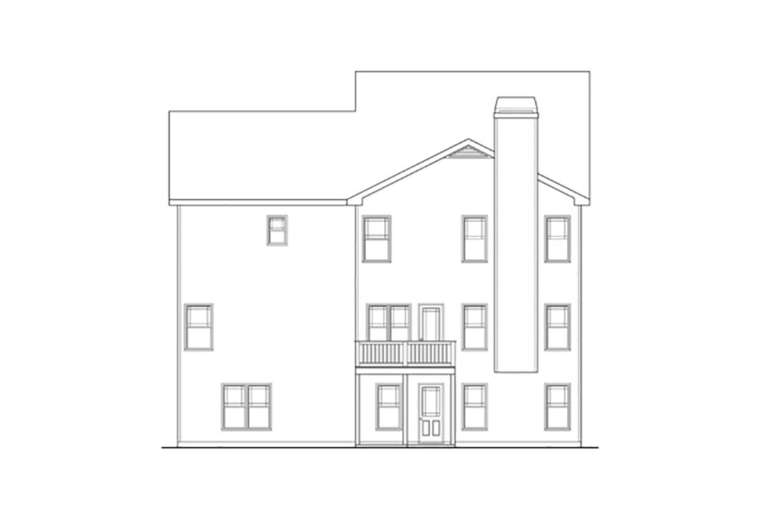

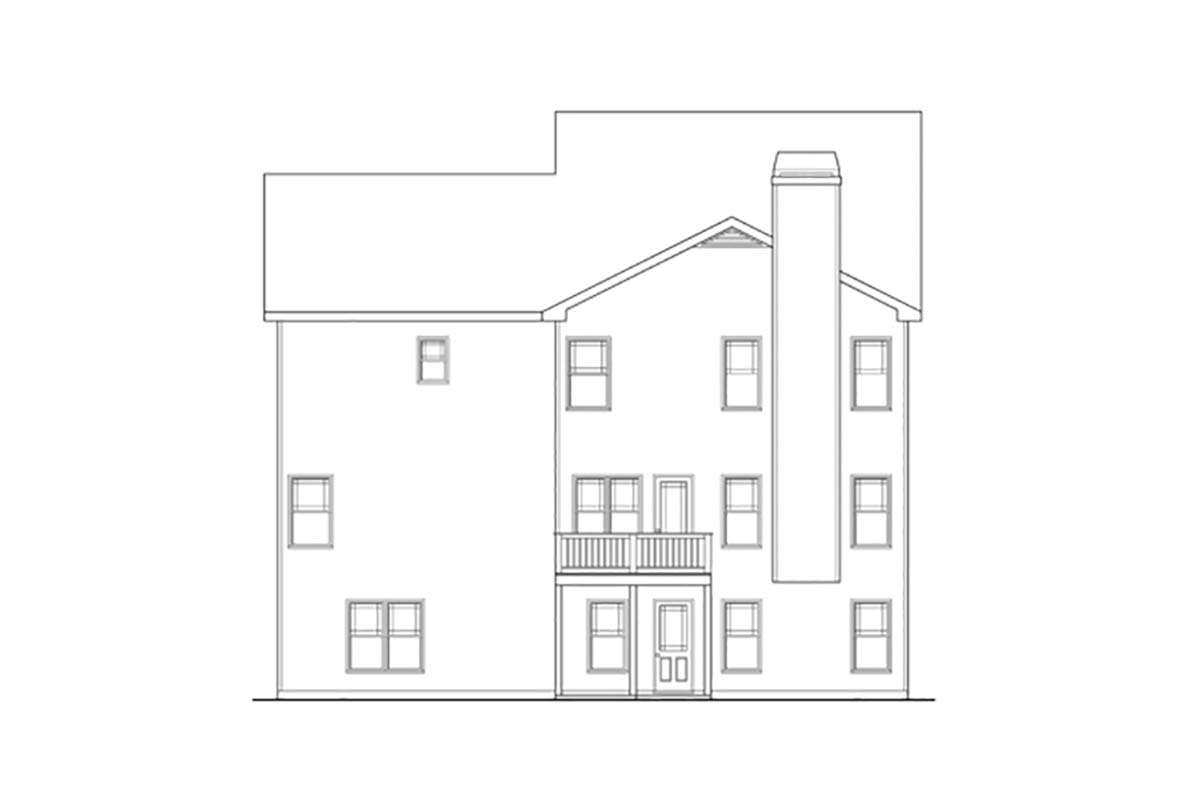

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

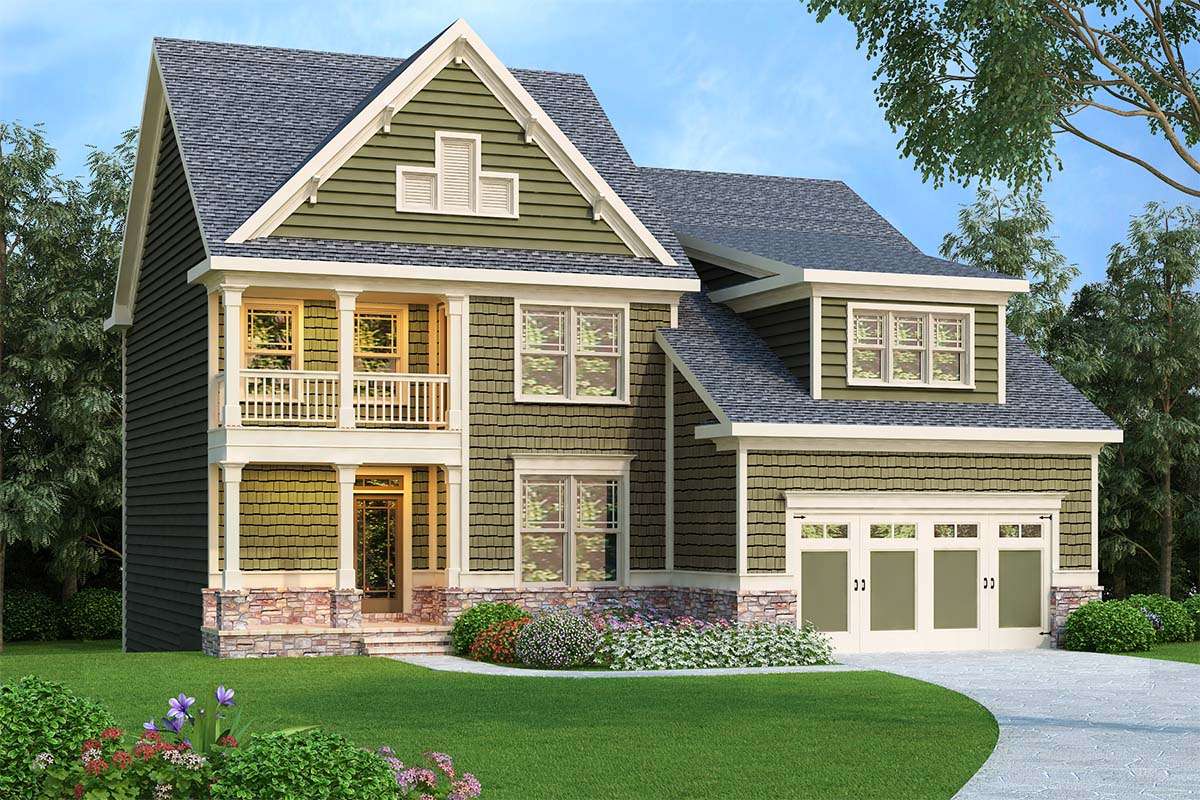

This amazing Craftsman styled home features an outstanding exterior designed to “wow” you. The use of traditional architectural design features of stone, exposed rafters, column detailing and dormer window accents push this home into a “first in class” category. The handsome exterior with a second story balcony and covered front porch along with barn like garage doors provide an inviting home presence. This floor plan has a slab, crawl space or unfinished basement option; the basement option will add an additional 1,292 square feet to the floor plan which features approximately 2,400 square feet of living space. The covered front porch leads to the two story foyer which holds the side staircase and is open to the formal dining room. The dining room is highlighted with a trey ceiling and beautiful archway detailing. The two story family room is a great space to relax with family or entertain guests; it has a rear wall fireplace which is flanked on both sides with picturesque window views to the backyard. The casual breakfast room provides great space for family dining, access to the rear deck and is open to the gourmet kitchen. A large center island, oversized pantry and an abundance of additional counter and cabinet space are complete the gourmet kitchen. A fourth bedroom, ideal for guests or a family member offers a private full bath and walk-in closet. The two car garage provides additional storage space for lawn and/or sports equipment. The second story of the home is spacious; open railing and a balcony overlook the family room and foyer below enhancing the space. The second bedroom has ample closet space while bedroom three features a walk-in closet. There is a shared hall bath with double vanities and a hall linen closet for the two additional bedrooms and the laundry room is situated on the second floor for convenience. The master retreat is a private oasis and enjoys a large footprint. The master bedroom measures approximately 14’x17’, has a trey ceiling and the optional sitting room has a triple wall of windows. Dual vanities, a separate shower, garden tub and compartmentalized toilet are featured in the master bath. Oversized separate his and her walk-in closets complete the master suite to perfection. This home features a fully functional floor plan and an exterior design that is classic and timeless.
