Craftsman House Plan 009-00117EXCLUSIVE PLAN

Sq Ft2,084
1/2 Baths0
Width47' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #009-00117
Second Floor for House Plan #009-00117

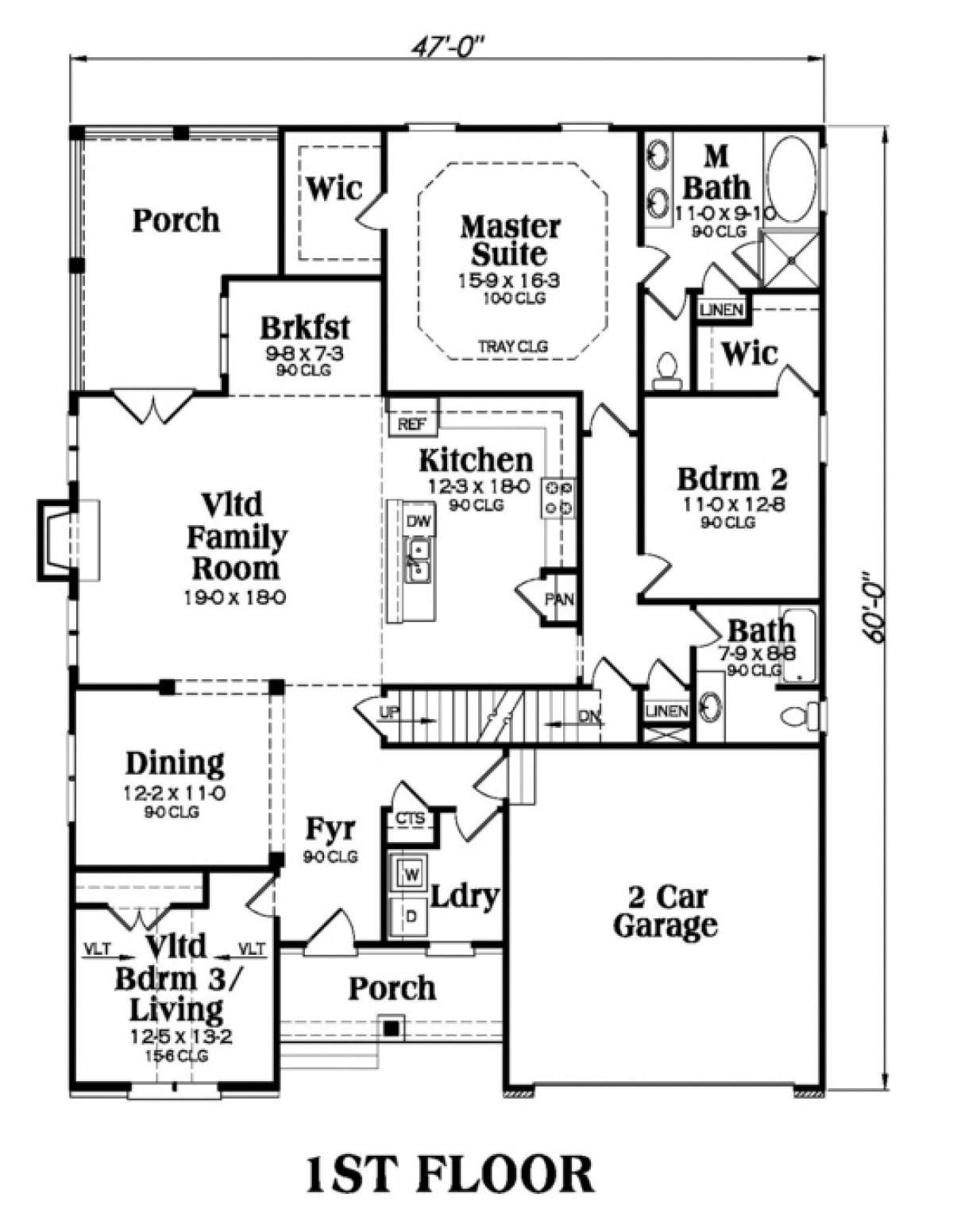

Main Floor
Main Floor for House Plan #009-00117

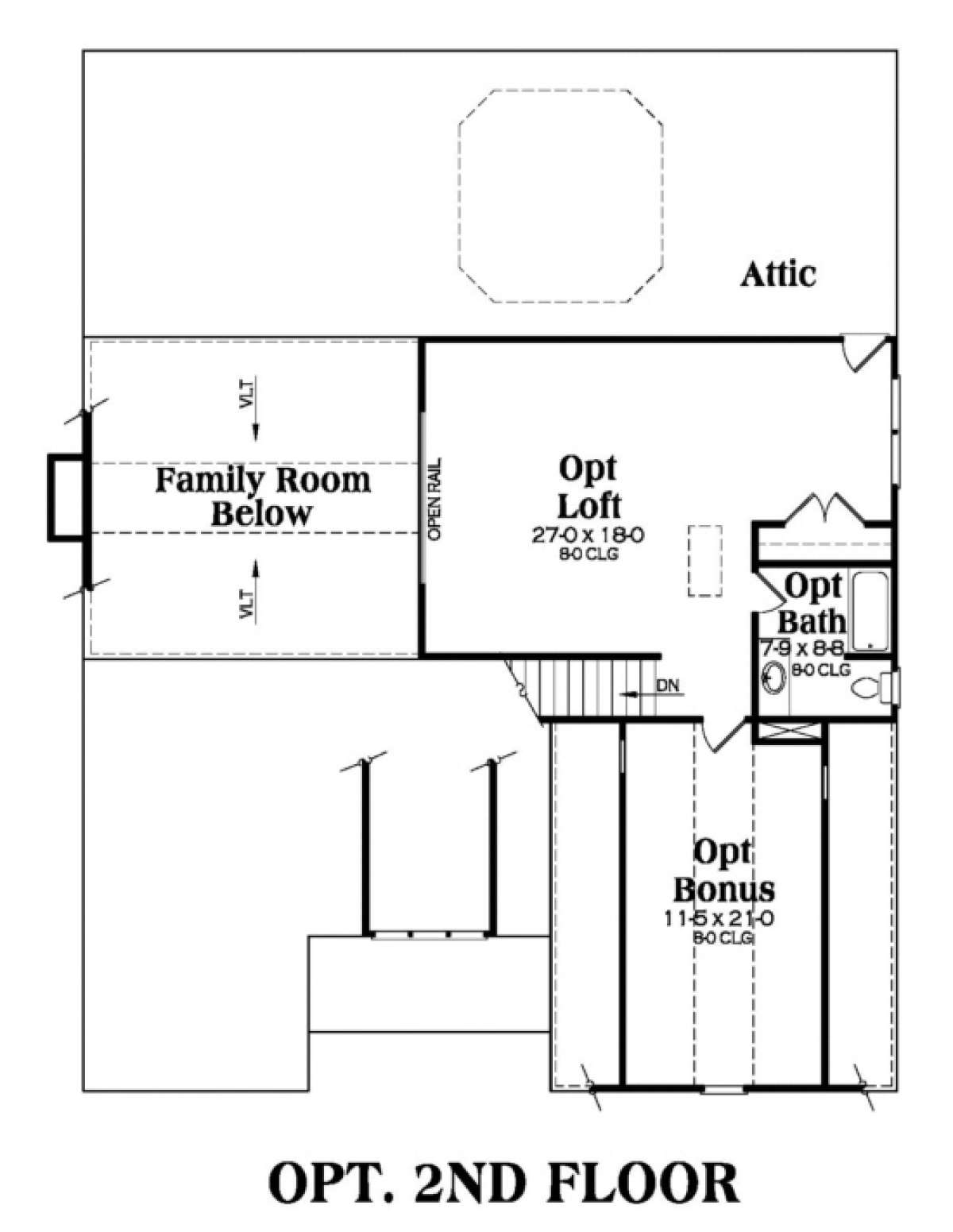

Second Floor
Second Floor for House Plan #009-00117

Frequently Asked Questions


What's Included in these plans?

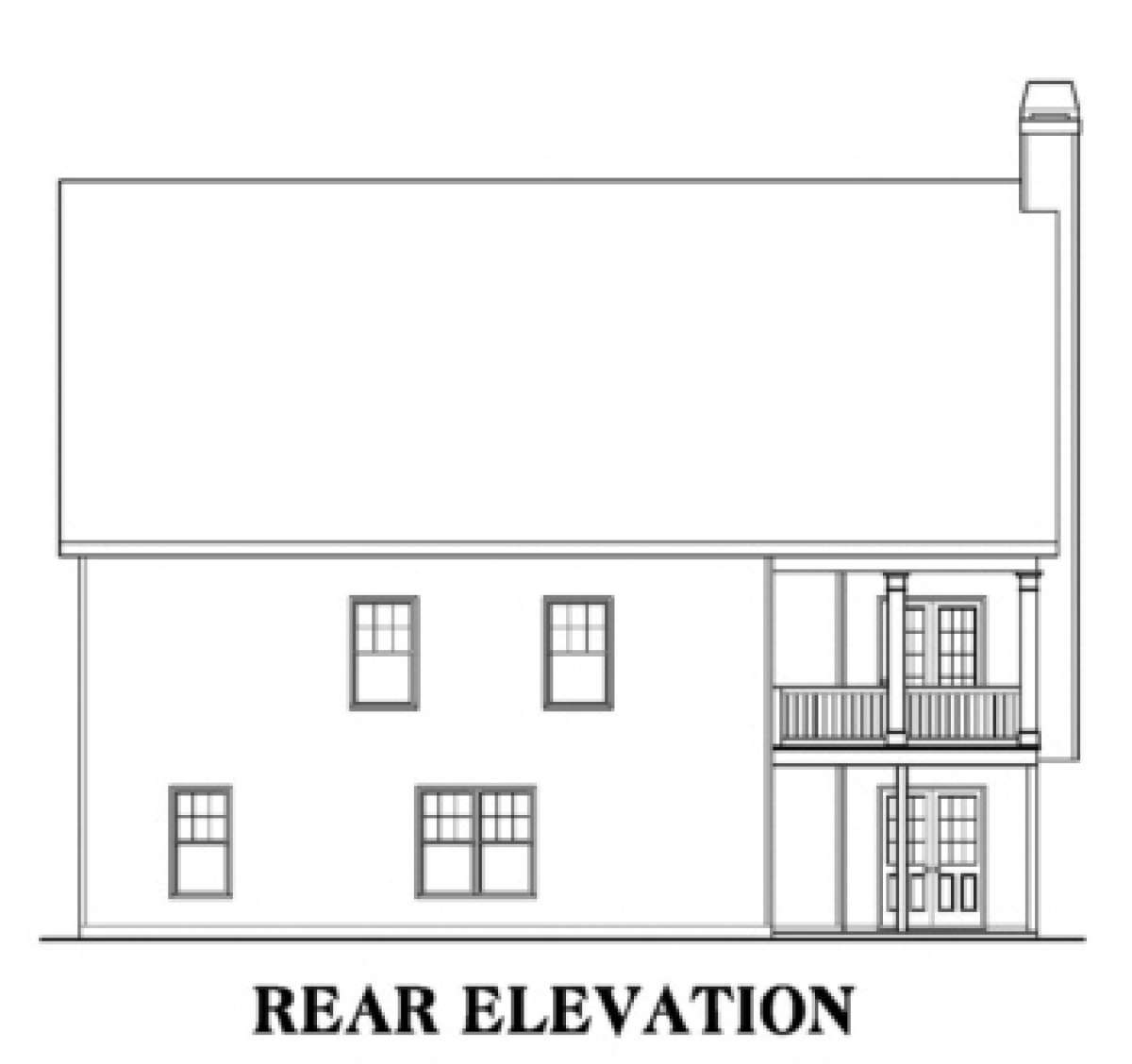

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

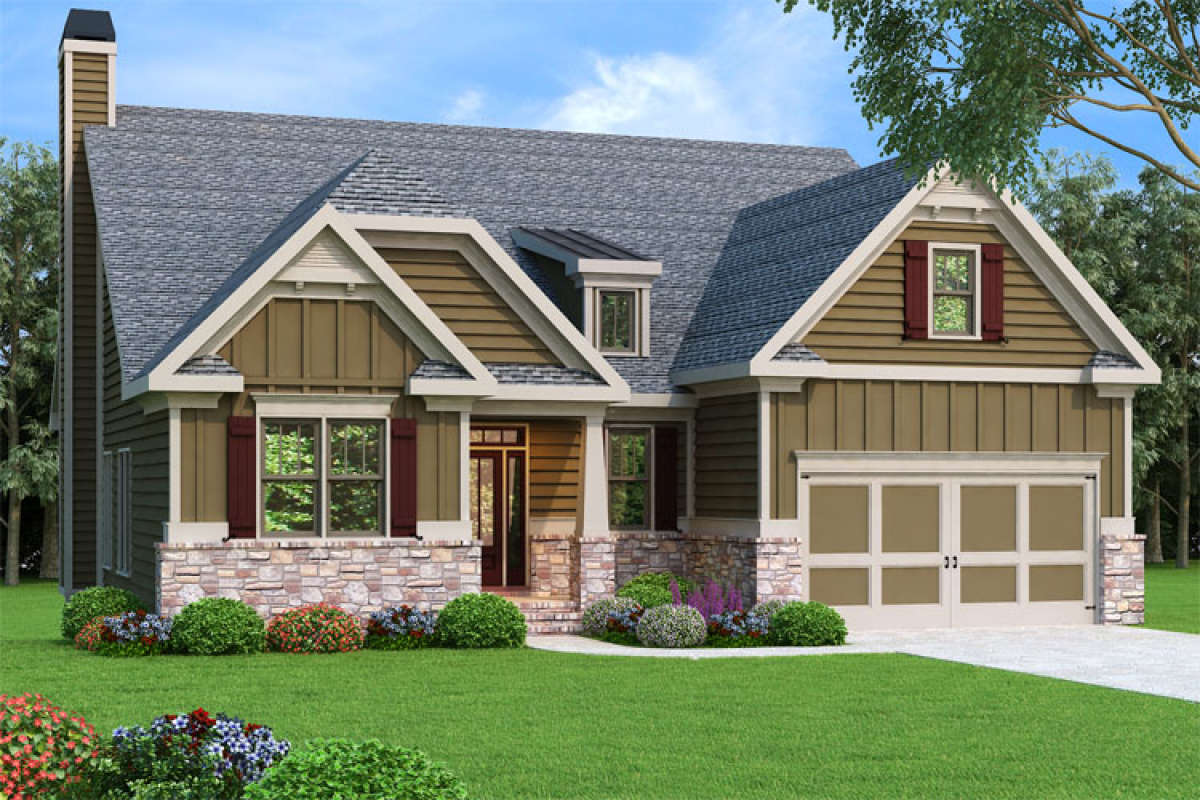

Exposed rafters, a single window dormer and stack stone supported beams combine beautifully in this architecturally stunning Craftsman styled home. The beautiful front door features a transom window detail and side window highlights. This gorgeous home is boasts of an alluring exterior façade and an interior floor plan which features approximately 2,100 square feet with three bedrooms, two baths and a two car garage. The spacious foyer is open to the formal dining room with column accents and subsequently leads to the massive family room with a handsome fireplace and rear porch access. The gourmet kitchen enhances the open concept plan and features a breakfast bar, separate pantry and additional counter and cabinet space. This open concept design is perfect for entertaining and the rear porch adds an additional option for doing so or makes an ideal spot for morning coffee and relaxing. A second bedroom offers a walk-in closet while the third bedroom is vaulted and has ample closet space. The two bedrooms share a hall bath and linen closet. The master suite features a spacious bedroom with trey ceiling, an oversized walk-in closet and gorgeous rear yard views. The master bath is showcased by double vanities, a garden tub, separate shower, a linen closet and a compartmentalized shower. The laundry room is situated off the two car garage for convenience and ease of cleaning. An optional second story is provided in the house plan and features an immense loft area measuring 27’x18, a separate bonus room and a private full bath. An additional bedroom, playroom or home office/study would be great use of this space and would increase this home’s versatility and provide maximum living space for a large family.
