Craftsman House Plan 009-00053

Sq Ft1,960
1/2 Baths0
Width54' 0"
Depth54' 0"

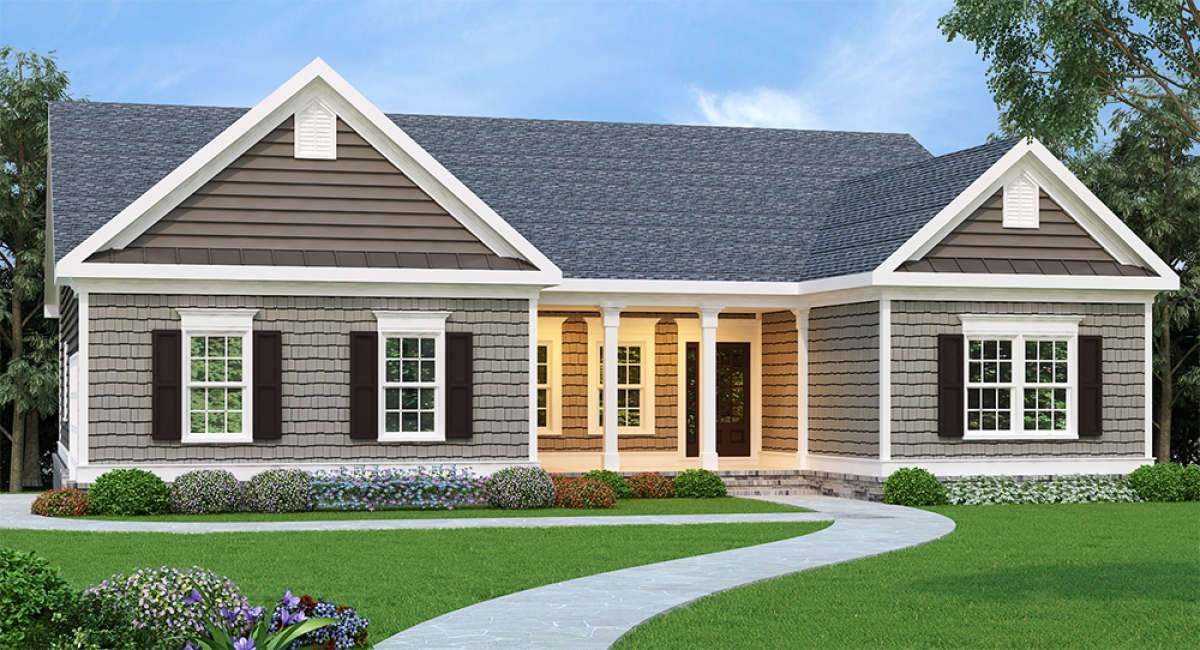

Craftsman House Plan #009-00053 Elevation Photo

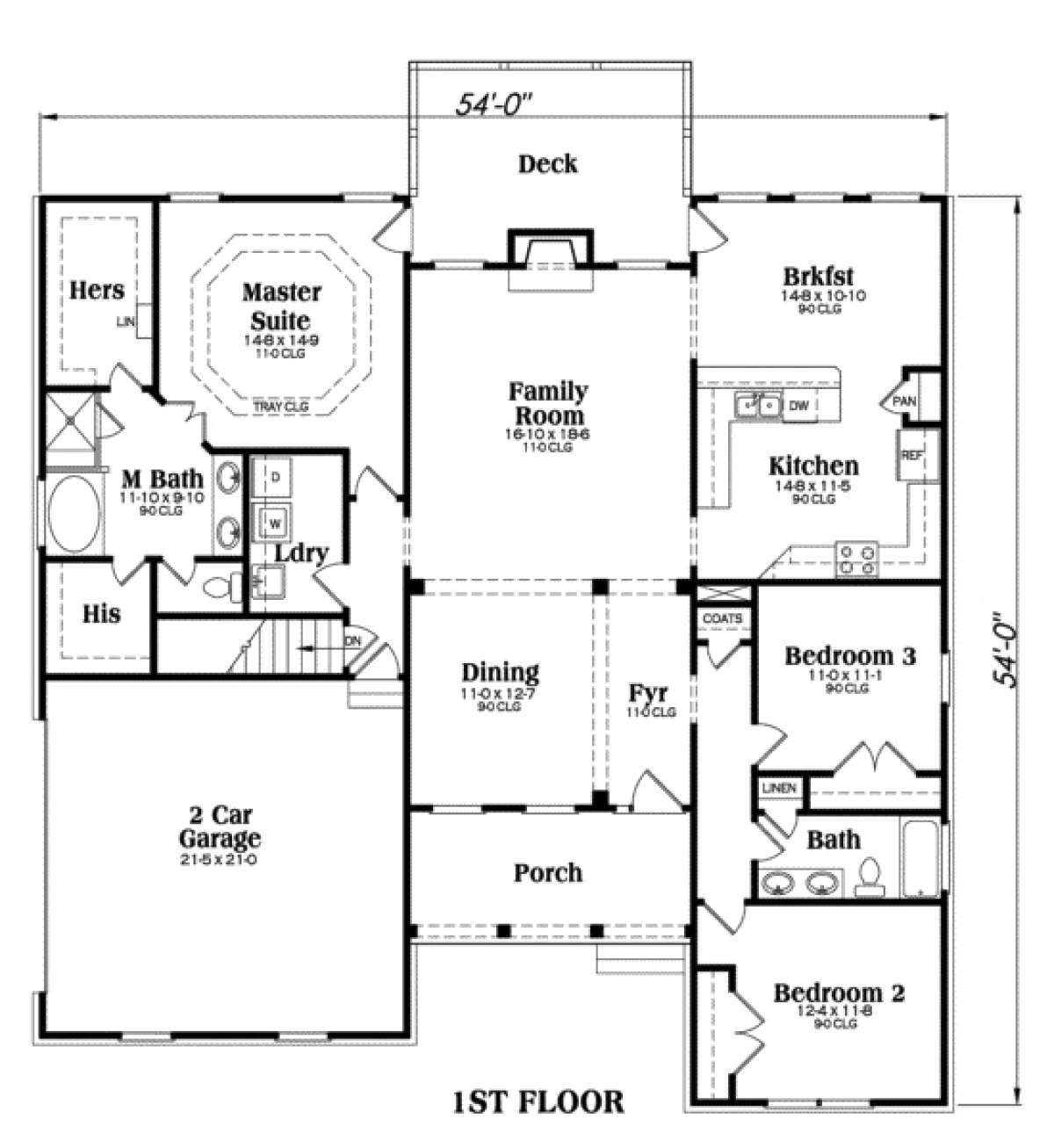

Main Floor
Main Floor for House Plan #009-00053

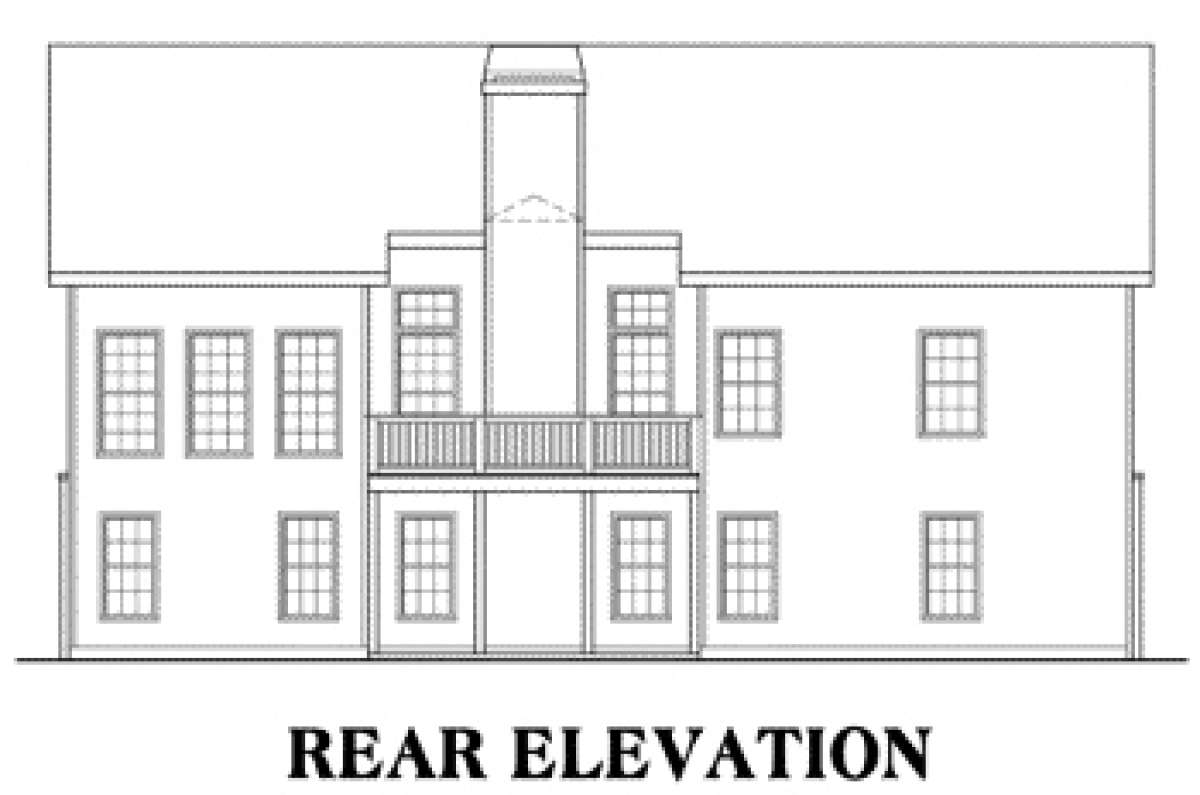

Craftsman House Plan #009-00053 Elevation Photo
Craftsman House Plan #009-00053 Elevation Photo
Main Floor for House Plan #009-00053
Craftsman House Plan #009-00053 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #009-00053
Main Floor
Main Floor for House Plan #009-00053

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch floor plan boasts of southern charm and features Craftsman like styling in approximately 2,000 square feet. While a slab and crawl space design are available, the basement foundation option would double the square footage of the home. The exterior façade of the home is highlighted with shakes, siding, stone work and offers a large covered front porch with column detailing which results in an inviting space to greet family and friends. This one story home has a split bedroom plan and open living spaces which enhance the spaciousness of the floor plan. The foyer boasts of an 11’ ceiling height and is open to the formal dining room. In turn, the dining room is open to the family room which is oversized, contains a rear wall fireplace and has 11’ceilings. The informal breakfast room and kitchen are large and provide plenty of room for family dining or event hosting. The breakfast room enjoys a triple window wall and provides access to the rear deck while the gourmet kitchen features a breakfast bar, separate pantry and an abundance of additional counter and cabinet space. This home’s living spaces are designed for entertaining large groups of family and friends with wide open spaces and soaring ceiling heights. A large laundry room with sink area and counter space is situated off the two car, side entry garage along with the staircase leading to the basement level.
The split bedroom plan features two additional bedrooms on one side of the home; both are spacious and contain ample closet space. A shared hall bath features double vanities and a linen closet while an additional closet sits at the end of the hallway. The master suite is elegantly designed and sits at the opposite rear side of the home for privacy. The master bedroom features a gorgeous octagon shaped trey ceiling and provides private access to the rear deck. The master bath is flanked on both sides by oversized his and her walk-in closet. Dual vanities, a garden tub, separate shower and a compartmentalized toilet are featured in the master bath. This classic Ranch home represents the American dream of three bedrooms and two baths in a spacious floor plan.
