Tudor House Plan 009-00042

Sq Ft2,021
1/2 Baths1
Width35' 0"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

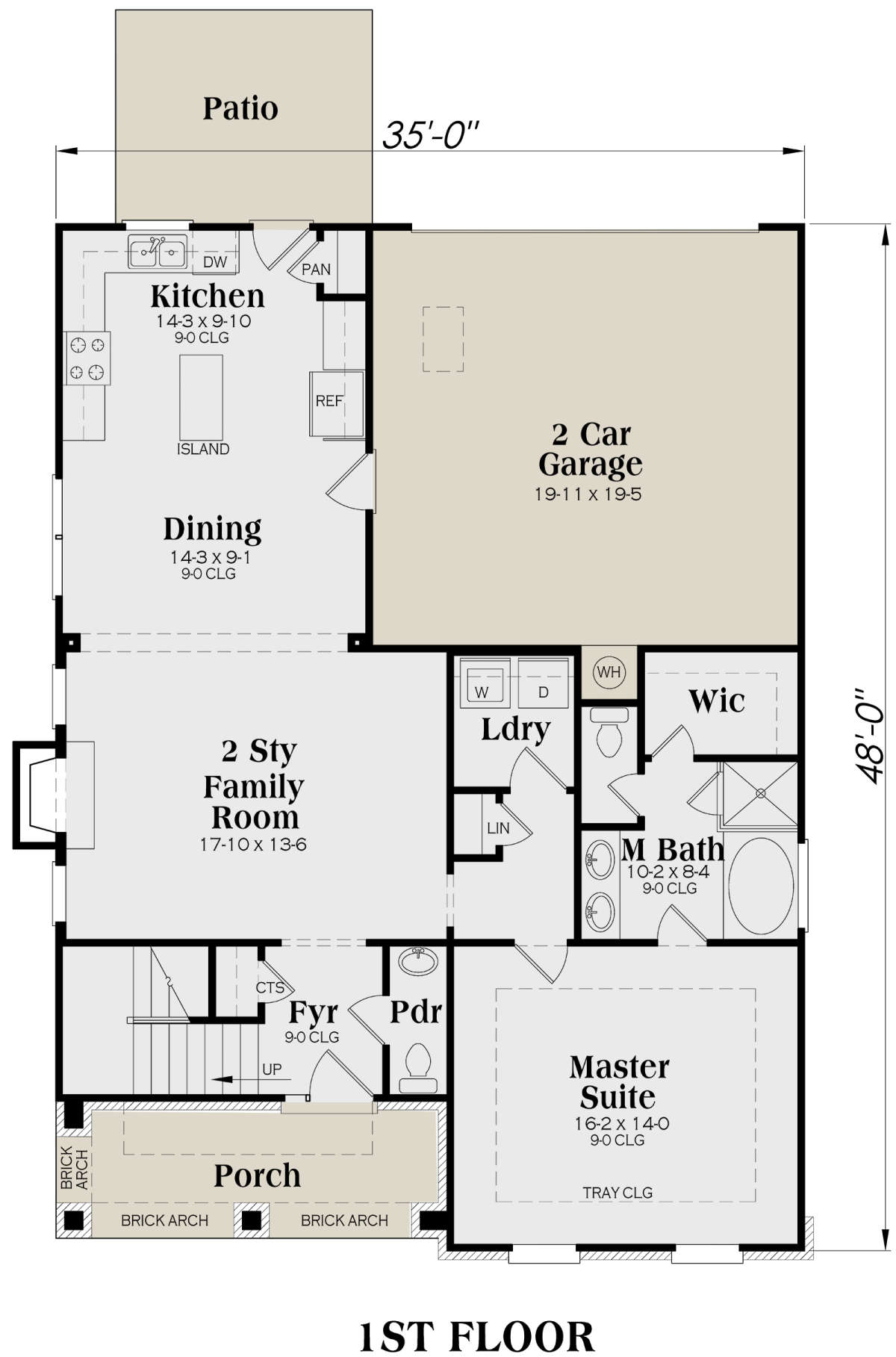

Main Floor for House Plan #009-00042

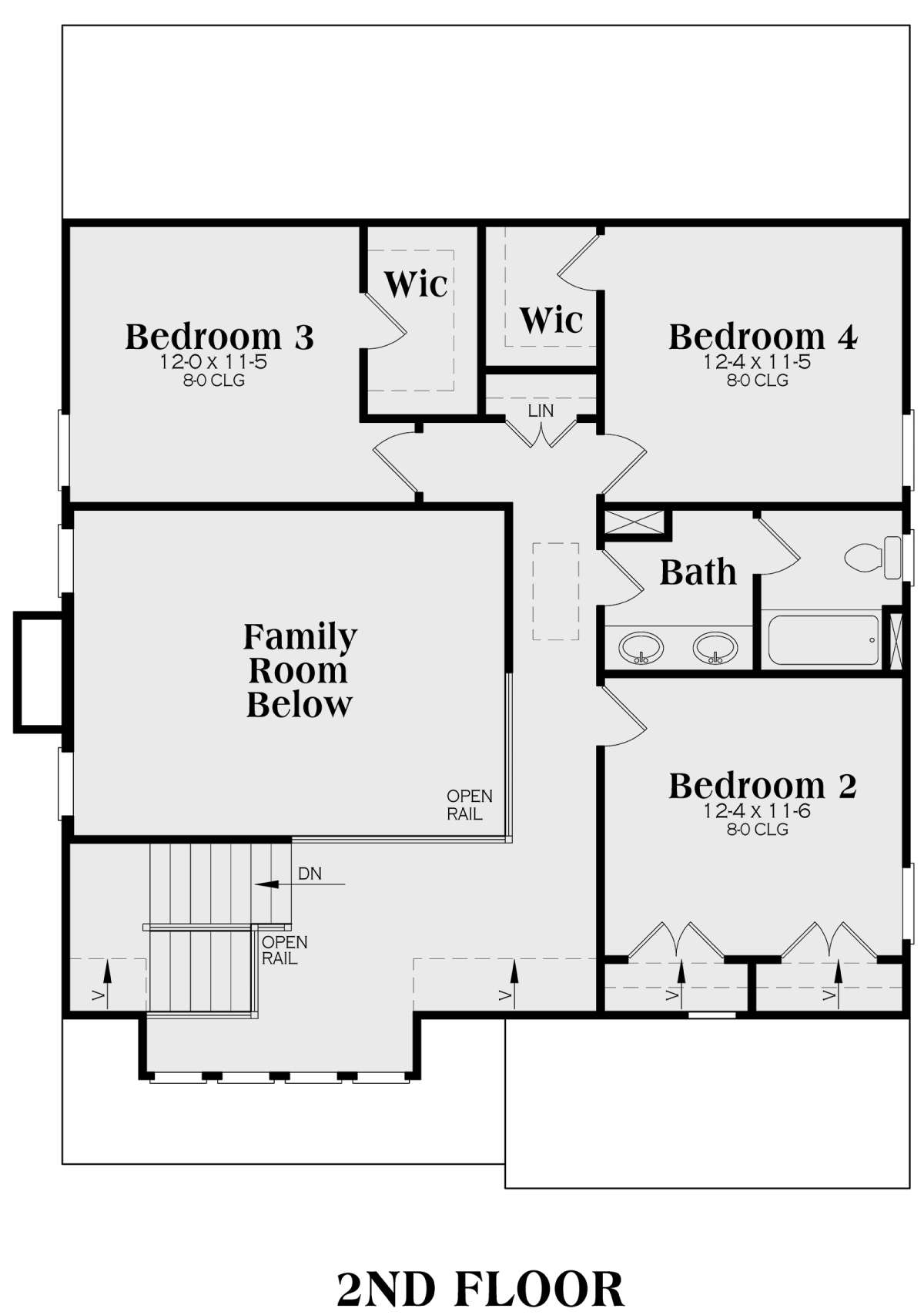

Second Floor for House Plan #009-00042
Main Floor
Main Floor for House Plan #009-00042
Second Floor
Second Floor for House Plan #009-00042

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

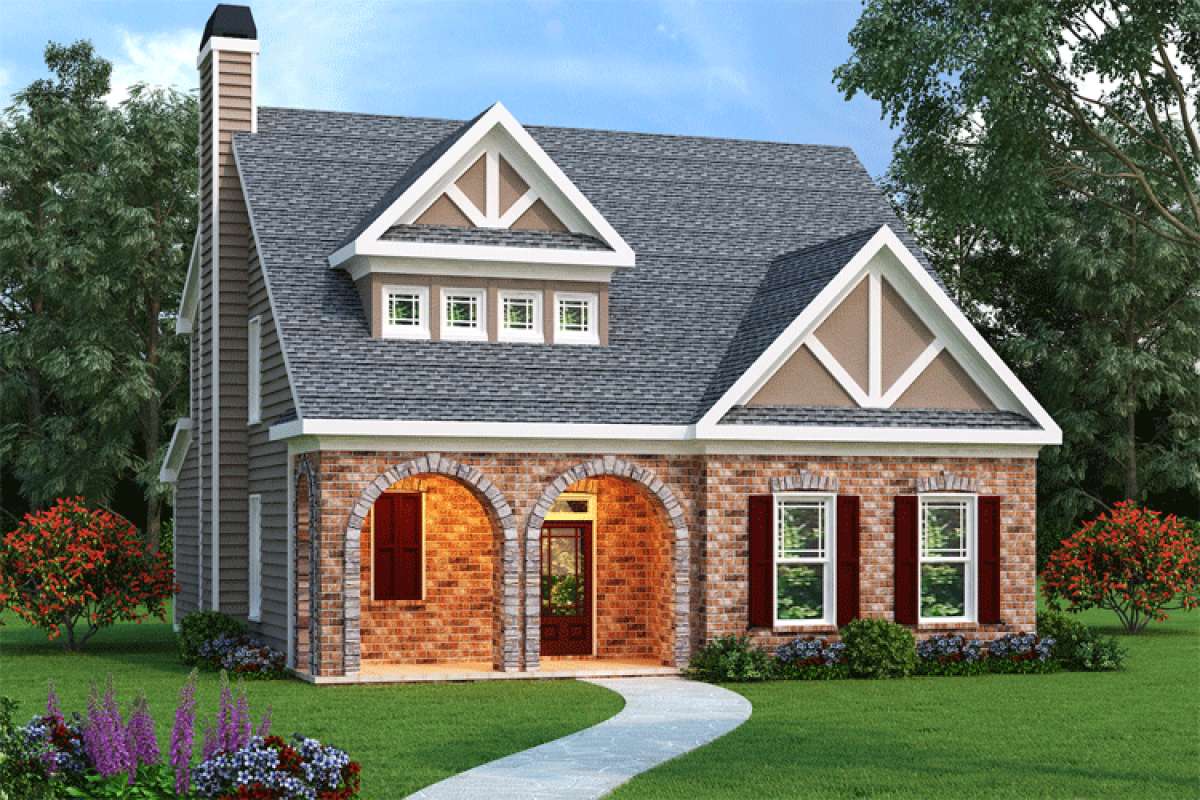

This charming Tudor cottage style home has a unique and striking exterior façade reminiscent of the English countryside with brick accent, a gabled dormer and covered porch. It is perfectly suited for a narrow lot with its 35’ width and yet maintains a spacious feel in approximately 2,000 square feet of living space. The large covered front porch has gorgeous brick arches and is especially inviting as you greet family and guests. The 9’ ceiling foyer houses the side steps to the second story and leads to the dramatic two story family room with a stately fireplace. The family room is open to the kitchen and dining area which heightens the open concept floor plan. The gourmet kitchen features a large center island, separate pantry and leads to the rear patio making entertaining a breeze. The main floor master suite offers a generous bedroom with trey ceiling and an elegant master bath which features dual vanities, a separate shower, garden tub and private toilet area. The large walk-in master closet sits at the rear of the space for convenience. A powder room for guests, a laundry room and the two car, rear entry garage completes the main level of living.
Upstairs, there is a bridge hallway overlooking the family room and three additional bedrooms. Bedroom two features double closets while the third and fourth bedrooms each have walk-in closets. There is a hall bath with dual vanities and linen closet which are shared by the bedrooms. This stylish home offers an exciting and bold exterior and a functional floor plan perfect for your family’s needs.
