Craftsman House Plan 009-00041EXCLUSIVE PLAN

Sq Ft2,149
1/2 Baths0
Width54' 0"
Depth69' 0"

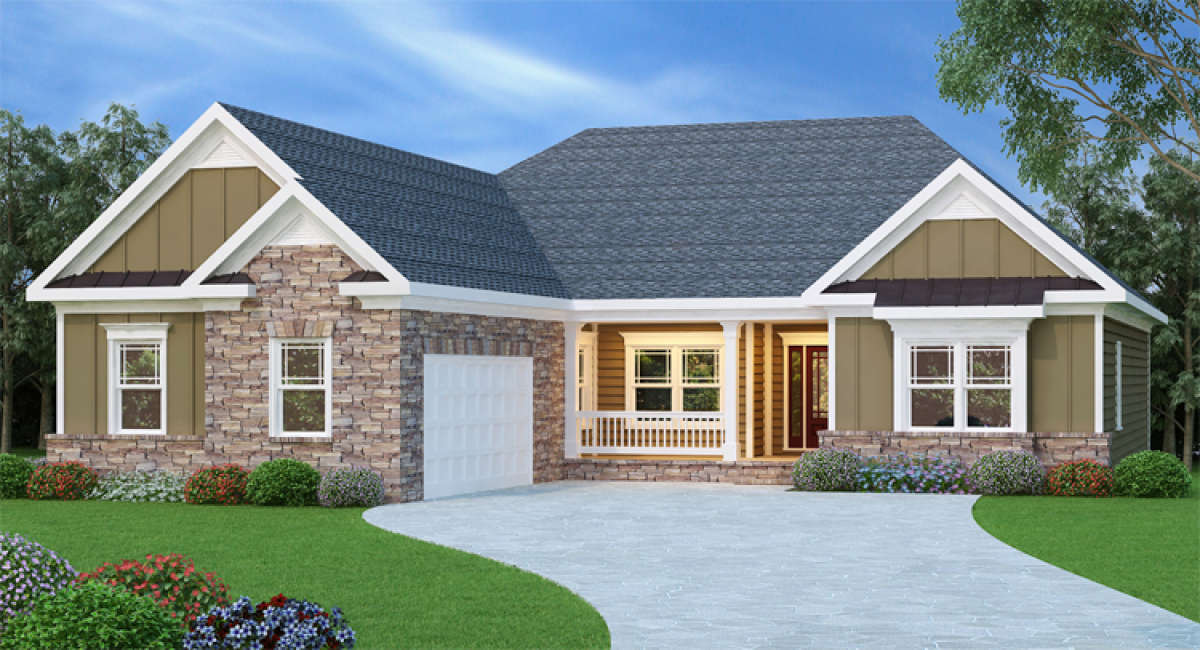

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

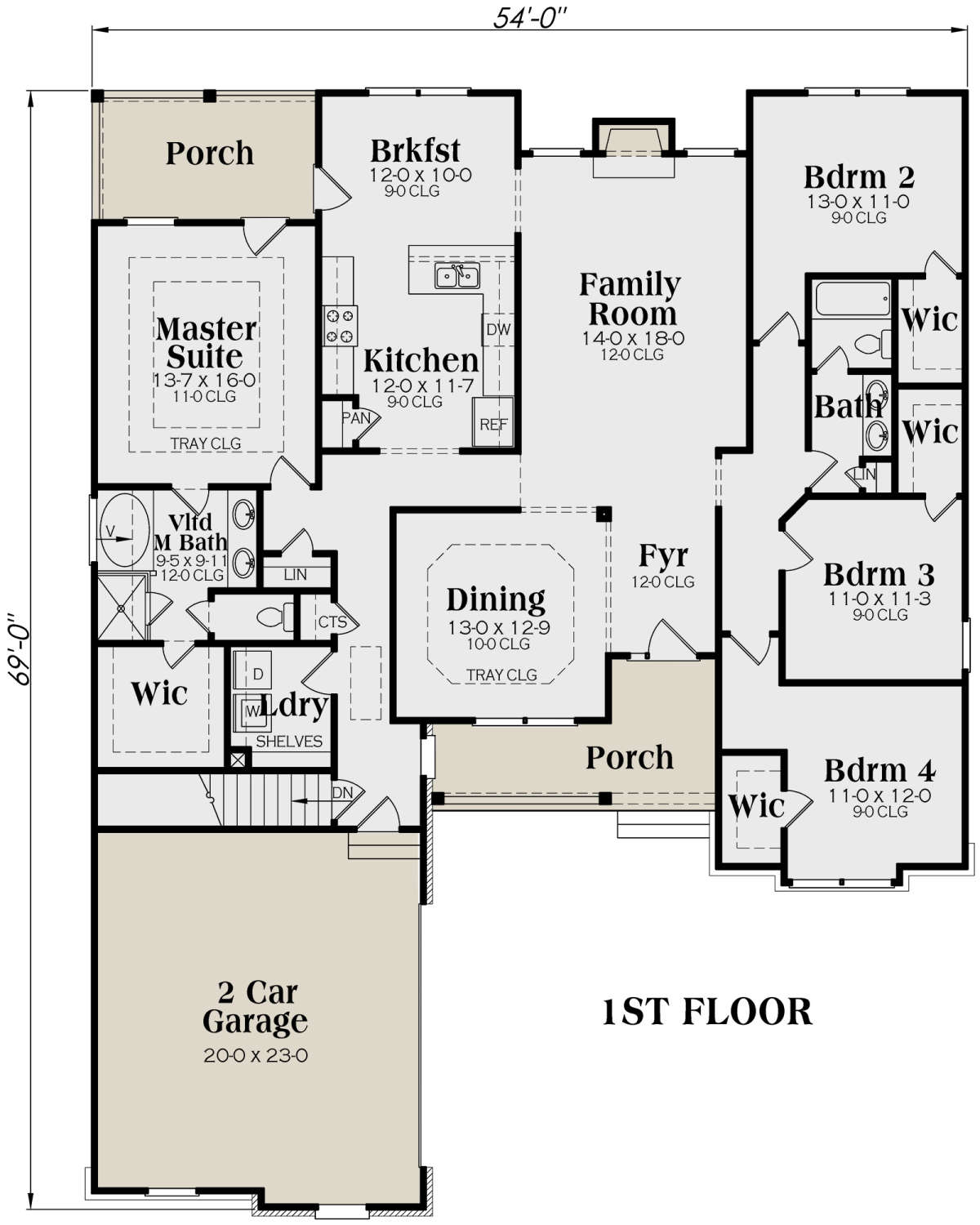

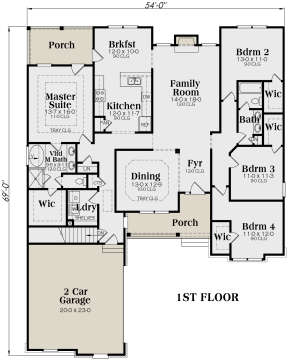

Main Floor for House Plan #009-00041
Main Floor
Main Floor for House Plan #009-00041

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This amazing Ranch floor plan design offers approximately 2,100 square feet of living space and an unfinished basement foundation which would substantially increase the home’s square footage and value. There are four bedrooms and two baths featured in the split bedroom floor plan. The striking Craftsman style exterior façade features stacked stone, board and batten, siding and a courtyard garage. The covered front porch with its open rail and column beams is an inviting space to greet family and guests and spills into the dramatic foyer with a 12’ ceiling height. The formal dining room is open to the foyer and family room and features a trey ceiling and column detailing. The oversized family room features 12’ ceilings and a rear wall fireplace flanked by picture windows. The kitchen and casual breakfast room offer a plethora of space to cook and enjoy family meals and the rear porch is accessible from the breakfast room making this space ideal for family and guest entertaining. The gourmet kitchen features a breakfast bar, separate pantry and an abundance of additional counter and cabinet space. The split bedroom plan features a gorgeous, private master retreat which is highlighted by a spacious master bedroom with trey ceiling accent and private access to the rear porch. The vaulted master bath features dual vanities, a separate shower, garden tub and compartmentalized toilet. A large master walk-in closet sits at the rear of the bath for privacy and convenience. The three additional bedrooms are situated on the opposite side of the home; each is spacious and includes a walk-in closet. There is a shared hall bath with double vanities and linen closet. A large laundry room and two car garage complete the main level of the home. This home design is versatile, fully functional and the exterior façade of the home is timeless and stylish.
