Traditional Plan 009-00040



To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,406
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 62'
Depth 64' 6"

Floorplan Drawings

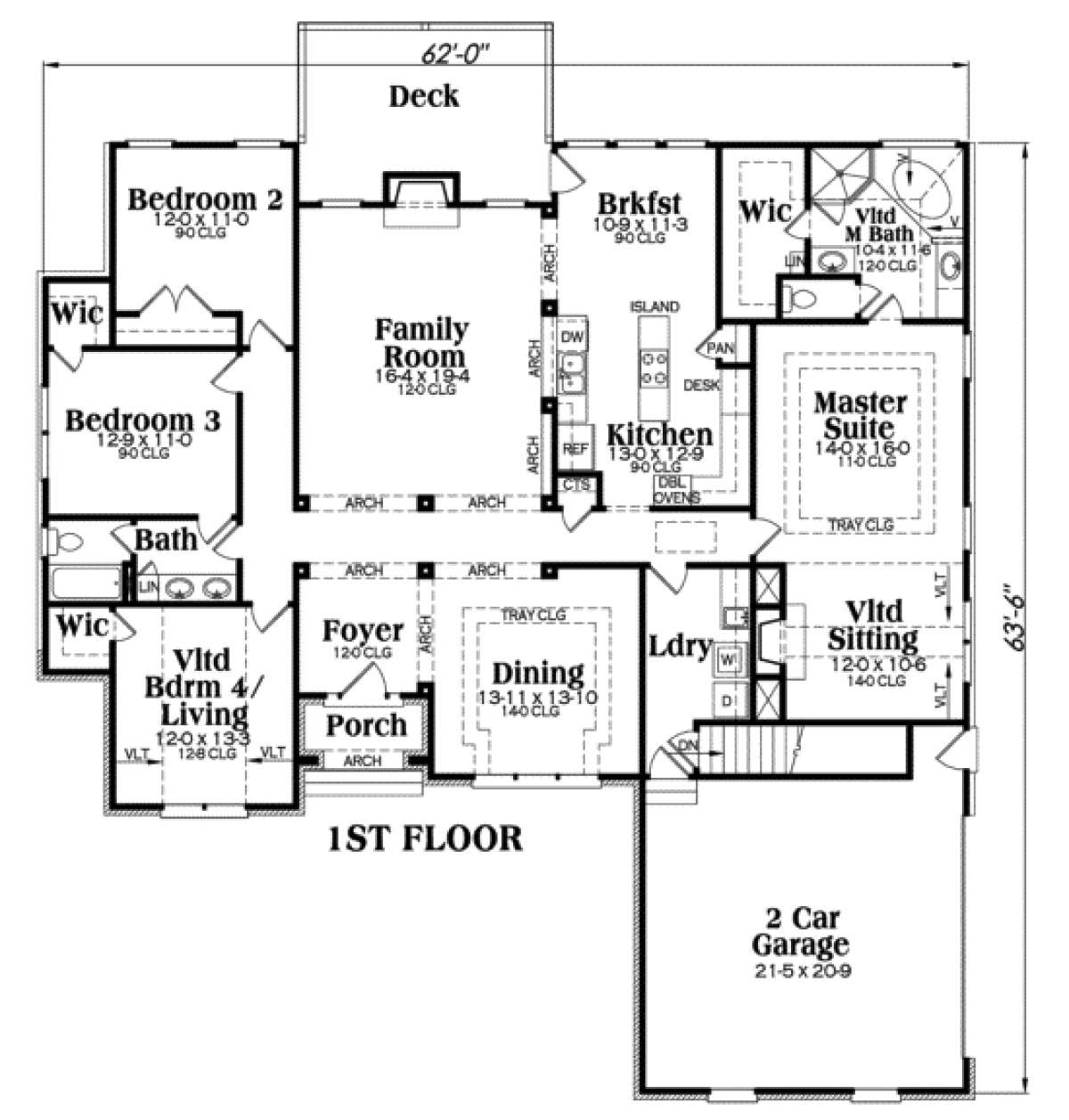

Main Floor
Main Floor for House Plan #009-00040

What's Included in these plans?

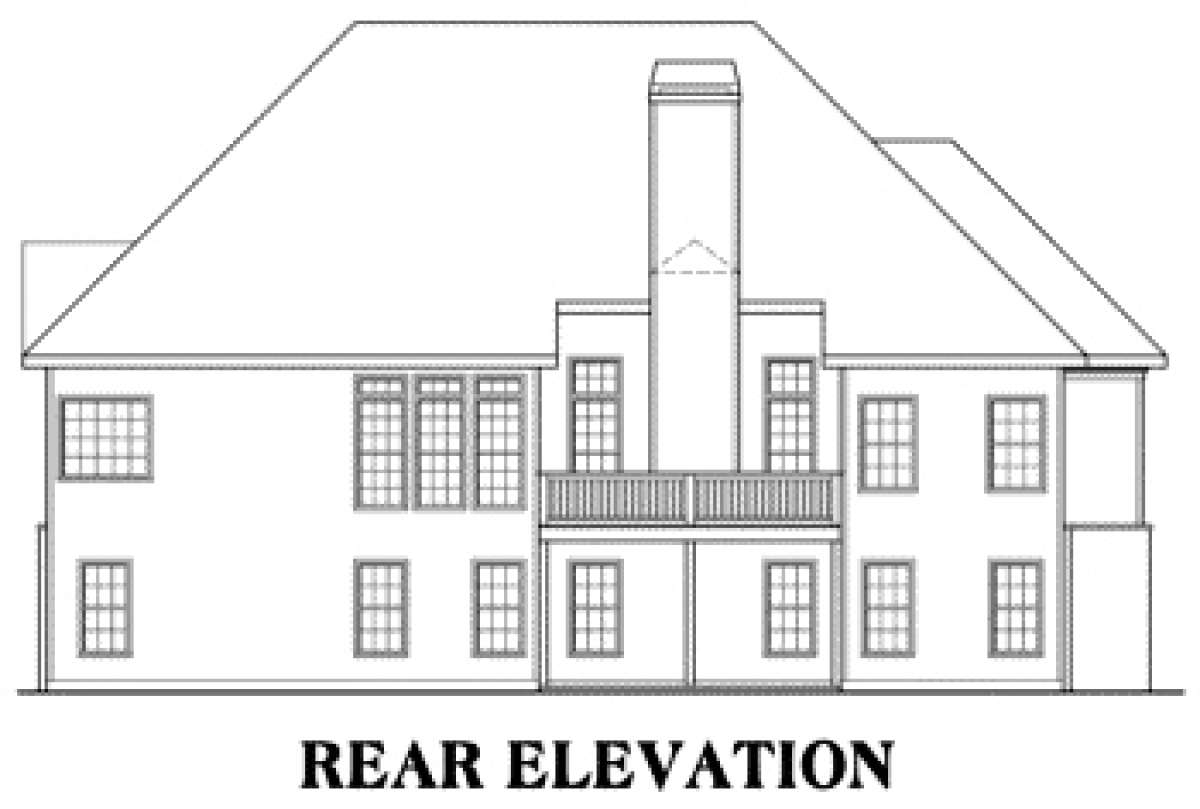

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This grand home features an exciting exterior façade chocked full of stunning architectural design features and a floor plan which is functional and versatile. A variety of exterior design elements blend beautifully with Palladian style window features to create a bold exterior. This ranch Craftsman style house plan is highlighted by four bedrooms and two bathrooms with soaring ceiling heights and beautiful archways found throughout the home. An additional 2,406 square feet of living space is available in the basement foundation option which mirrors the square footage of the main level of the home making this an ideal space for a large and active family. The front covered porch leads to the dramatic foyer and formal dining room, both of which are highlighted by columns and arched detailing. The arched detailing is repeated throughout the family room which is an enormous space and houses a rear wall fireplace and picturesque windows overlooking the rear deck. This open concept living space design provides plenty of space for entertaining options as you host family events or friendly gatherings. The gourmet kitchen is a masterful use of space and features a large center cook top island, double ovens, a separate pantry and plenty of additional counter and cabinet space. The casual breakfast room has a triple wall of windows overlooking the rear yard and provides access to the rear deck. The split bedroom plan offers three additional bedrooms on one side of the home. Bedroom two has ample closet space while the third bedroom features a walk-in closet. The fourth bedroom is vaulted, quite spacious and could function as a formal living room or multi-purpose family room. There is a shared hall bath with double vanities and linen closet. The master retreat fully occupies one wing of the home and is highlighted by its elegant design features. The master bedroom is quite spacious with trey ceiling accent and features a separate vaulted sitting room which measures 12’x10’6”, has a handsome fireplace and beautiful window views. The master bath is equally stunning with vaulted ceilings, separate his and her vanities, a garden tub, separate shower and compartmentalized toilet. The master walk-in closet sits at the rear of this space for privacy and convenience. The two car, side entry garage leads to the interior laundry room which is quite spacious with room for a sink and additional counter space. This home is lovely in design and space and offers an exciting exterior façade and fully functional floor plan.
