Ranch Plan 009-00028

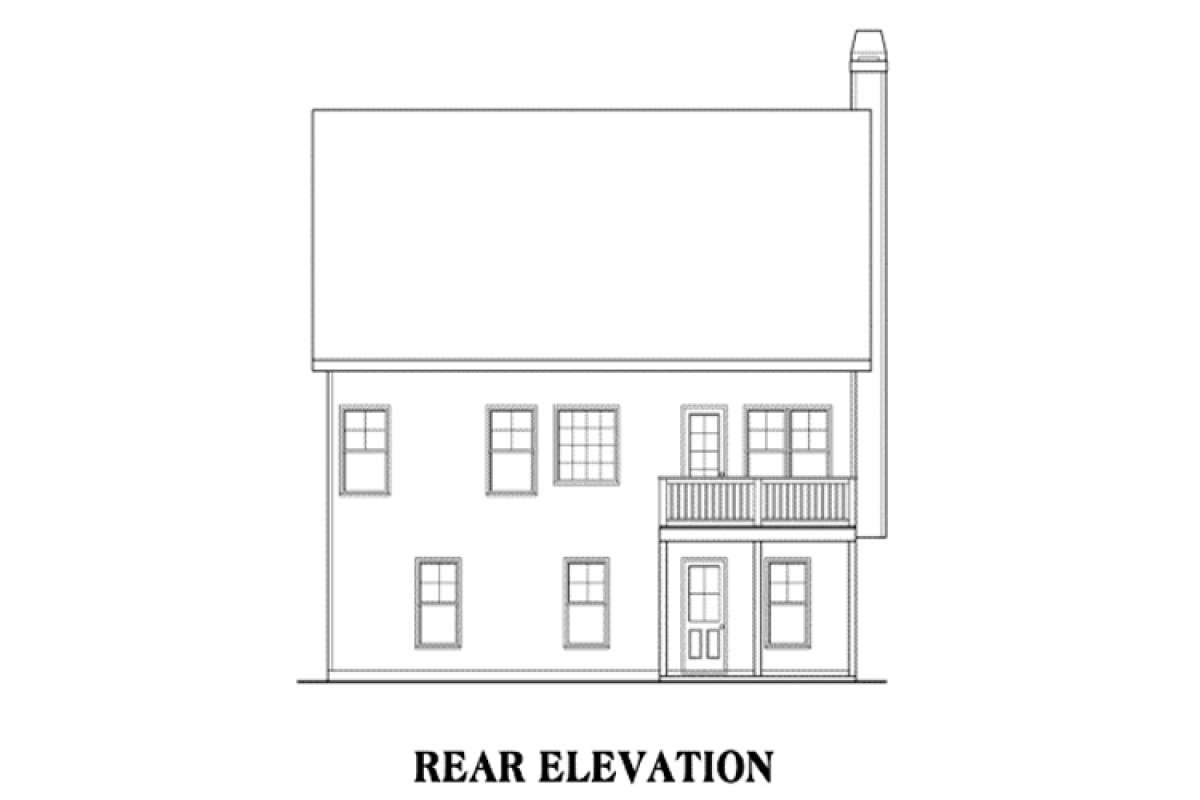

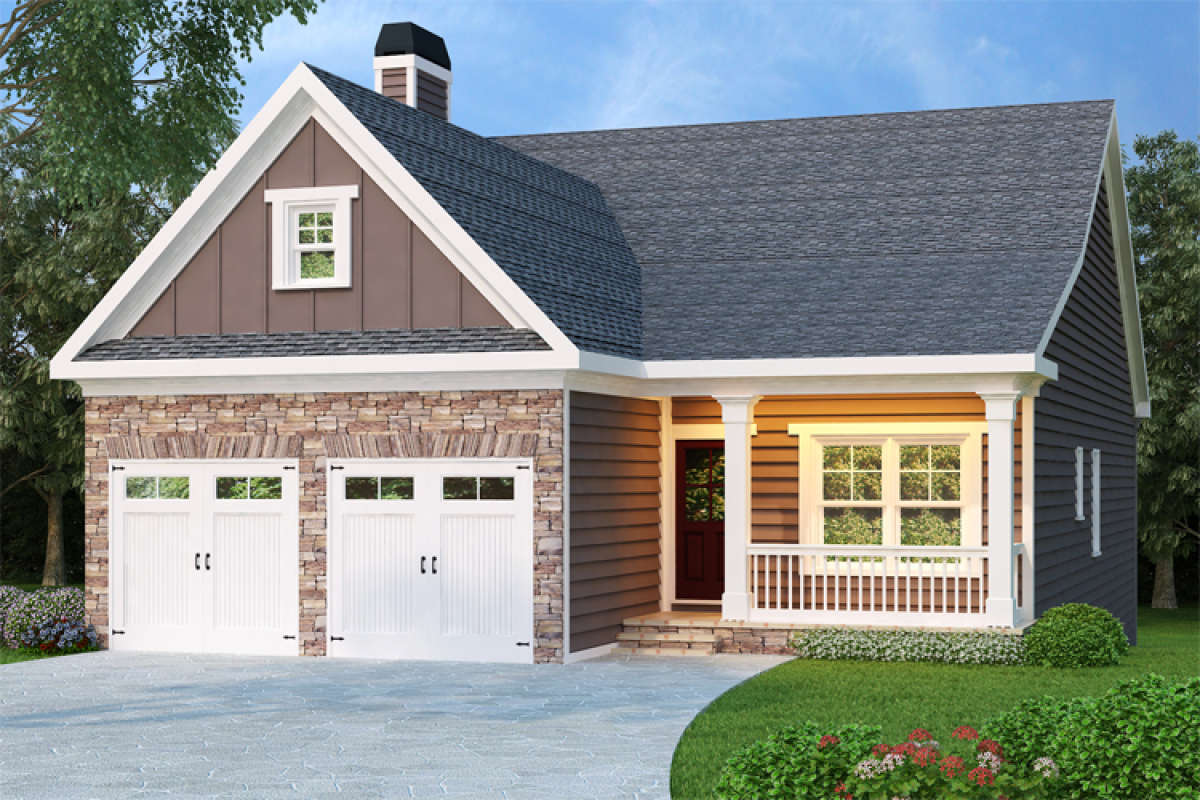

Ranch House Plan #009-00028 Elevation Photo
Ranch House Plan #009-00028 Elevation Photo
Main Floor for House Plan #009-00028
EXCLUSIVE 3 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 1,592
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 2
Stories Icon Stories 1
Width Icon Width 35'
Depth Icon Depth 64'

Floorplan Drawings

 PRINT  DOWNLOAD

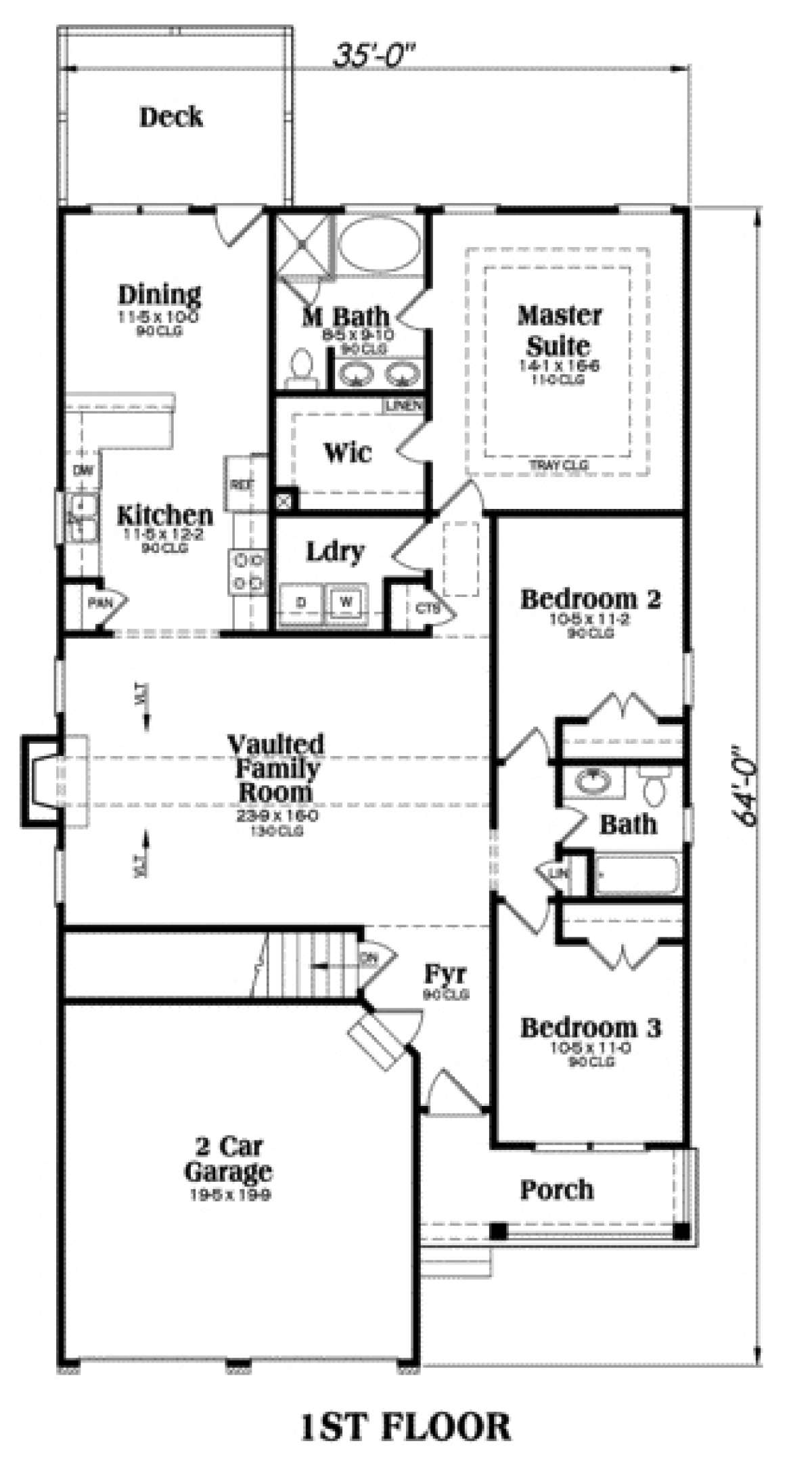

Main Floor for House Plan #009-00028
Main Floor
Main Floor for House Plan #009-00028
Images copyrighted by the designer.


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming ranch house plan is ideally suited for a narrow lot with its 35’ width. The approximately 1,600 square foot home features three bedrooms and two baths and an unfinished basement foundation which could potentially double the square footage of the home. Board and batten, siding and a front covered porch make for a traditional and inviting exterior façade. The front porch leads to the foyer and the expansive, vaulted family room. The family room features a handsome fireplace and picturesque window views. This is a fantastic space to entertain large gatherings of family and friends and it provides access to the kitchen and dining room. The gourmet kitchen has a separate pantry, breakfast bar and plenty of counter and cabinet space while the dining room provides access to the rear porch where family events and bar-b-ques would be a breeze to manage. The master suite sits at the rear of the home for privacy and features a spacious bedroom with trey ceiling accent and an oversized master walk-in closet. The master bath is elegantly designed with dual vanities, a separate shower, garden tub with window views and a private toilet area. There are two additional bedrooms, each with ample closet space. There is a shared hall bath and linen closet for the two bedrooms. The large laundry room and two car garage complete the floor plan. This home has the potential to offer in excess of 3,000 square feet making it a versatile and comfortable floor plan for a large family while the exterior façade features traditional architectural design elements.
