Ranch House Plan 009-00016EXCLUSIVE PLAN

Sq Ft1,566
1/2 Baths0
Width54' 0"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

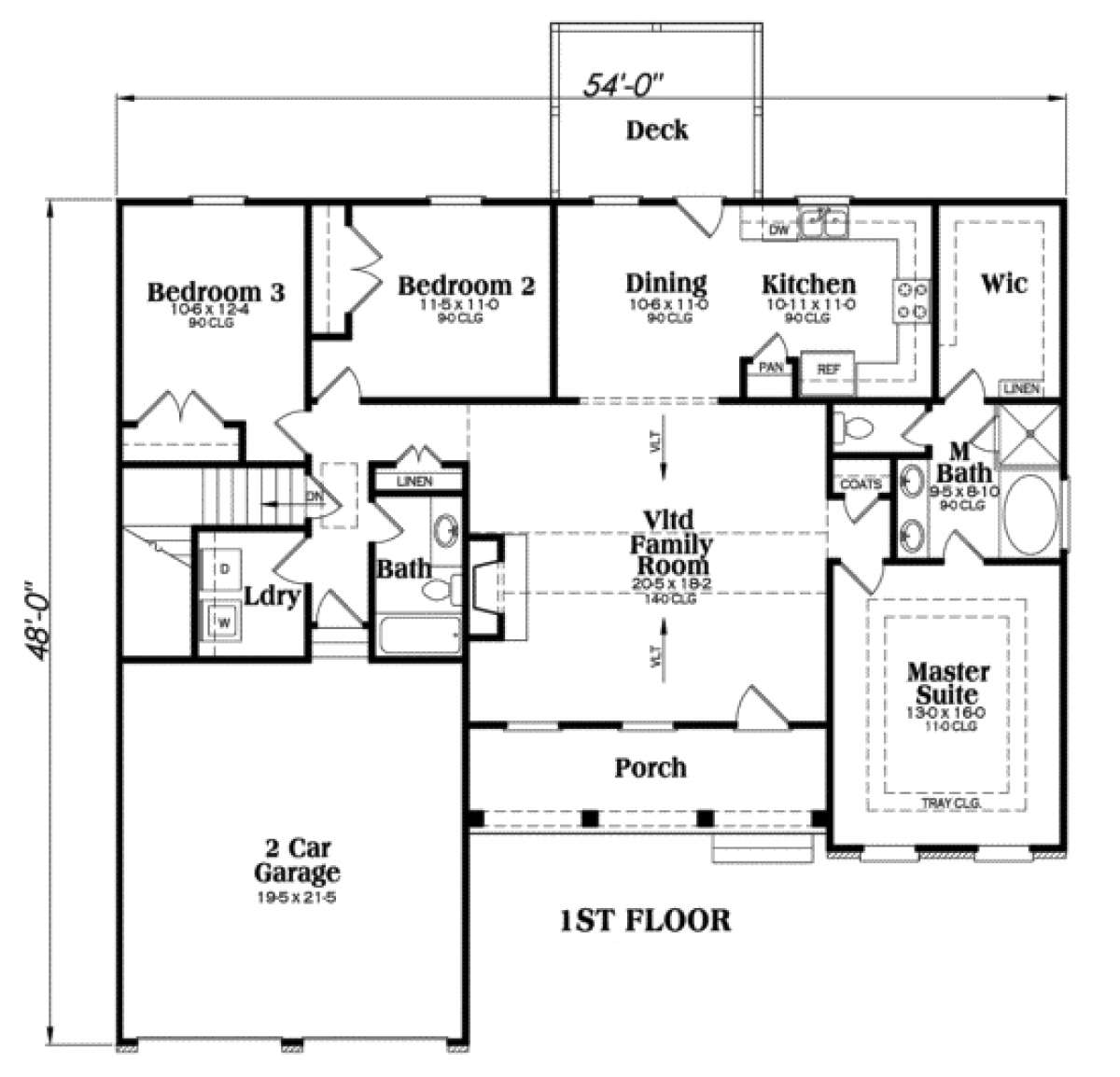

Main Floor for House Plan #009-00016
Main Floor
Main Floor for House Plan #009-00016

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This is a bestselling Ranch house plan that offers in excess of 1,500 square feet of living space with three bedrooms and two bathrooms. This quintessential American home design features exterior architectural elements that include brick, siding and an inviting front covered porch. The front porch features arched column openings, wonderful window detailing and open railing. There is an unfinished basement foundation that would potentially add value, additional square footage and versatility to the home. The front porch leads into the expansive, vaulted family room which features a handsome fireplace and is open to the dining room creating a wonderful space in which to entertain large groups of friends and host special family events. The dining room provides access to the rear porch and opens onto the family friendly kitchen which features a separate pantry and plenty of counter and cabinet space. A large interior utility room is situated off the two car garage for convenience. The split bedroom plan features two family bedrooms on one side of the home for privacy. Both of the bedrooms are spacious, each has ample closet space and there is a shared hall bath and linen closet for the bedrooms. The master suite sits on the opposite of the home and is highlighted by a master bedroom which measures 13’x16’ and has a trey ceiling. The sumptuous master bath features dual vanities, a separate shower, a garden tub with a window view and a compartmentalized toilet. There is an oversized walk-in closet with linen closet at the rear of the bath for privacy. This family home has a traditional exterior and a functional floor plan which offers expansion possibilities.
