Ranch House Plan 009-00004EXCLUSIVE PLAN

Sq Ft1,732
1/2 Baths0
Width55' 0"
Depth55' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #009-00004
Opt Bonus Room for House Plan #009-00004

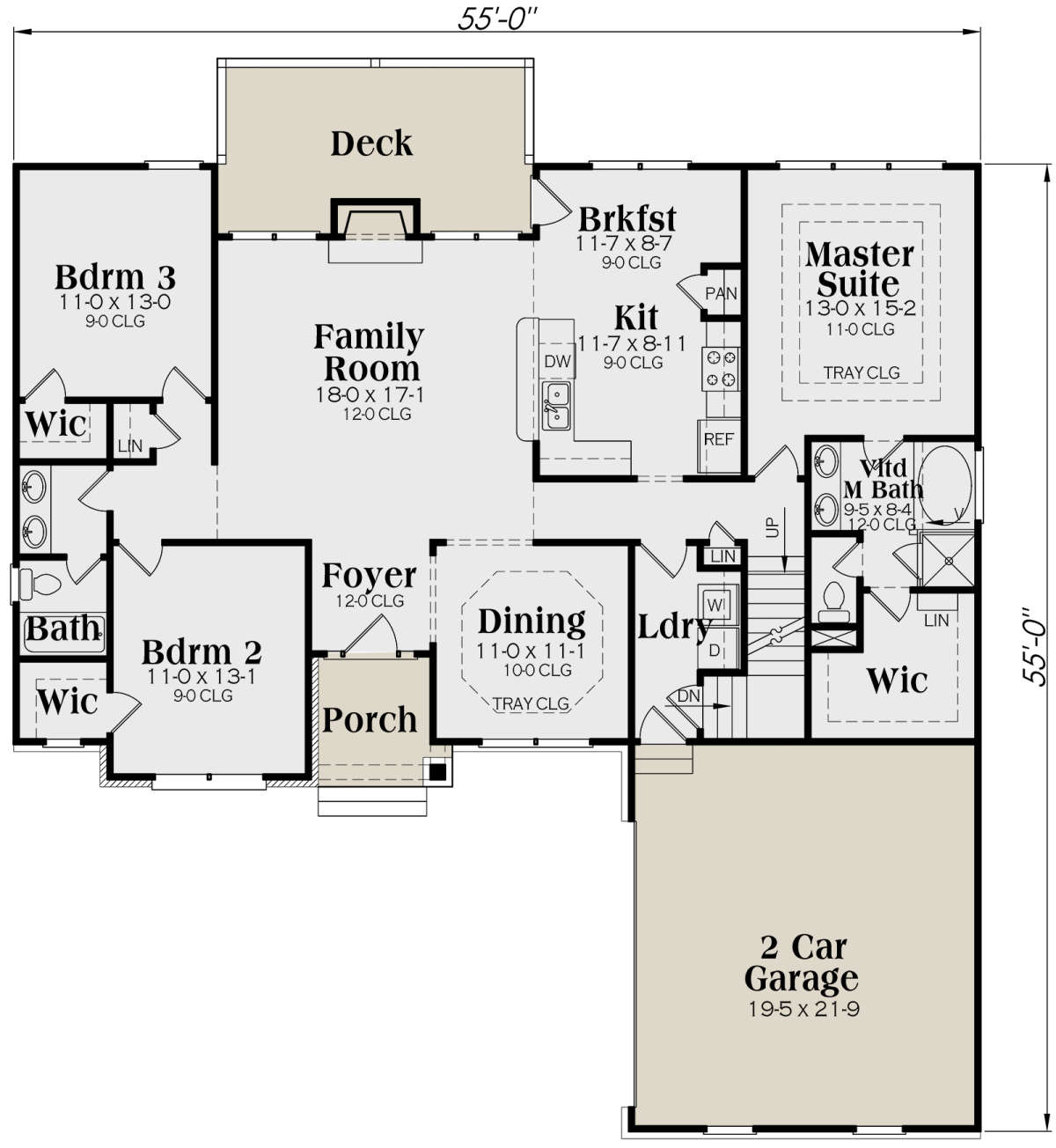

Main Floor
Main Floor for House Plan #009-00004

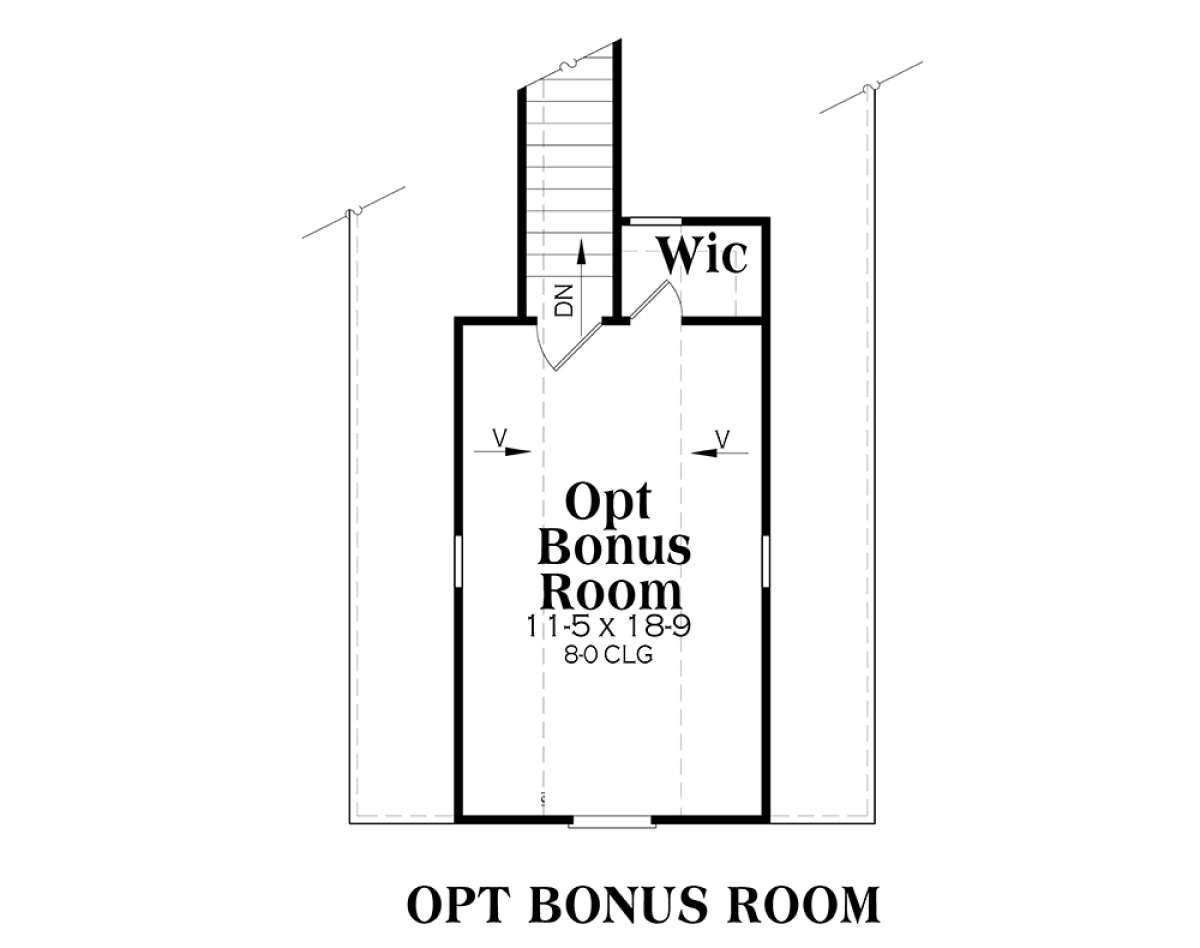

Opt Bonus Room
Opt Bonus Room for House Plan #009-00004

Frequently Asked Questions


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan has a striking exterior façade with clean lines and alluring architectural design features such as stacked stone and the courtyard entry garage. The courtyard entrance is inviting and an outstanding use of space in this house design. This one story home features the quintessential three bedrooms, two bath All-American home with a two car garage in approximately 1,700 square feet. The front covered porch leads to the soaring foyer supported with a 12’ ceiling and is open to the formal dining room which is highlighted with a trey ceiling. The massive family room is at the rear of the foyer and this family friendly room has a rear wall fireplace flanked by picturesque window views of the rear deck and yard. The large kitchen and breakfast room has a plethora of space including a separate pantry and an abundance of counter and cabinet space. The large utility room sits off the two car garage for convenience.

The split bedroom plan has two bedrooms, each with a walk-in closet, on one side of the home. These two bedrooms share a hall bath with dual vanities and a linen closet. The owner's suite is situated on the opposite side of the home for privacy and is highlighted by a spacious bedroom with a double step trey ceiling. The en suite bath features dual vanities, a separate shower, garden tub and a compartmentalized toilet. The oversized walk-in closet sits at the rear of this space for ultimate privacy. An optional 254 square foot bonus with walk-in closet is available and would make an ideal space for a home office, playroom or artist’s studio. This home offers outstanding value and comfort for your family and the additional bonus room adds versatility and function to the floor plan.
