Mountain Plan 957-00030

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,831
Beds 3
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 67'
Depth 56' 6"

Floorplan Drawings

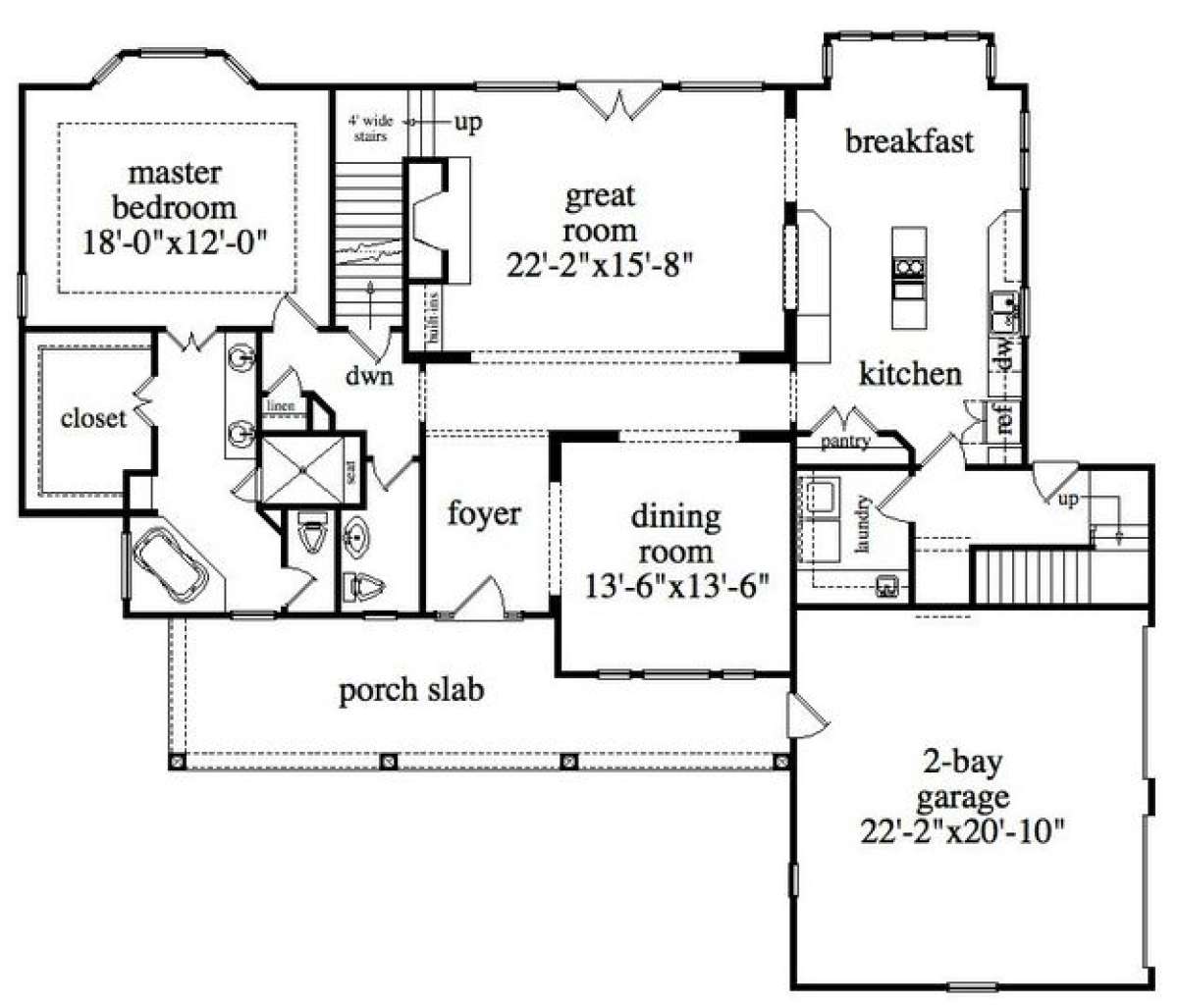

Floorplan 1
Floorplan 1 for House Plan #957-00030

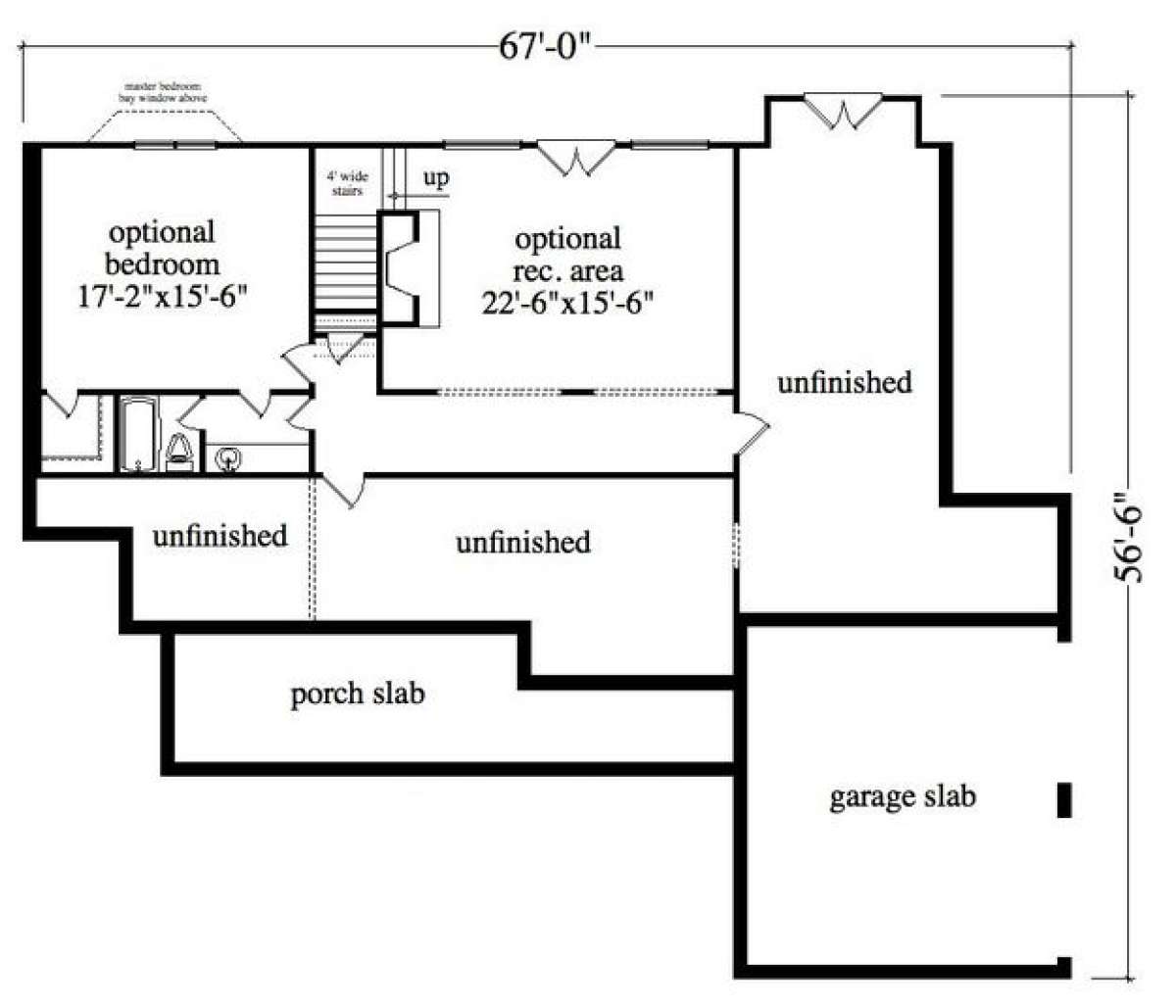

Floorplan 2
Floorplan 2 for House Plan #957-00030

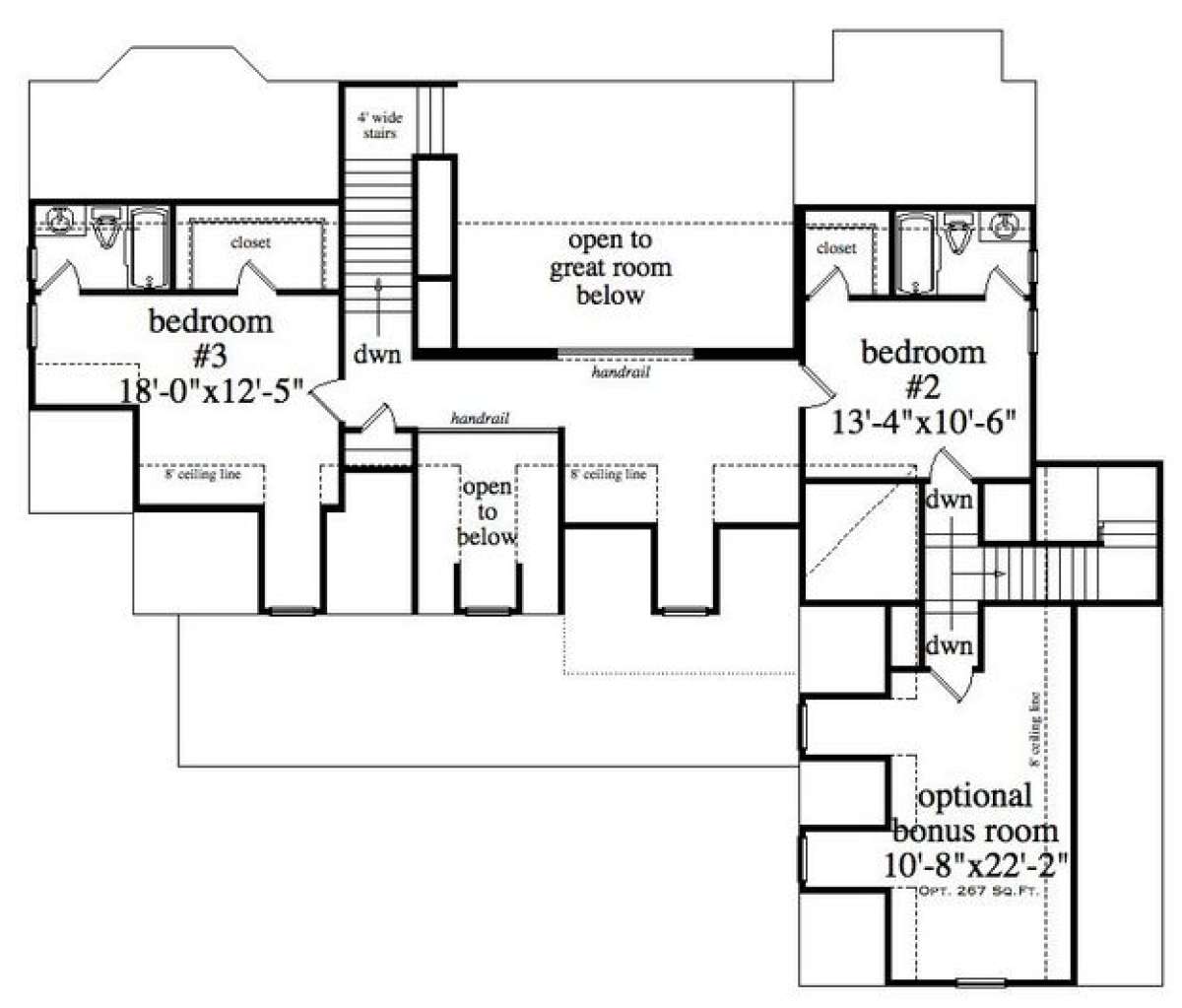

Floorplan 3
Floorplan 3 for House Plan #957-00030


What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

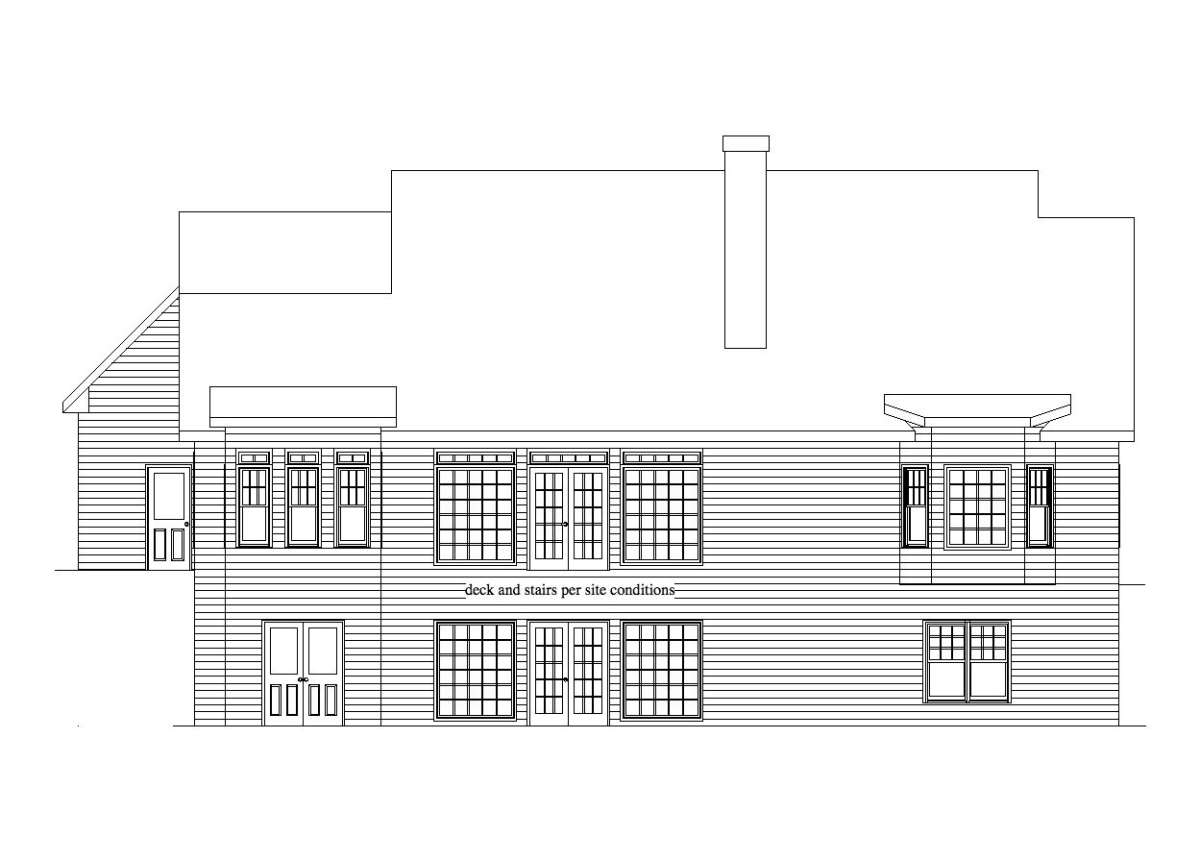

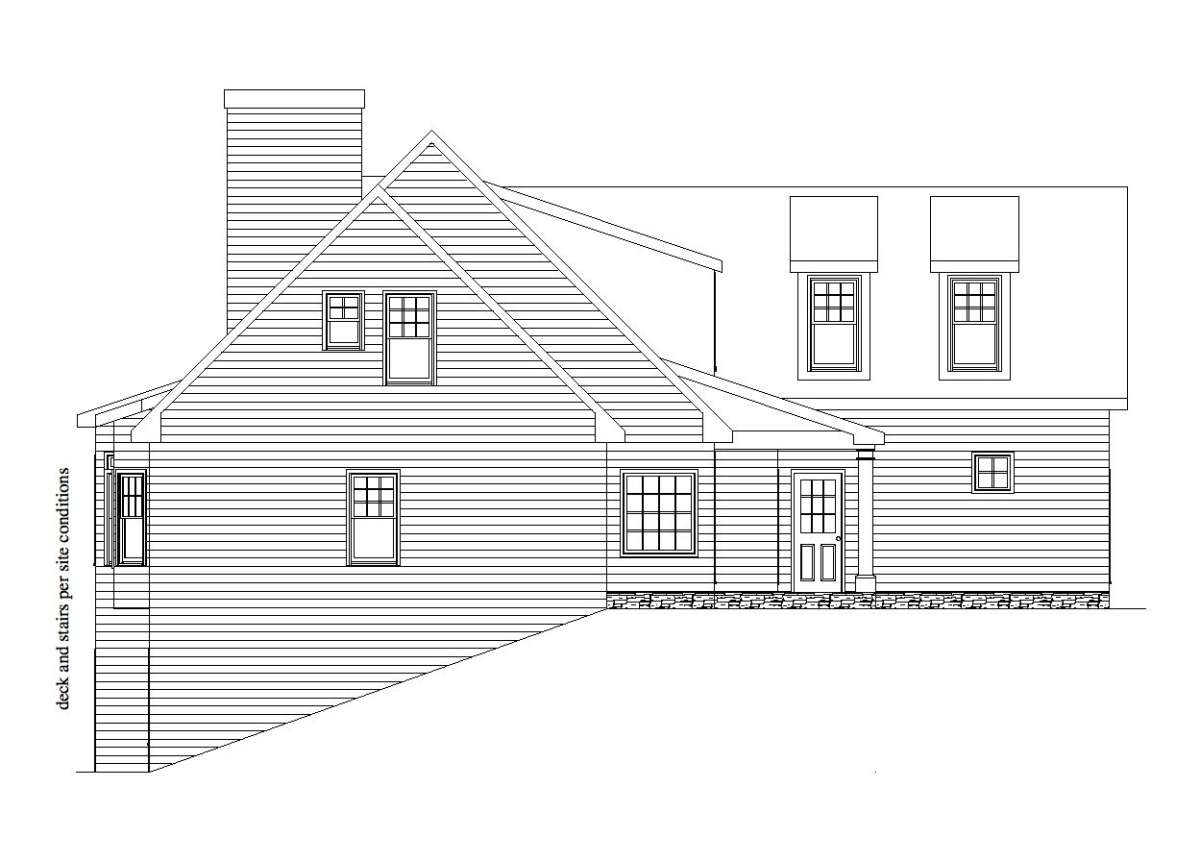

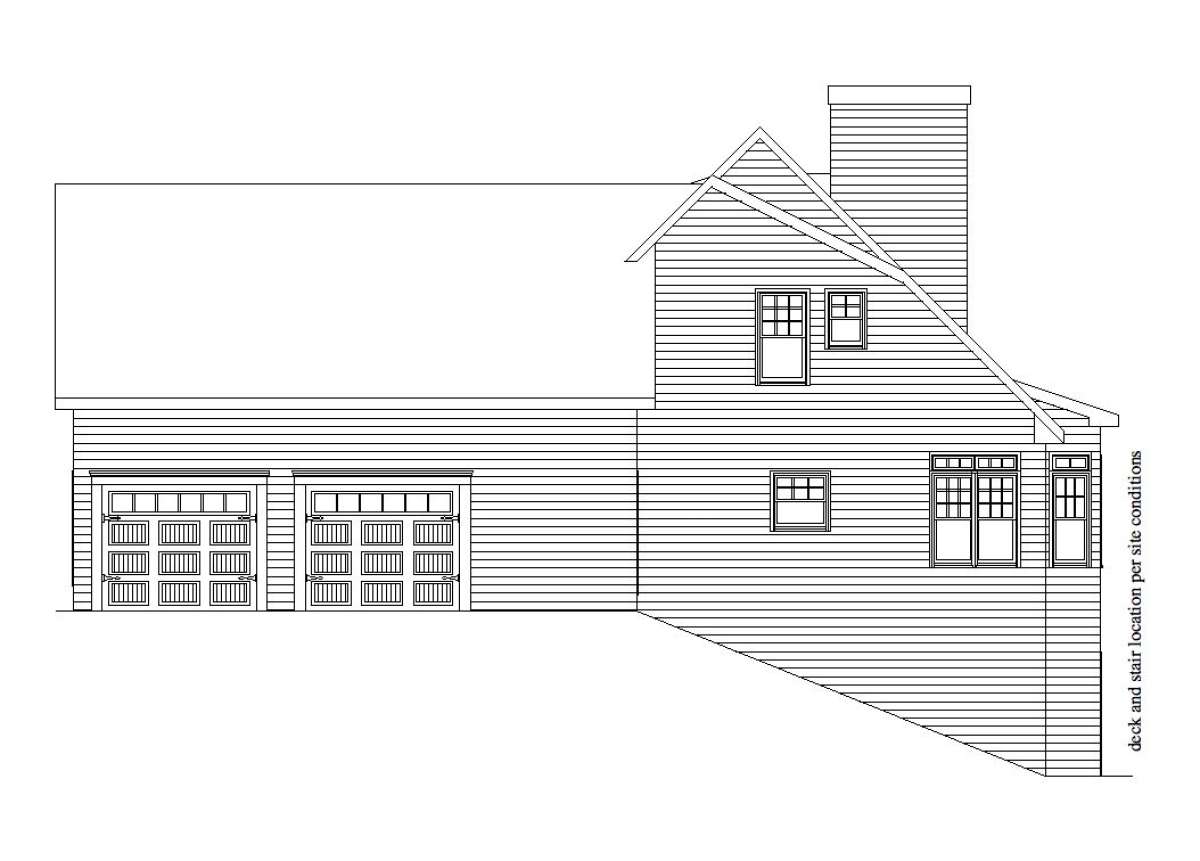

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

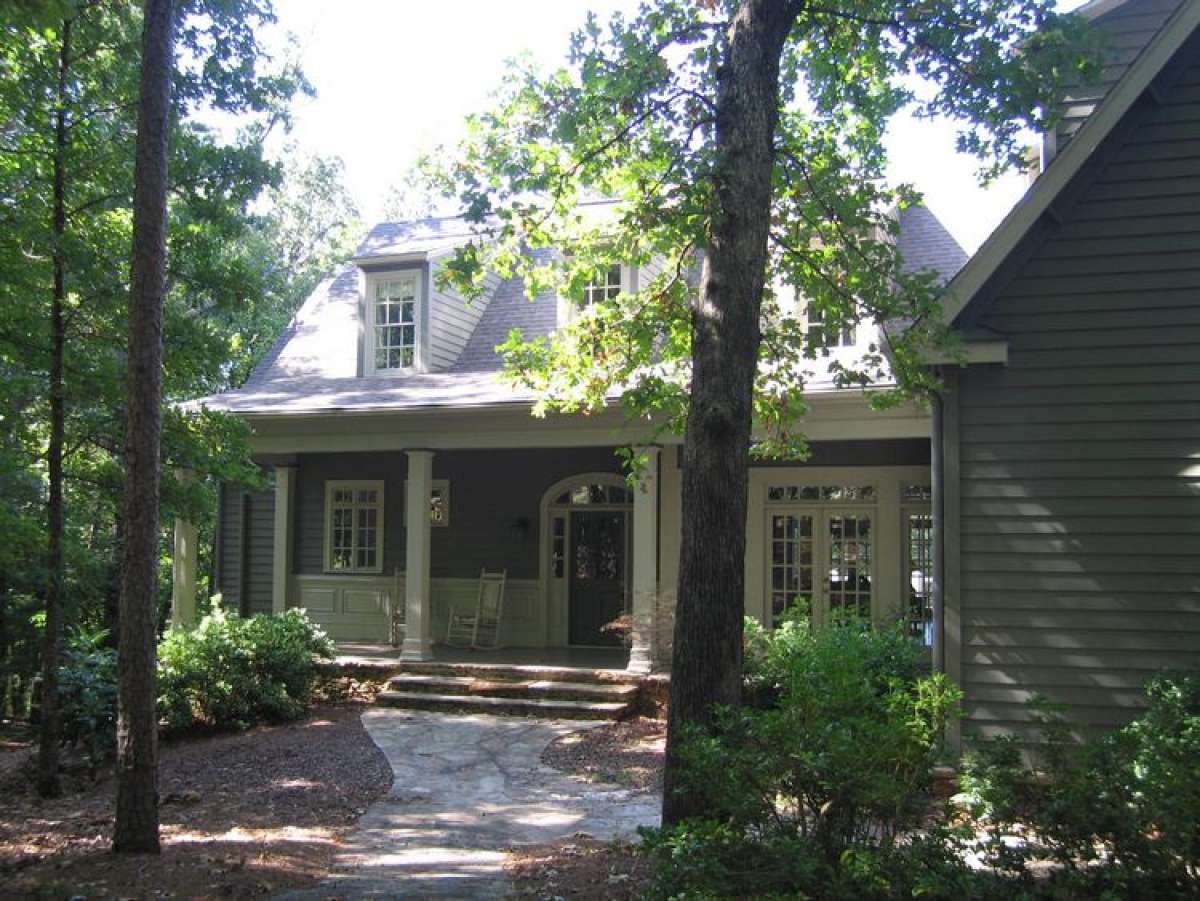

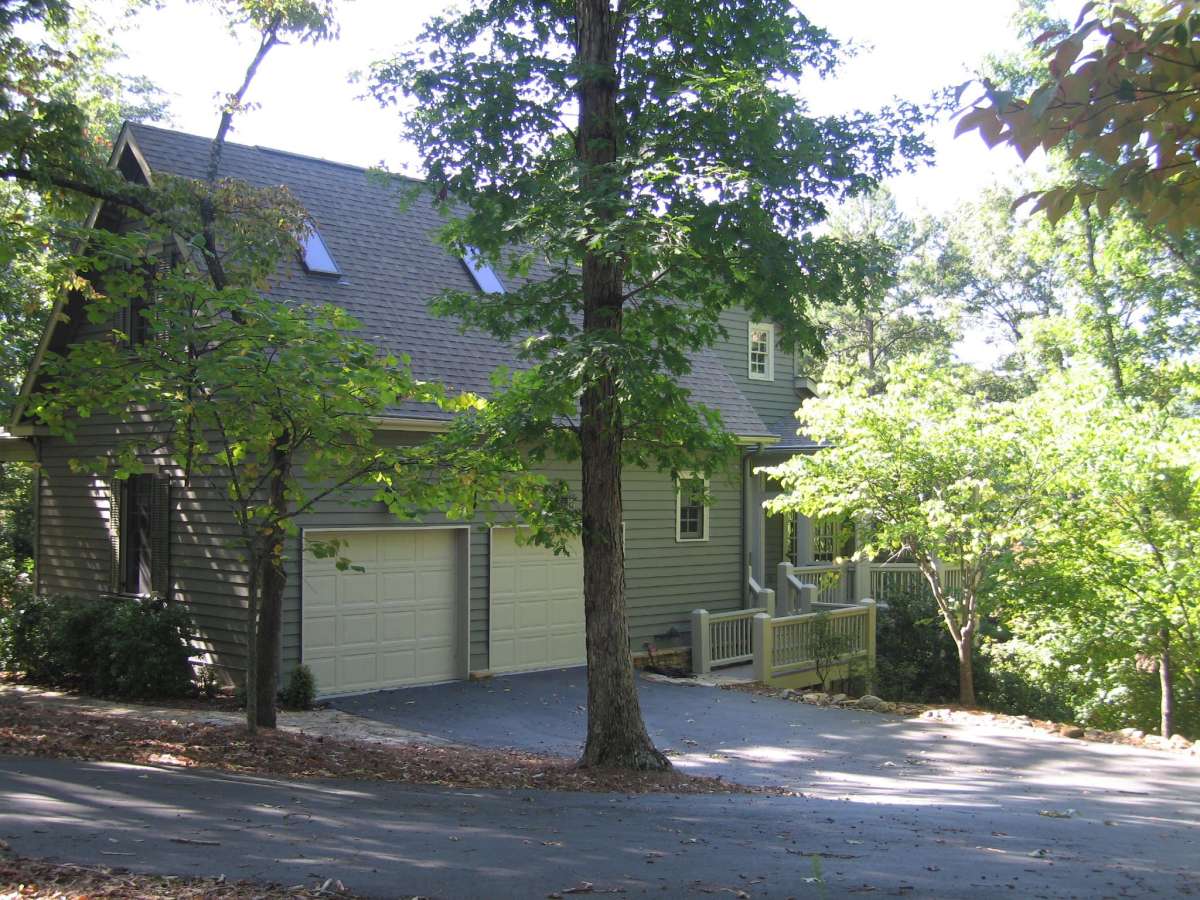

This traditional house has lovely design features and a fabulous front covered porch entrance. The varied use of window detailing throughout the home gives the home a bright and airy feel and allows the homeowner to take full advantage of wonderful outdoor views. The “Southern Living” style covered front porch is gorgeous and inviting with column beams, a slate floor, French door accent and wainscoting. Window dormers and the courtyard garage give the exterior facade a tidy and classic appearance. There are three bedrooms and three plus bathrooms in approximately 2,800 square feet of living space and the daylight basement is perfect for future expansion. The basement level has in excess of 1,800 square feet and contains plenty of room for additional bedrooms, bathrooms, a recreation room or multi-purpose family room, optional storage space and access to the terrace level patio. The spacious foyer is open to the formal living room which provides French door access to the front porch. The oversized great room has a stately fireplace, built-in cabinetry and French door access to the rear yard. A gourmet kitchen has a center island cook top, a huge pantry and plenty of additional counter and cabinet space. The kitchen is open to the informal breakfast room which is surrounded on three sides with wonderful window views. The family utility room is situated off the garage and has a sink area and plenty of counter space. Double staircases lead upstairs and down; one set is off the great room, the other is adjacent to the laundry room. A powder room for guests and the private master suite complete the main level of the home. The master suite has an oversized bedroom measuring 18’x12’ and features a trey ceiling accent and triple bay window overlooking the backyard. There is an enormous walk-in closet located off the master bath for privacy and convenience. The master bath enjoys a large footprint and features dual vanities, a separate shower with seat, a corner whirlpool tub and a compartmentalized toilet. Balcony overlooks and open railing highlight the second story landing where you will find family bedrooms and an optional bonus room. The bonus room is quite large and privately situated over the garage making this ideal for a home office/study or an artist’s studio. Bedroom two is spacious with a walk-in closet and private bath while bedroom three is clearly oversized and contains a private bath and walk-in closet as well. This family home has a traditional exterior and an interior floor plan with a plethora of living space.
