Craftsman House Plan 957-00019

Sq Ft4,045
Beds3
Baths3
1/2 Baths1
Stories2
Cars2
Width63' 6"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

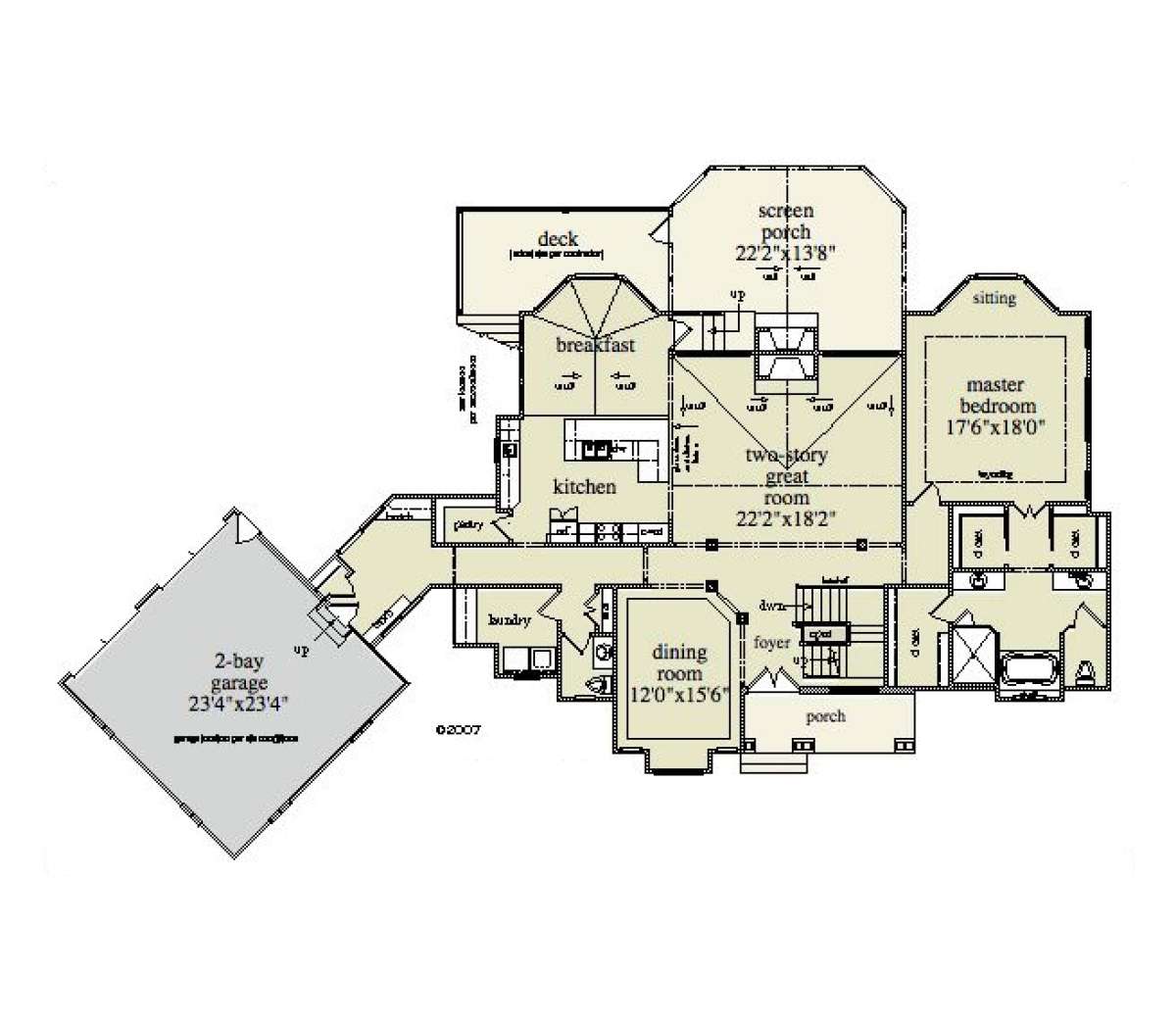

Floorplan 1 for House Plan #957-00019
Floorplan 2 for House Plan #957-00019
Floorplan 3 for House Plan #957-00019
Floorplan 1
Floorplan 1 for House Plan #957-00019
Floorplan 2
Floorplan 2 for House Plan #957-00019
Floorplan 3
Floorplan 3 for House Plan #957-00019


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

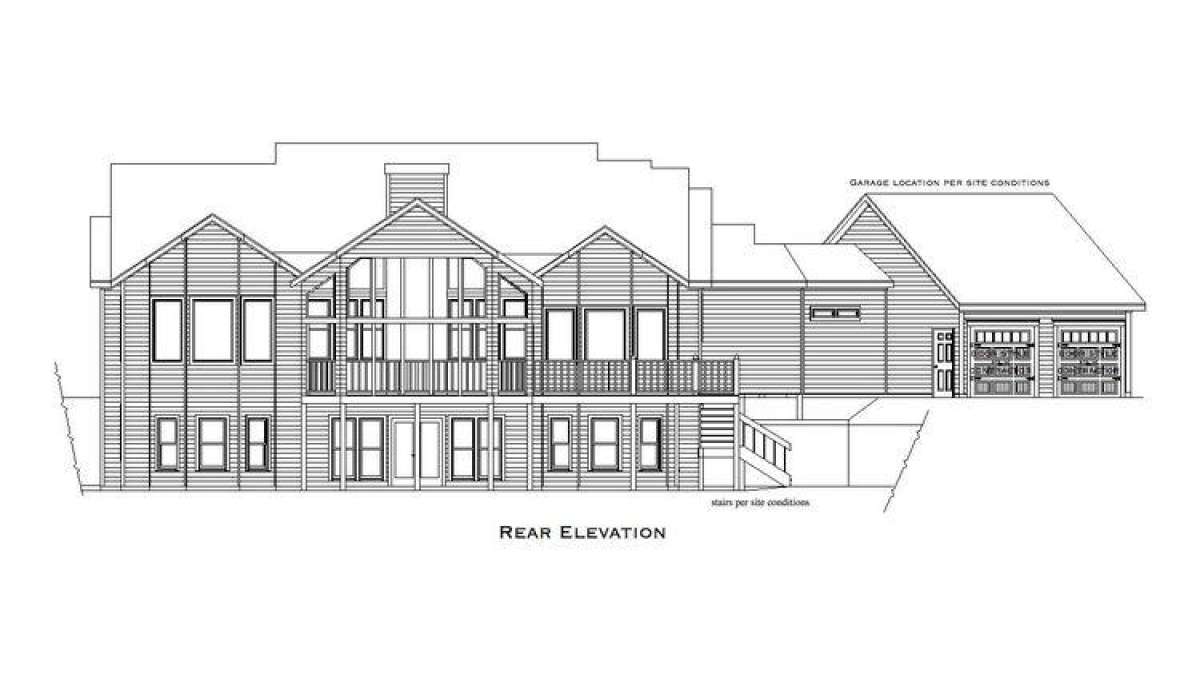

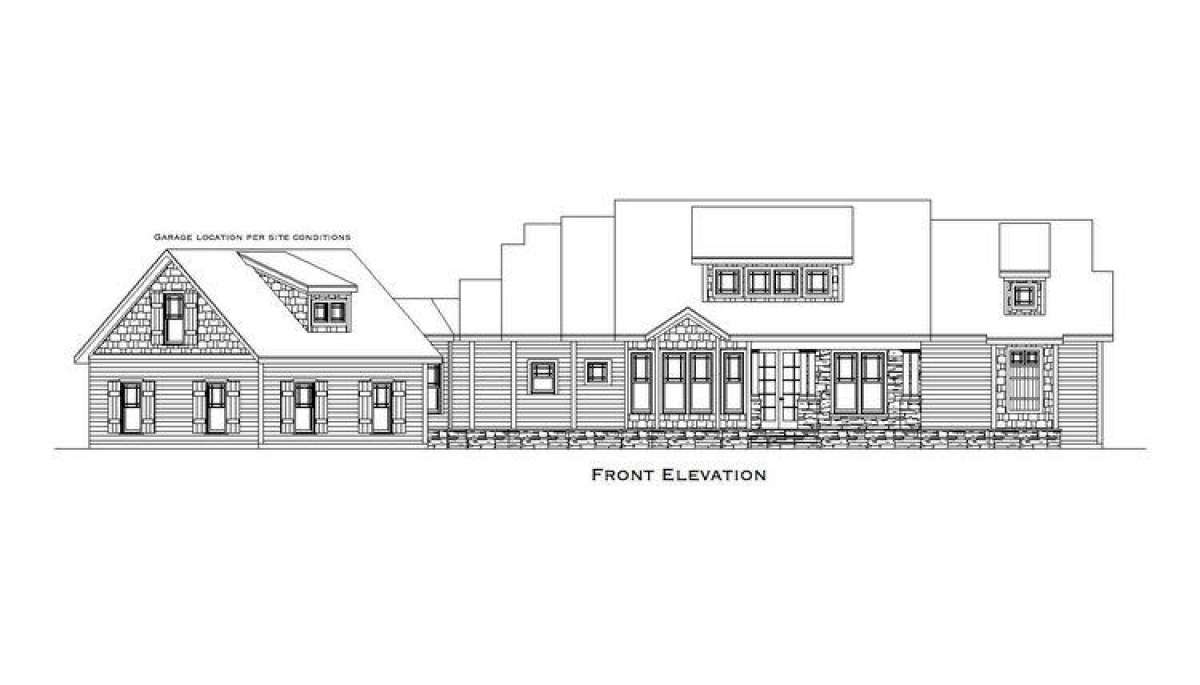

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Electrical Layout:
    This plan includes a "path of light" electrical layout for each floor.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

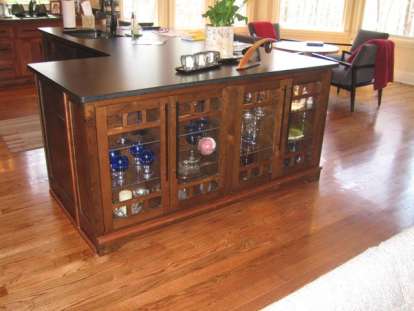

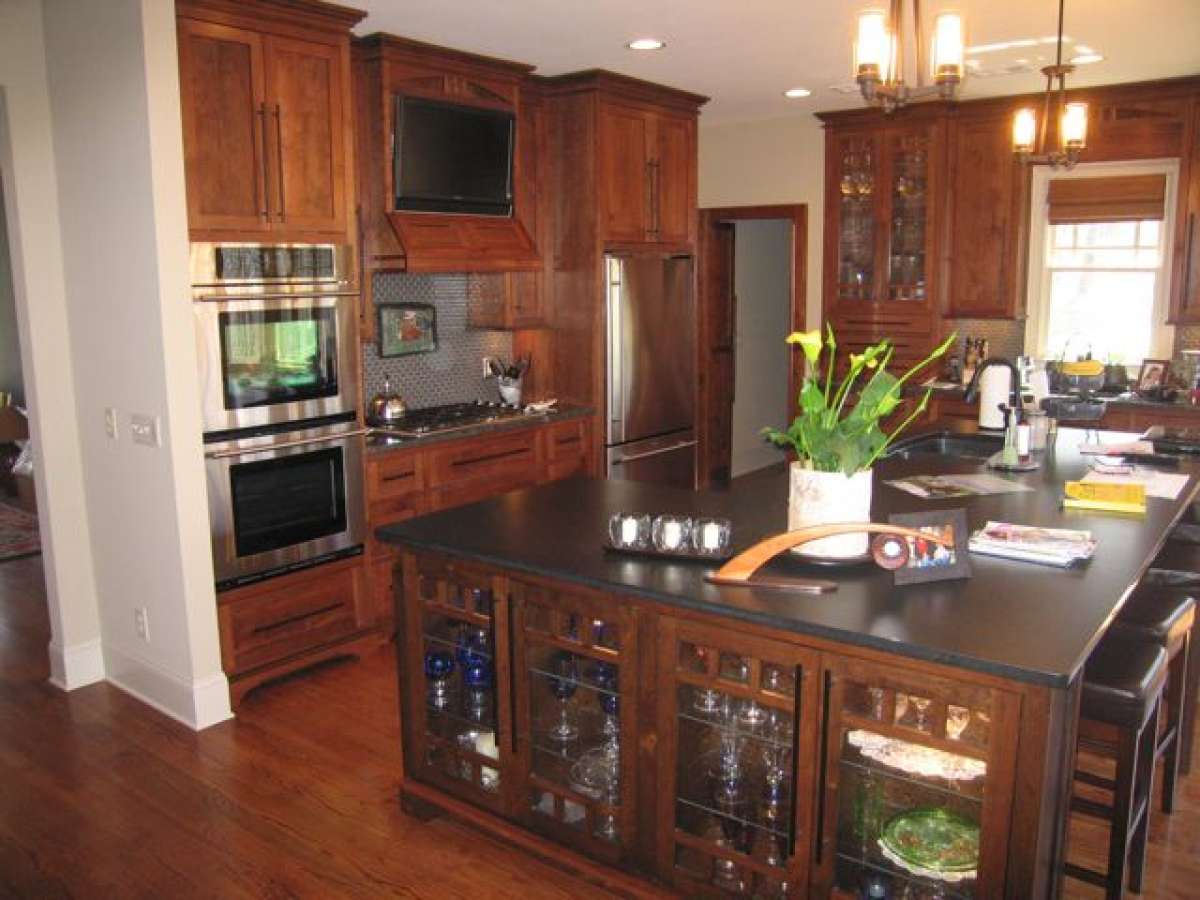

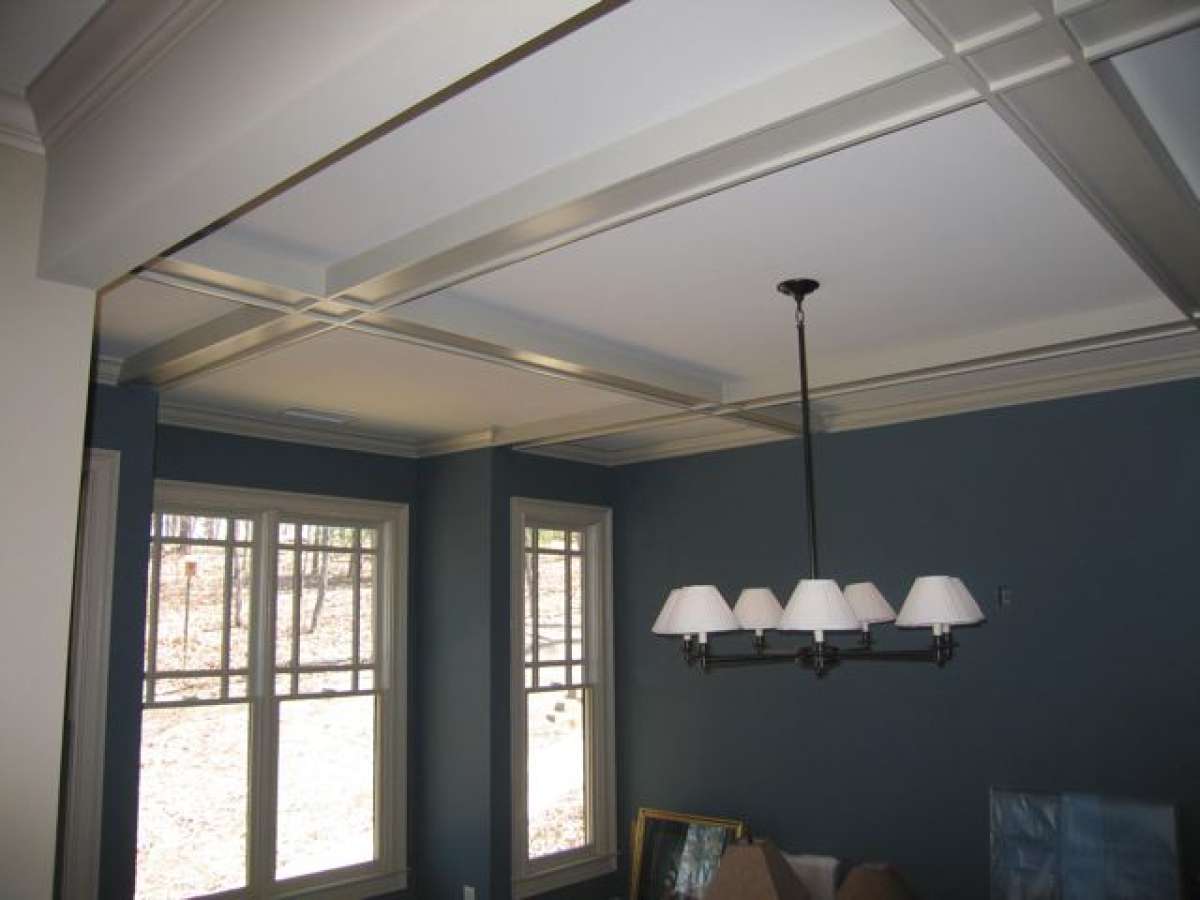

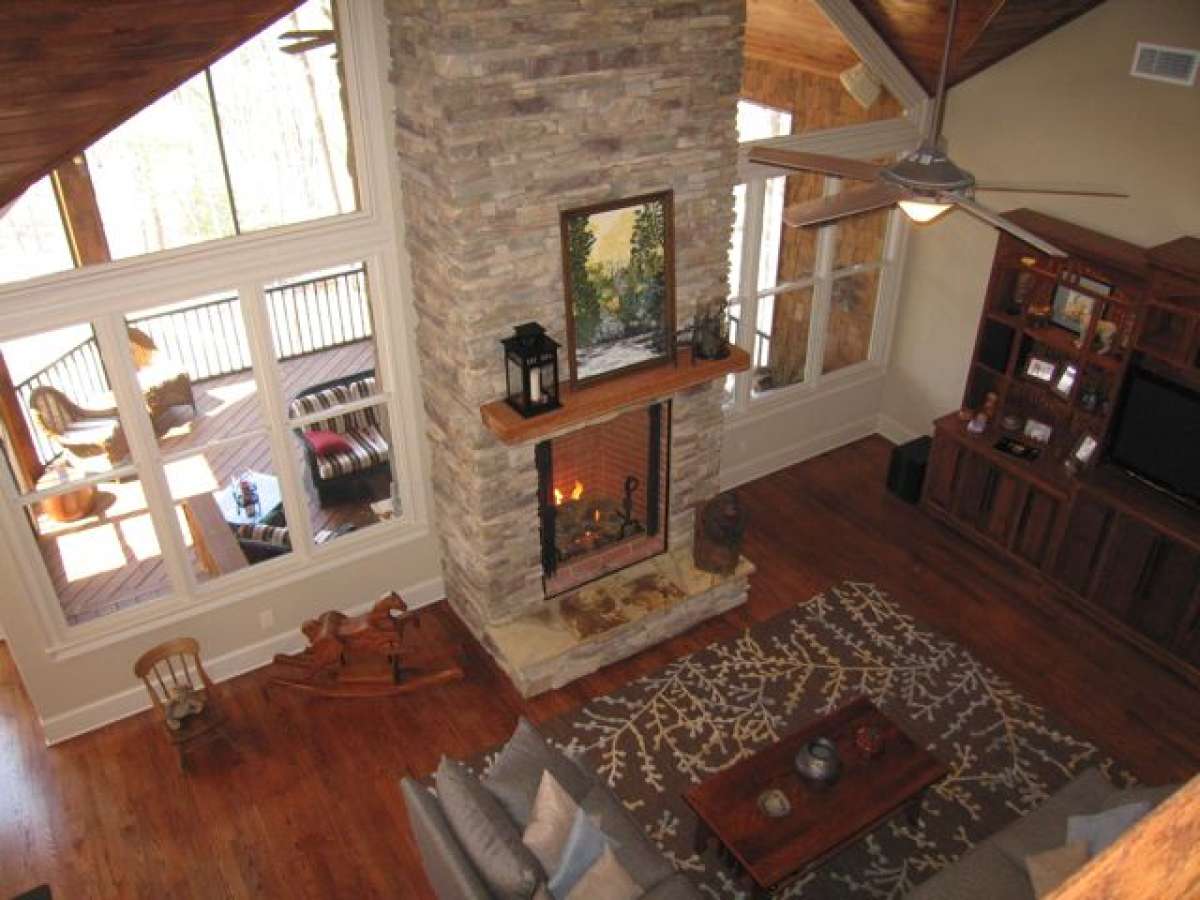

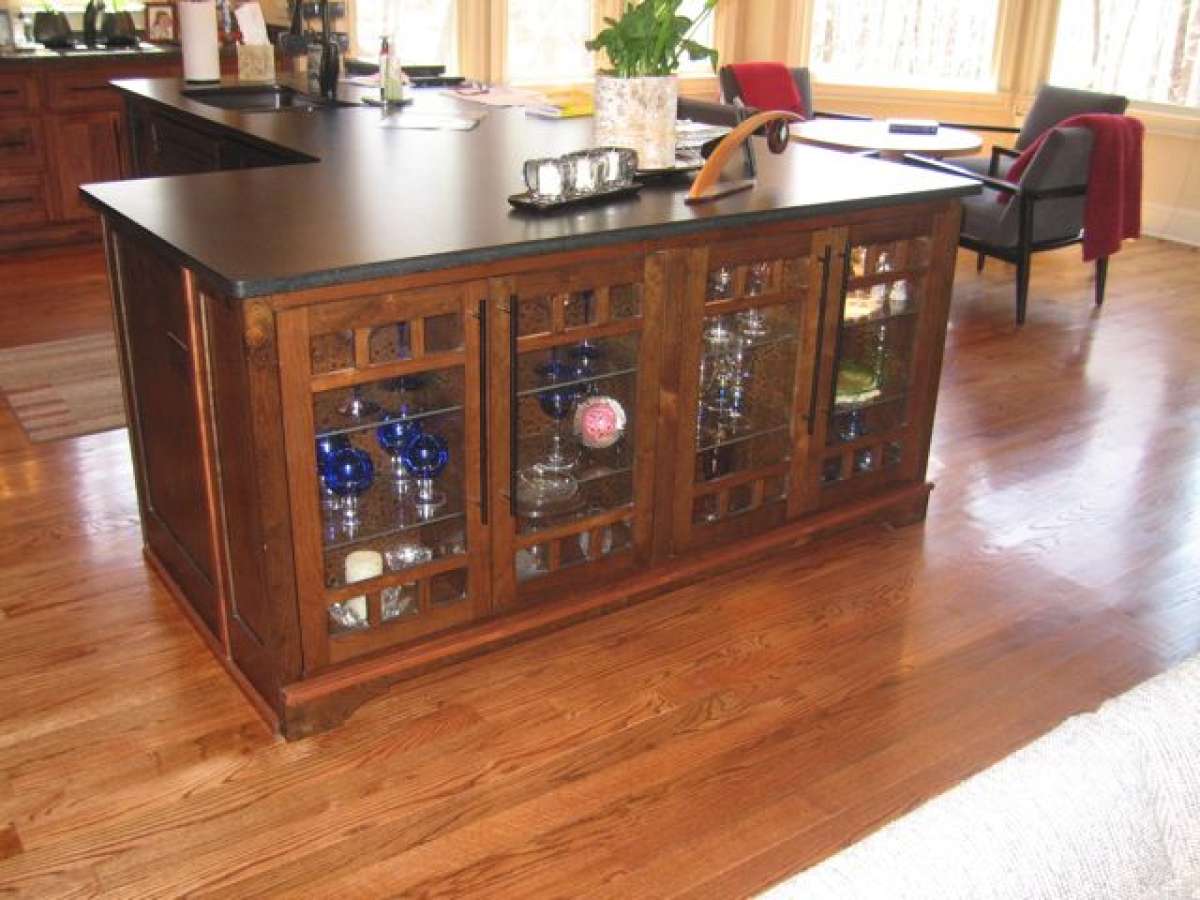

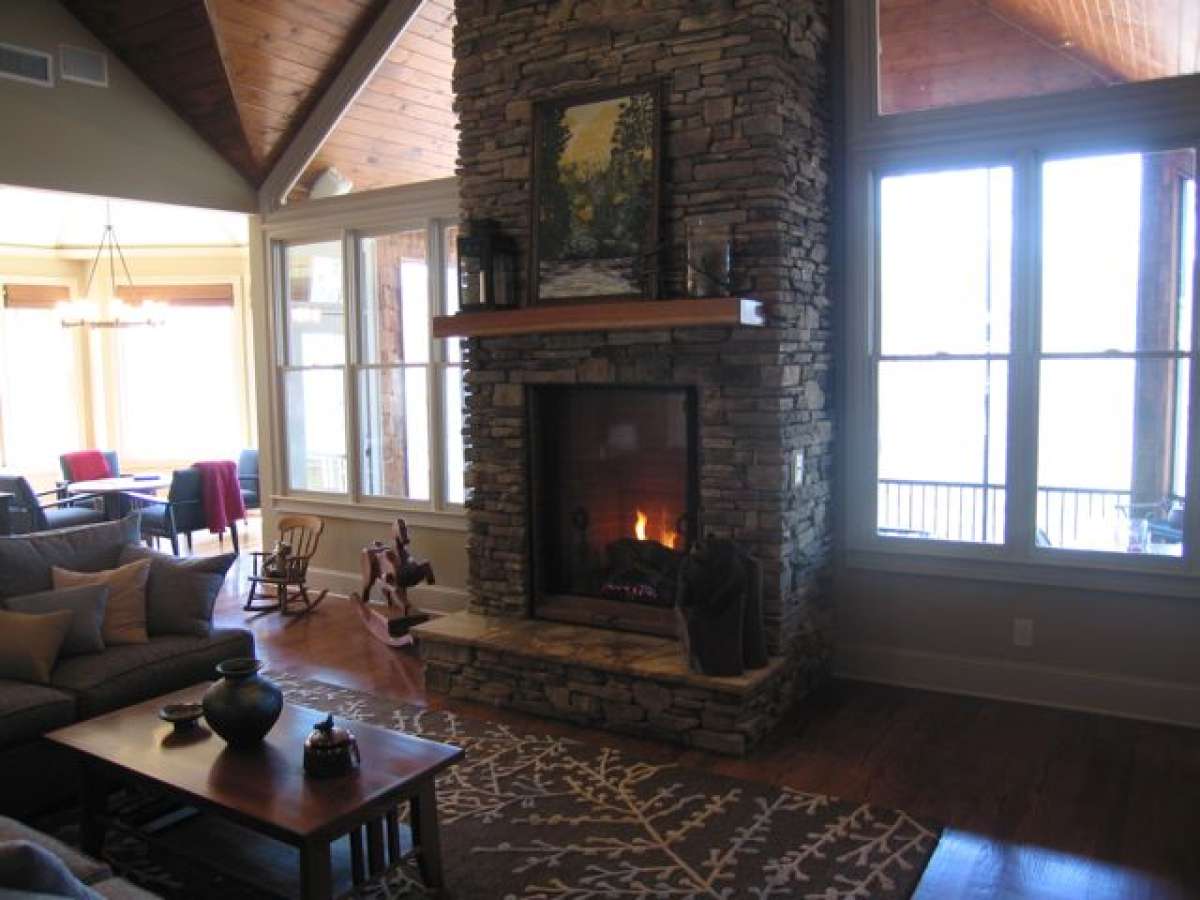

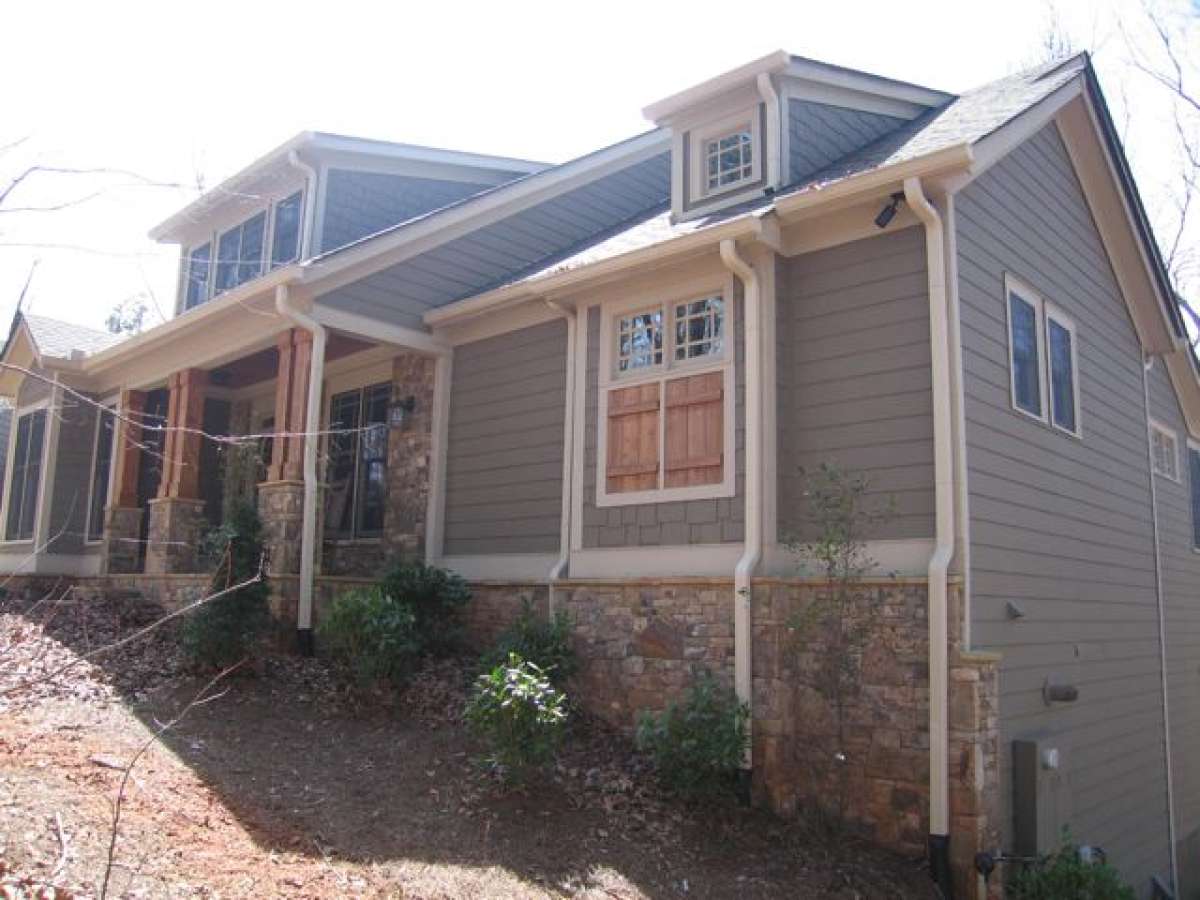

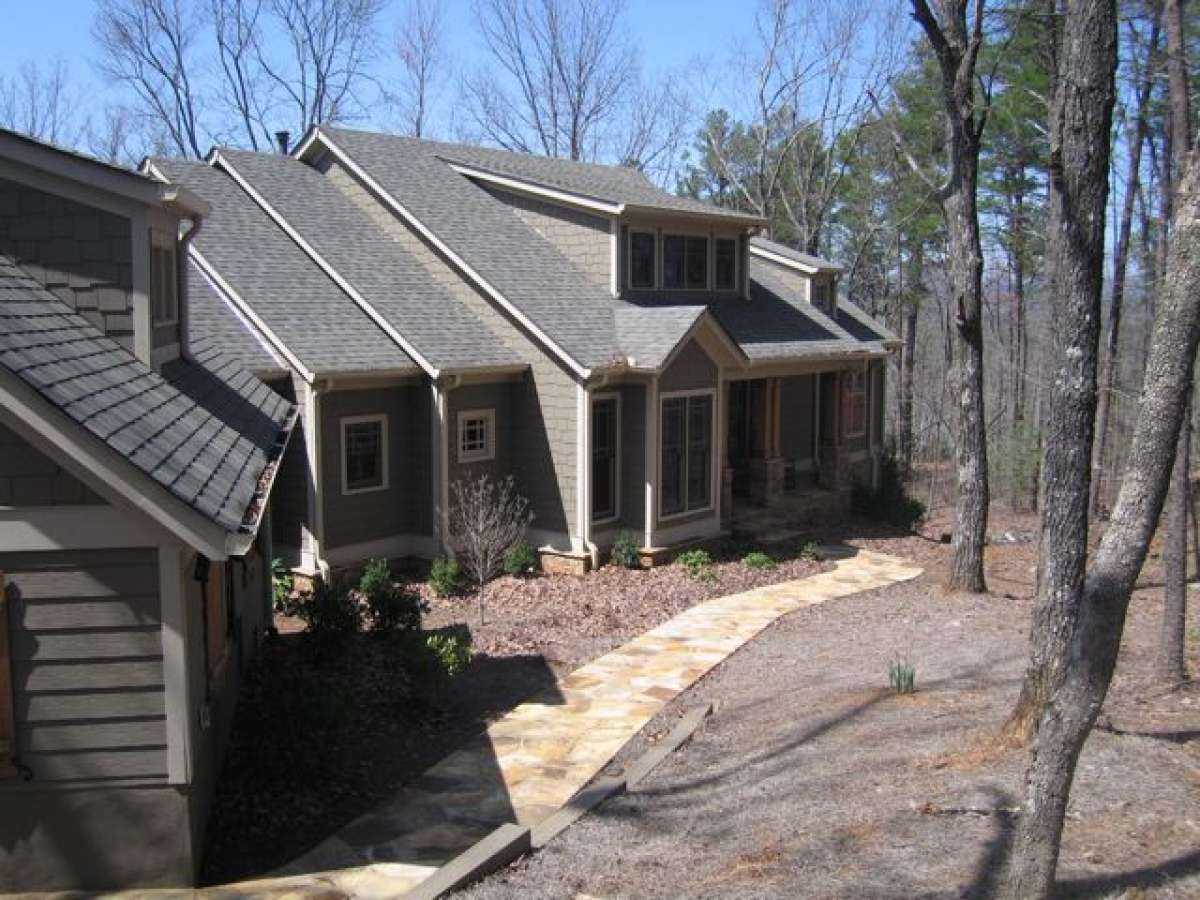

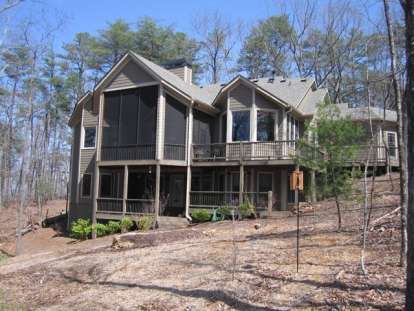

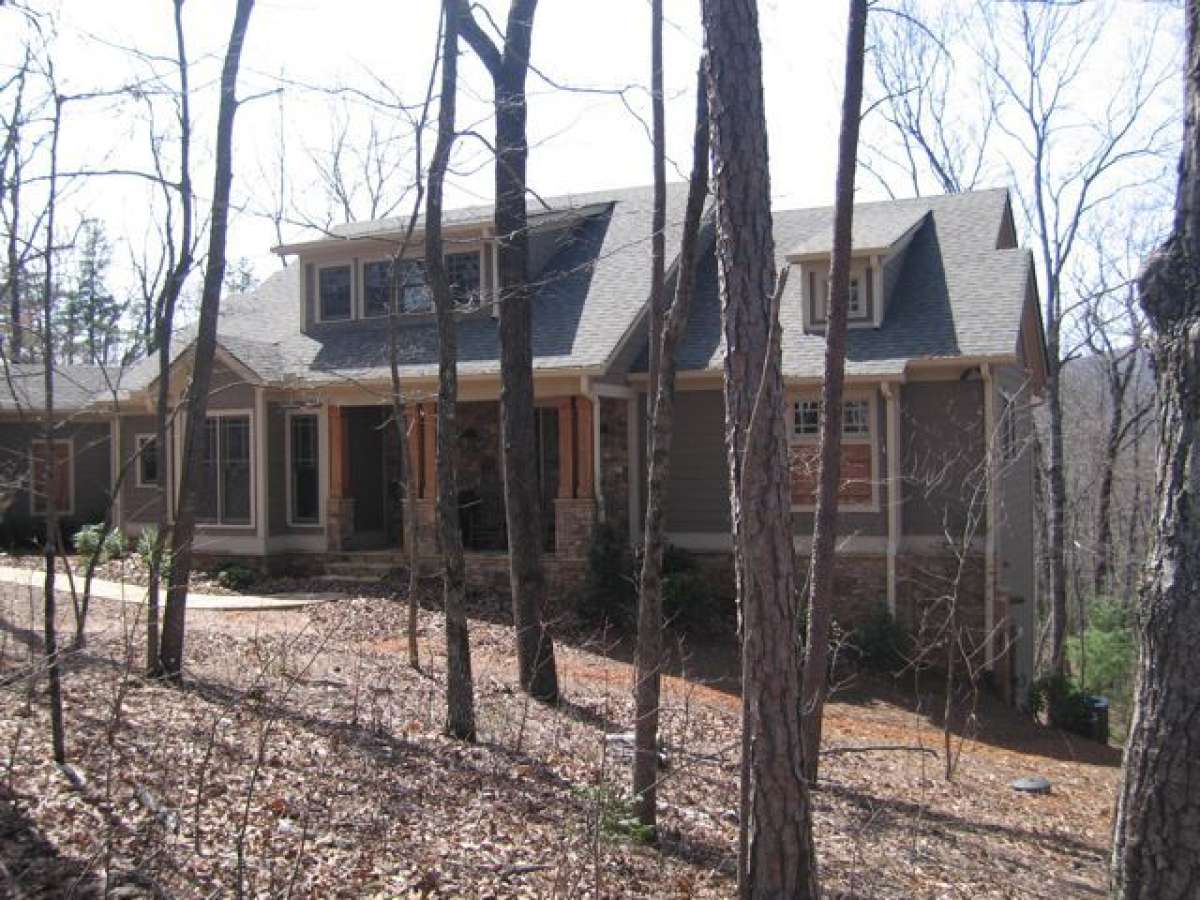

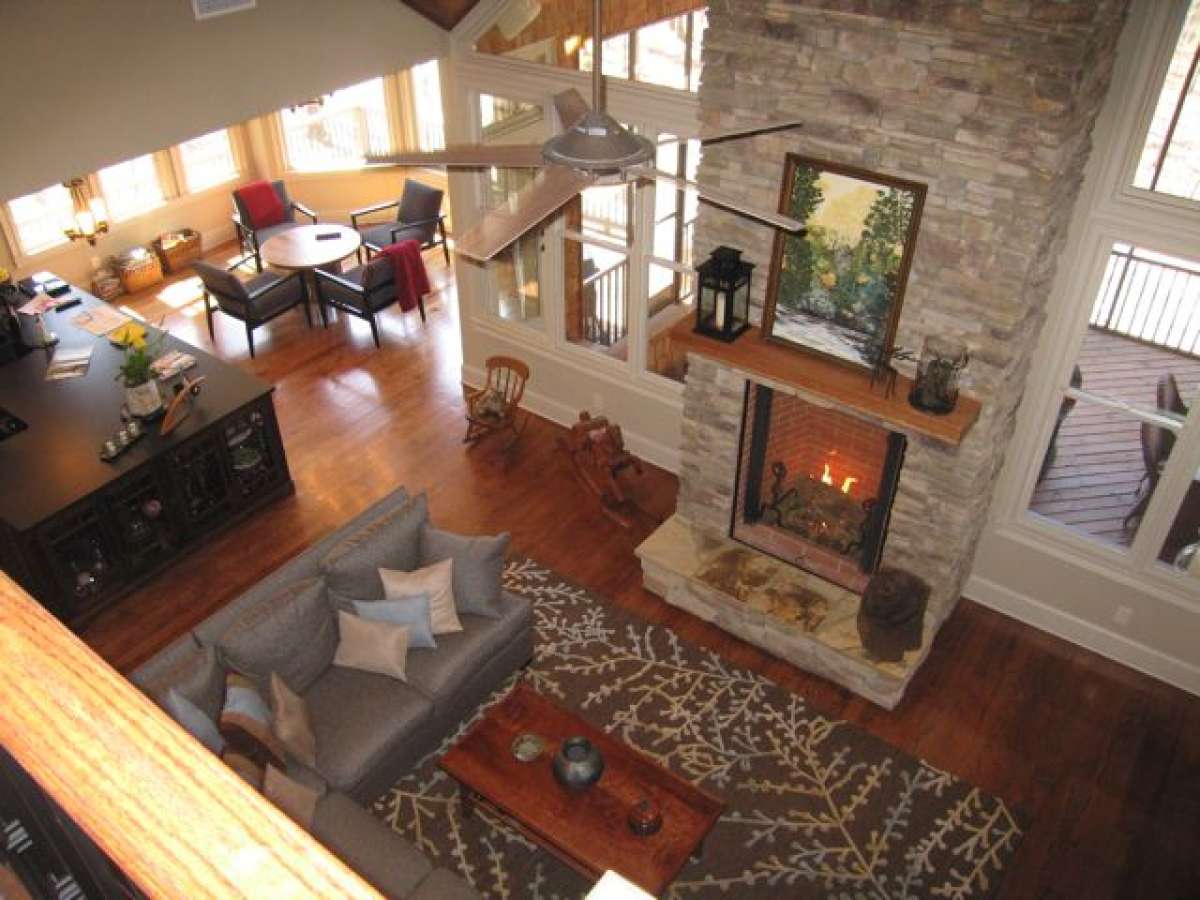

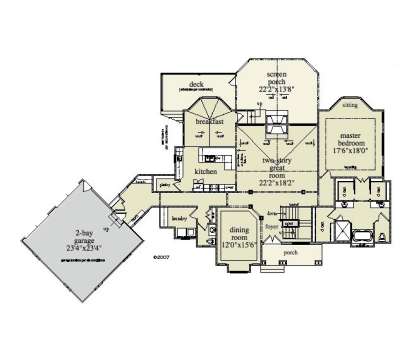

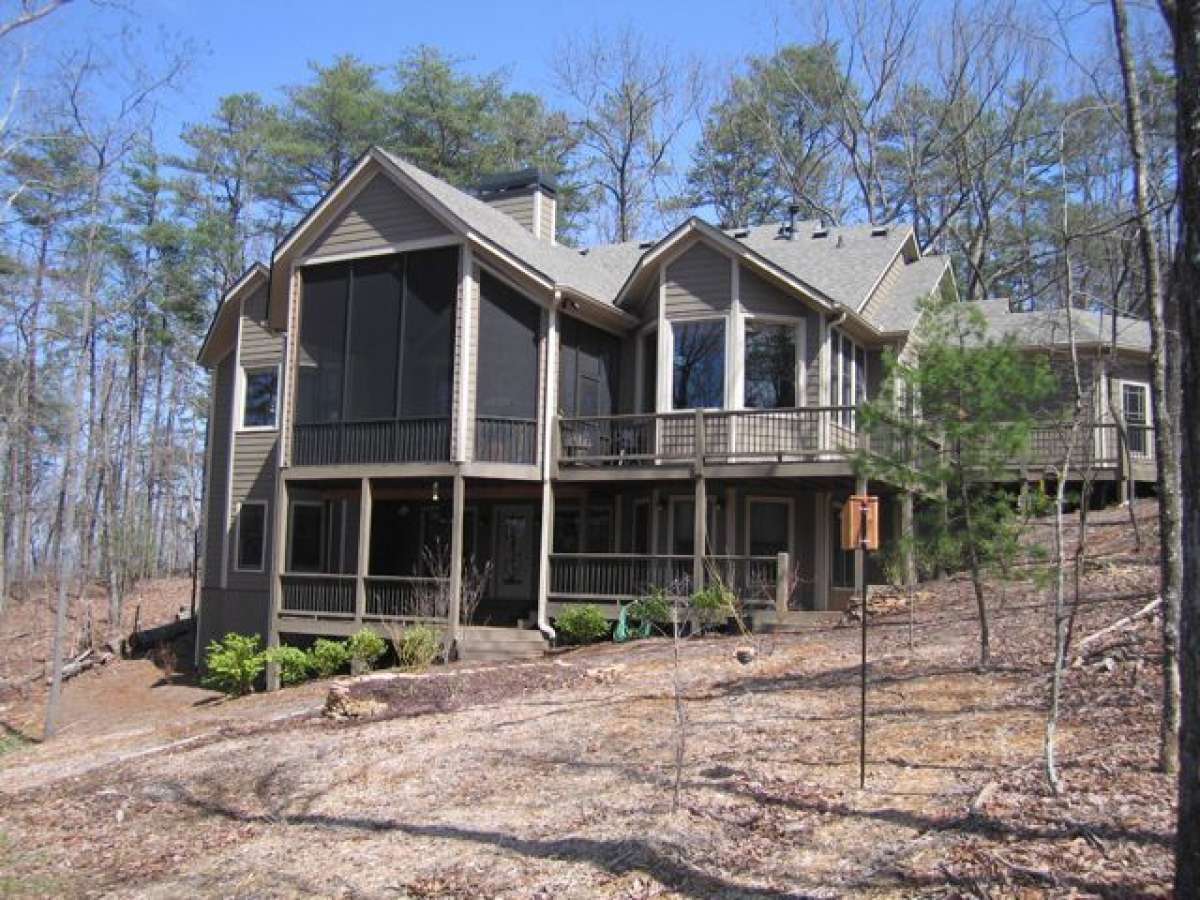

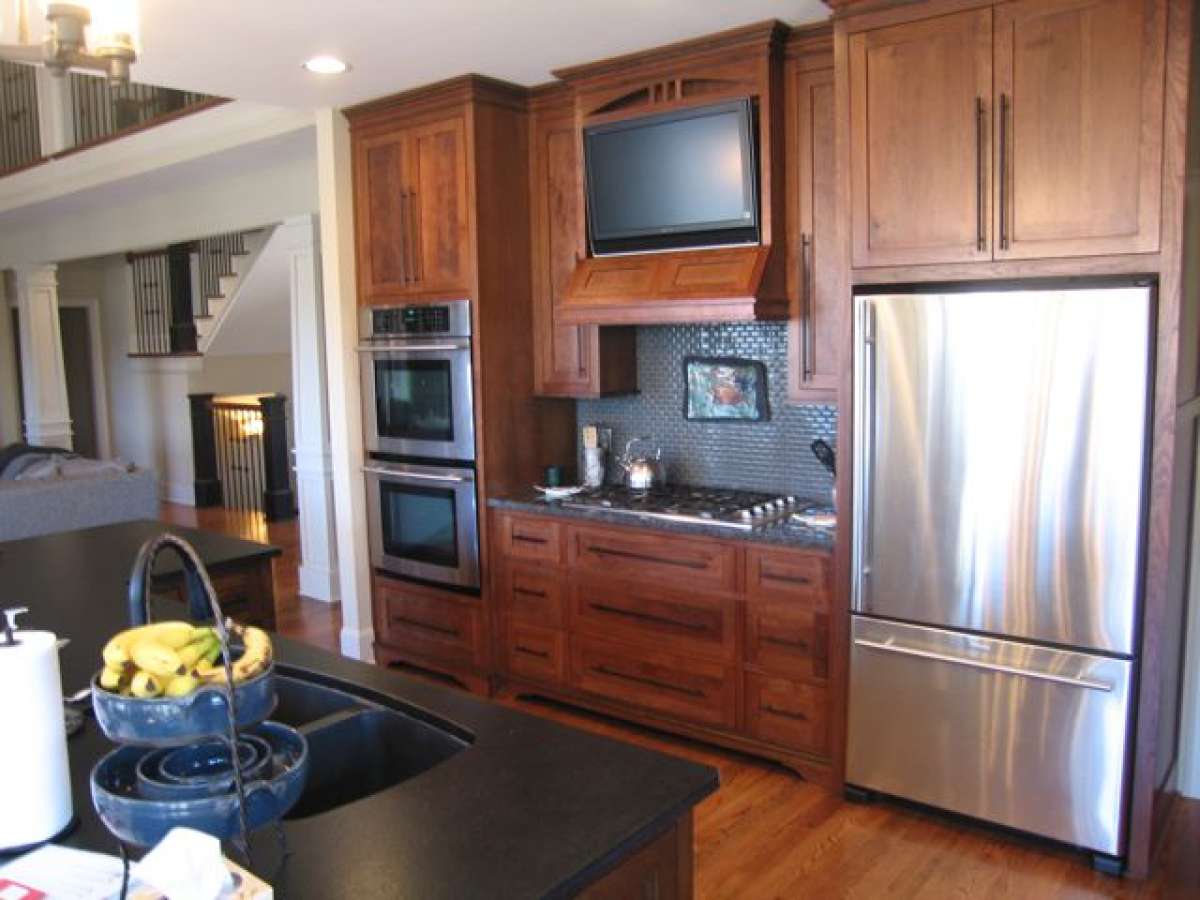

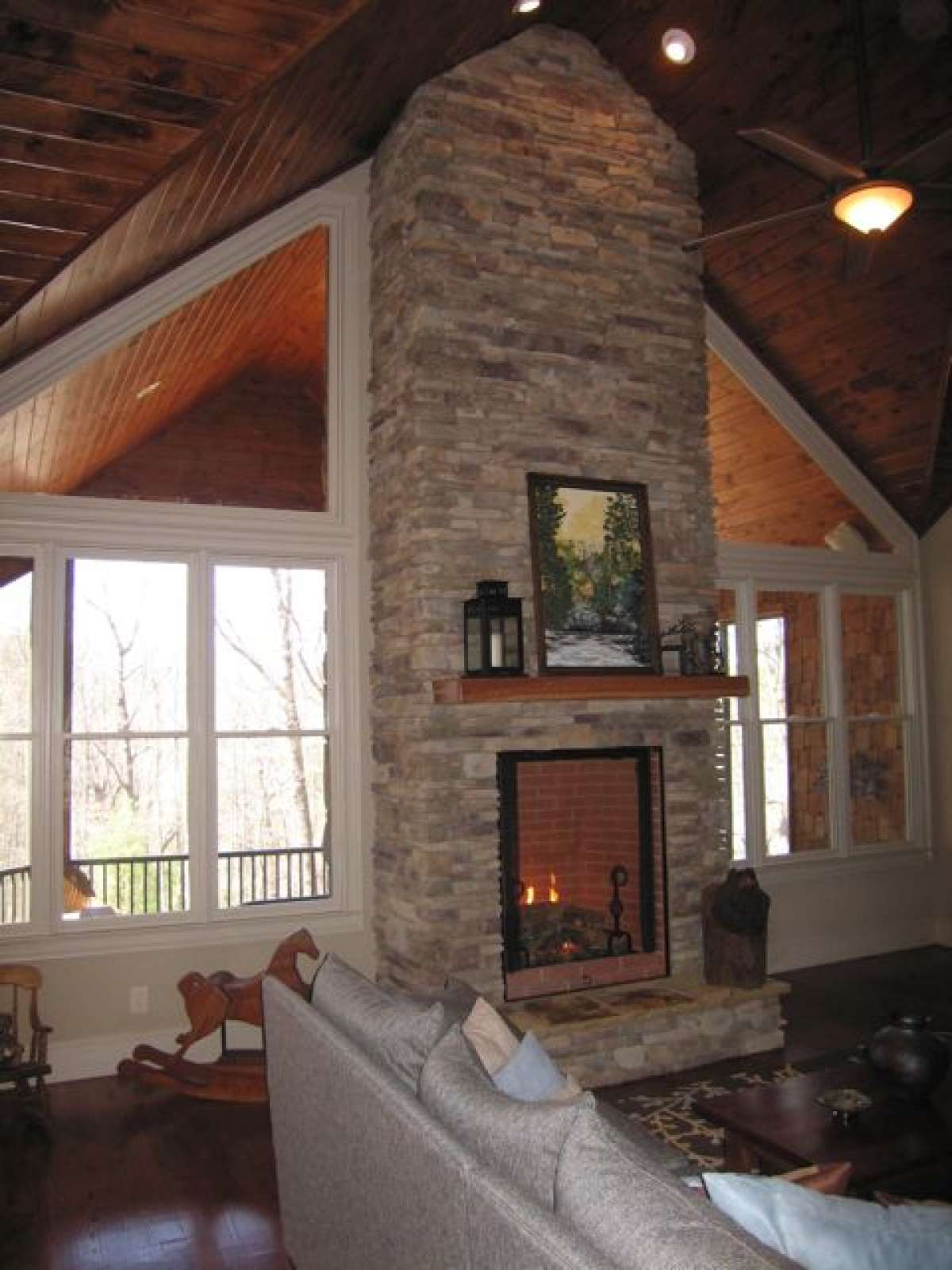

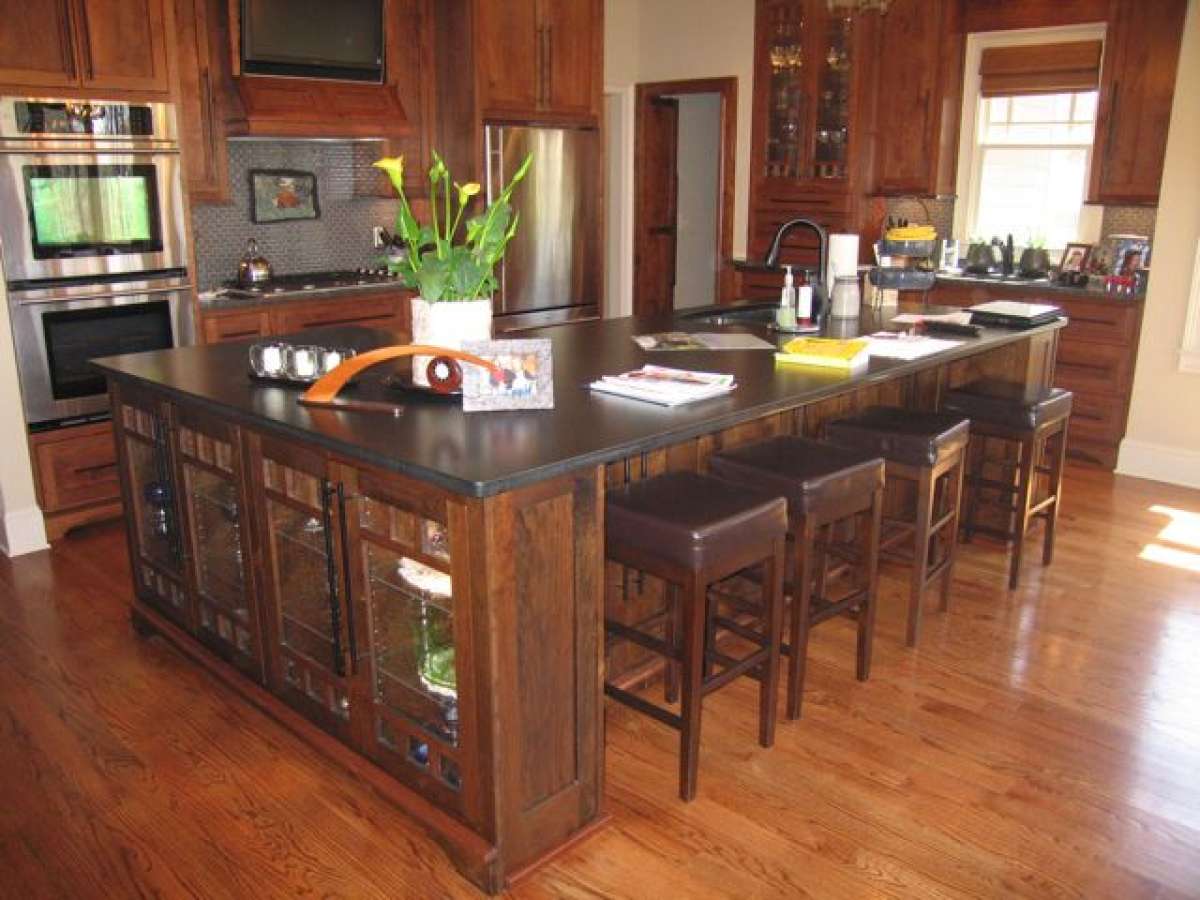

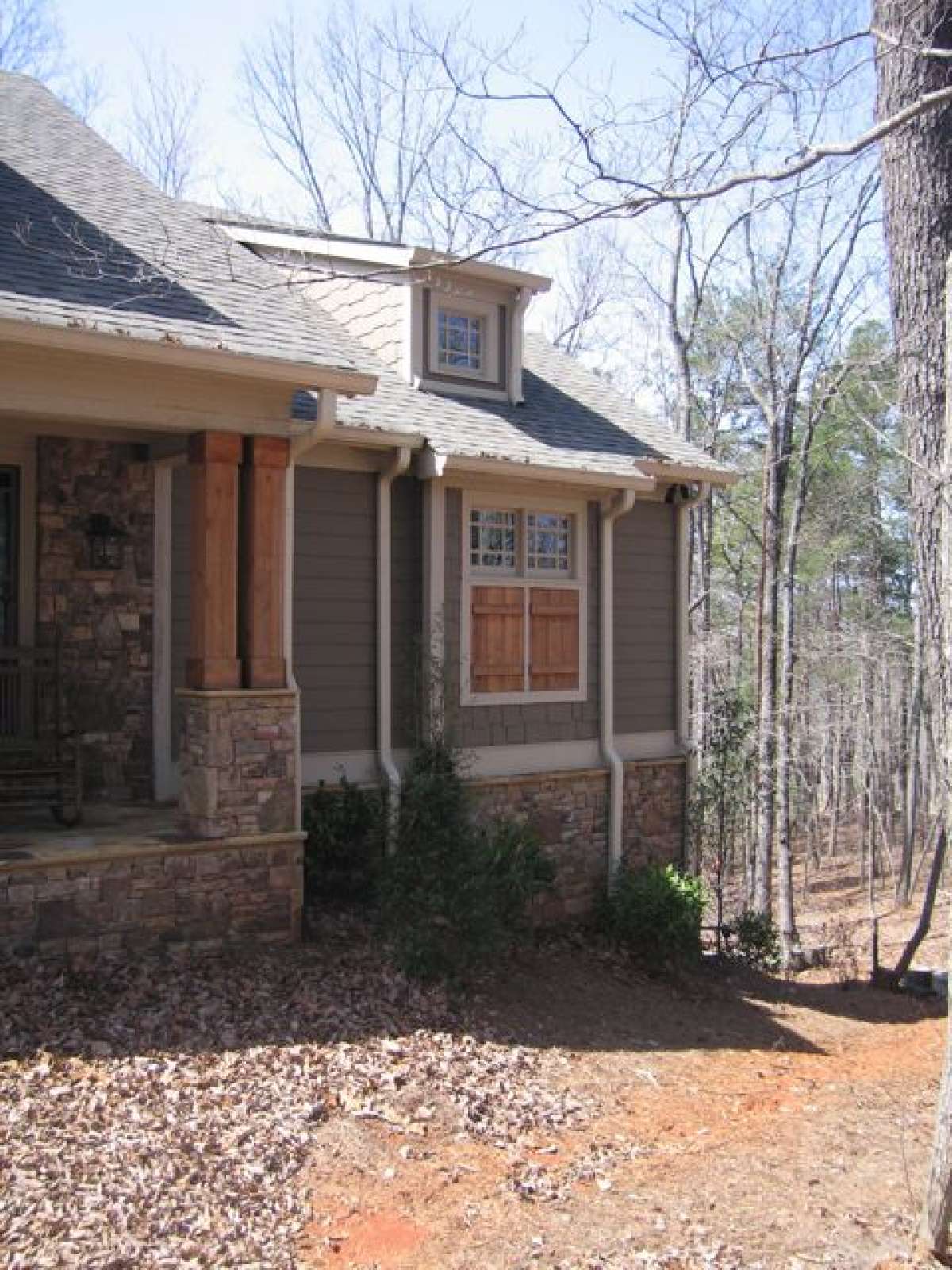

Wide open spaces, gorgeous window views and outdoor space along with tons of square footage are highlighted in this Craftsman styled mountain home. The rustic exterior features stacked stone, siding, window dormers and a broadly proportioned front covered porch. There are approximately 4,000 square feet of living space which includes three bedrooms, three plus bathrooms, a loft area and family recreation room. The main level of the home features an open design with a spacious formal dining room with trey ceiling accent which opens onto the great room. The two story great room is highlighted by a rear wall fireplace and enjoys a large footprint. There is an enormous screened porch with a second fireplace and subsequent oversized deck; this is fantastic outdoor space ideal for family relaxation and guest entertaining. The casual breakfast room has a triple bay window and opens onto the gourmet kitchen which features a breakfast bar, plenty of additional counter and cabinet space and an oversized walk-in pantry. There is a half bath with linen closet for guests and the family laundry room is quite large with counter space for ease of folding laundry. A large breezeway with bench areas, ideal for storing book bags and outer gear leads to the two car garage. The master suite is on the main level and features an elegantly designed suite; the spacious bedroom is highlighted with a trey ceiling and triple bay window enclosed sitting area. French door access leads to his and her walk-in closets, a third walk-in closet and the master bath. Dual vanities, a whirlpool tub, separate shower and a compartmentalized toilet are featured in the master bath.

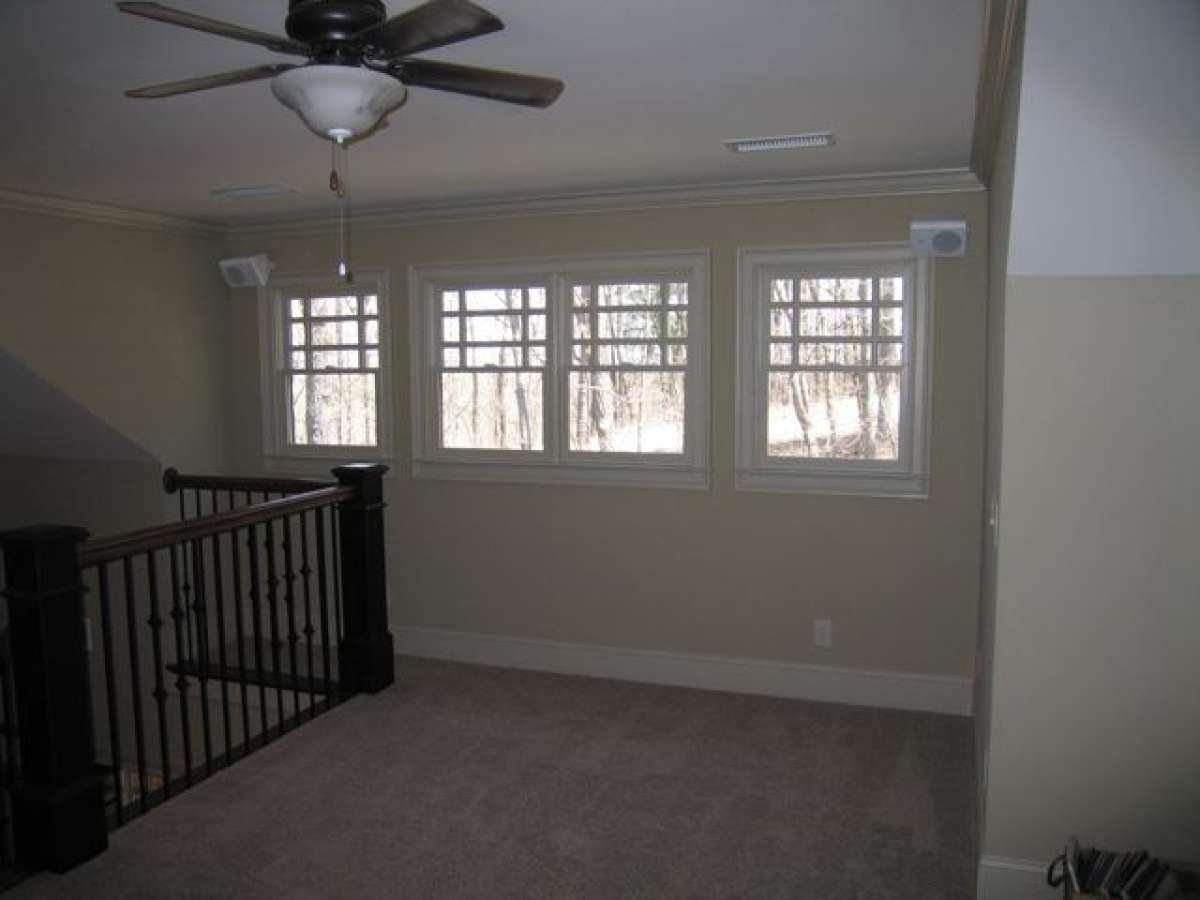

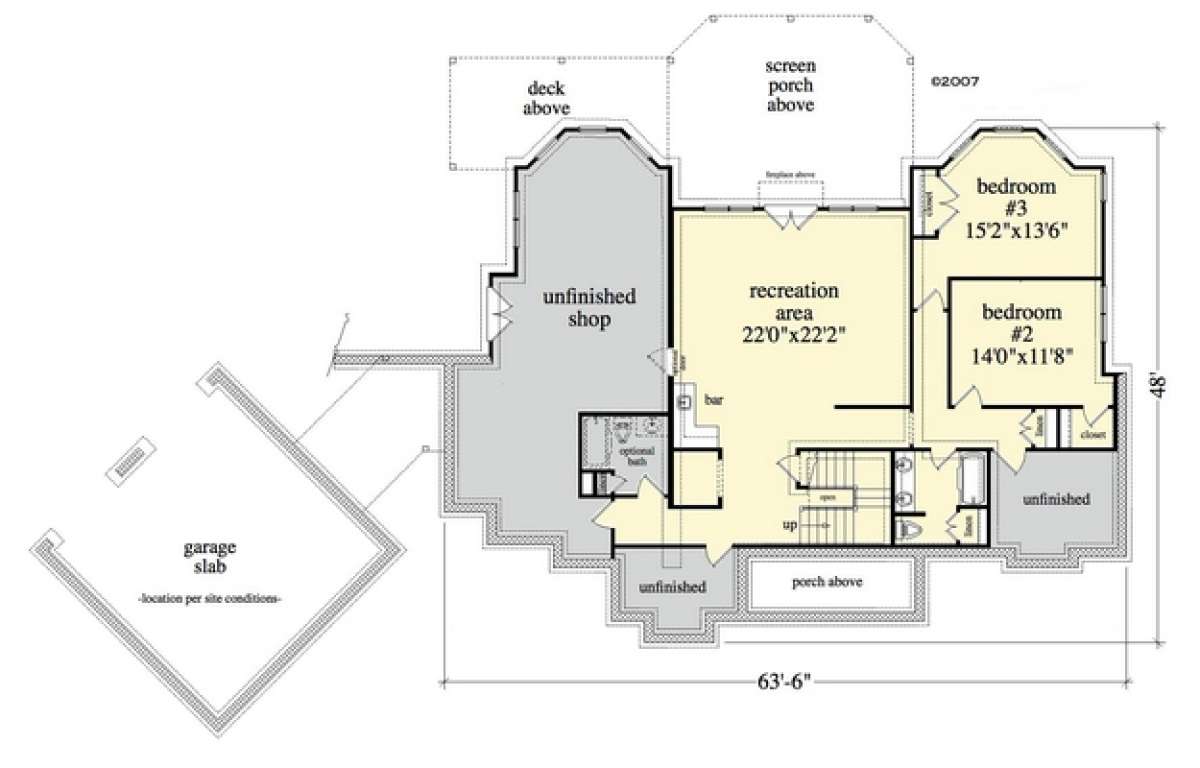

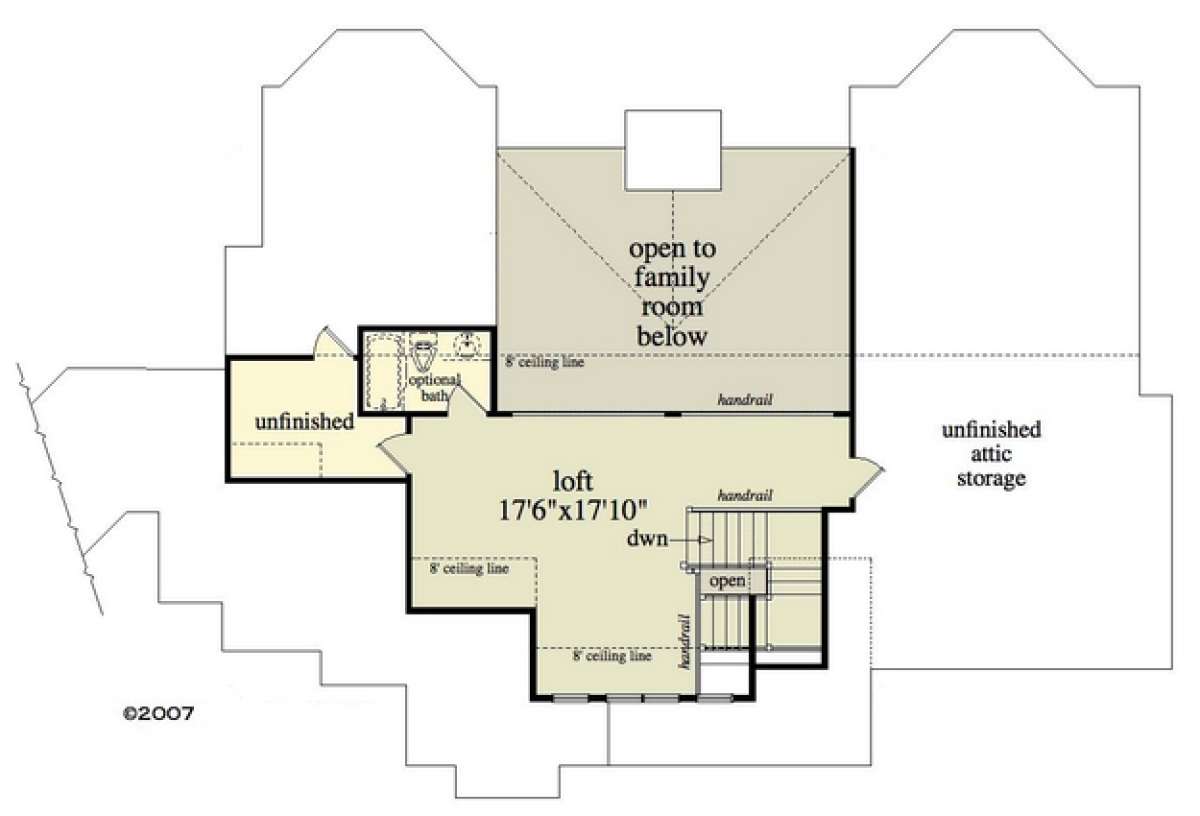

The second story landing features an immense loft area with a balcony overlook into the family room below. An optional full bath and plenty of storage is available making this space ideal for a home office/study or multi-purpose family room. The terrace level of the home features a large recreation room, two optional bedrooms; both of which are spacious and a full bath with double vanities and a linen closet. A multitude of additional unfinished space could be further expanded or used as storage. This is a functional and versatile house plan ideally suited for a mountain lot which would incorporate its natural charm beautifully.
