Cottage Plan 957-00013

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,765
Beds 4
Bath 5
1/2 Baths 1
Car 2
Stories 2
Width 76' 10"
Depth 53' 8"

Floorplan Drawings

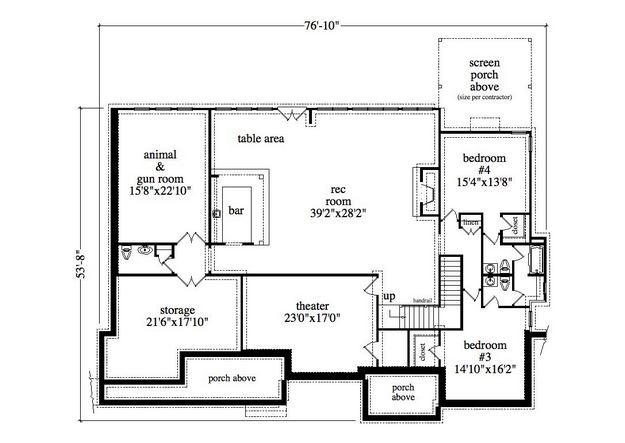

Floorplan 1
Floorplan 1 for House Plan #957-00013

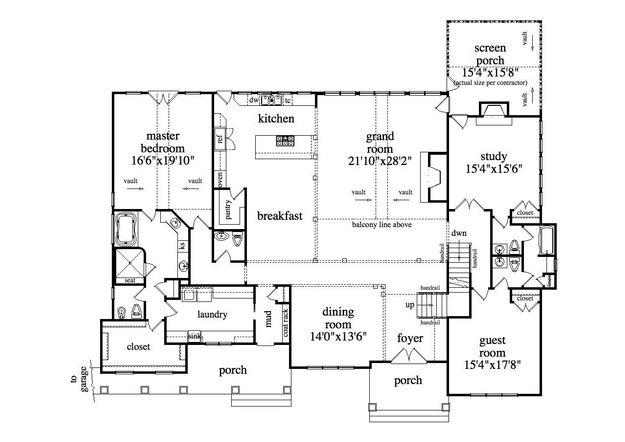

Floorplan 2
Floorplan 2 for House Plan #957-00013

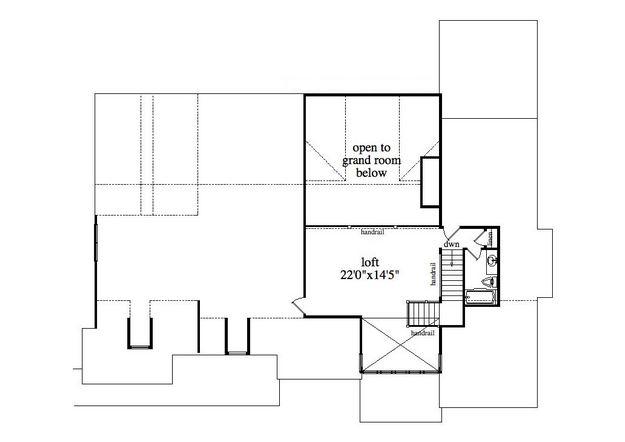

Floorplan 3
Floorplan 3 for House Plan #957-00013


What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.
  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

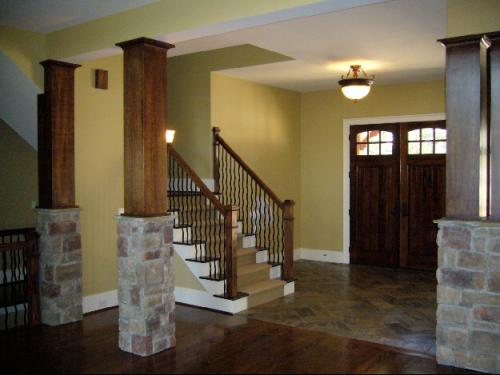

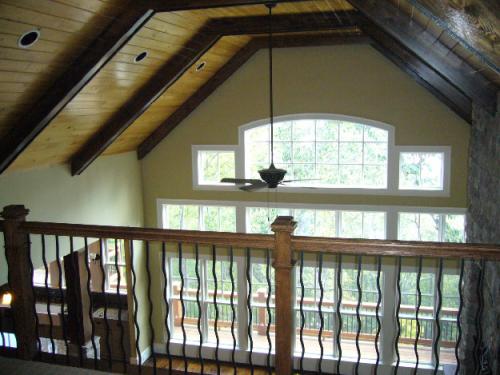

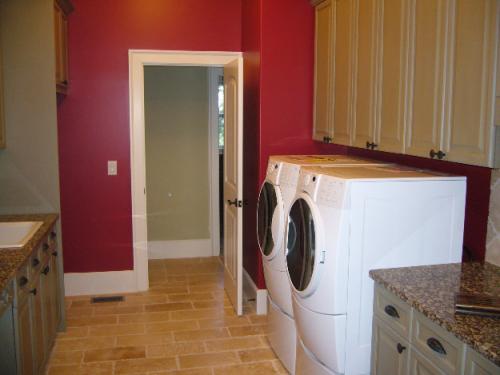

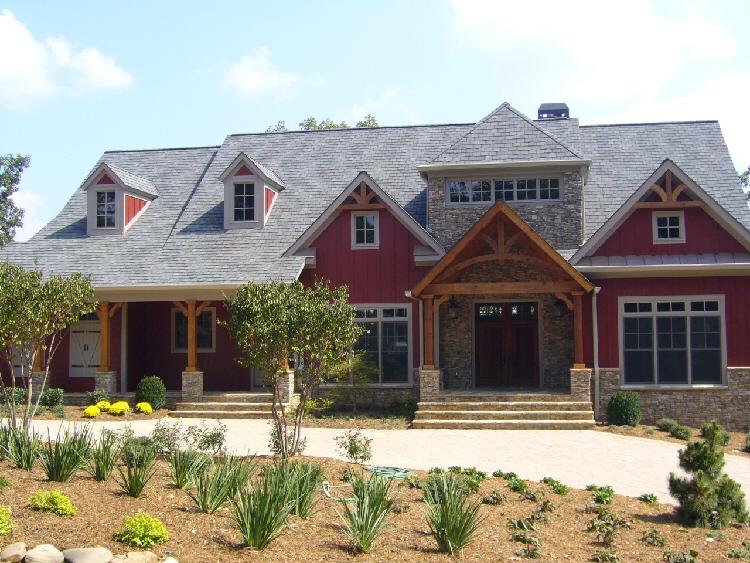

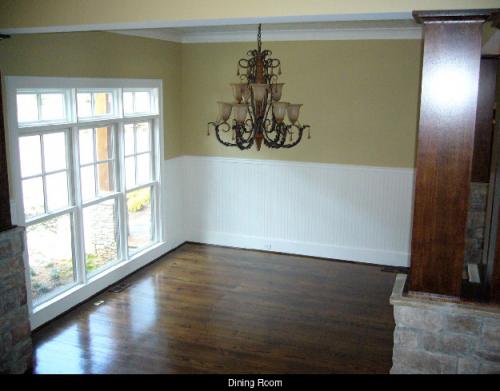

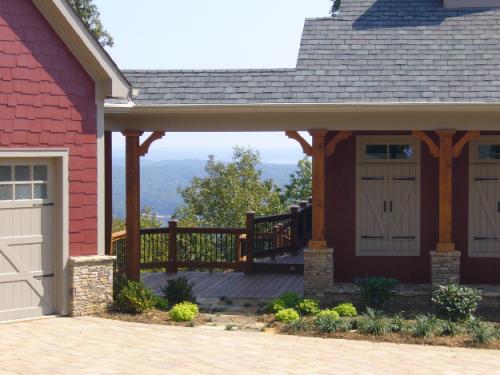

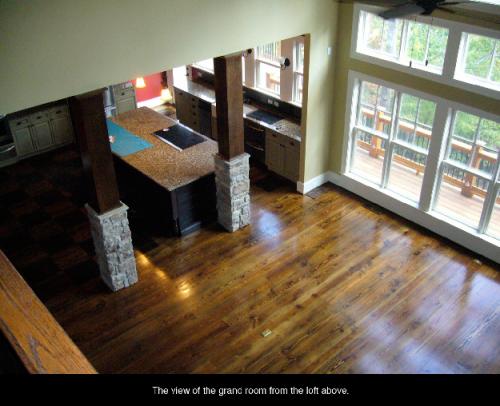

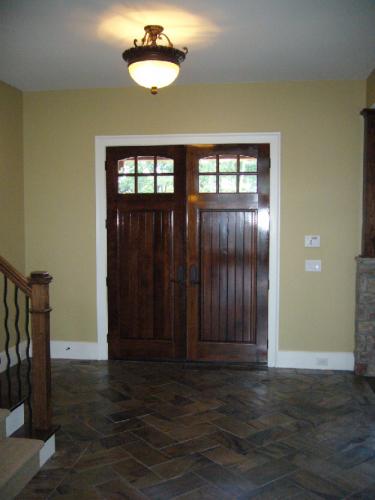

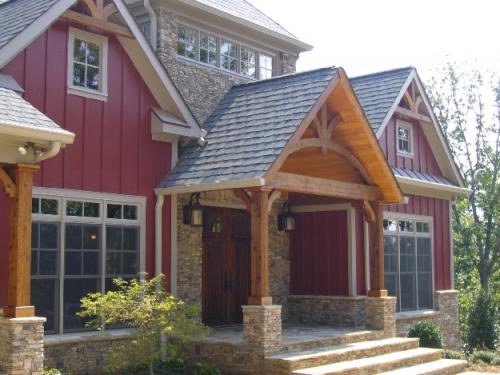

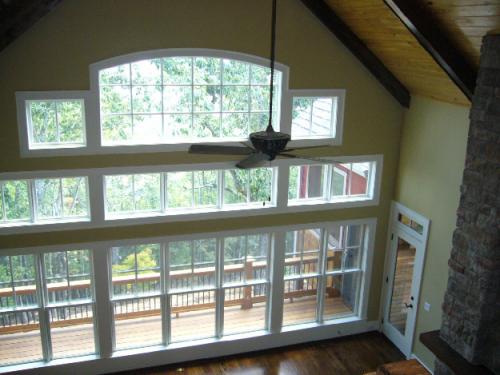

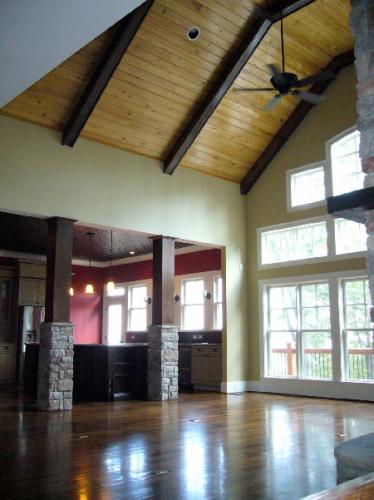

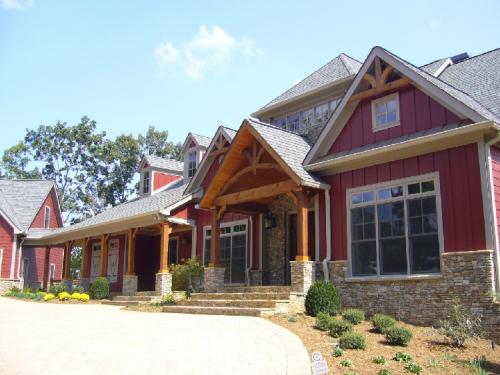

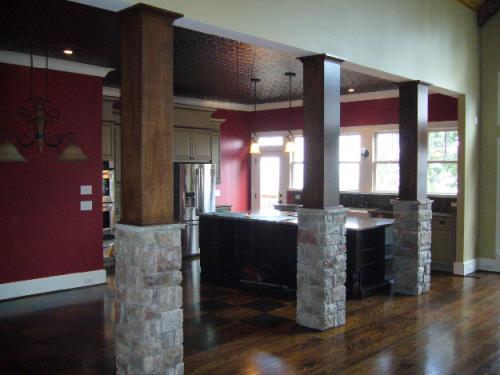

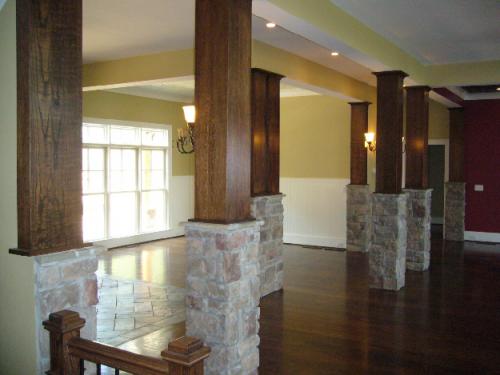

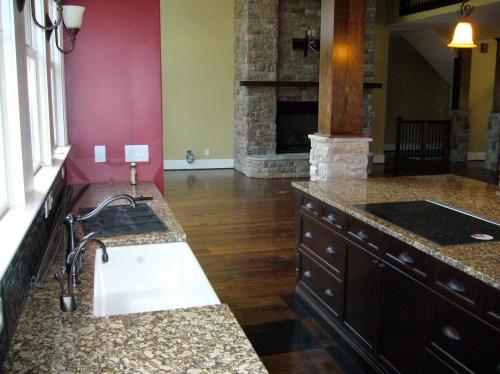

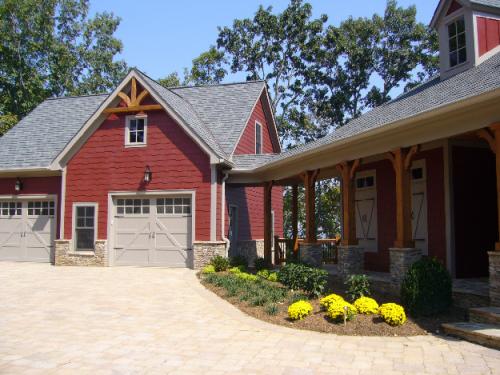

Perfection comes to mind when viewing this outstanding Cottage home design. A striking exterior façade is evidenced by its bold use of natural design elements including stacked stone, timber trusses, board and batten and double front covered porches. There is an excess of 3,500 square feet of living space on the two main levels of the home and the terrace level of the home features an additional 2,884 square feet. This expansive home features four bedrooms, five plus bathrooms, and a two car garage. Double door entry into the home through the foyer highlights the open concept design. There is a formal dining room off the foyer and a gallery hallway opens onto an immense vaulted grand room with a handsome fireplace, an entire rear wall of windows and access to the screened porch. The gourmet kitchen features a large center island with breakfast bar, an oversized walk-in pantry and is open to the casual breakfast room. The second porch provides access into the mudroom and expansive utility room with sink area and loads of counter space. The guest suite is highlighted by a spacious bedroom with ample closet space and private access to the vanity and toilet area in the shared Jack and Jill bathroom. French door access to the study reveals a spacious room with closet space, a private vanity and toilet area to the shared bath, a fireplace and private access to the screened porch. The main level master suite is spectacular with a large vaulted bedroom with French door access to the rear. Dual vanities, a separate shower, whirlpool tub, and a compartmentalized toilet are featured in the master bathroom. The oversized master closet sits at the rear of the space for privacy and convenience. The second story landing features a large loft area with a full bathroom; this space is ideal for a teenage lounge or multipurpose family room. The terrace level of the home has outstanding family space; there are two large family style bedrooms with walk-in closets and private vanity/toilet areas in the Jack and Jill bathroom. An enormous recreation room with a bar and French door access to the terrace patio, a media room, an animal and gun room, half bathroom and additional storage space are also featured in the terrace level. This spacious Cottage house plan features a bold and exciting exterior along with an expansive interior floor plan.
