Northwest House Plan 9488-00007

Sq Ft3,987
1/2 Baths1
Width81' 0"
Depth64' 7"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

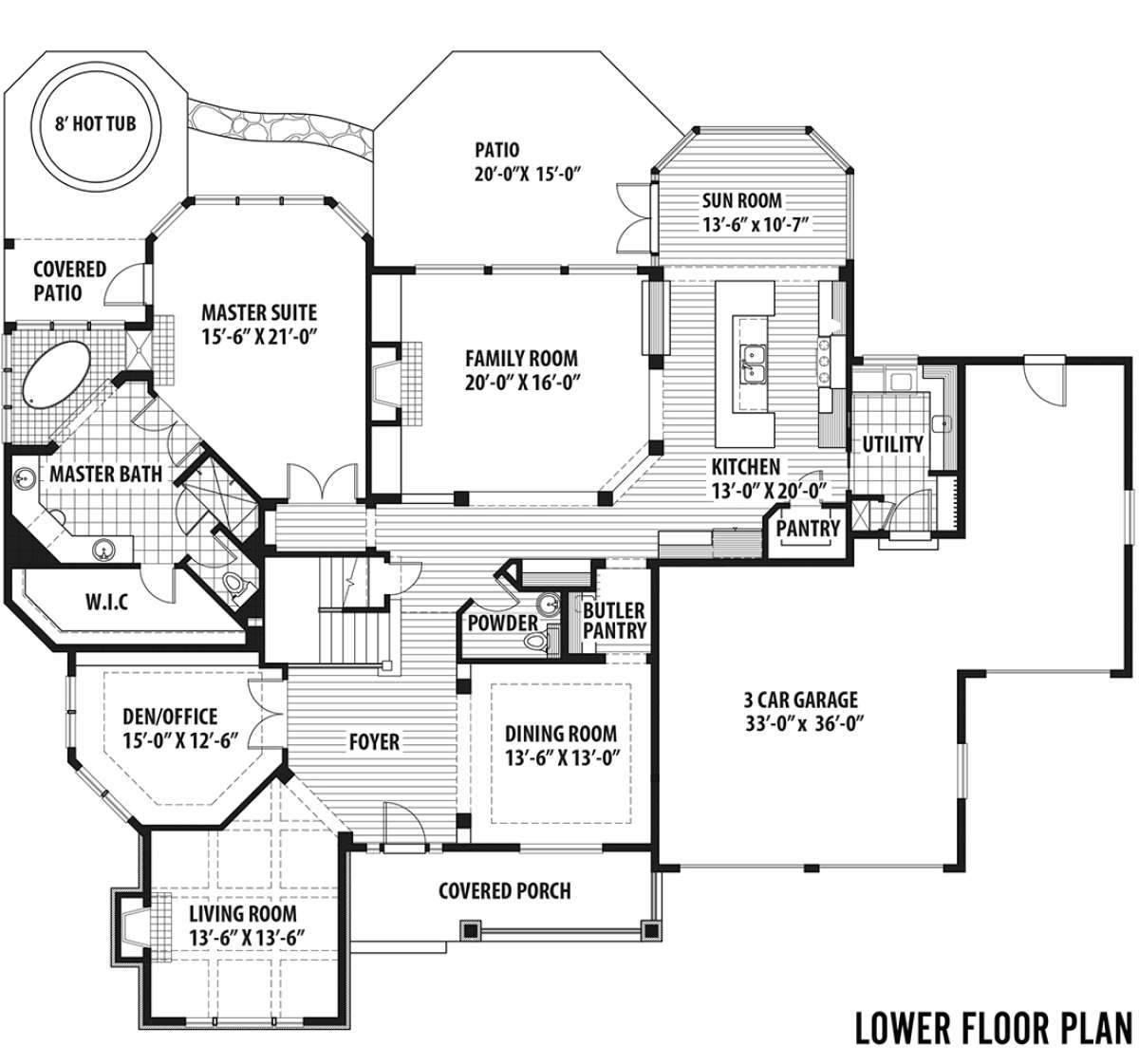

First Floor  for House Plan #9488-00007

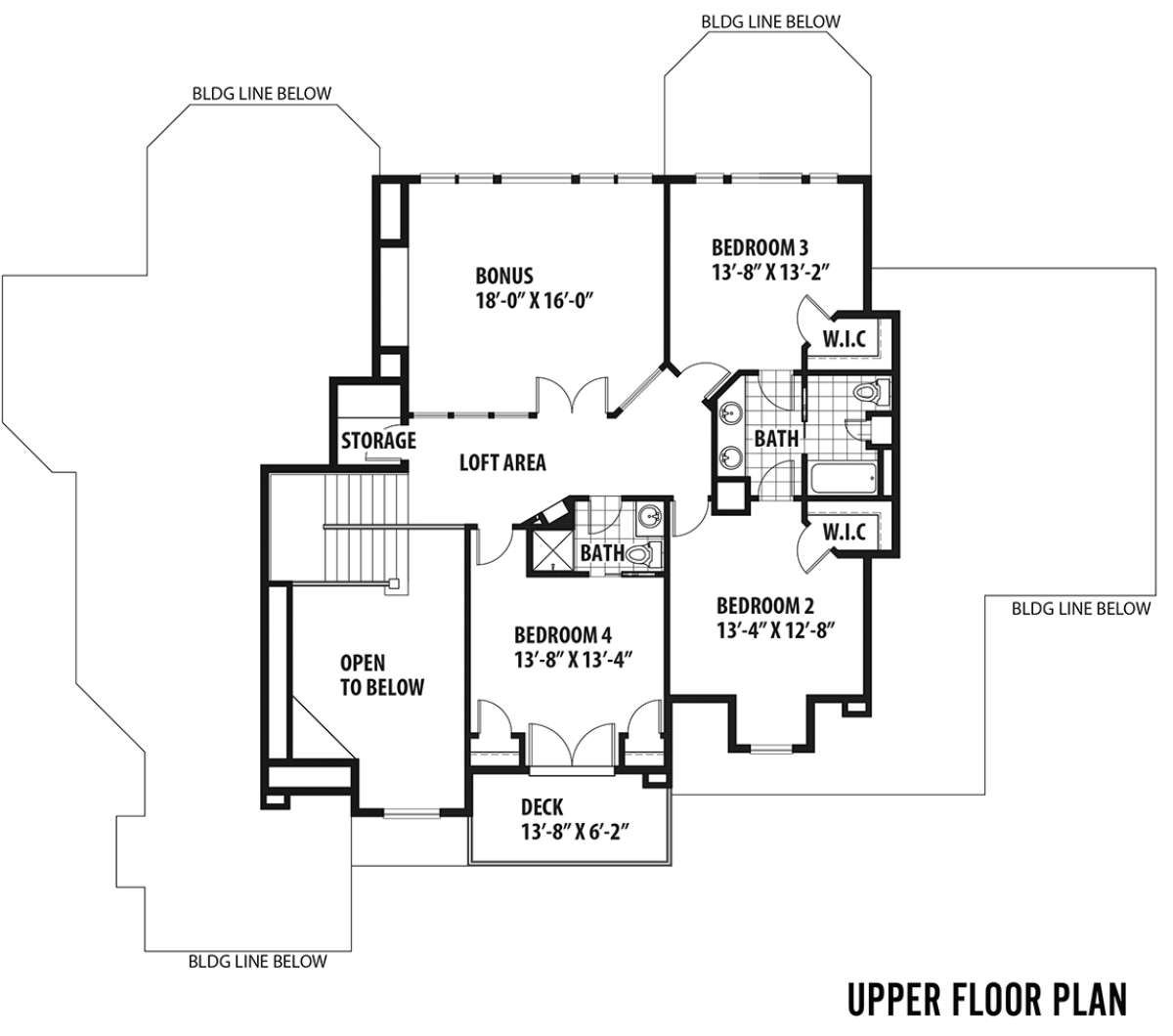

Second Floor for House Plan #9488-00007
First Floor
First Floor  for House Plan #9488-00007
Second Floor
Second Floor for House Plan #9488-00007

Frequently Asked Questions


What's Included in these plans?

  • General Notes Page
  • Foundation Framing
  • Floor Plans
  • Roof Framing
  • Wall Section

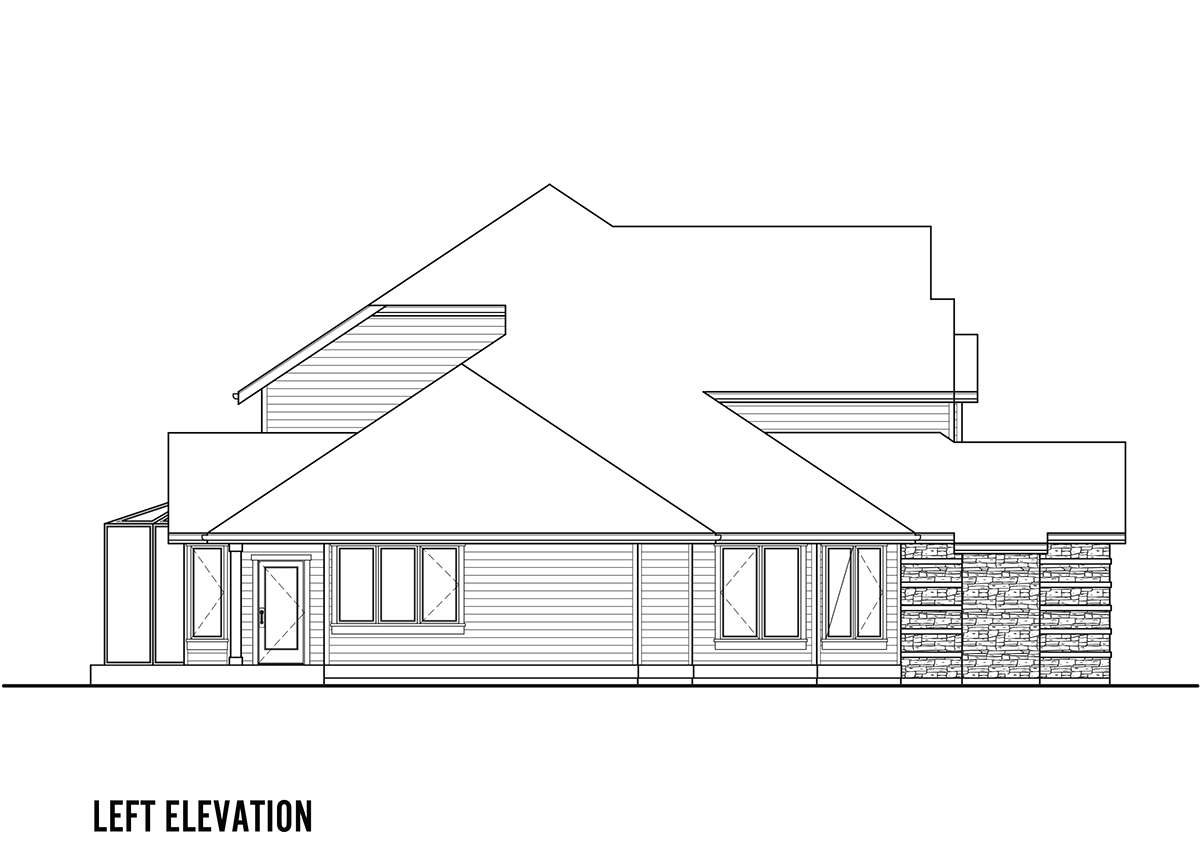

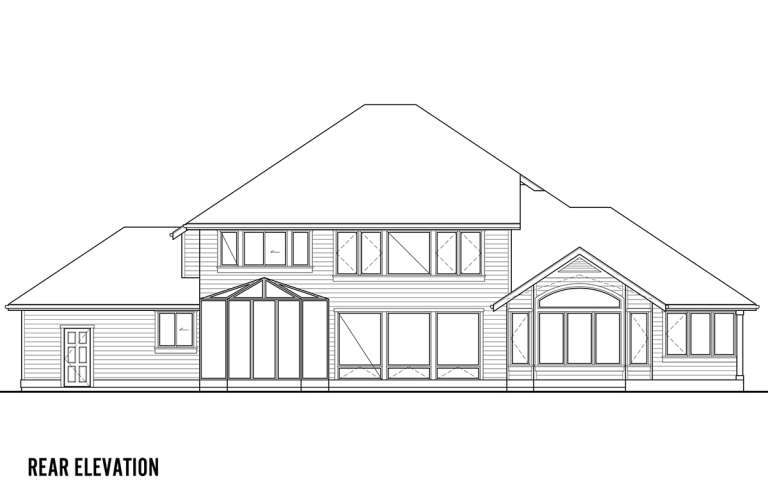

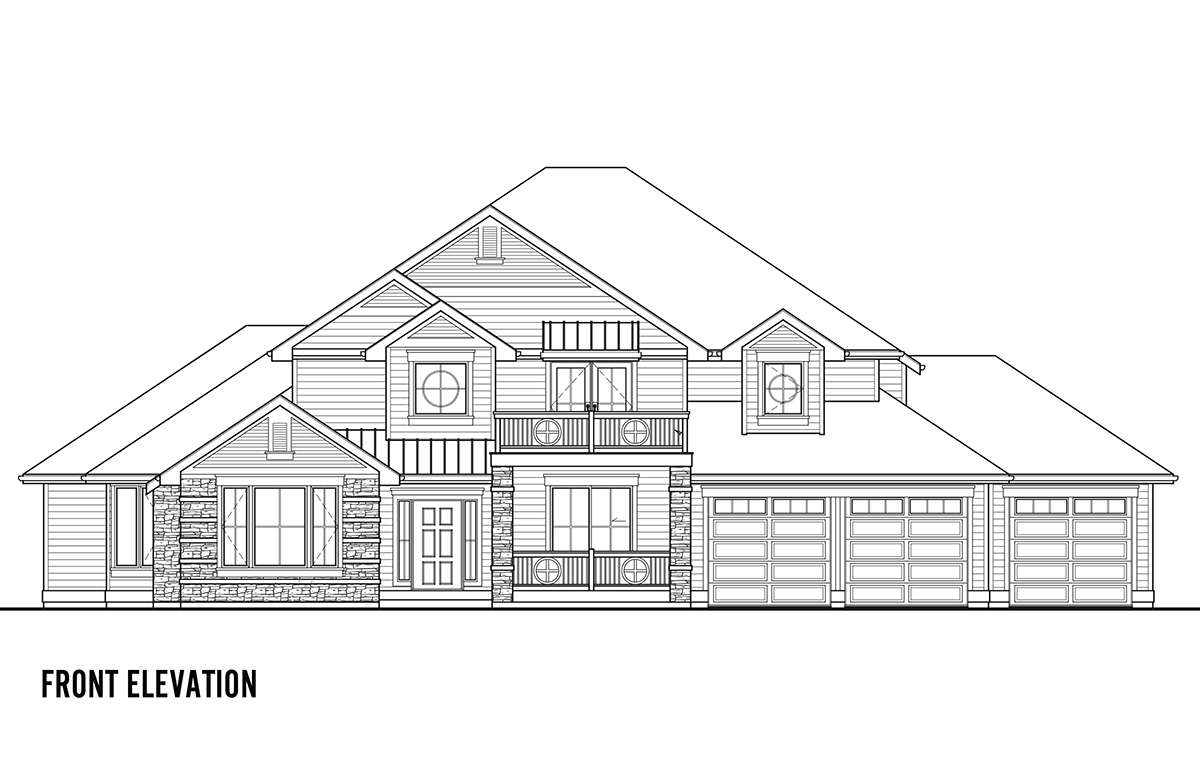

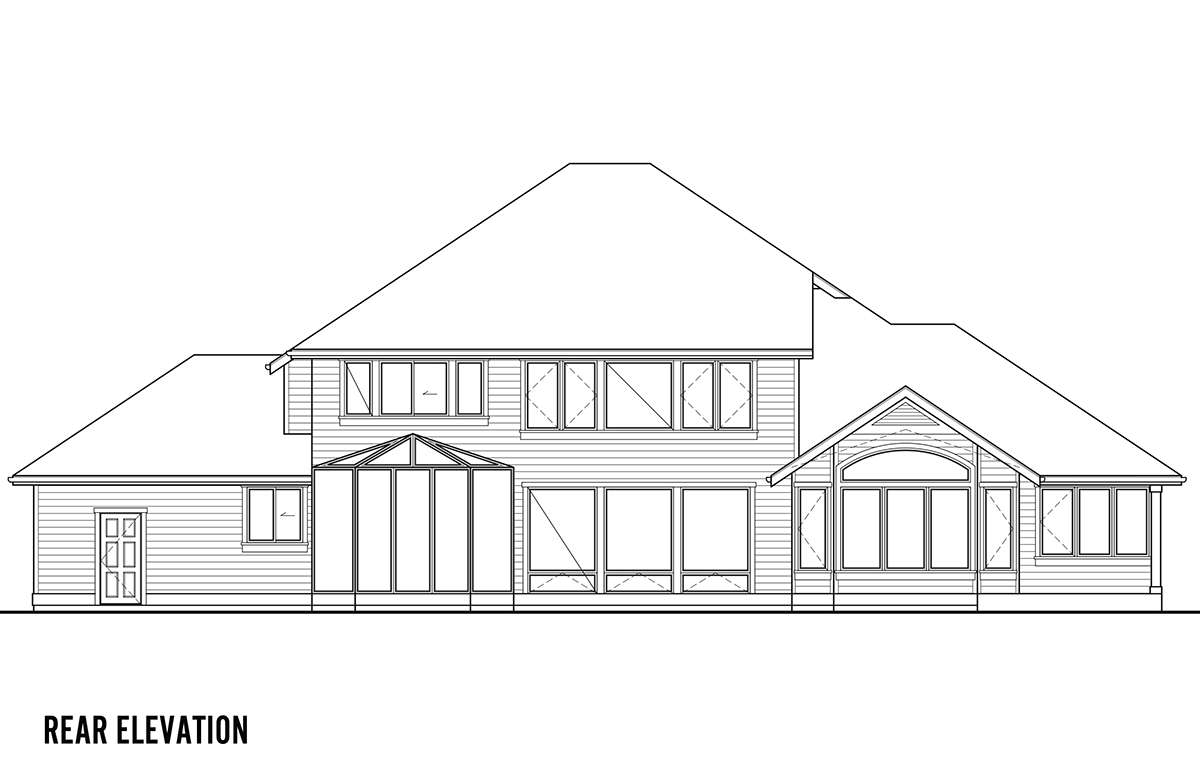

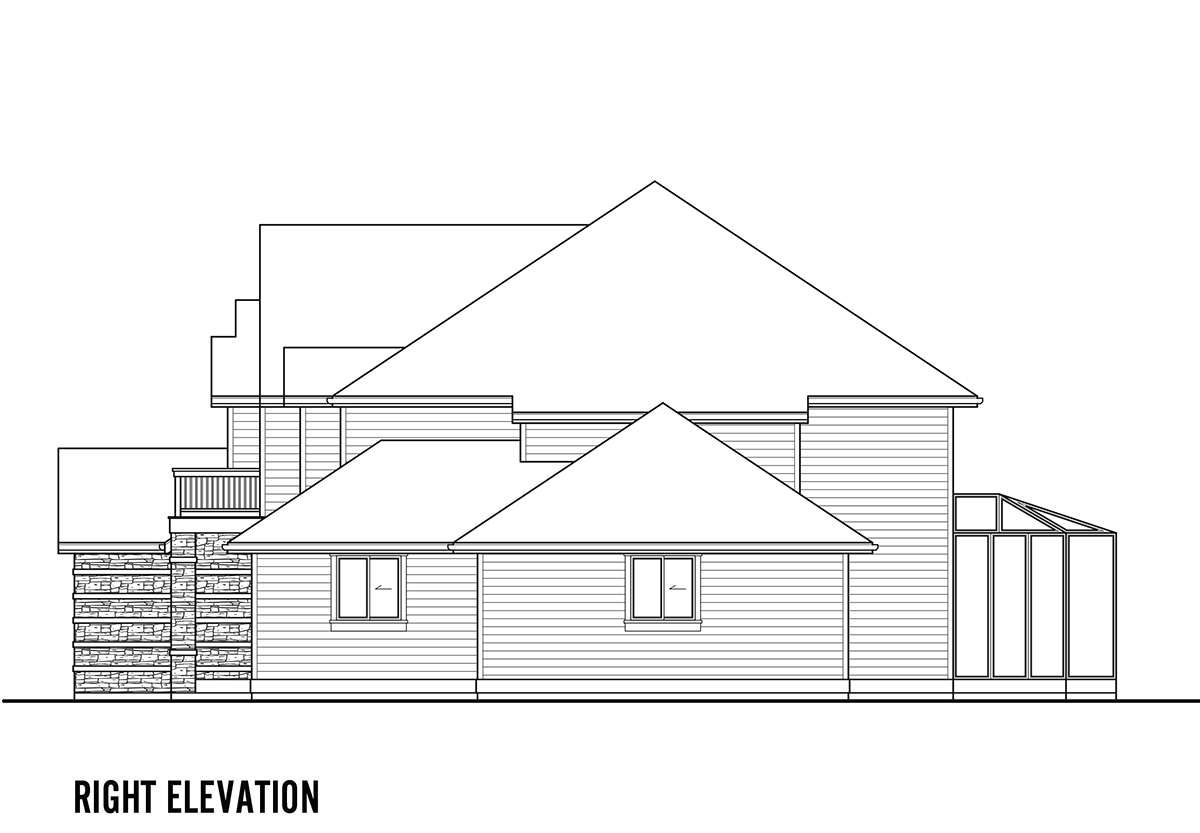

  • Elevations
  • Shear Wall Details
  • Structural Details Page


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

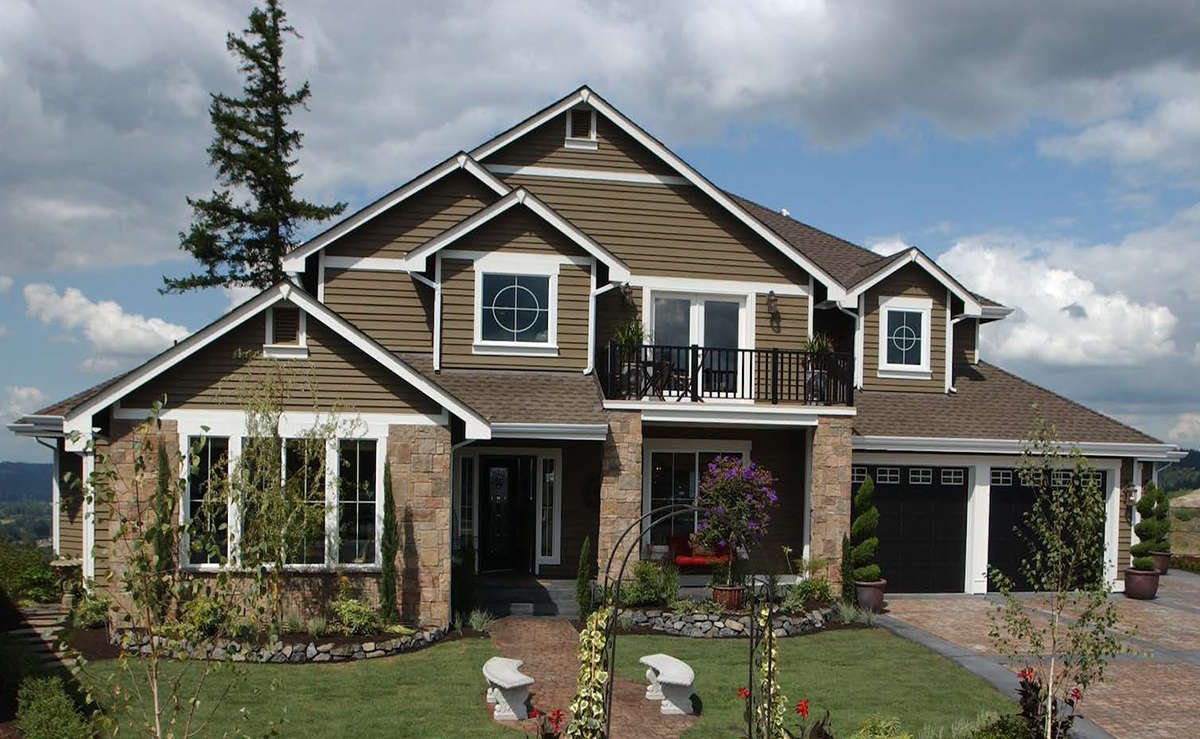

This gorgeous Northwest house plans represents a commitment to living generously with the outdoors and the surrounding beauty “Mother Nature” has to offer. Organic design elements are highlighted on the exterior of the home and include natural stonework, wonderful window views designed to take advantage of panoramic views of the countryside and abundant gables and wide eaves for shade and comfort. An extended front covered porch is a delightful addition to the home’s exterior and offers generous space to greet family and friends into the home’s interior. An overhead iron balcony is accessed through French doors from the fourth bedroom and provides a nice spot to enjoy mountain breezes and fresh air. The interior floor plan is comprised of approximately 3,987 square feet of living space which includes four bedrooms and two plus baths on two floors. An enormous three car garage is perfect for a large family with its generous space for vehicles and storage items. The main entrance into the home is accessed from the front covered porch and features a large open foyer in which to connect multiple rooms. The formal living room is highlighted with coffered ceilings, a triple window wall and a warming fireplace while the formal dining room features a trey ceiling, window views and flanking columns. French door access into the den/office opens onto a large space with wonderful window views, a trey ceiling and great space for intimate friends or business associates to gather. A butler’s pantry lies between the dining room and kitchen providing space to store items and to provide access to the grand kitchen which features an enormous center island, a walk-in pantry and connects the rear sunroom to the kitchen. The sunroom is spacious and there is French door access onto the outdoor patio, subsequent paver walkway and hot tub area. The centrally located family room is large, open and offers columned beams, a cozy fireplace and a rear wall of windows overlooking the patio. There is a main level master suite which is generously proportioned with pleasing rear window views and access onto a private covered patio. Equally generous in size, is the master bath, which is highlighted with an enormous garden tub, dual vanities, a separate shower and a private toilet area. The oversized walk-in closet is situated beyond the bath for privacy and convenience.

The second floor of the home offers excellent guest and family space; there are three secondary bedrooms and two baths along with a bonus room and loft area. Bedrooms two and three are large, each have window views and walk-in closets, and the adjoining jack and jill bath has double sinks and a separate toilet and bath/shower area. The fourth bedroom is slightly larger with French door access onto the outdoor balcony, double closets and private access to the shared hall bath. A loft area and storage room are located directly outside of the bonus room; the bonus room, itself, measures 18’ x 16’, has abundant natural sunlight and French doors grant access into the room. This lovely Northwest house design offers a gorgeous exterior, a functional and livable floor plan for family life and outstanding outdoor space.
