Texas House Plan 9401-00030

Sq Ft2,267
1/2 Baths0
Width72' 1"
Depth64' 1"

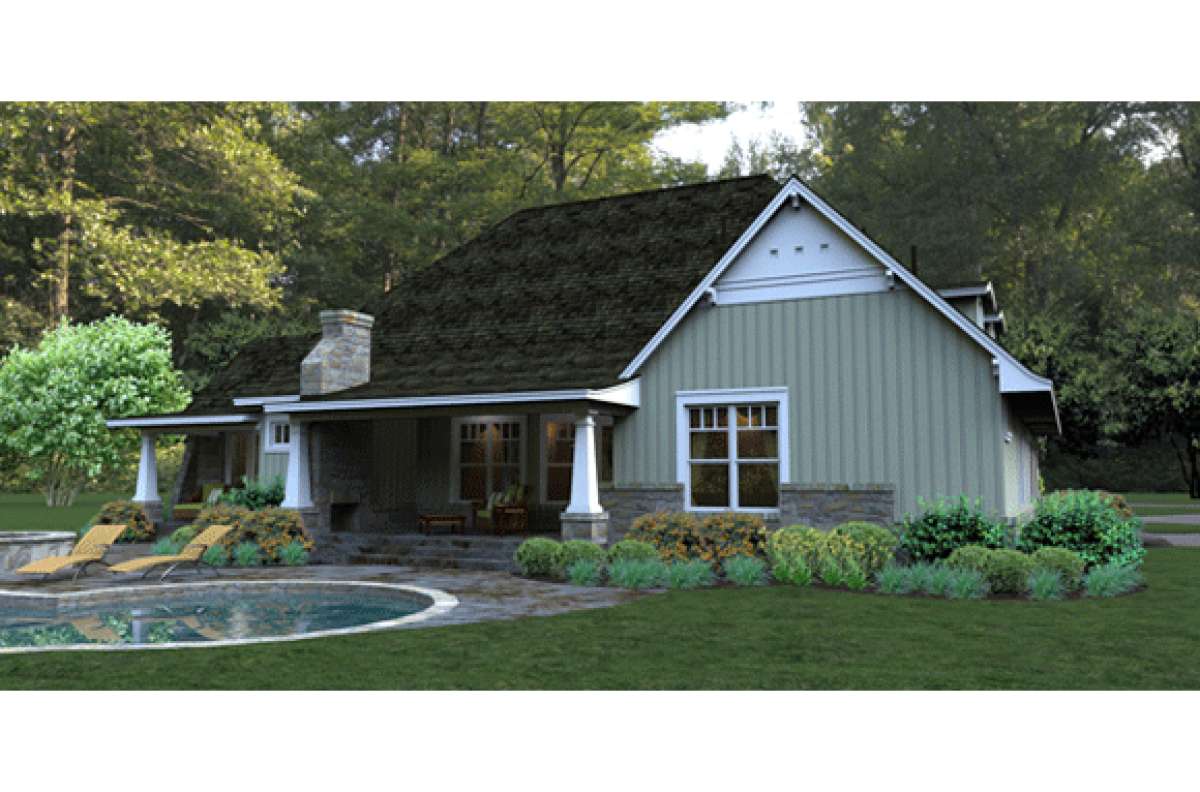

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #9401-00030
Floorplan 2 for House Plan #9401-00030

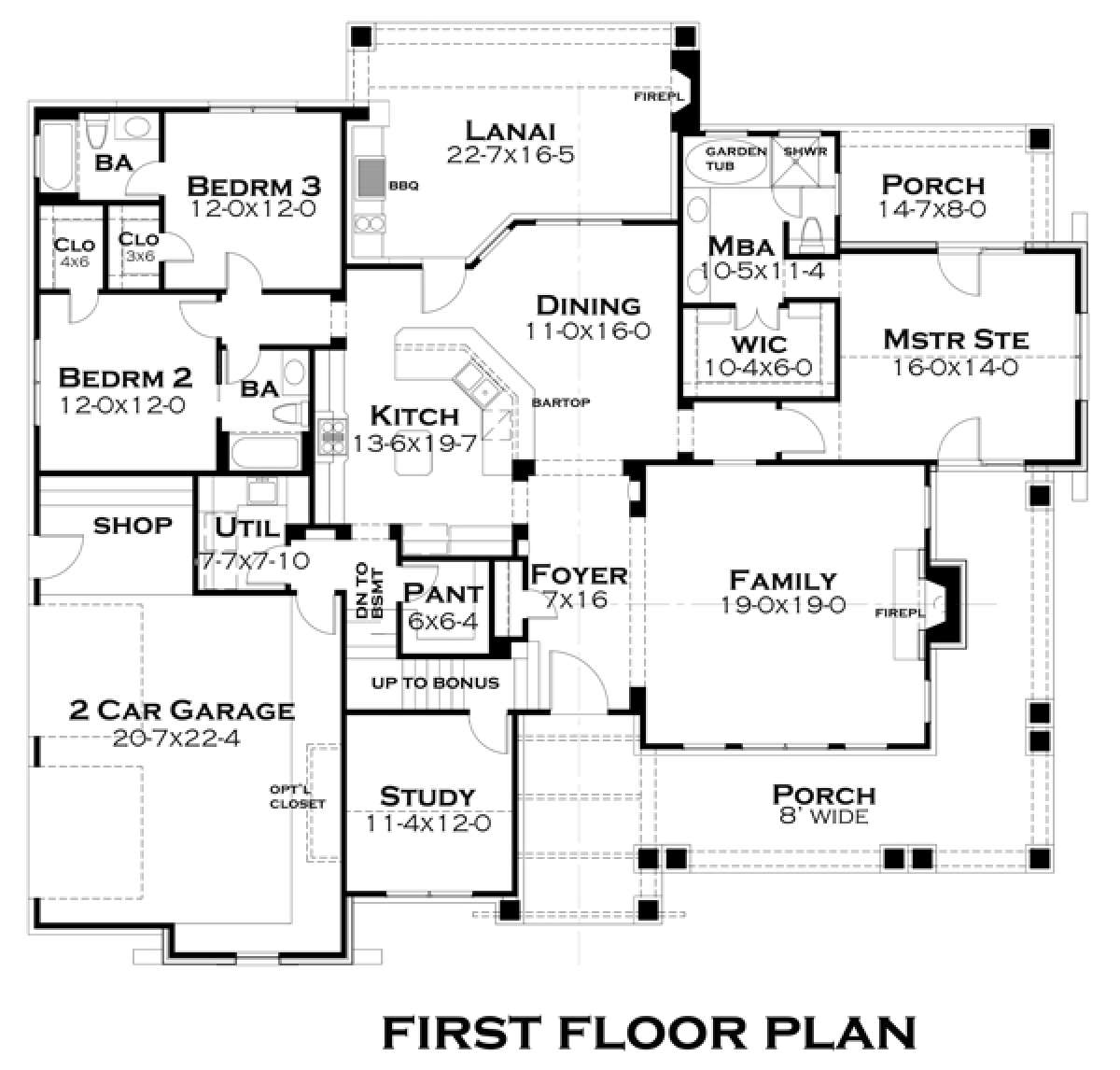

Floorplan 1
Floorplan 1 for House Plan #9401-00030

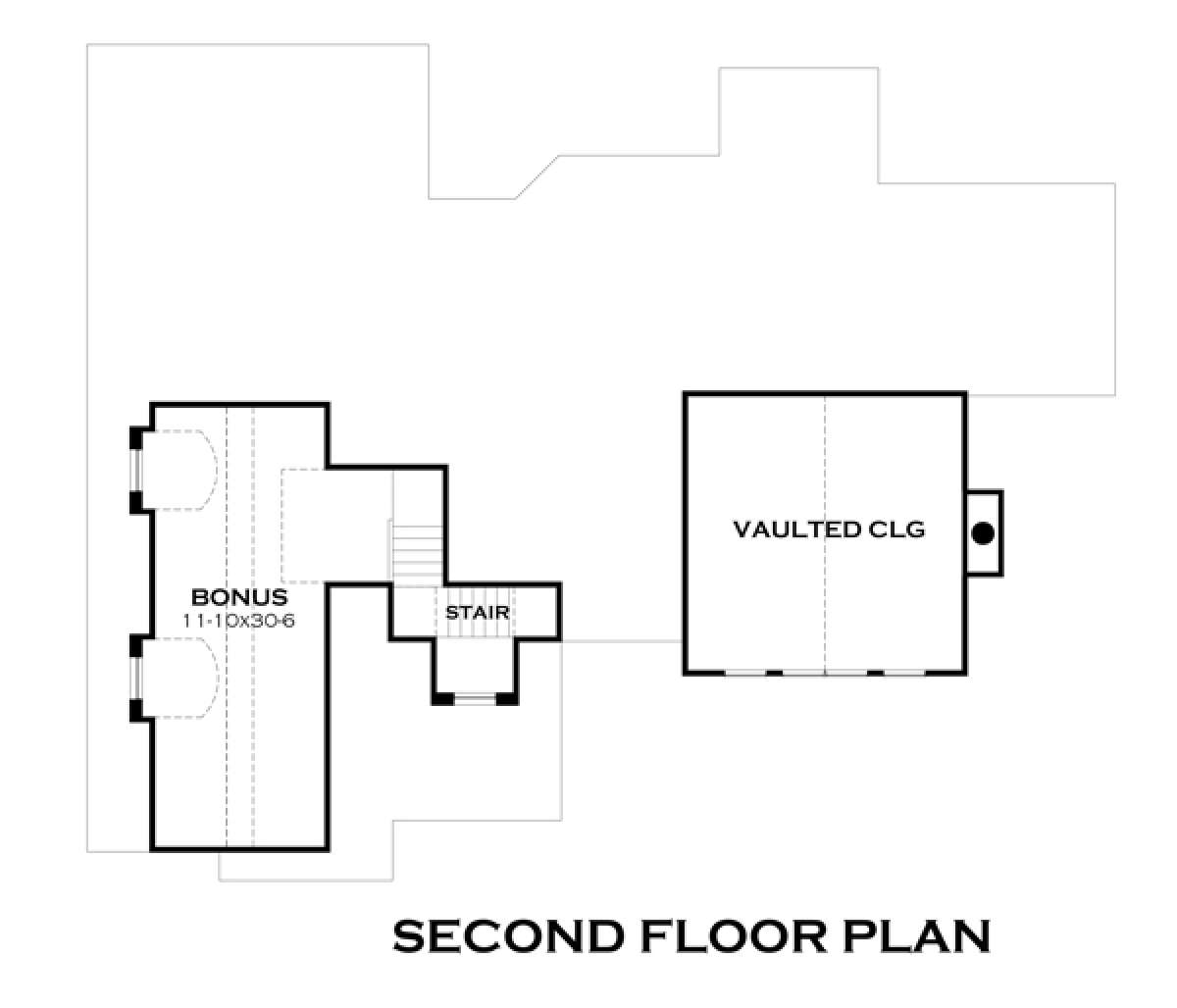

Floorplan 2
Floorplan 2 for House Plan #9401-00030

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This English inspired manor is embellished with outstanding architectural design elements which provide rich color contrasts and an aesthetically pleasing exterior façade. An A-lined brick wall feature, window and gable dormers and a wide barrel vault covered entrance beautifully offset the expansive front covered porch. Relaxing, reading and visiting with family and friends will be feature pastimes on this lovely porch design where wide tapered column beams supported by stacked stone wrap around the front of the home beautifully. This sensational exterior houses a spacious and versatile interior floor plan consisting of 2,267 approximate square feet which includes three bedrooms and three baths in 1.5 stories. Additionally, there is a 439 square foot bonus room on the second floor; great space for a sewing/hobby room, a home office or multi-purpose family room. The main floor of the home features an extended foyer that opens onto the family room where a warm and comfortable space is highlighted by a handsome fireplace and a plethora of window views overlooking the wraparound porch. The kitchen and dining room features formal and informal dining spaces, plenty of modern amenities and there is a pantry directly adjacent to the kitchen. The rear lanai is accessible from the kitchen and features a second outstanding outdoor space with an outdoor fireplace and kitchen. There is a two car side entry garage containing a huge workshop area and easy access to the family laundry room.
The split bedroom plan features two comfortably sized bedrooms with generous closet space and bedroom two features private access to the shared hall bath while the third bedroom contains a private bath. The homeowner’s suite is a private oasis from the remainder of the home and features a large bedroom with double access points to the outdoors; one of which leads to the front covered porch and there is a private rear covered porch as well. The master bath features dual lavatories, a garden tub, separate shower and private toilet area. French doors open onto and house an oversized walk-in master closet at the rear of the bathroom. Great interior space, outstanding outdoor space and a luxurious interior design complete this English inspired manor home.
