Barn Garage Plan 940-00459

Name: House Plan 940-00459 - Barn Plan: 1,767 Square Feet, 1 Bathroom
Brand: America's Best House Plans
SKU: 940-00459
Price: 1250.00 USD

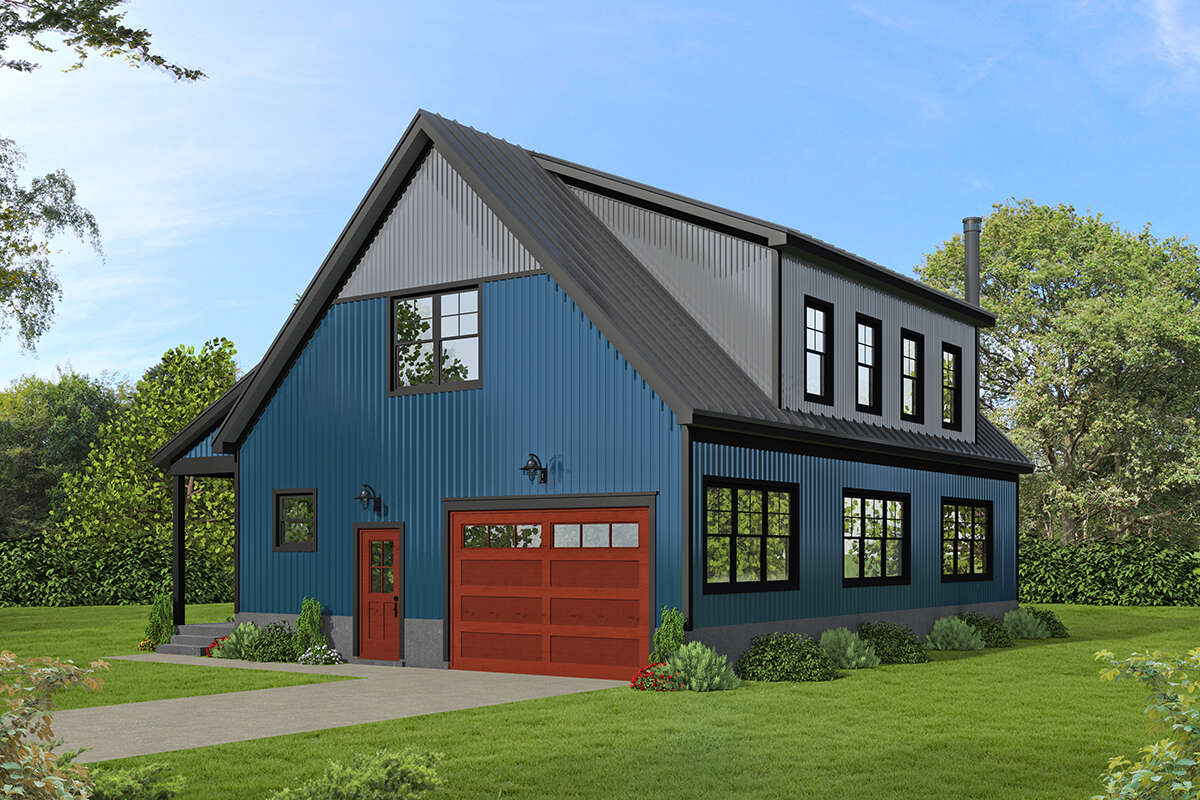

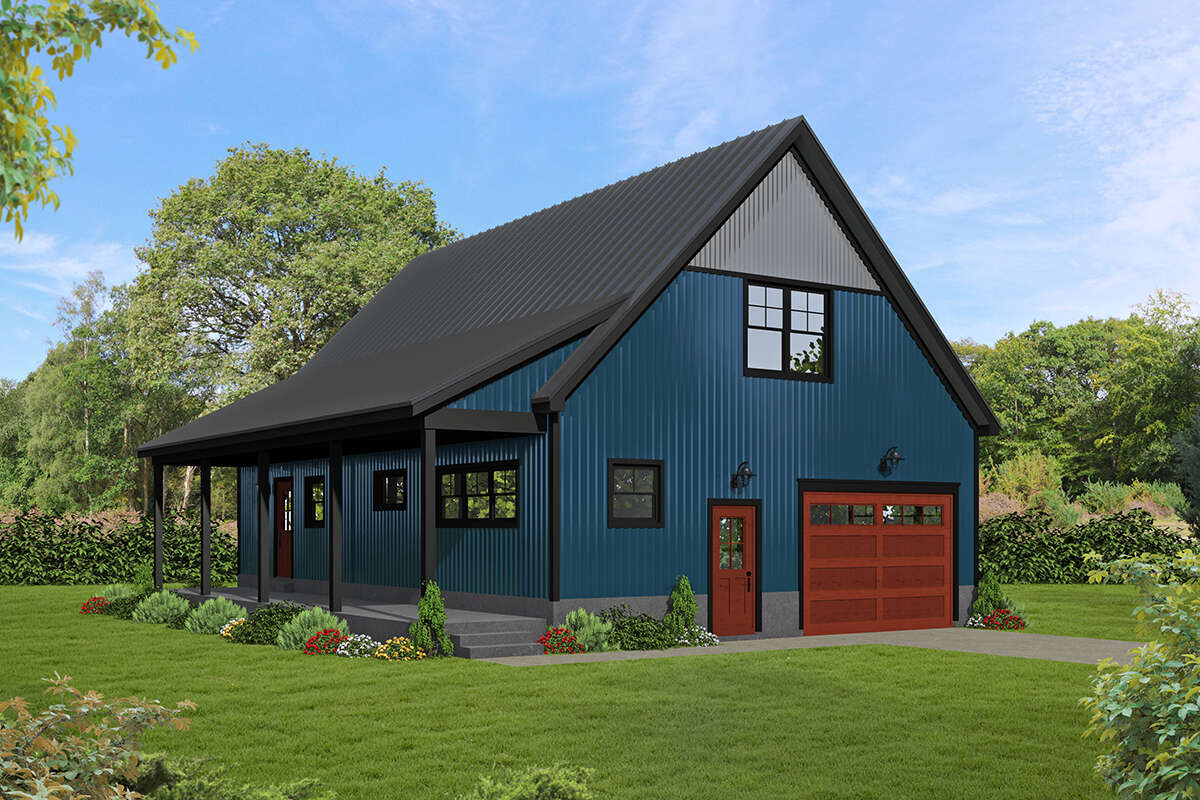

Barn House Plan #940-00459 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Unfin Sq Ft 0

Fin Sq Ft 1,767

Cars 1

Beds 0

Width 36' 6"

Depth 45'

See What's Included

Select Package

PDF (Single Build)

$1,250.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,415.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,468.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Plus PDF, Single Build)

$1,800.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $35.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $200.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Material list may require up to 2 weeks to prepare. Material list only includes materials for the standard foundation for this particular plan. Any upgrades or "Additional Options" purchased with the base plan will not be reflected in the material list.

View Sample Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

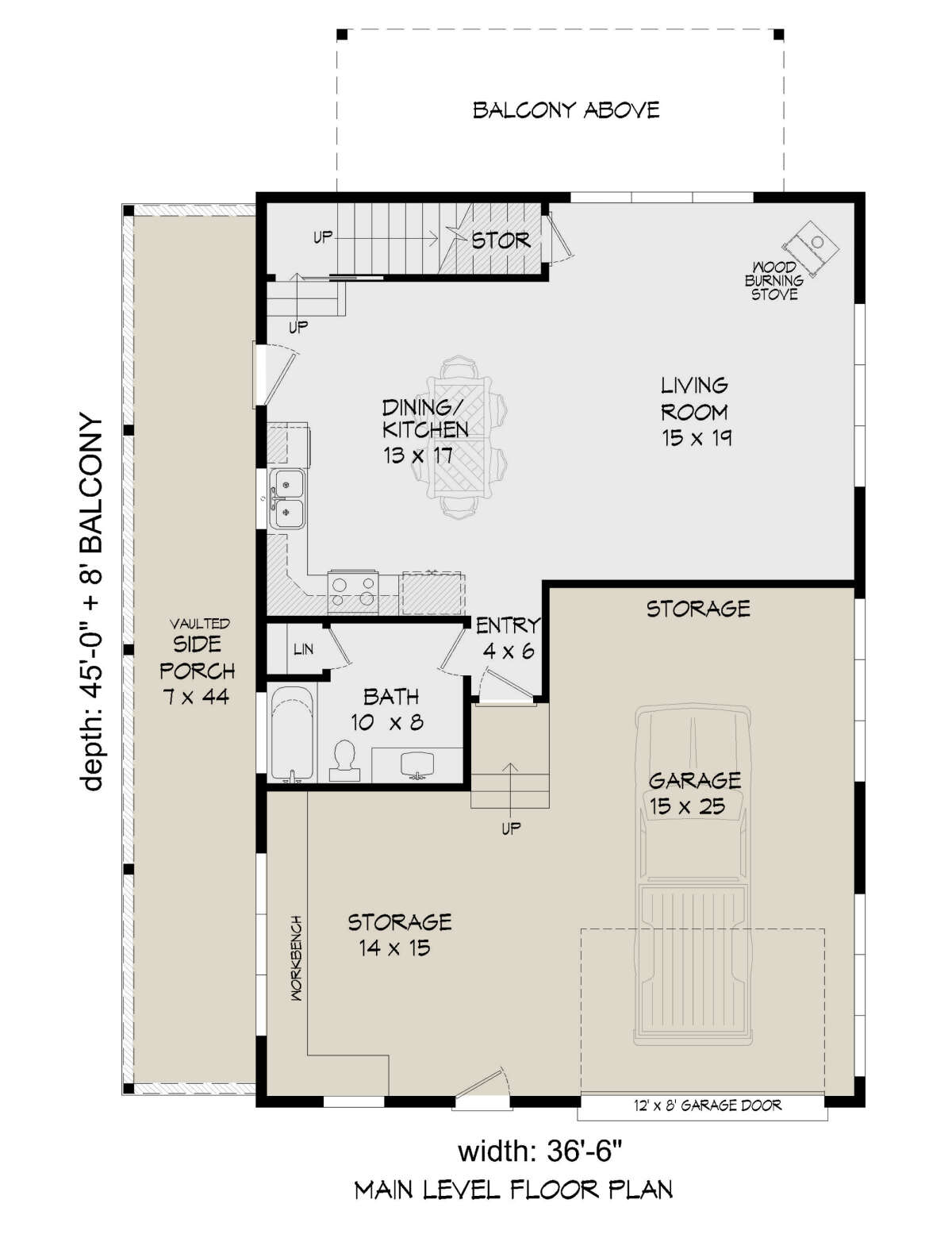

First Floor

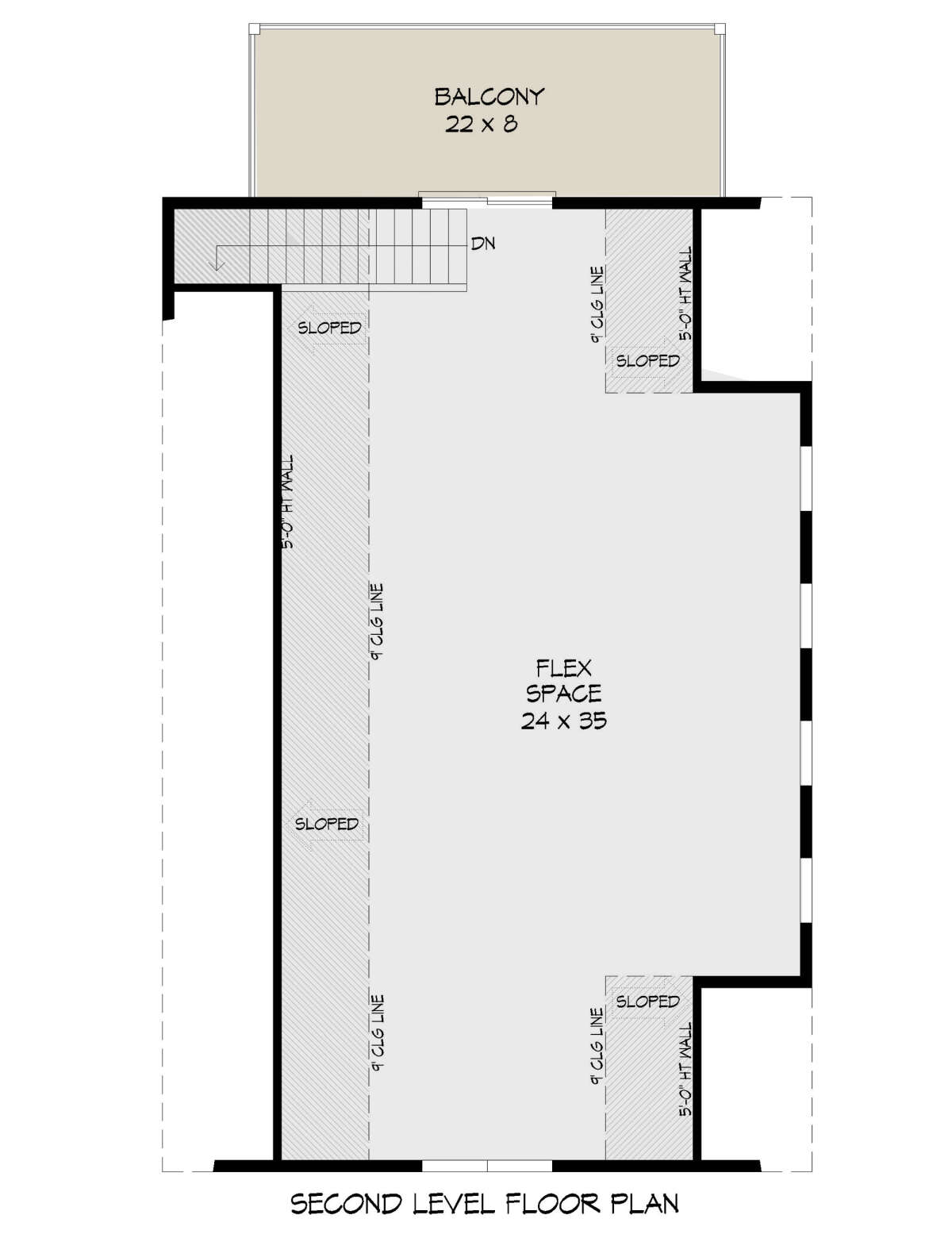

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,767 sq. ft. First Floor: 712 sq. ft. Second Floor: 1,055 sq. ft.

UNHEATED Sq Ft

Garage: 638 sq. ft.

Full Baths: 1

Floors: 2

Garage Size: 1 car

Width: 36ft.-6in.

Depth: 45ft.

Height: 25ft.-7in.

Foundation:

Slab Foundation

Main Roof Pitch: 12:12

Exterior Framing:

2x6 Wood

CEILING HEIGHTS

First Floor: 9 feet

Second Floor: 9 feet

What's Included in these plans?

Exterior Elevation Views of front, side and rear elevations

Foundation Plan

Floor plan(s)

Electrical Layout

Roof Plan

Cross Section through main body of house

Stair Detail (if applicable)

Interior and exterior details

General Notes

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This 1 Car Barn Garage Plan features 0 unfinished sq. ft., and 1,767 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
