Mediterranean Plan 692-00083

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,545
Beds 4
Bath 3
1/2 Baths 1
Car 4
Stories 2
Width 87' 6"
Depth 68' 6"

Floorplan Drawings

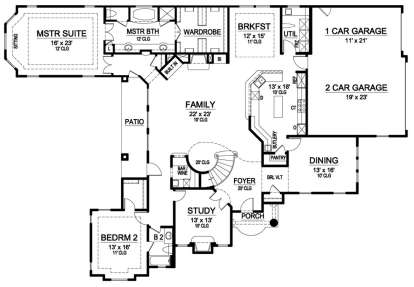

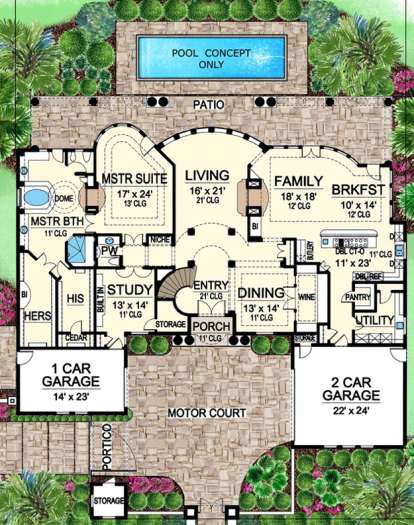

Floorplan 1

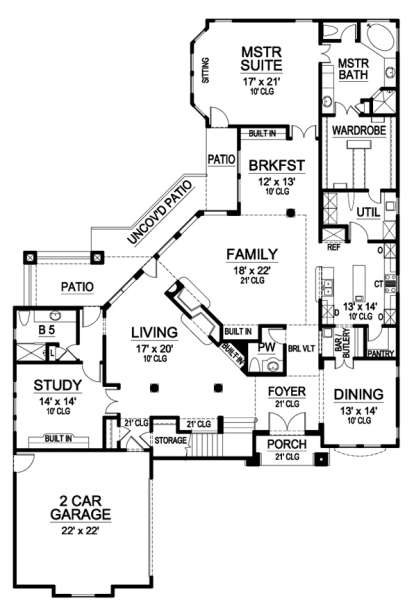

Floorplan 1 for House Plan #692-00083

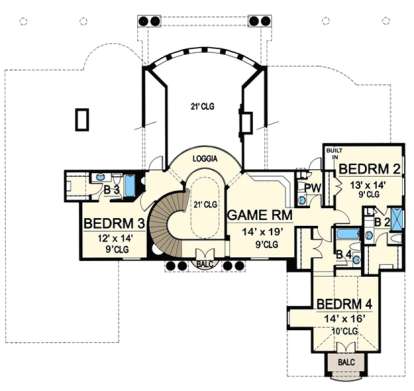

Floorplan 2

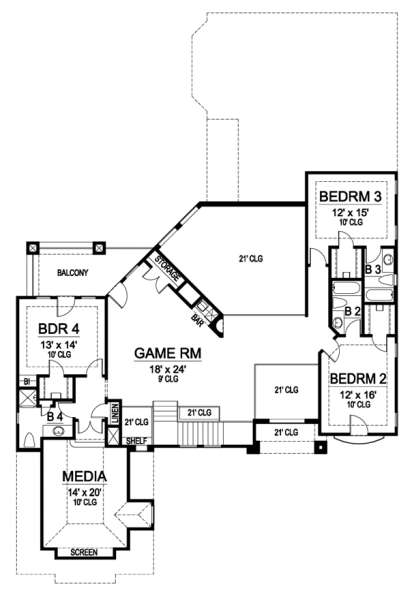

Floorplan 2 for House Plan #692-00083


What's Included in these plans?

  • Building elevations (exterior views)
  • Floor plan(s)
  • Foundation Plan
  • Roof Plan (as seen from above - often an actual stick by stick framing plan)
  • Building cross sections
  • Typical wall sections (indicating wall thickness and insulation used)
  • Miscellaneous notes and details



What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 3 bathroom Mediterranean house plan features 4,545 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
