Save 15% off your Dream House Plan with our Fall Savings Sale!

Limited plans not eligible for discounts.

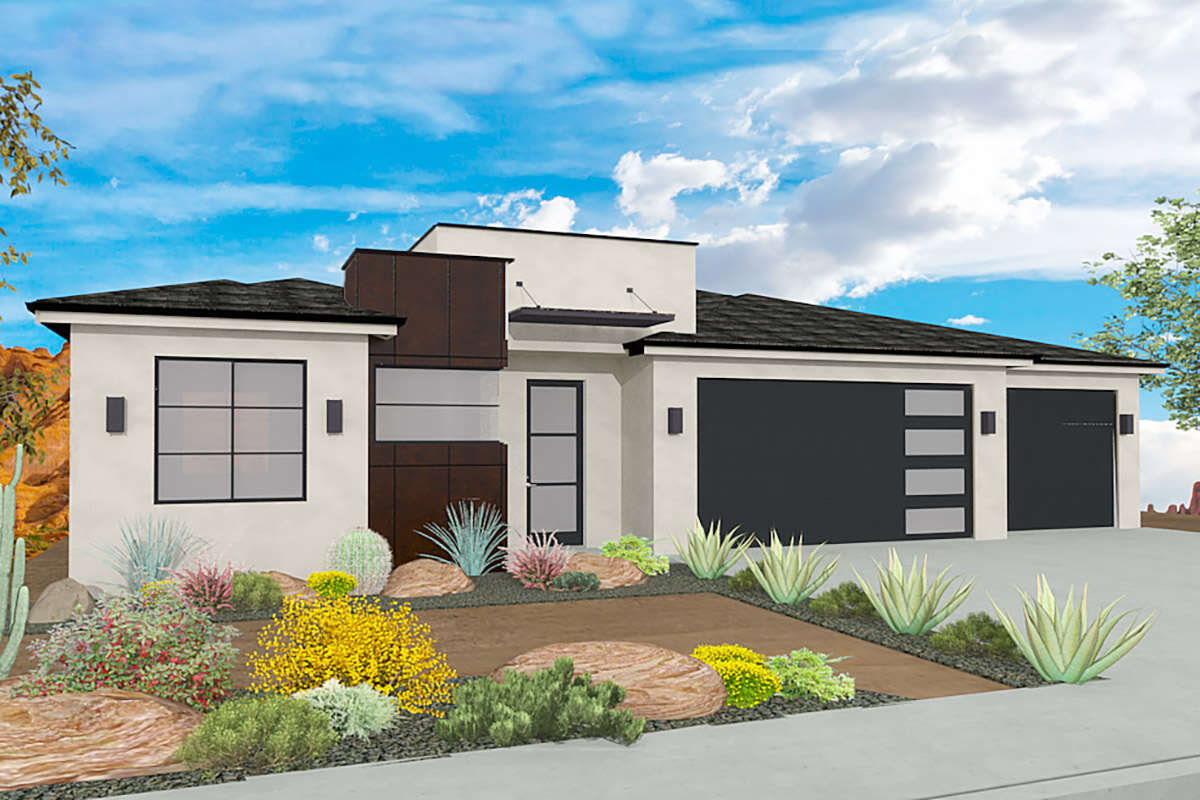

Southwest House Plan 6428-00005

Sq Ft1,825
1/2 Baths0
Width55' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

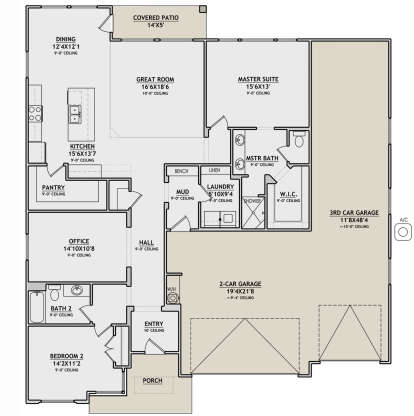

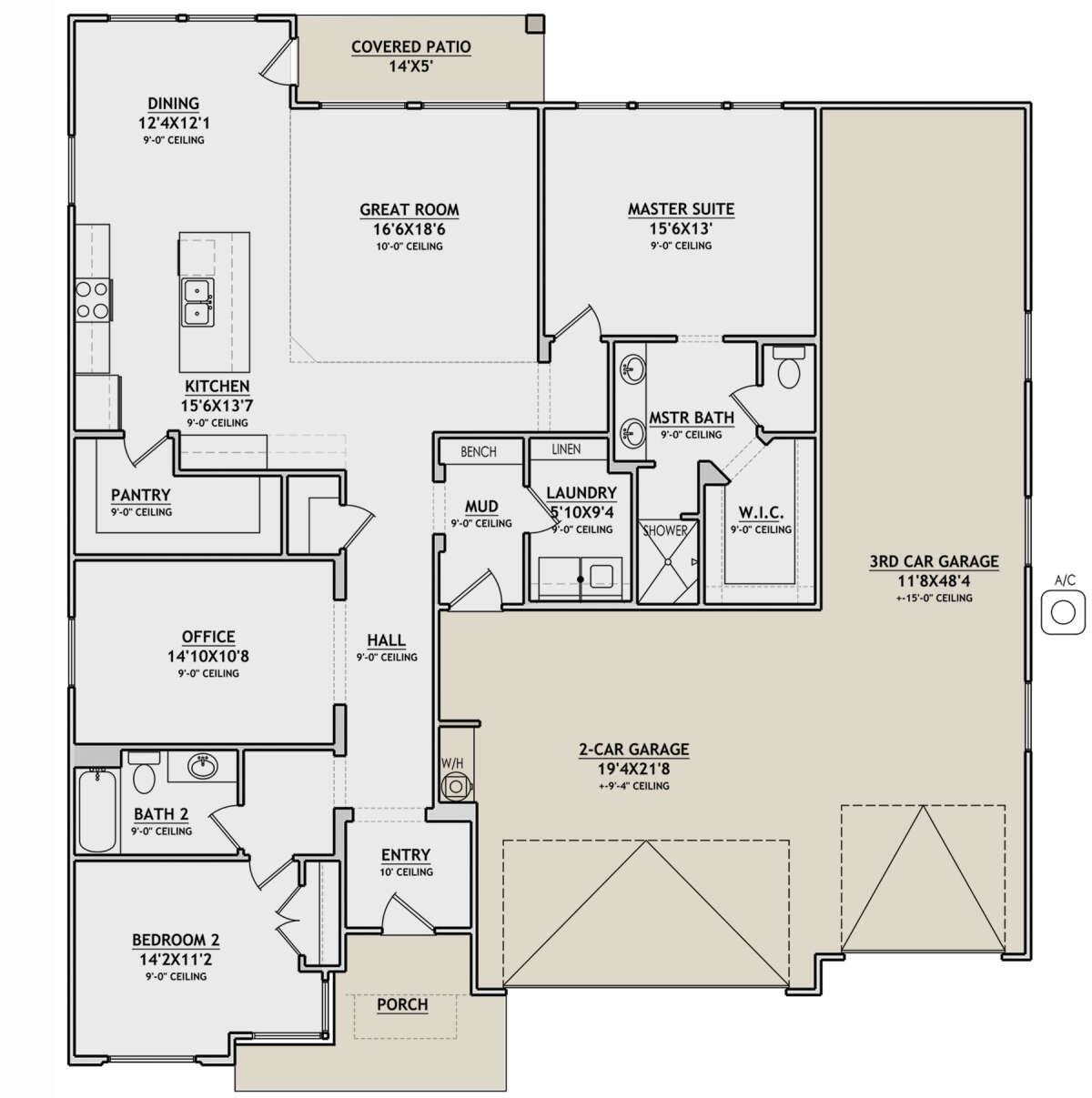

Main Floor for House Plan #6428-00005
Main Floor
Main Floor for House Plan #6428-00005

Frequently Asked Questions


What's Included in these plans?

  • Cover page with index of drawing and 3D photorealistic rendering in color.
  • General notes page addressing major IRC codes that municipalities look for

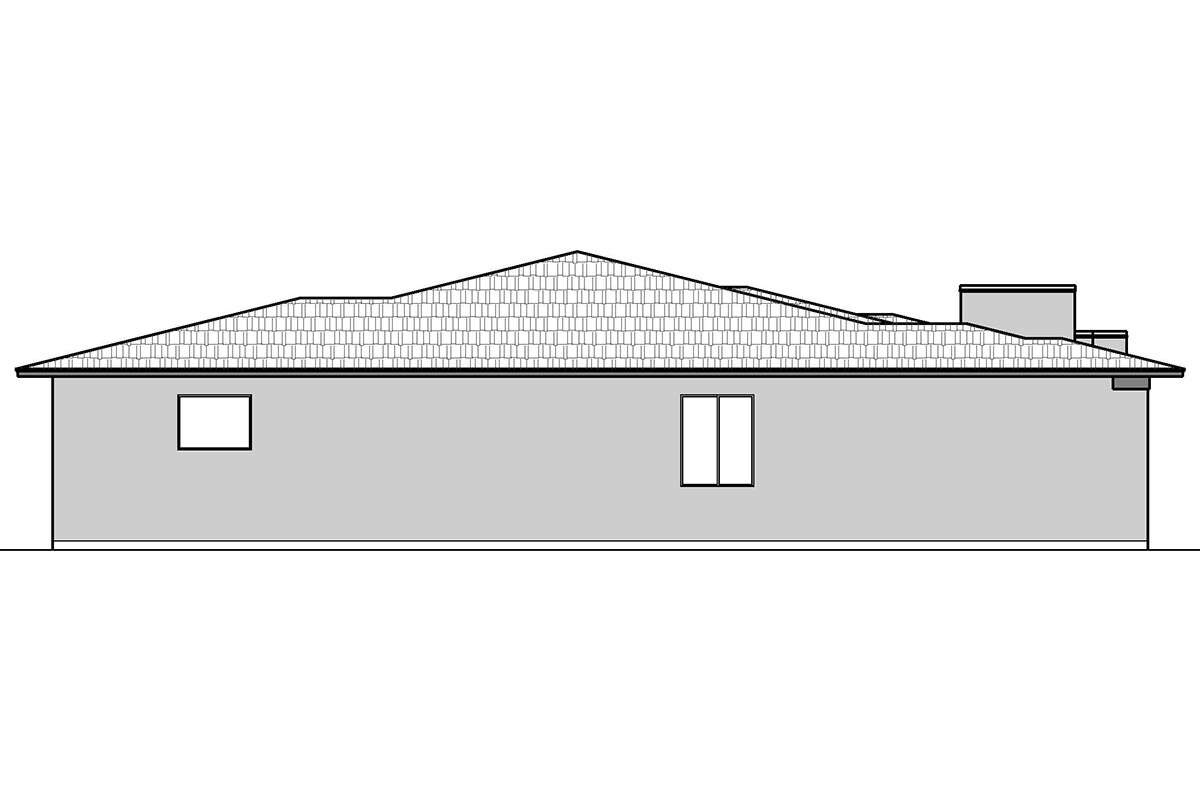

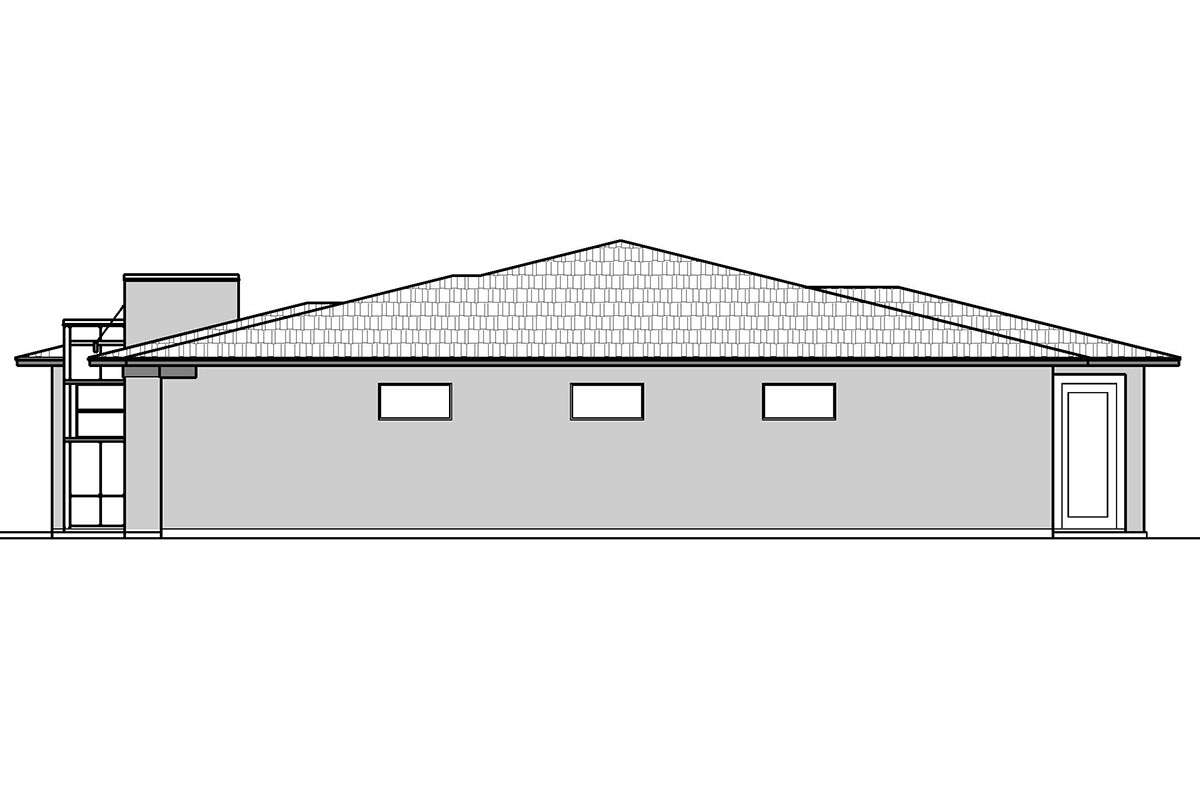

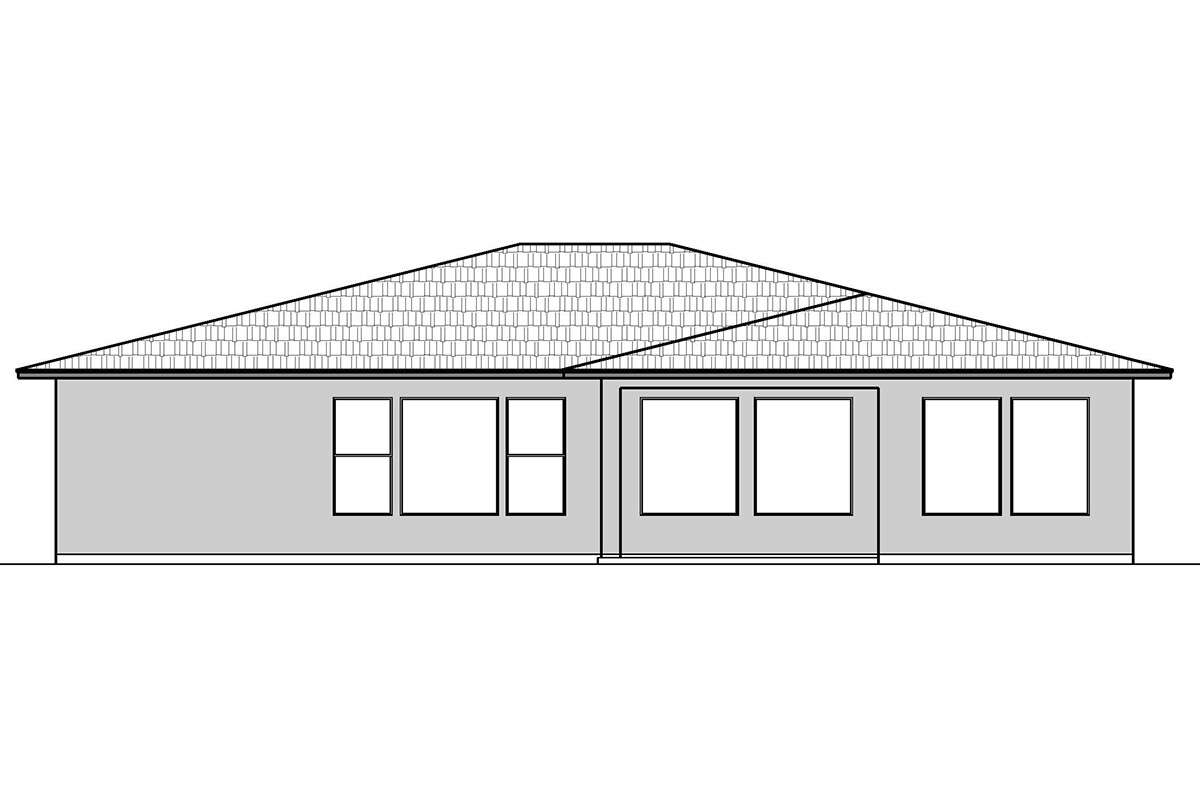

  • ¼” scale elevations with finishes shown on all 4 sides
  • ¼” scale main & upper floor plans
  • ¼” scale footing / foundation plan
  • ¼” scale basement plan (when applicable)
  • ¼” scale floor framing plan – all levels (when applicable)
  • ¼” scale roof framing plan
  • ¼” scale building / stair section showing entire building (Wall section notes are applied to whole building, reducing the need for generic wall sections)
  • ¼” scale main, upper, and basement electrical plans with HVAC locations shown
  • ¼” scale parapet roof and drainage plan – applicable to plans with flat roofs


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 2 bathroom Southwest house plan features 1,825 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
