Craftsman Plan 4848-00316


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,581
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 39'
Depth 66'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #4848-00316

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

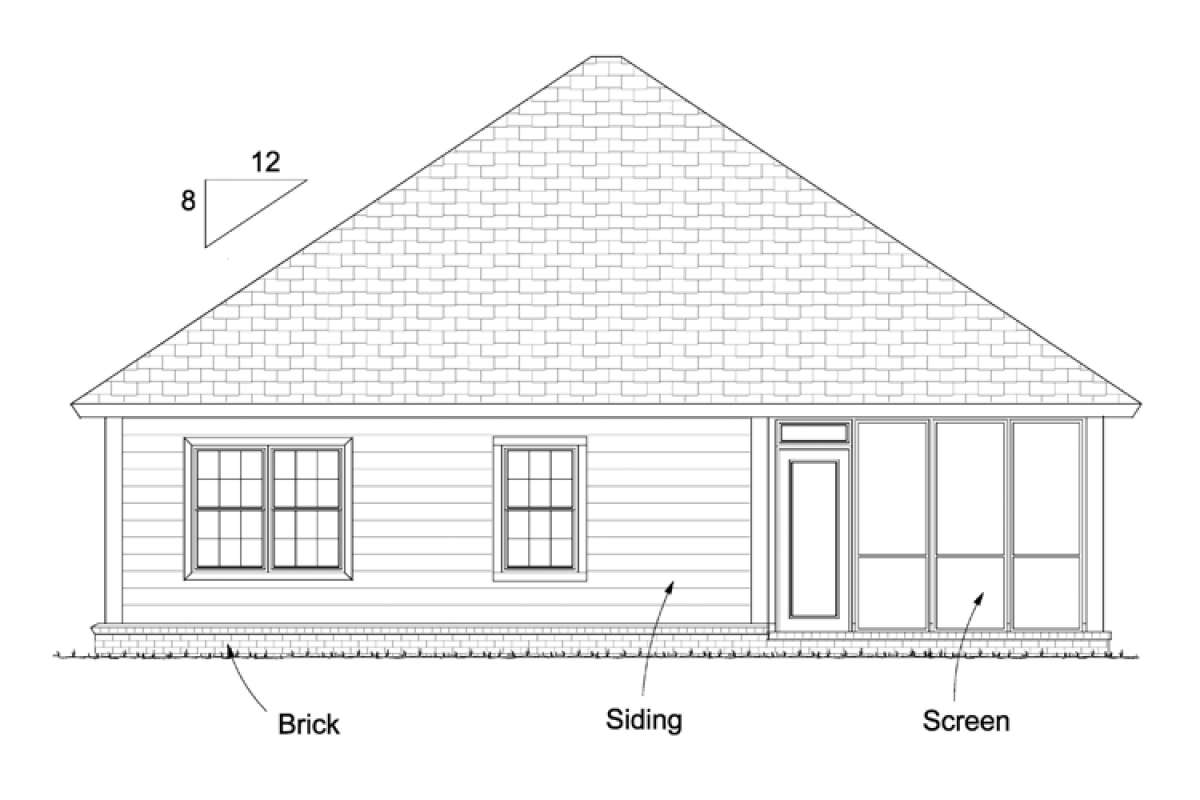

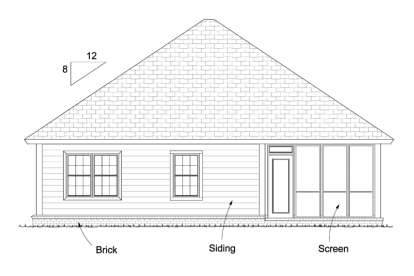

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan

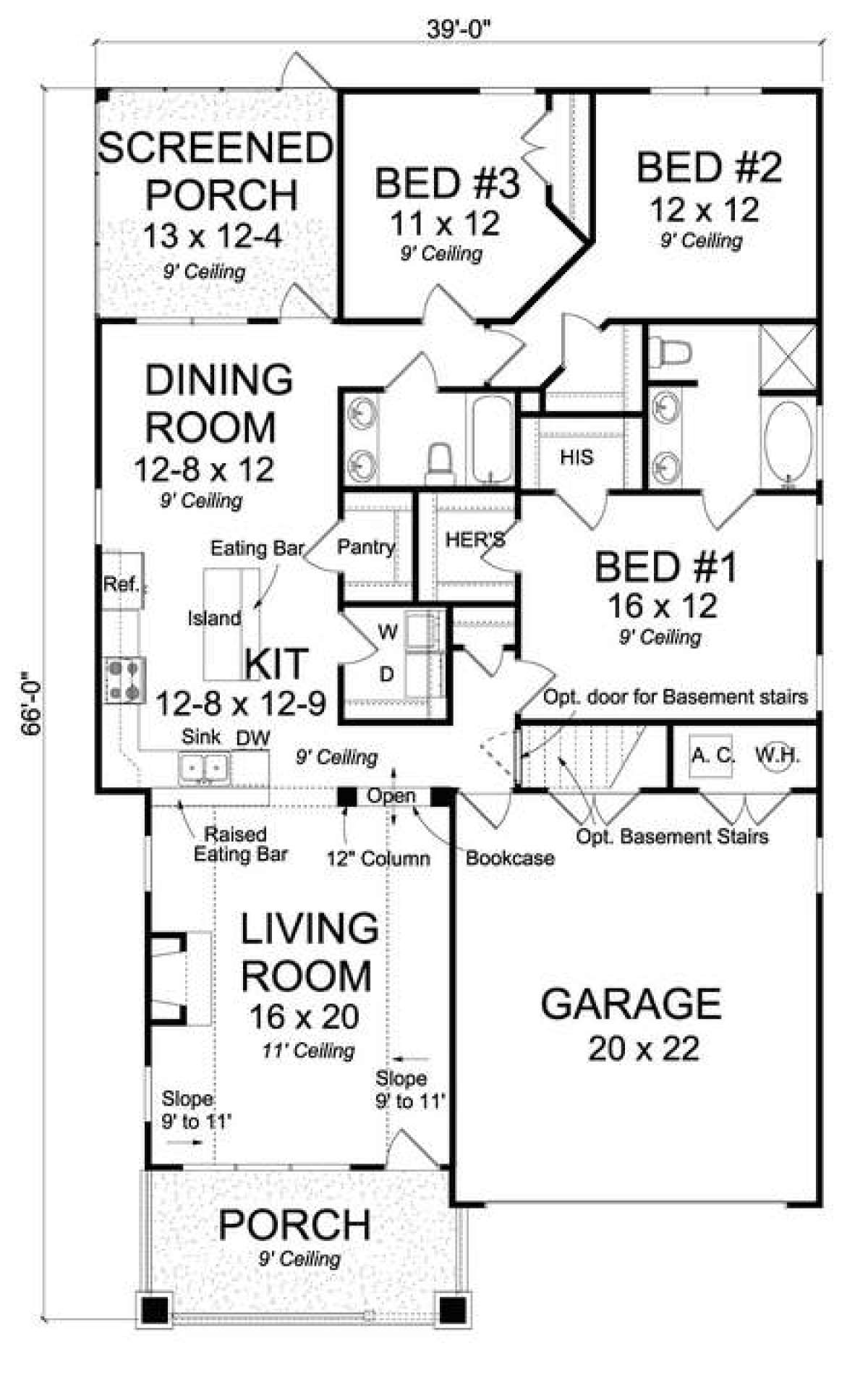

    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Craftsman house design features a delightful exterior façade and an interior highlighted with an open floor plan. The exterior features enormous curb appeal with its double gable front view and spacious front covered porch highlighted with open railing, brick pillars and substantial tapered beams. This greeting space presents an inviting welcome for family and friends as they enter the home as well as a relaxing space for reading a book or watching the world go by. The front loading two car garage offers good vehicle and storage space. The single story home is an ideal fit for a narrow property lot with its 39’ width and yet the open floor plan and 9’ ceiling heights allow for a spacious feel to the home’s interior. The front covered porch grants access into the home where there is a large living room with soaring ceiling heights, a warming fireplace and a triple window wall overlooking the front porch. The grand kitchen is highlighted with a center island as well as a peninsula breakfast bar; great casual dining and conversation spaces. There is a walk-in food storage pantry, plenty of additional counter and cabinet space and an enclosed laundry room for noise control. There is separate dining space beyond the kitchen that is spacious with window views and access onto the outdoor screened porch which is perfect for dining al fresco or three season outdoor living.

The master suite is highlighted with generous floor space and great window views within the bedroom. His and hers attached walk-in closets feature plentiful clothing and accessory space for the homeowners. There is an en suite master bath that offers dual vanities, toilet space, a separate shower and garden tub. The two secondary bedrooms and shared hall bath are located at the rear of the home. Bedroom two is spacious with double window views and an attached walk-in closet while the third bedroom is slightly smaller with ample closet space. The shared bath is highlighted with double sinks, perfect for alleviating morning chaos, a toilet area and a tub/shower combination. This charming Craftsman home is defined by an exterior with amazing curb appeal and an interior floor plan that is open and functional.
