Modern Farmhouse Garage Plan 4195-00072

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 920
Fin Sq Ft 940
Cars 3
Beds 1
Width 42' 4"
Depth 24' 6"

Floorplan Drawings

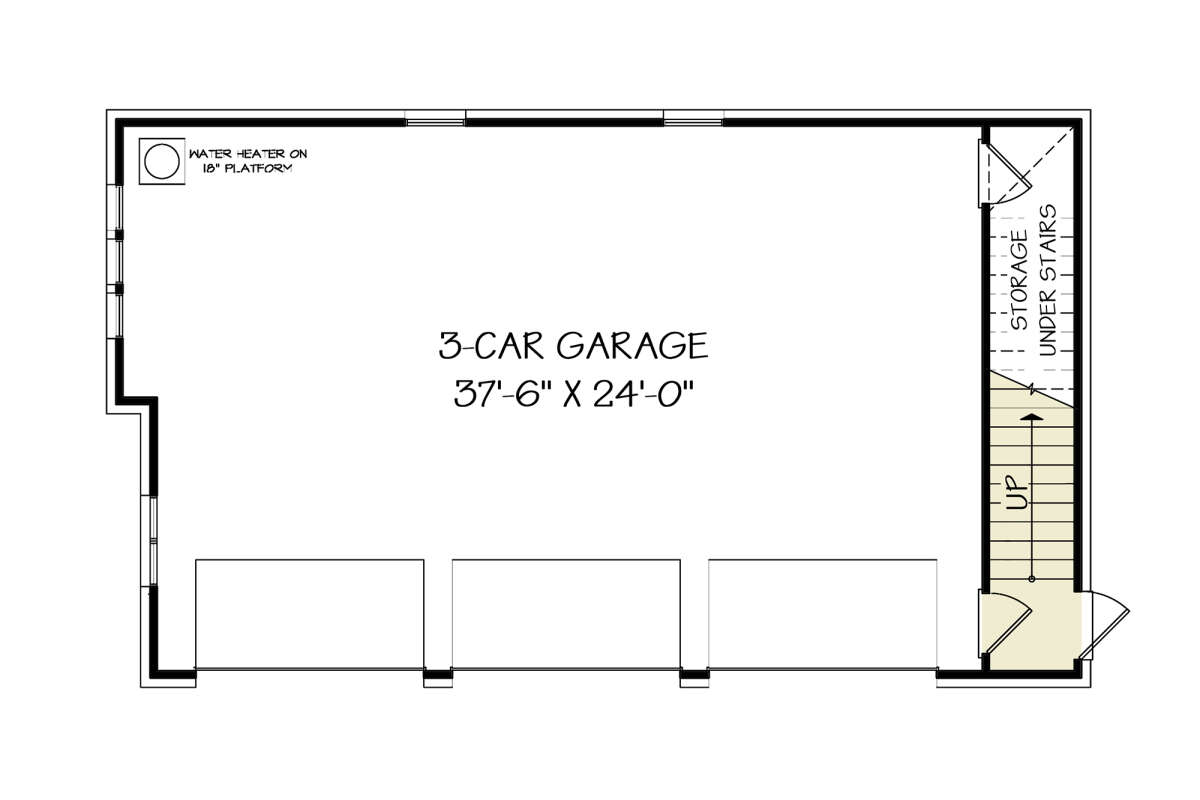

Garage Floor
Garage Floor for House Plan #4195-00072

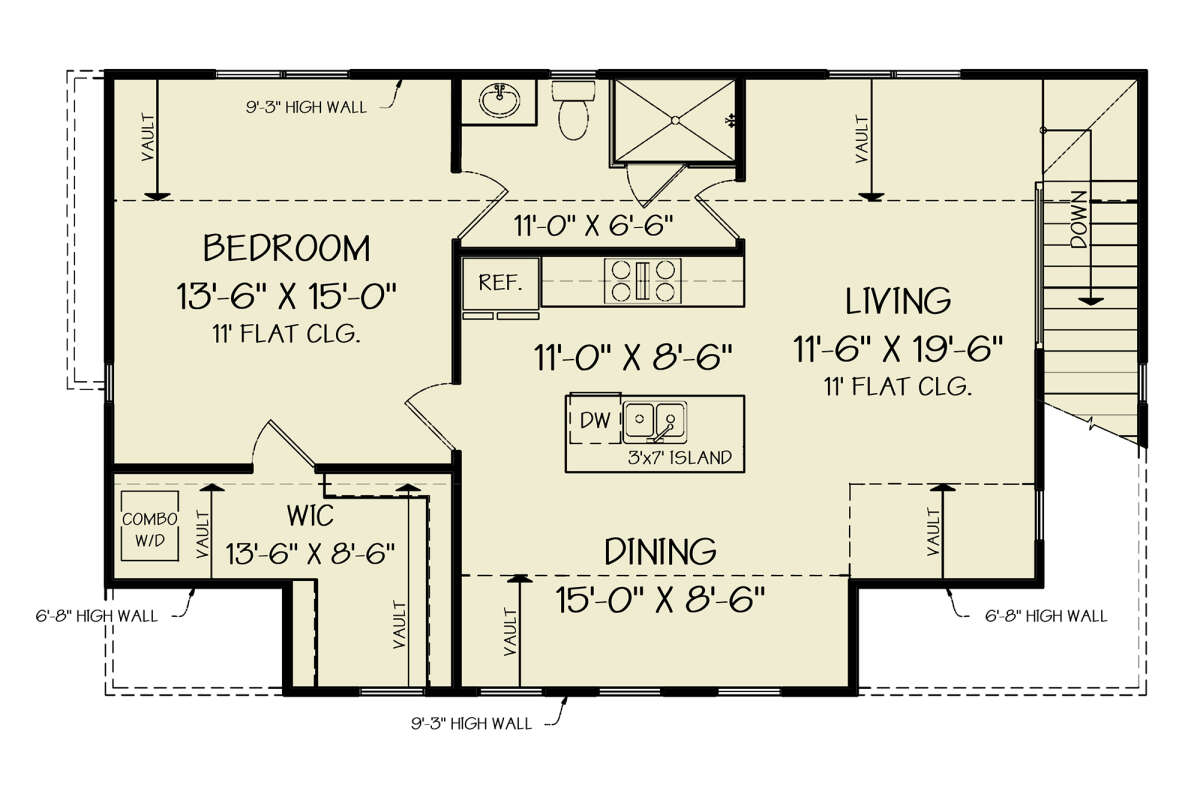

Second Floor
Second Floor for House Plan #4195-00072


What's Included in these plans?

  • Cover Sheet
    The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation
    These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan
    This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan
    The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Electrical
    On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.
  • Front and Rear Elevations
    The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations
    The right and left elevations provide the same details as the front and rear elevations.
    Roof Plan
    This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. *Framing is not included.
  • Cross-Sections
    Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • General Notes
    Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 Car Modern Farmhouse Garage Plan features 920 unfinished sq. ft., and 940 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
