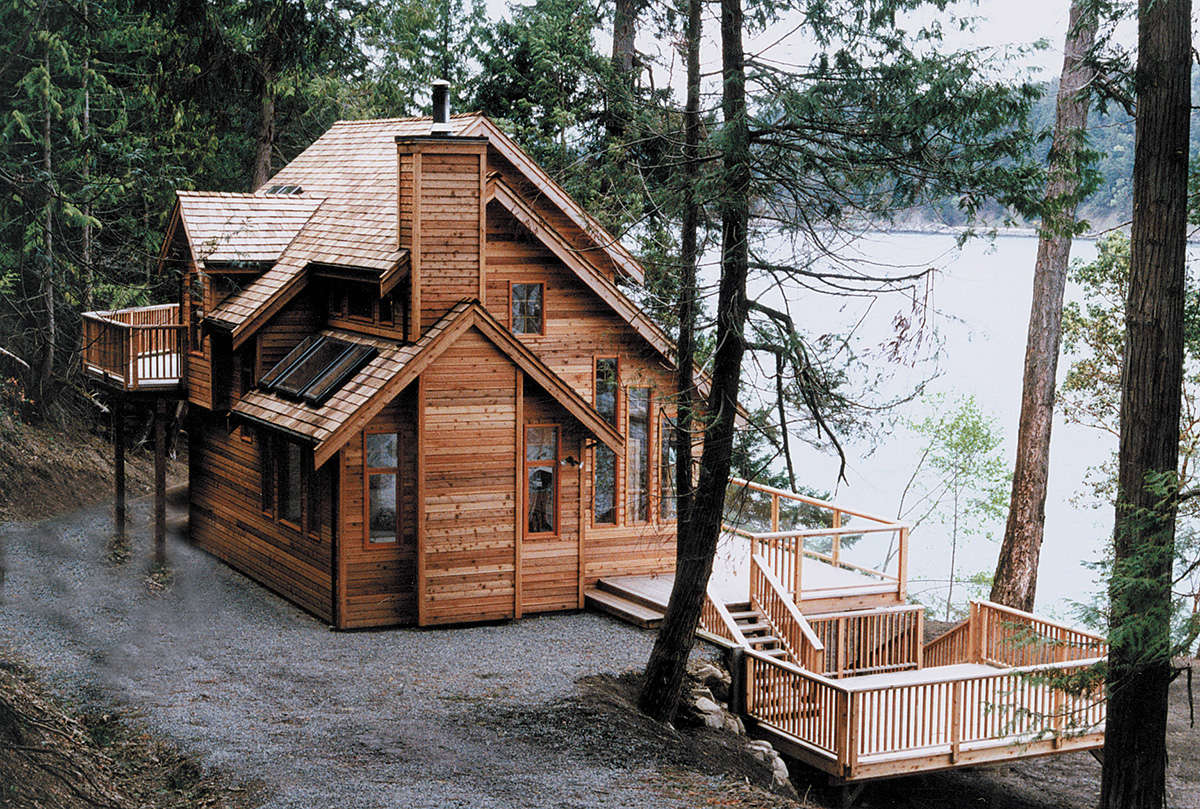

Lake Front Plan 4177-00026

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,417
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 46'
Depth 28'

Floorplan Drawings

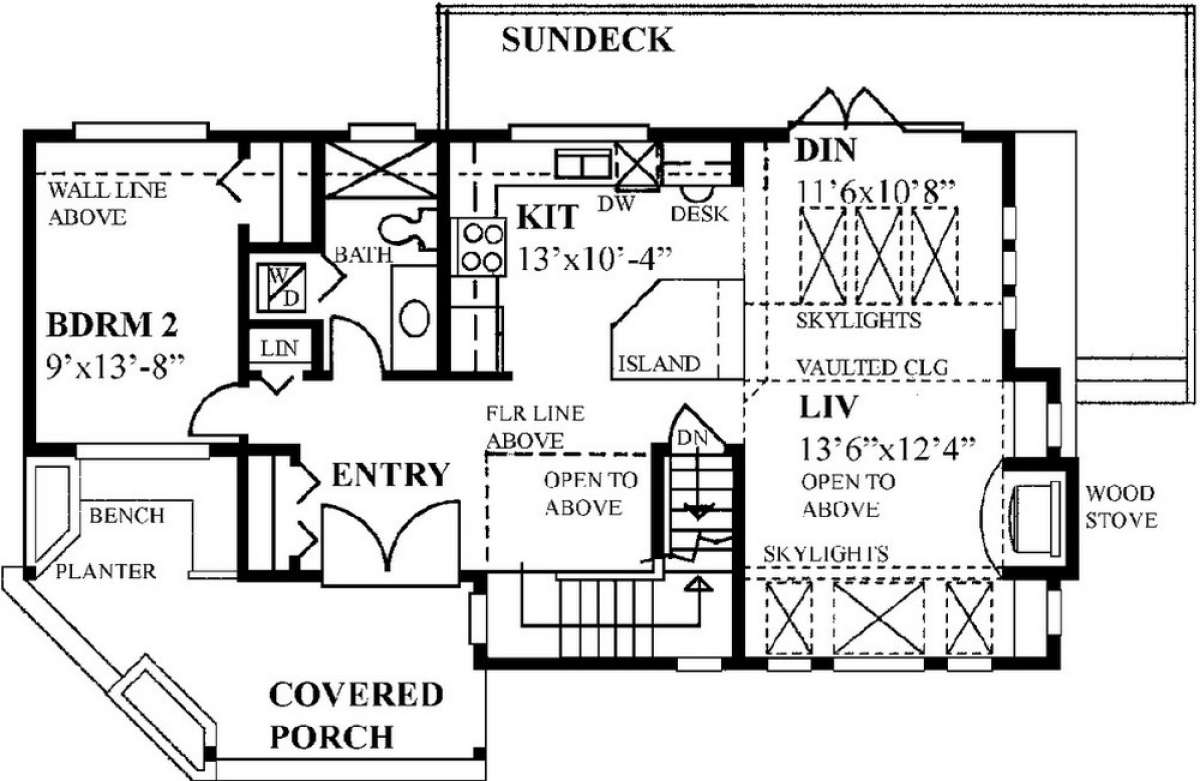

Main Floor
Main Floor  for House Plan #4177-00026

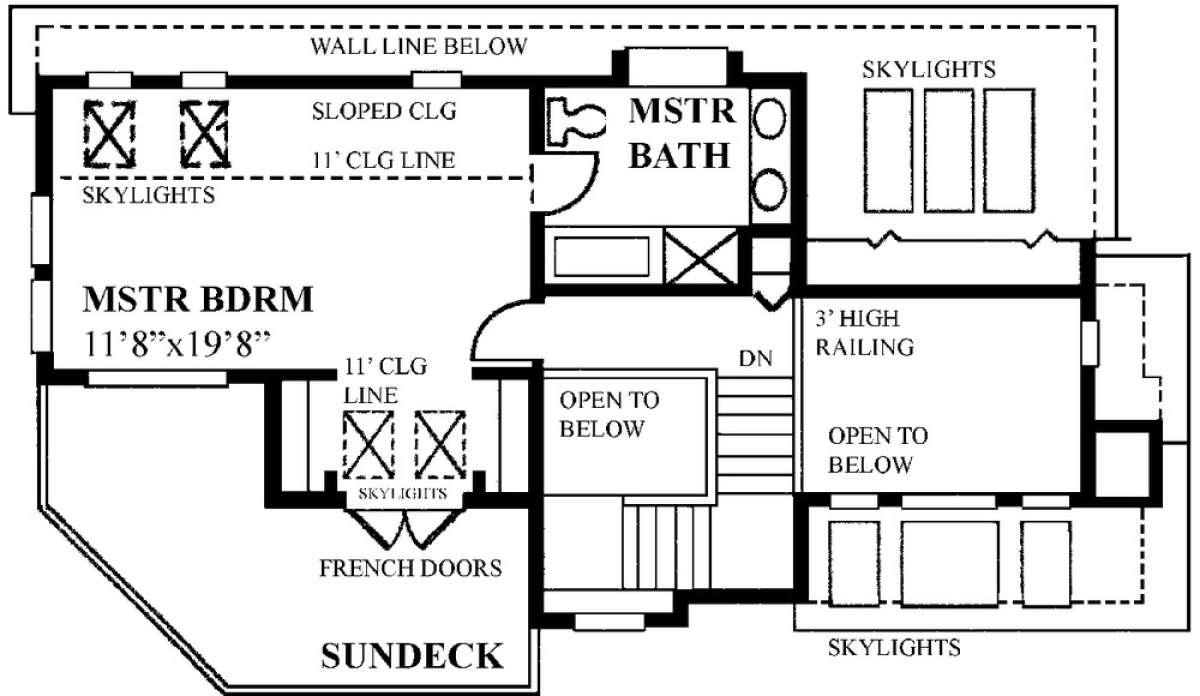

Second Floor
Second Floor for House Plan #4177-00026


What's Included in these plans?

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan at 1/4"=1'-0". (Some plans have foundation options, client to specify at time of order.)
  • Main floor plan at 1/4"=1'-0".
  • Second floor plan at 1/4"=1'-0", if applicable.
  • Roof information indicated either on the floor plans or separate framing plans for complicated designs.
  • Electrical floor plans.
  • Minimum of two cross sections at 1/4"=1'-0".
  • Details as required.
  • All four elevations at 1/4"=1'-0".
  • Generic detail sheet.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 2 bathroom Lake Front house plan features 1,417 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
