Vacation House Plan 4177-00020

Sq Ft2,912
Beds3
Baths2
1/2 Baths1
Stories2
Cars0
Width40' 0"
Depth50' 6"
SALE
Vacation House Plan #4177-00020 Elevation Photo
Vacation House Plan #4177-00020 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #4177-00020
Floorplan 2 for House Plan #4177-00020
Floorplan 3 for House Plan #4177-00020

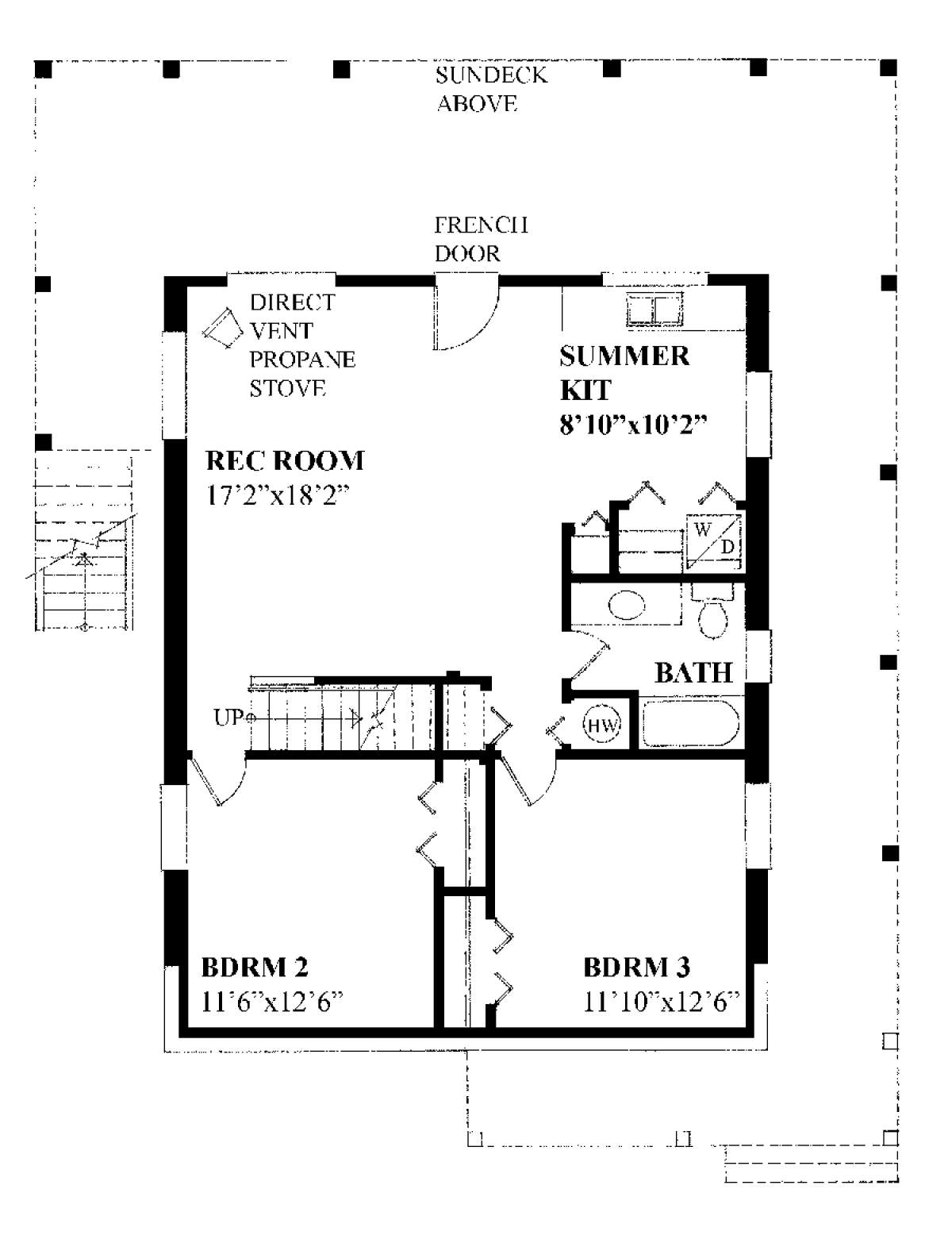

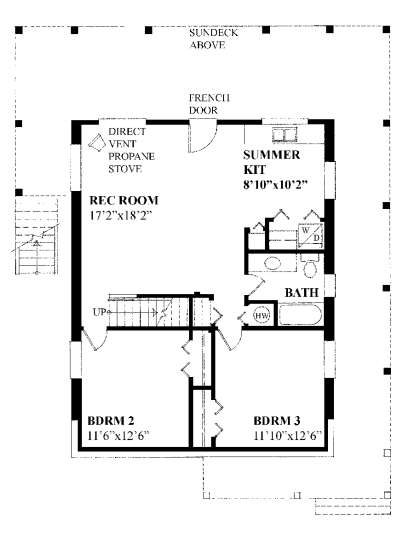

Floorplan 1
Floorplan 1 for House Plan #4177-00020

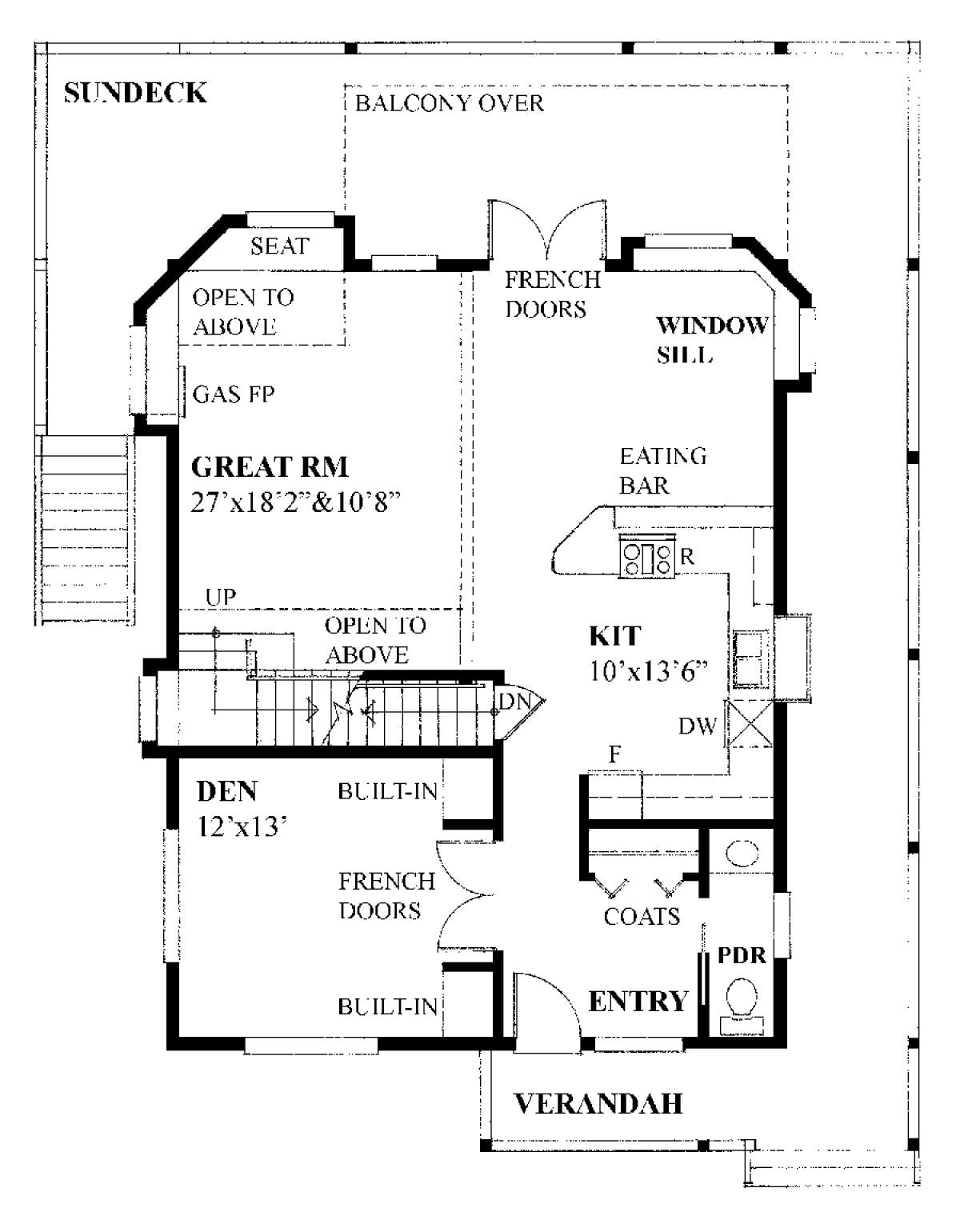

Floorplan 2
Floorplan 2 for House Plan #4177-00020

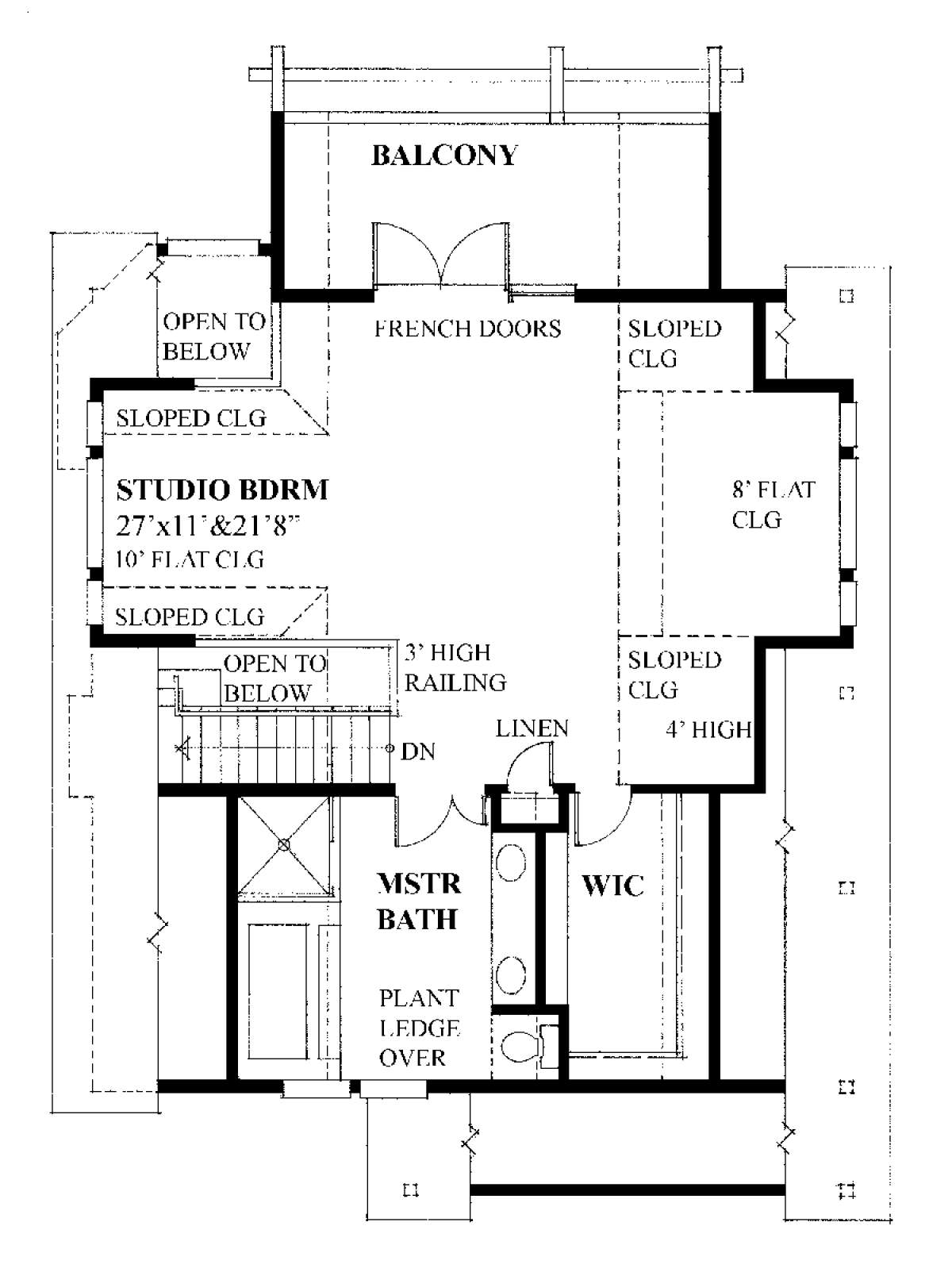

Floorplan 3
Floorplan 3 for House Plan #4177-00020


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan at 1/4"=1'-0". (Some plans have foundation options, client to specify at time of order.)
  • Main floor plan at 1/4"=1'-0".
  • Second floor plan at 1/4"=1'-0", if applicable.
  • Roof information indicated either on the floor plans or separate framing plans for complicated designs.
  • Electrical floor plans.
  • Minimum of two cross sections at 1/4"=1'-0".
  • Details as required.
  • All four elevations at 1/4"=1'-0".
  • Generic detail sheet.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Vacation house plan features 2,912 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
