Name: House Plan 2802-00157 - Barn Plan: 1,947 Square Feet, 2.5 Bathrooms
Brand: America's Best House Plans
SKU: 2802-00157
Price: 700.00 USD

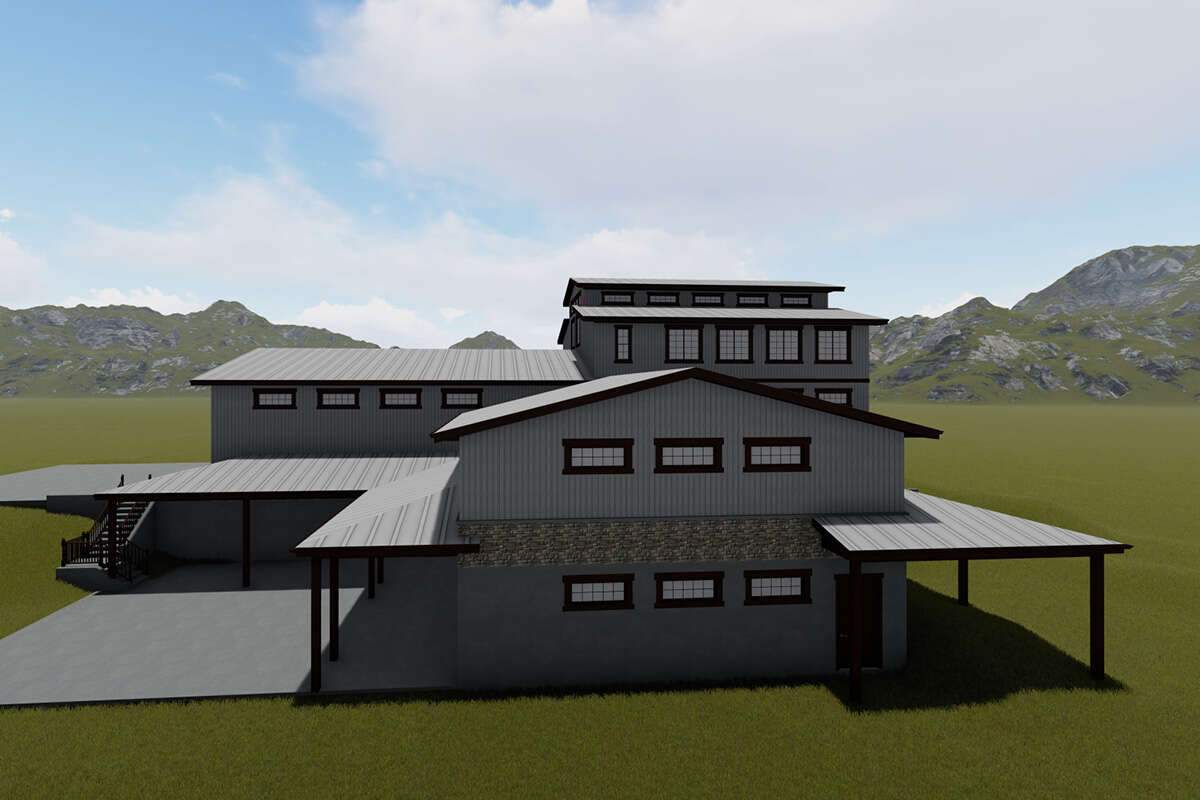

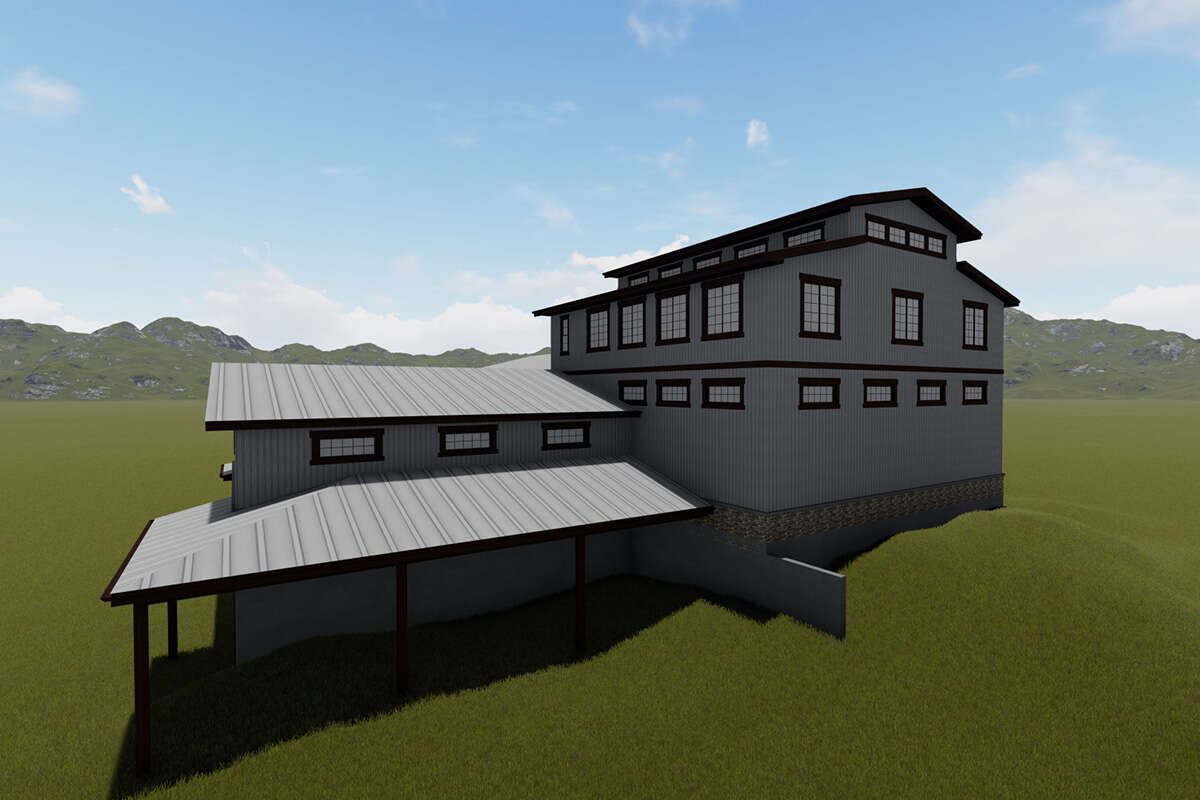

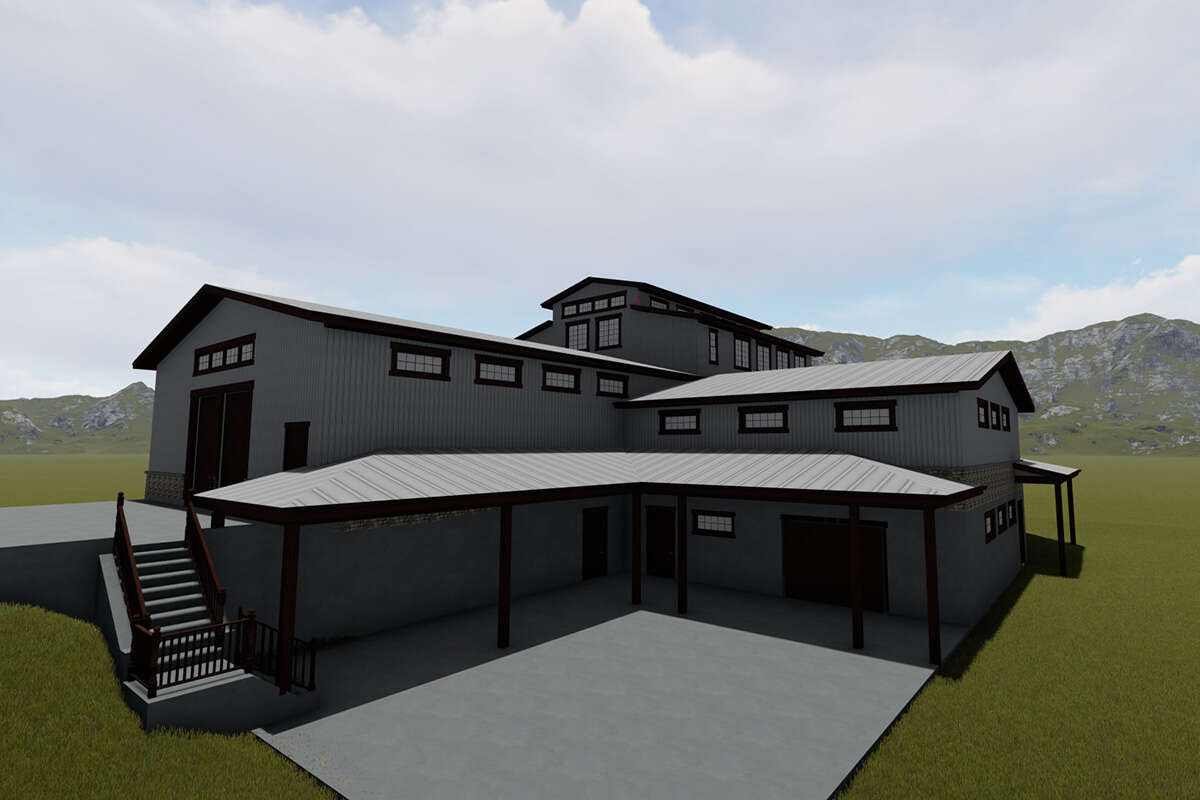

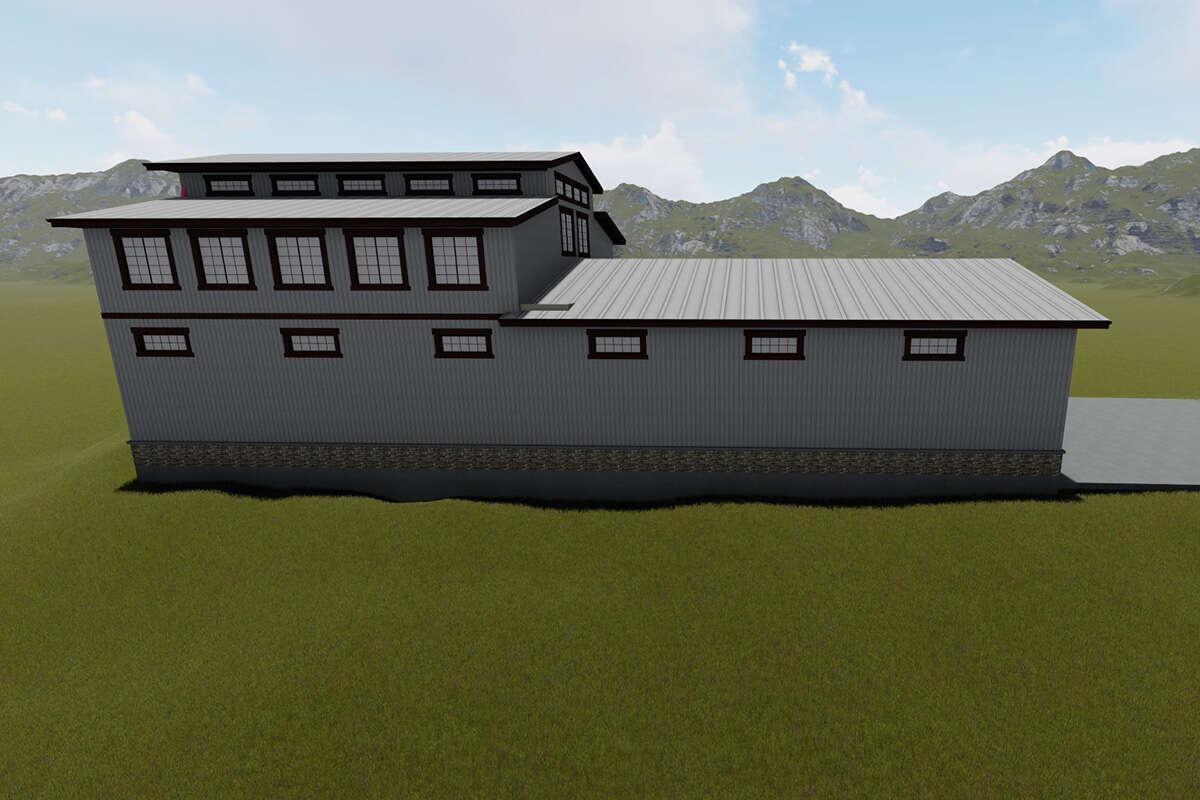

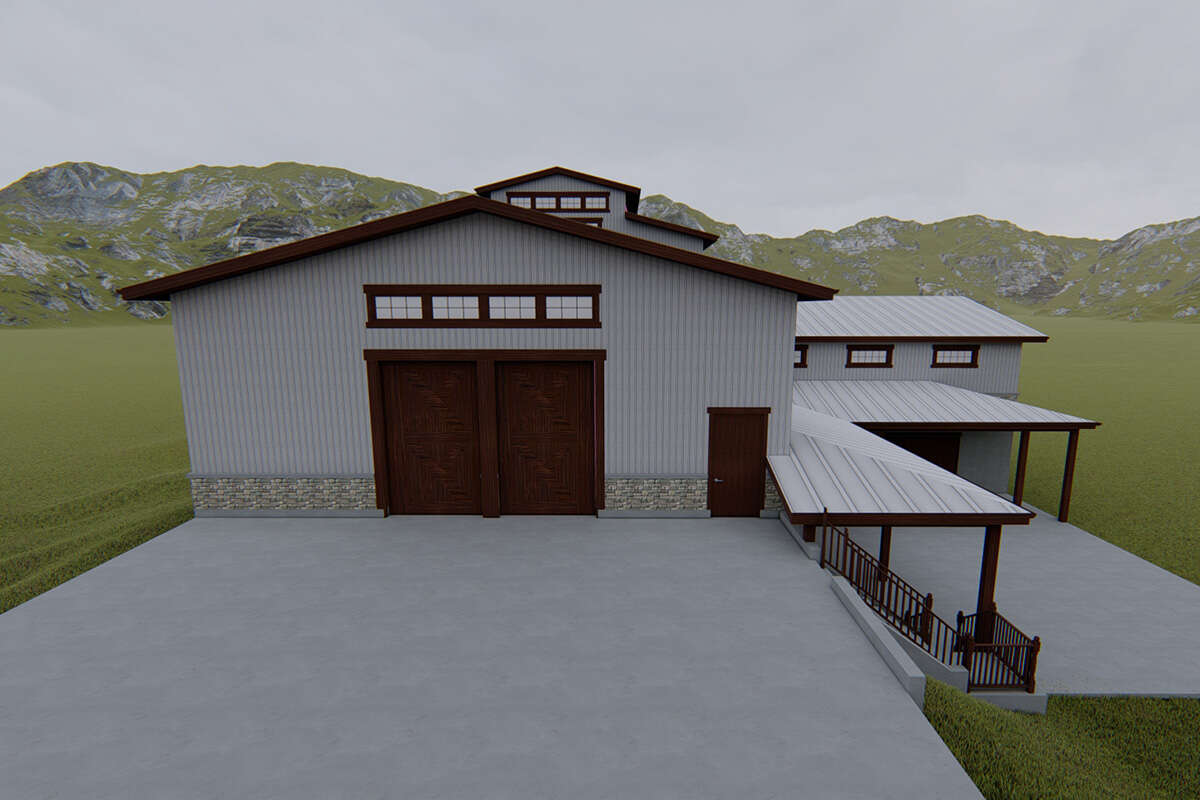

Barn House Plan #2802-00157 Elevation Photo

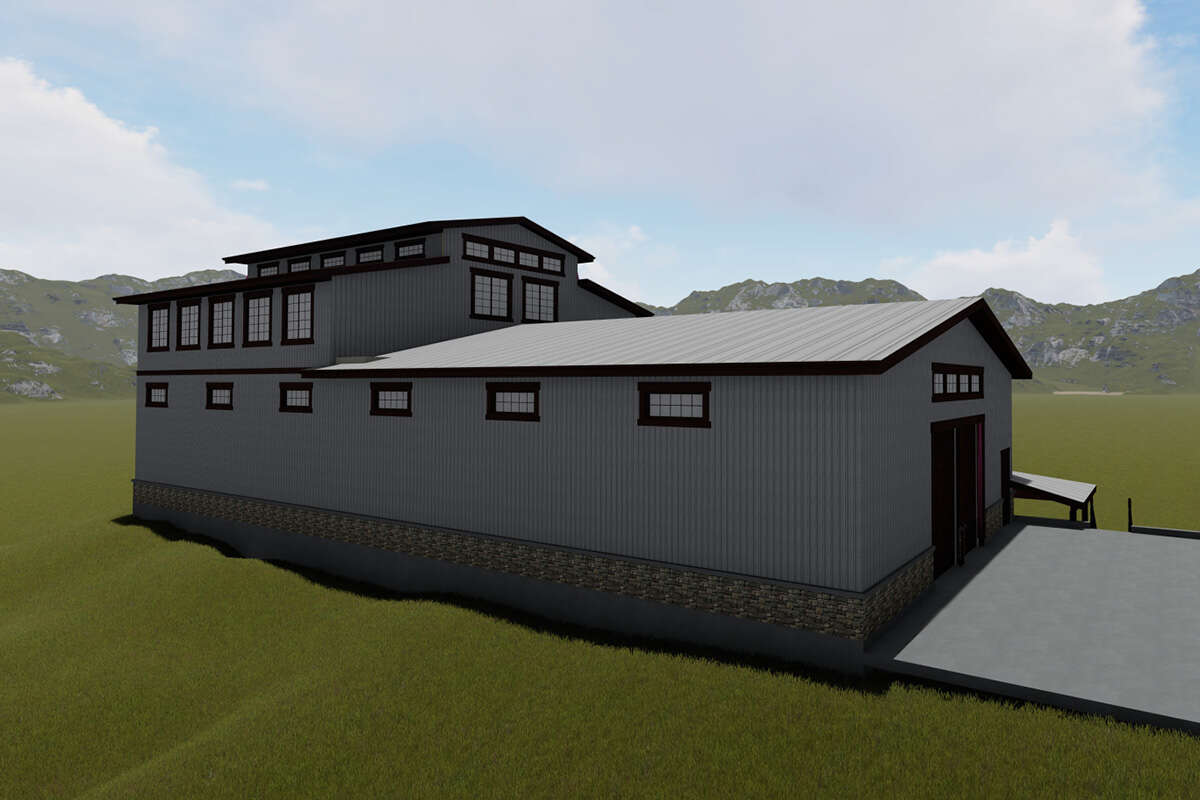

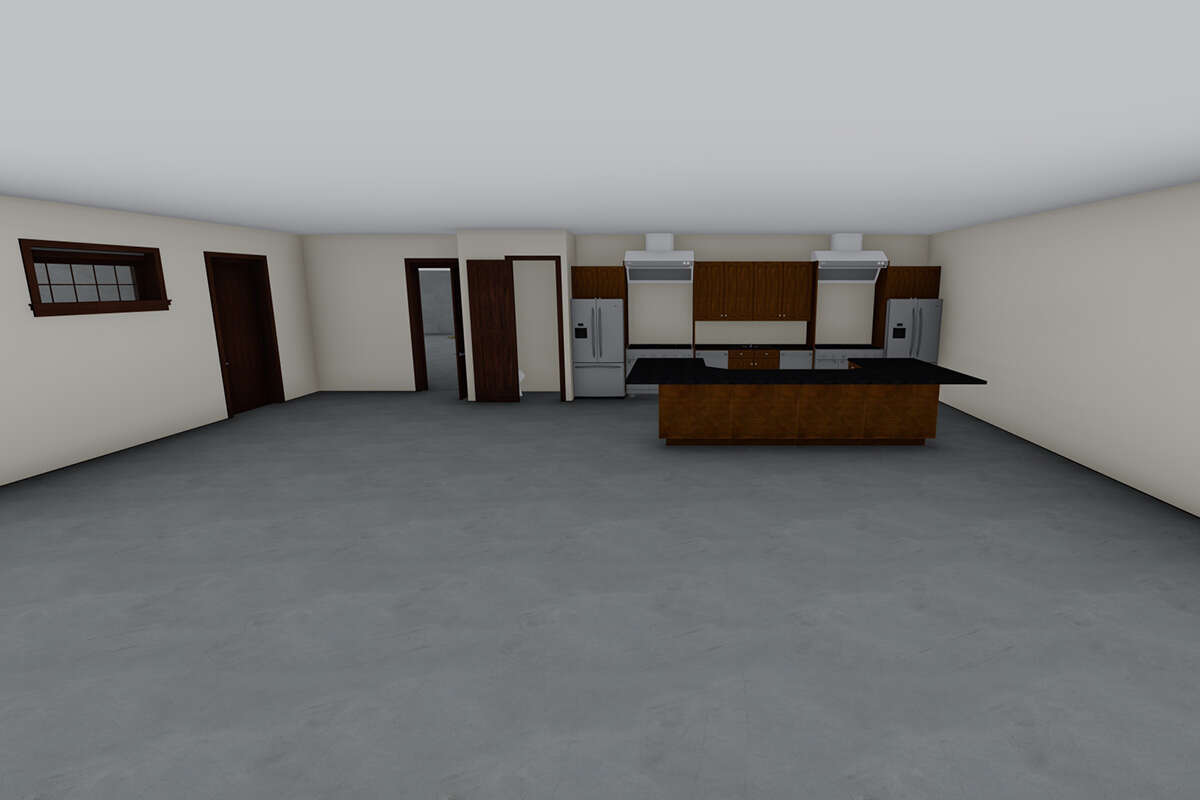

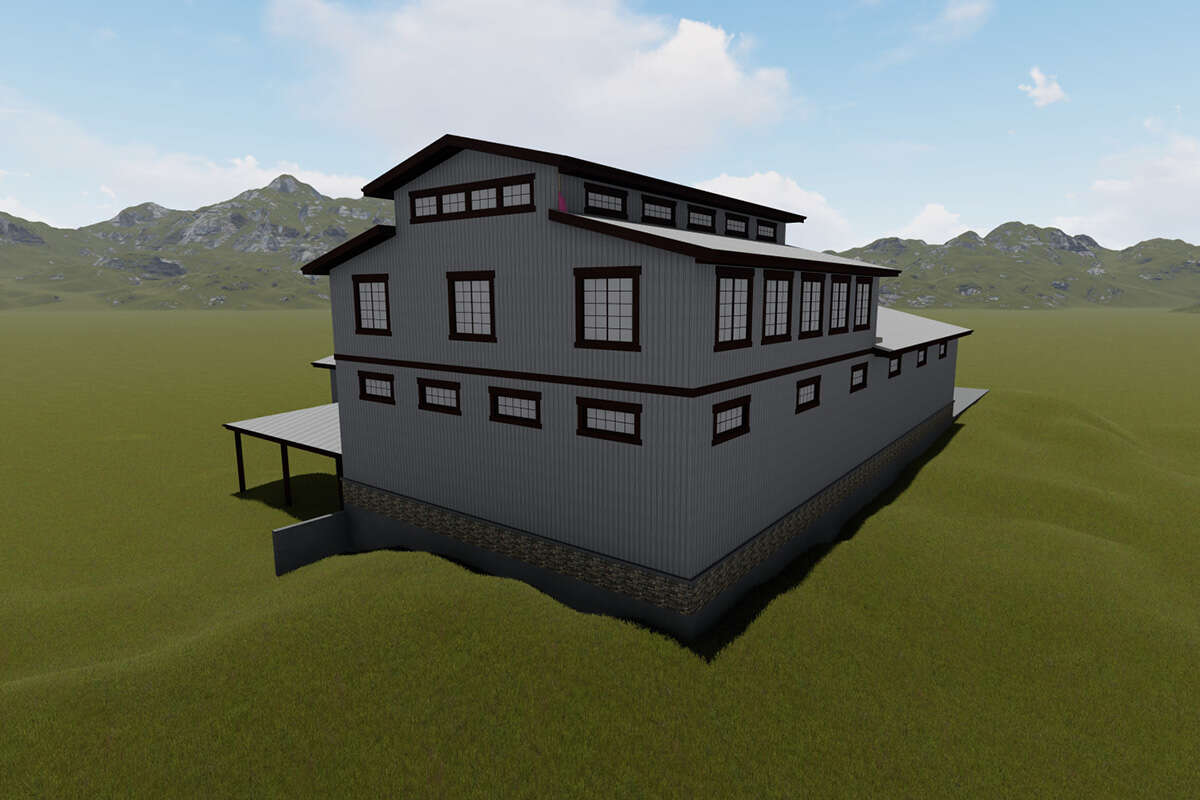

Barn House Plan #2802-00157 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Unfin Sq Ft 10,216

Fin Sq Ft 1,947

Cars 6

Beds 0

Width 85'

Depth 100'

See What's Included

Select Package

PDF (Single Build)

$700.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$825.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a release for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets Plus PDF (Single Build)

$1,025.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Plus PDF, Single Build)

$1,150.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

CAD Files (Plus PDF, Unlimited Build)

$1,275.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $195.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

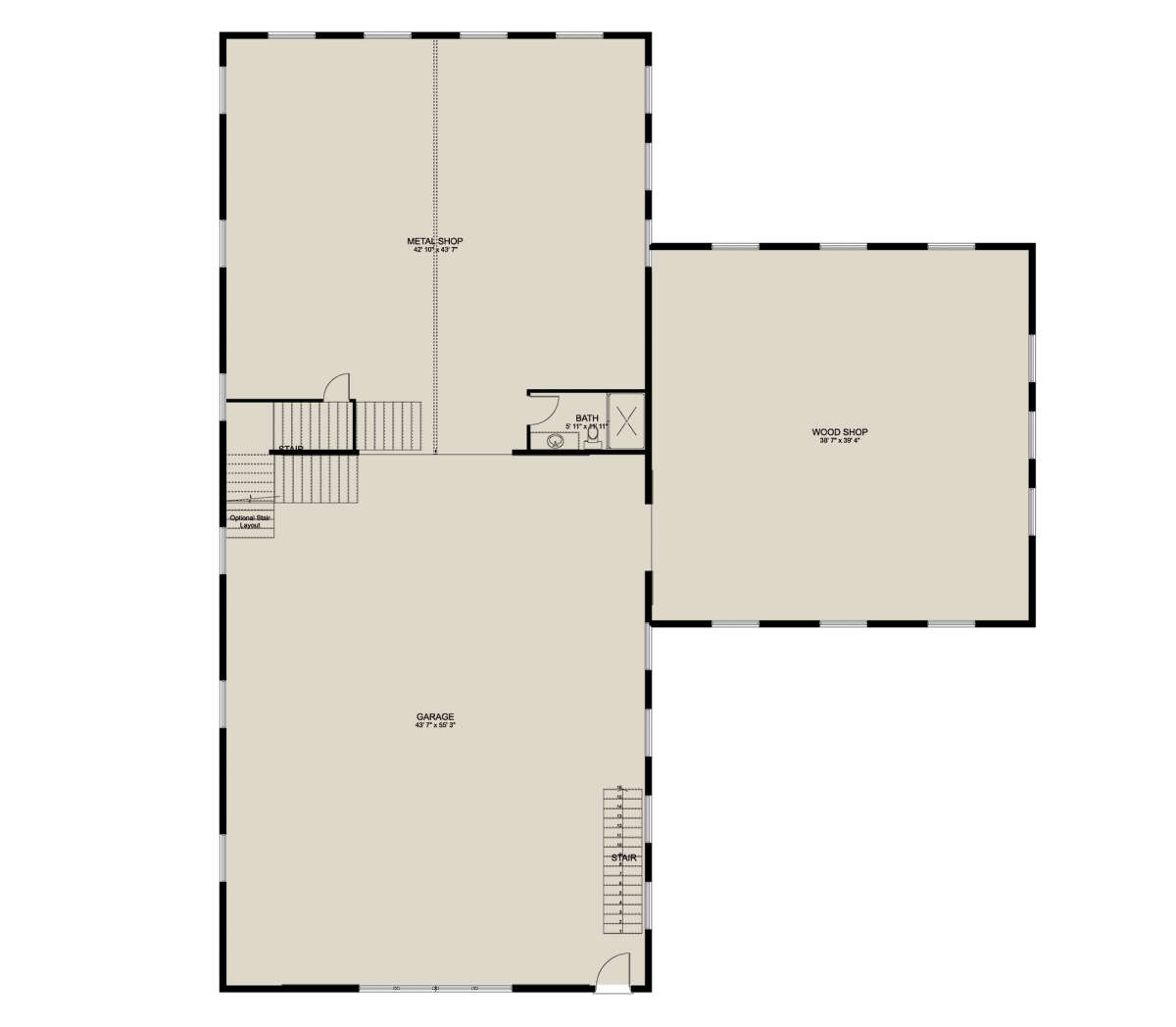

Main Floor

Second Floor

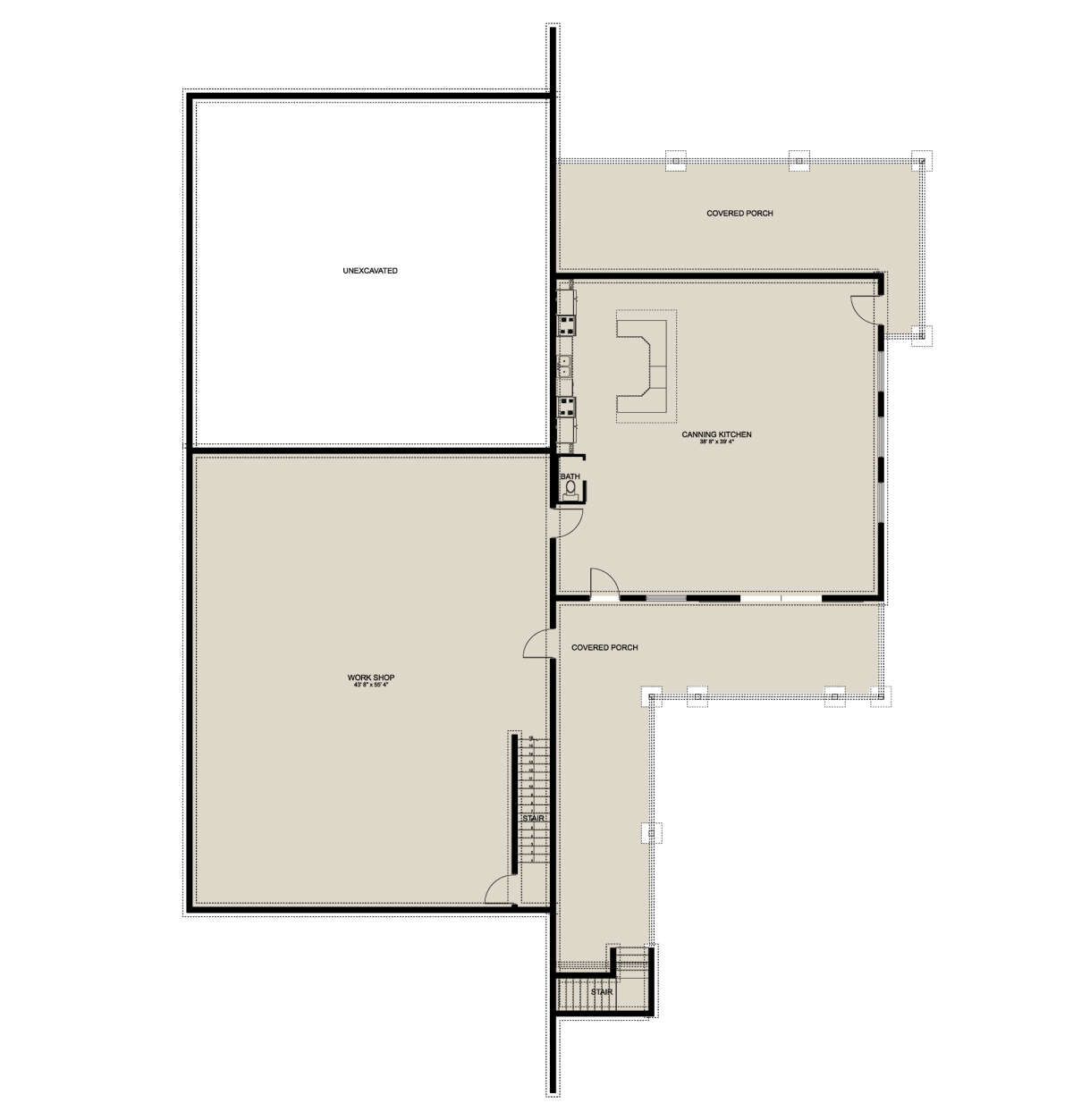

Basement

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,947 sq. ft. Second Floor: 1,947 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 10,216 sq. ft. First Floor: 6052 sq. ft. Basement: 4,164 sq. ft.

Bathrooms: 2

Half Baths: 1

Floors: 1

Garage Size: 6 car

Width: 85ft.

Depth: 100ft.

Height: 36ft.

Foundation: Basement Foundation

Main Roof Pitch: 3:12

Exterior Framing: 2x6 Wood

What's Included in these plans?

Notes
Foundation/Basement Layout
Main Floor Layout
Upper Floor Layout (If Applicable)
Main Floor Floor Framing
Upper Floor Floor Framing (If Applicable)
Roof Framing
Front/Rear Elevations
Left Right Elevations
Cross Sections
Main Floor Electrical
Basement Electrical
Upper Floor Electrical (If Applicable)
Details

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This 6 Car Barn Garage Plan features 10,216 unfinished sq. ft., and 1,947 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
