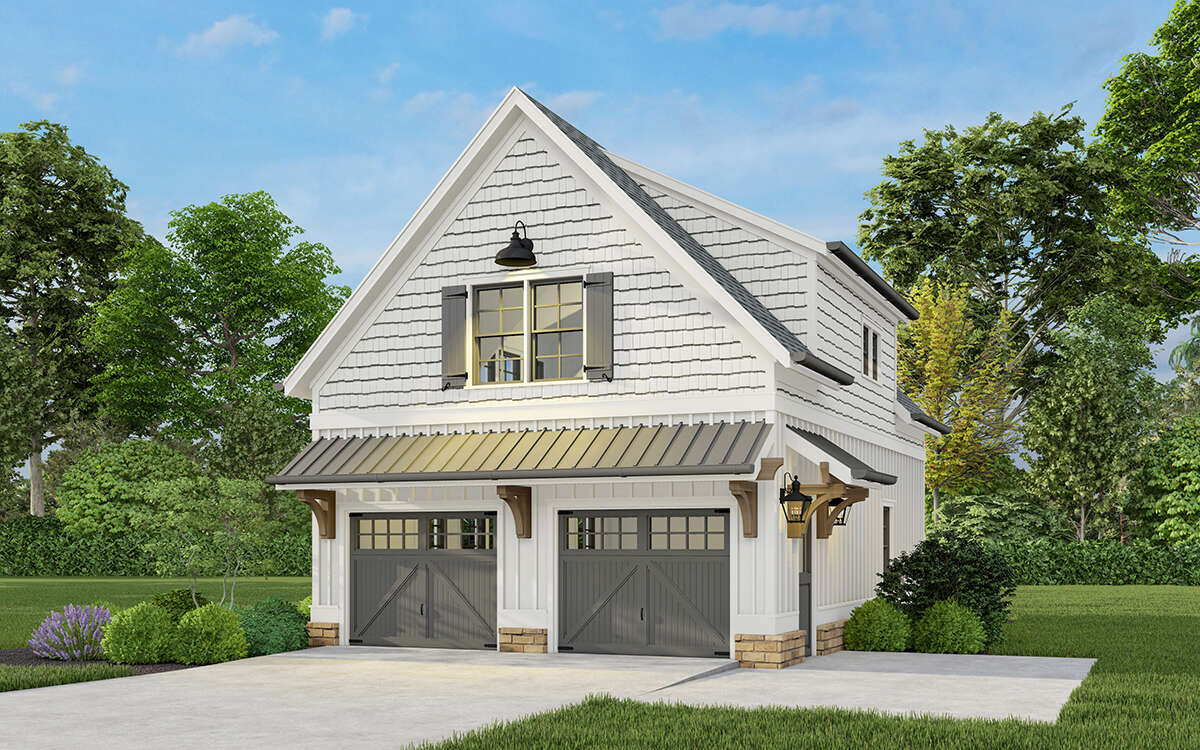

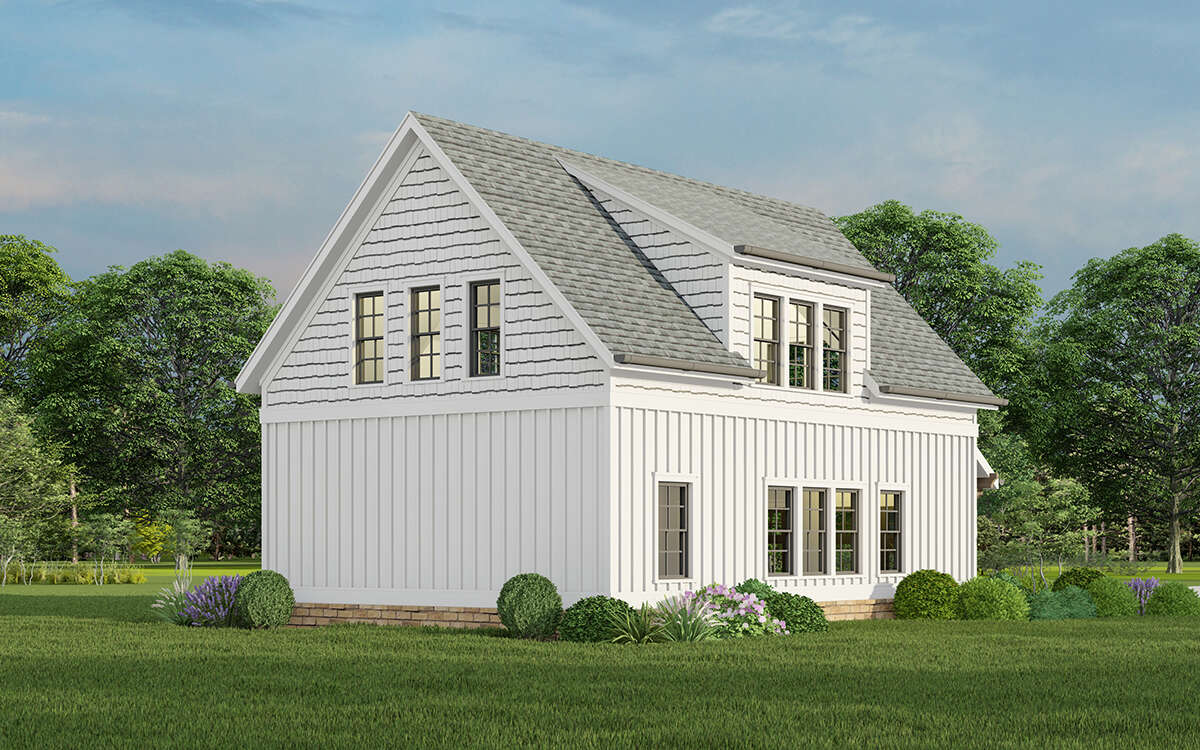

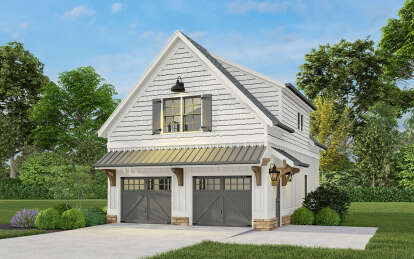

Craftsman Garage Plan 196-00003

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 950
Fin Sq Ft 737
Cars 2
Beds 1
Width 25'
Depth 38'

Floorplan Drawings

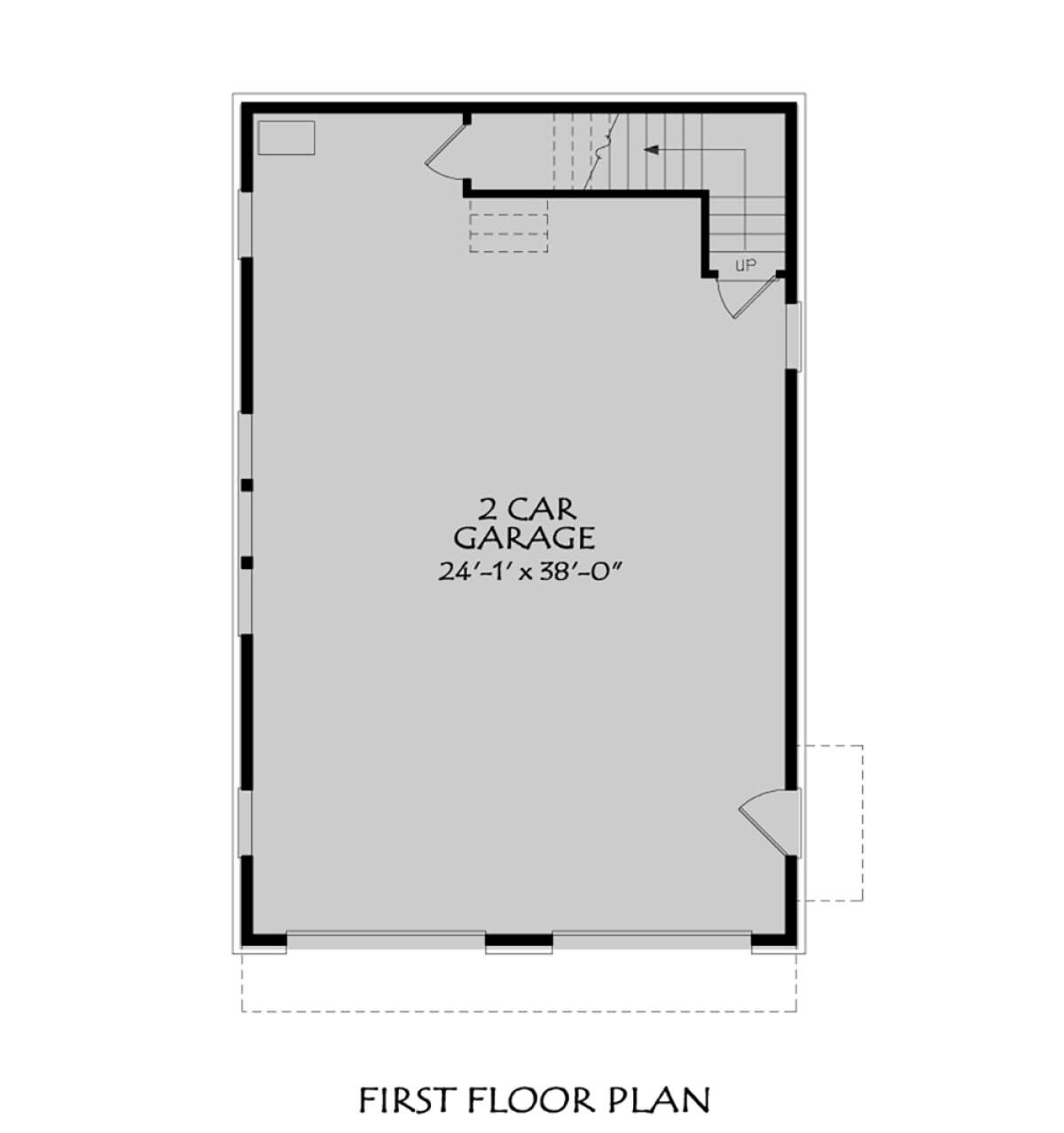

Garage Floor
Garage Floor for House Plan #196-00003

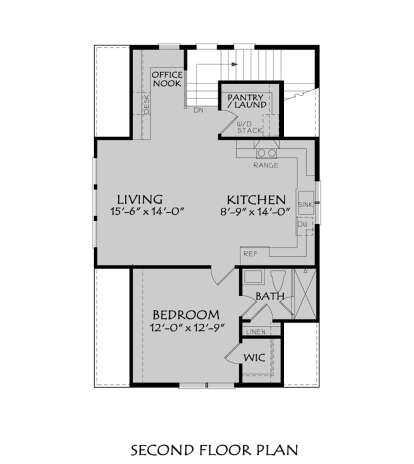

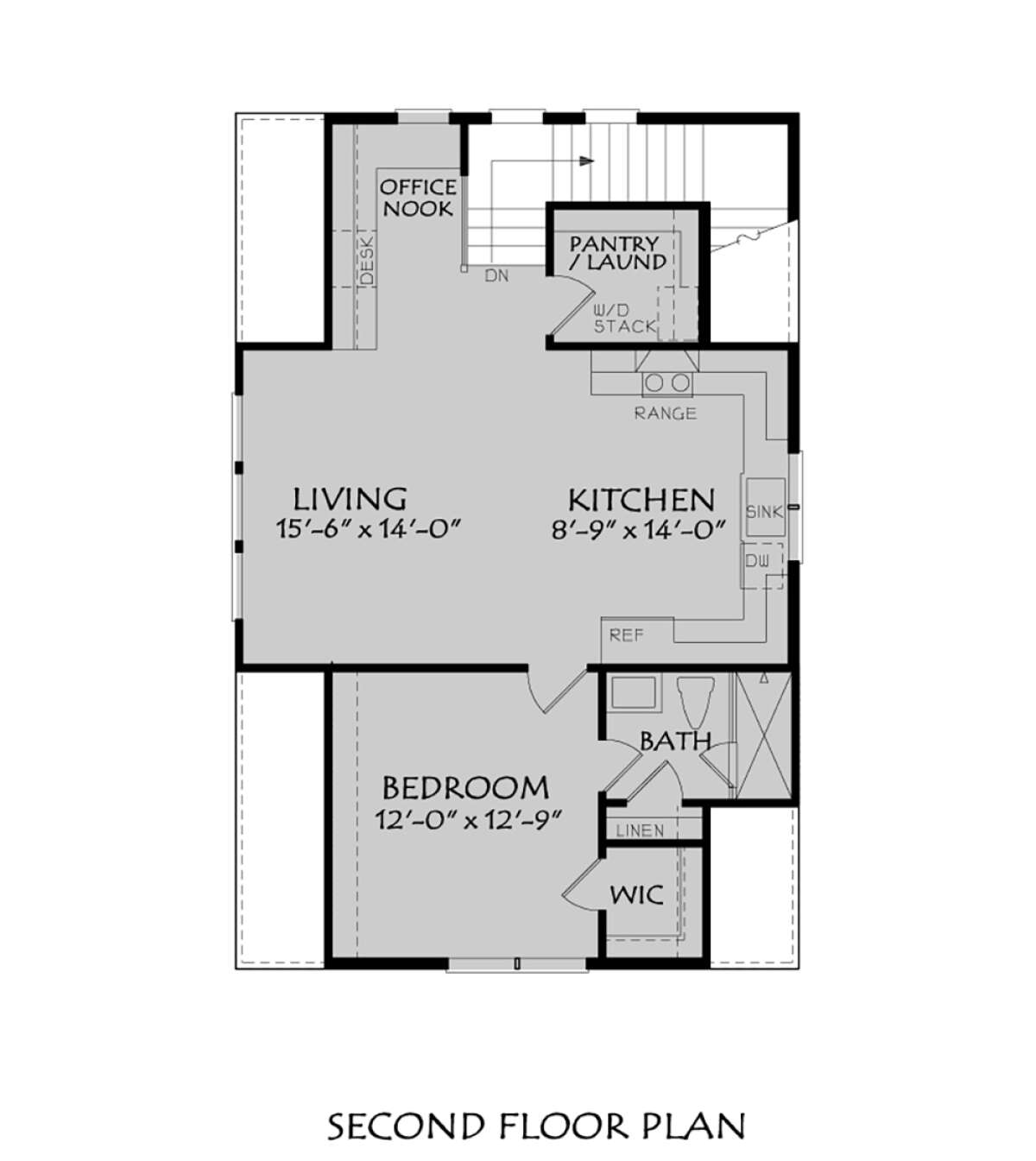

Second Floor
Second Floor for House Plan #196-00003


What's Included in these plans?

1. Covered Sheet
2. Front & Rear elevations - 1/4" scale - hatched w/ materials
3. Right & Left elevations - 1/4" scale - hatched w/ materials
4. Roof Over view Plan
5. Foundation Plan
5. Floor plans - w/ Kitchen & Bath elevations
6. Sections, stair sections, typical wall detail, and misc details
7. Electrical Plans
8. Typical detail sheet

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 Car Craftsman Garage Plan features 950 unfinished sq. ft., and 737 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
