Lake Front House Plan 192-00035

Sq Ft3,408
Beds4
Baths4
1/2 Baths1
Stories2
Cars2
Width70' 0"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

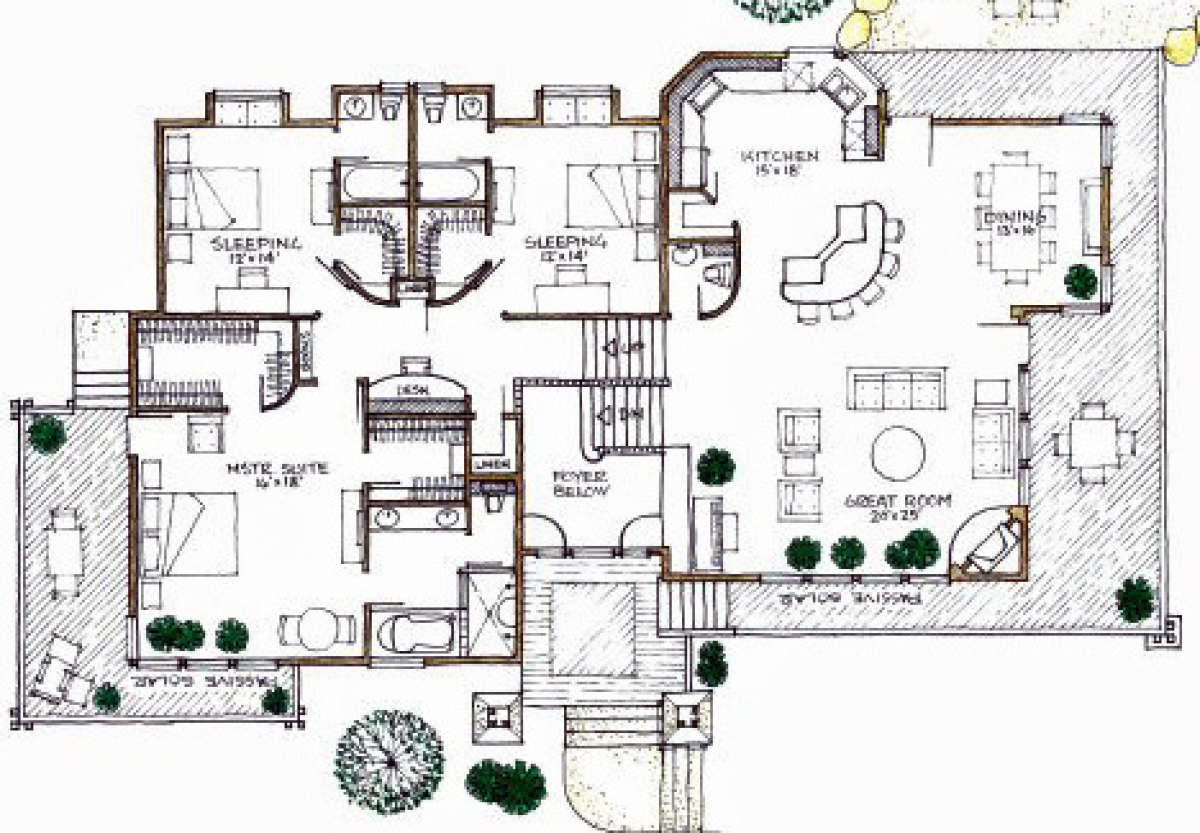

Floorplan 1 for House Plan #192-00035
Floorplan 2 for House Plan #192-00035
Floorplan 1
Floorplan 1 for House Plan #192-00035
Floorplan 2
Floorplan 2 for House Plan #192-00035


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • FOUNDATION
    Slab on Grade: Most of these designers plans are designed with a raised slab to reduce heat loss and give owners the best option for radiant floor heating.
    Crawl Space:  Type of foundation can be viewed on each plan's detail page.
    Basement:  Our basement is indicated as lower level floor plan and detailed appropriately.
  • FLOOR PLAN(S)
    Floor plans are drawn at ¼" scale and incorporate 24" module framing for material conservation.
    Exterior walls are drawn as 2' x 6' framing with optional insulation detail provided in our Conservation Guide included with all plans.
  • ROOF PLAN
    House plans include a roof framing and drainage sheet and truss profiles where appropriate.
  • EXTERIOR ELEVATIONS
    Each house plan includes four sides, elevations as well as any special exterior details.
  • SECTION VIEWS
    Showing interior framing i.e. stairs, structural beams, joists, rafters, truss, and interior elevations.
  • ELECTRICAL PLAN
    In general, each house plan set includes an electrical plan showing lights, fans, switches, special receptacles, and mechanical equipment locations.
  • MECHANICAL PLAN
    Includes energy recovery ventilation design (optional air-to-air heat exchanger).  Where applicable: radiant floor heating layout, solar air distribution system, night flush economizer system, and location of mechanical appliances.
  • CONSERVATION GUIDE
    123-page book emailed to you in PDF form, which covers energy-efficient concepts that won this designer the National Gold Energy Value and Green Builder of the Year awards from the National Association of Home Builders and the US Department of Energy.  This material is included to help you evaluate energy conservation features and equipment you choose to incorporate in your new home.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

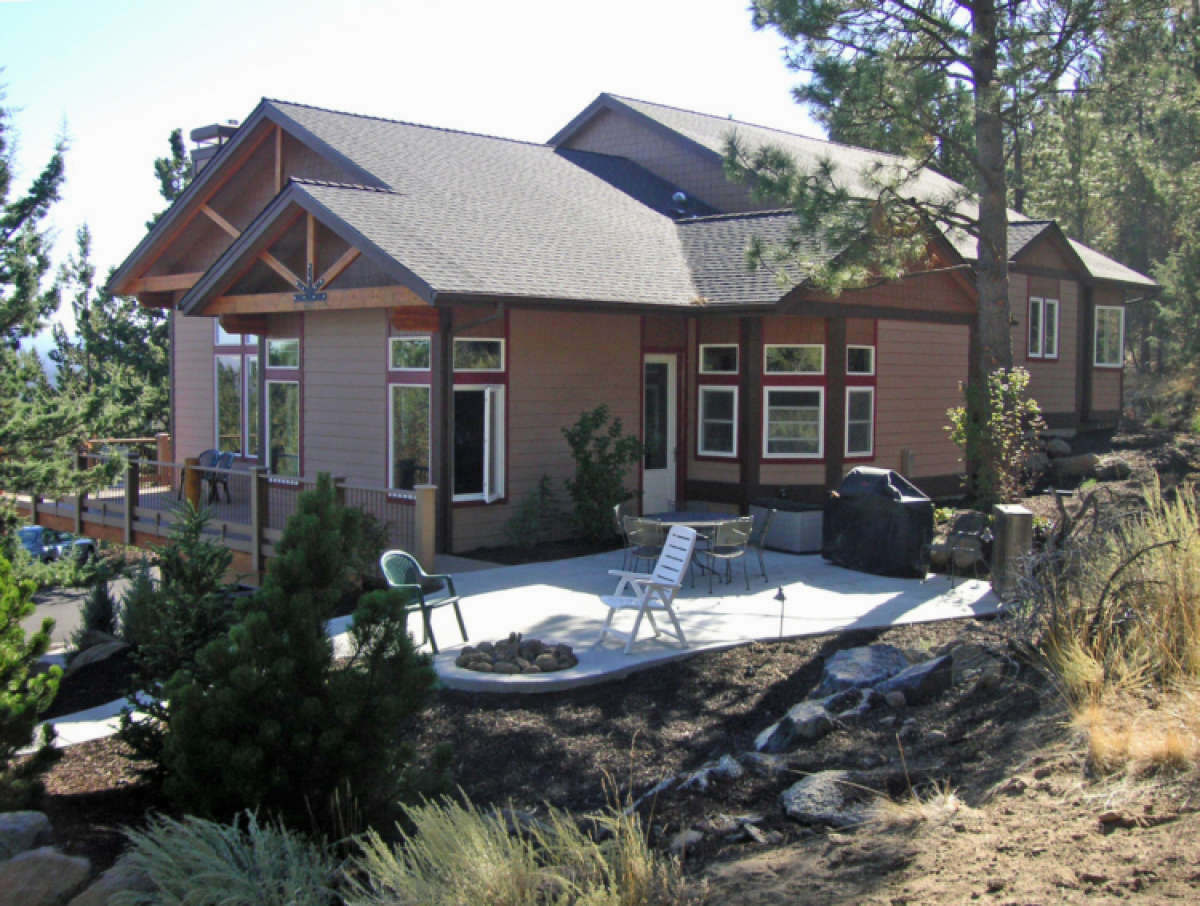

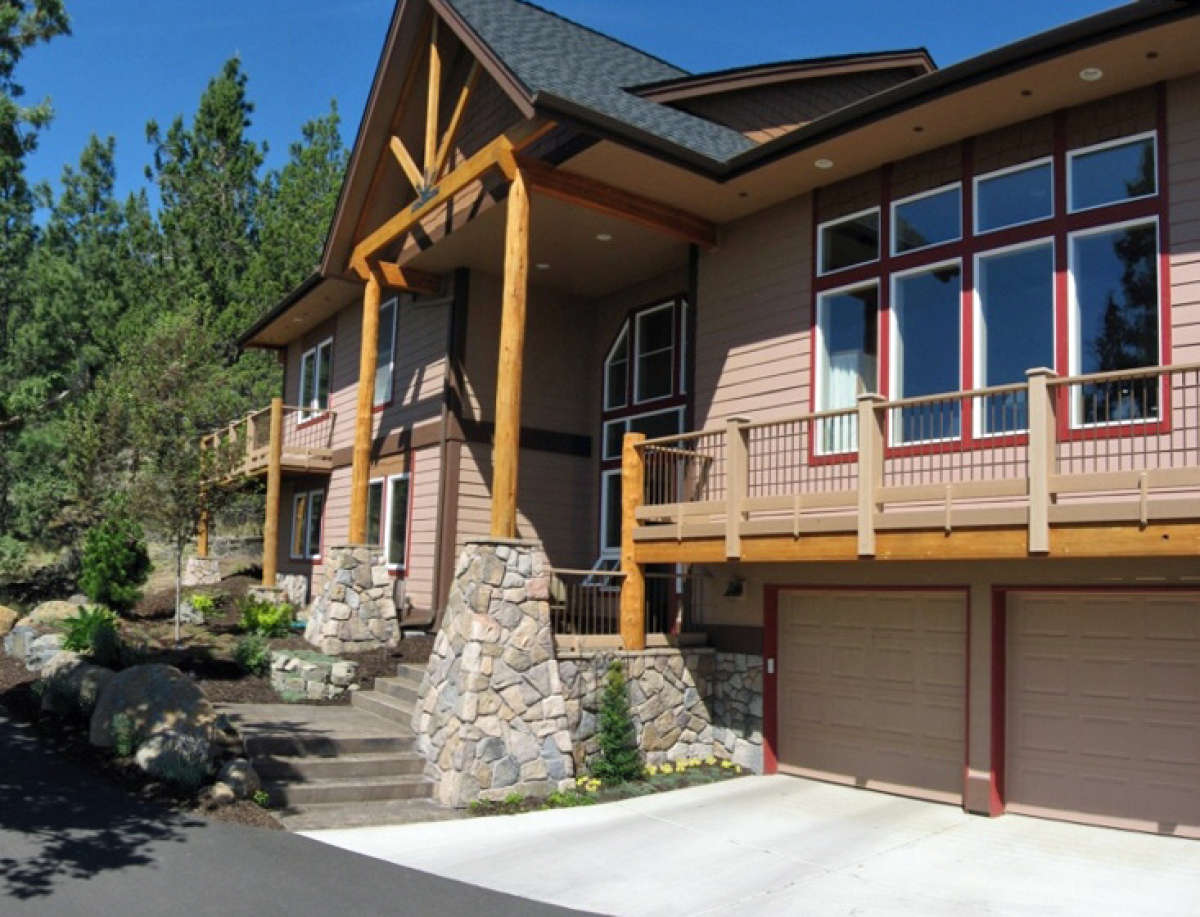

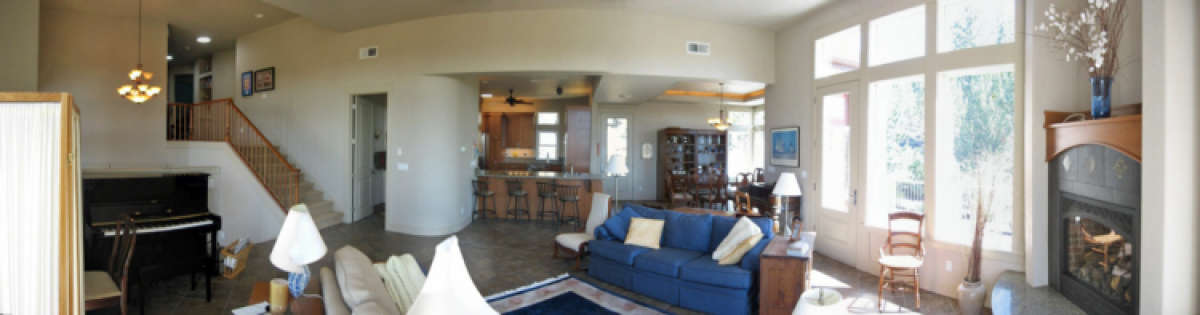

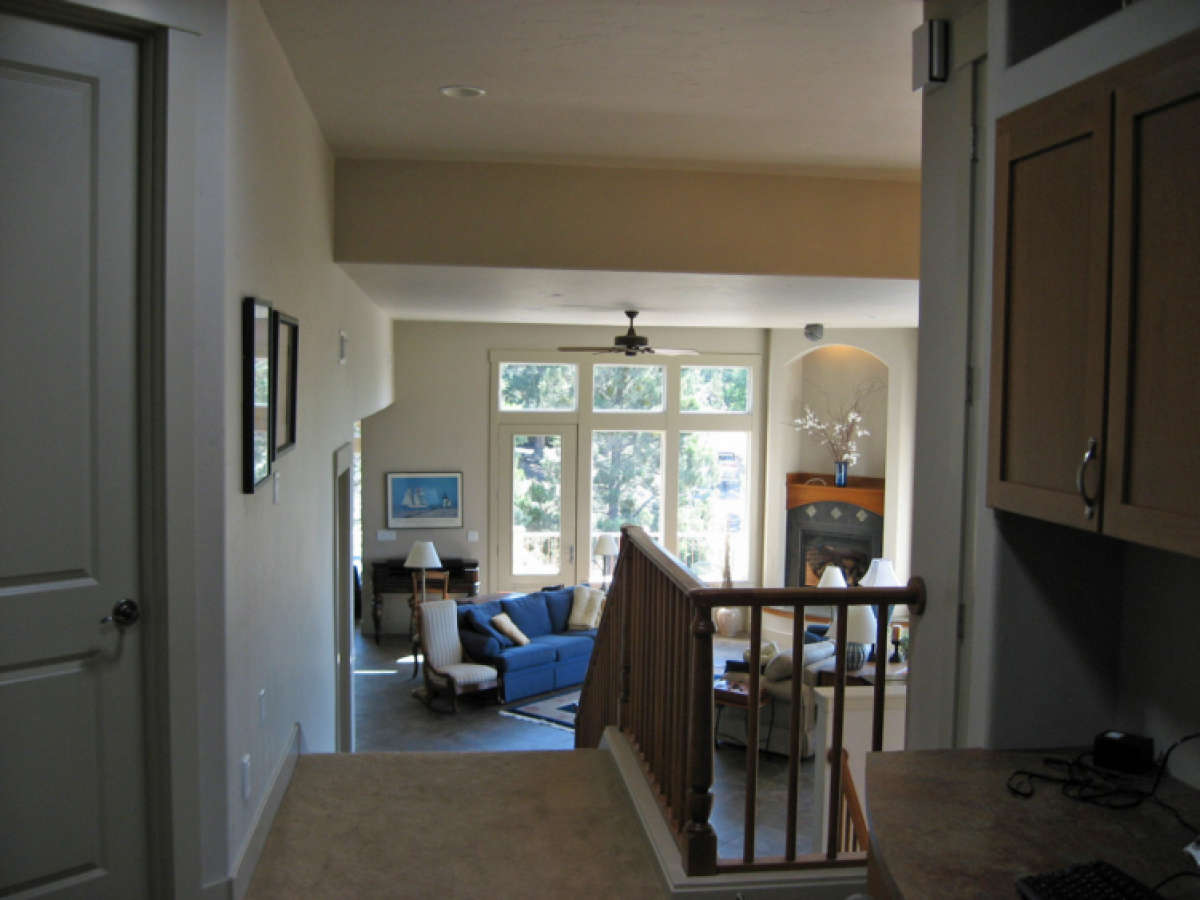

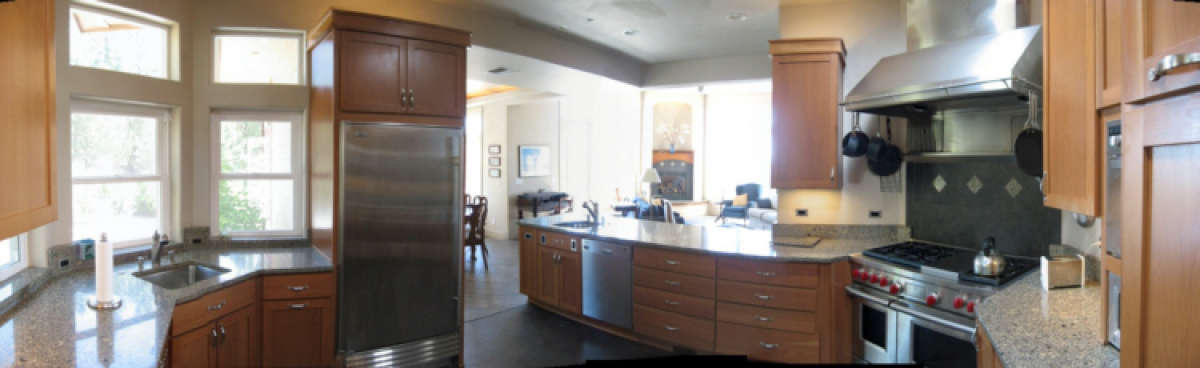

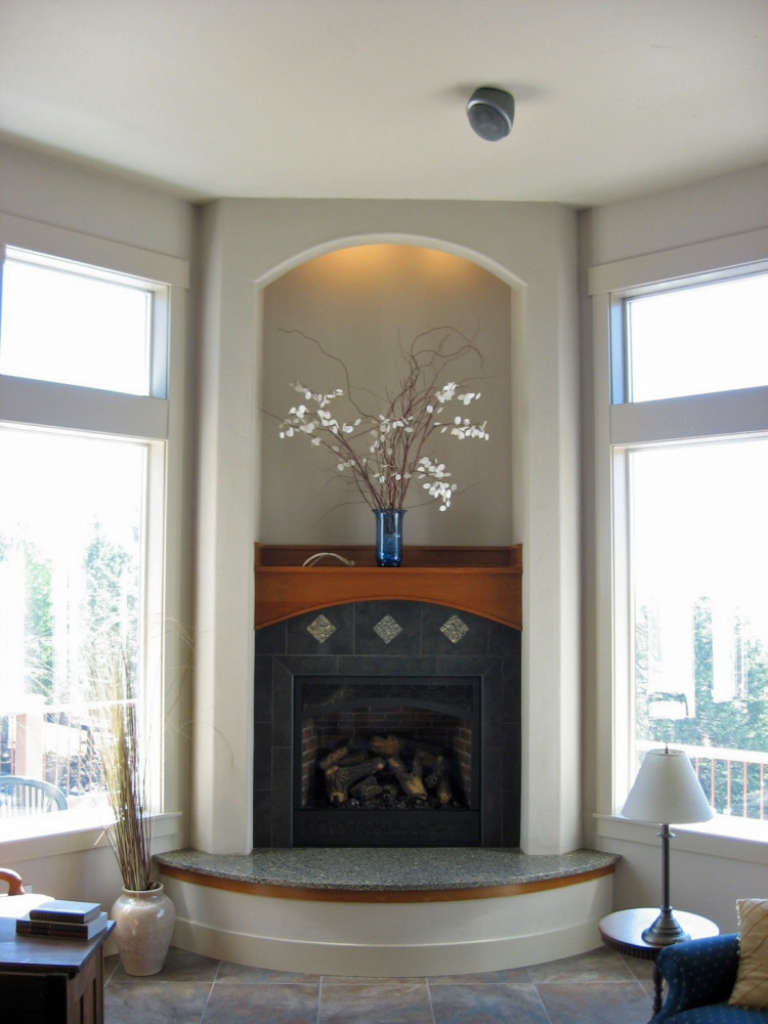

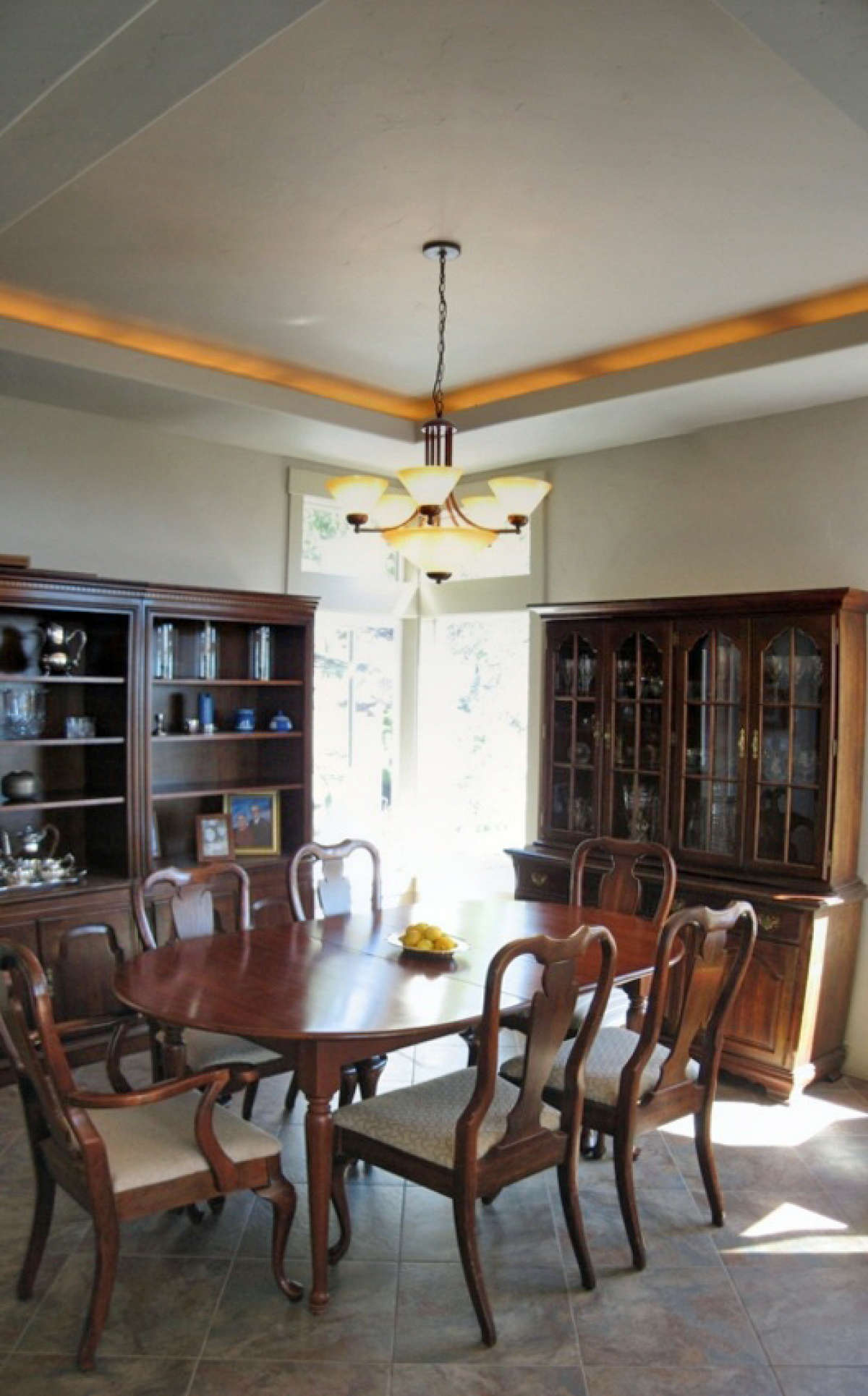

This beautiful home has an outstanding exterior façade highlighted by a front covered porch supported by substantial stacked stone and rough hewn wooden beams. The wraparound porch begins alongside the front porch and wraps around the home, ultimately ending at the rear patio area; this space is ideal for entertaining large groups of family and friends and provides considerable outdoor space which surrounds the interior living and dining areas of the home. There are approximately 3,408 square feet of living space which encompass four bedrooms and four plus bathrooms. A two car garage features an additional 873 square feet of space which includes a workshop area and dedicated space for sports and/or lawn equipment. The open concept design features an oversized great room with a corner fireplace and a plethora of window views overlooking the wraparound porch. The dining room is quite spacious and anchors the great room and kitchen which is highlighted by a large open breakfast bar. Additional counter and cabinet space line the rear and side walls of the kitchen and there is an oversized walk-in pantry as well. There are three bedrooms on this floor; two are family style bedrooms with mirror footprints. Each contains a generous sized bedroom with great window views atop window seats and a walk-in closet. Both bedrooms have a private bathroom featuring a toilet area, vanity space and tub/shower combination. Additionally, there is a centrally located desk/computer area and linen closet located in the hallway. The master suite is a true oasis and features an enormous bedroom with his and her oversized master walk-in closets. There is an L-shaped private wraparound deck enveloping the master bedroom and passive solar windows line the space. The master bath is equally luxurious and features dual vanities, a separate shower, tub and a private toilet area.

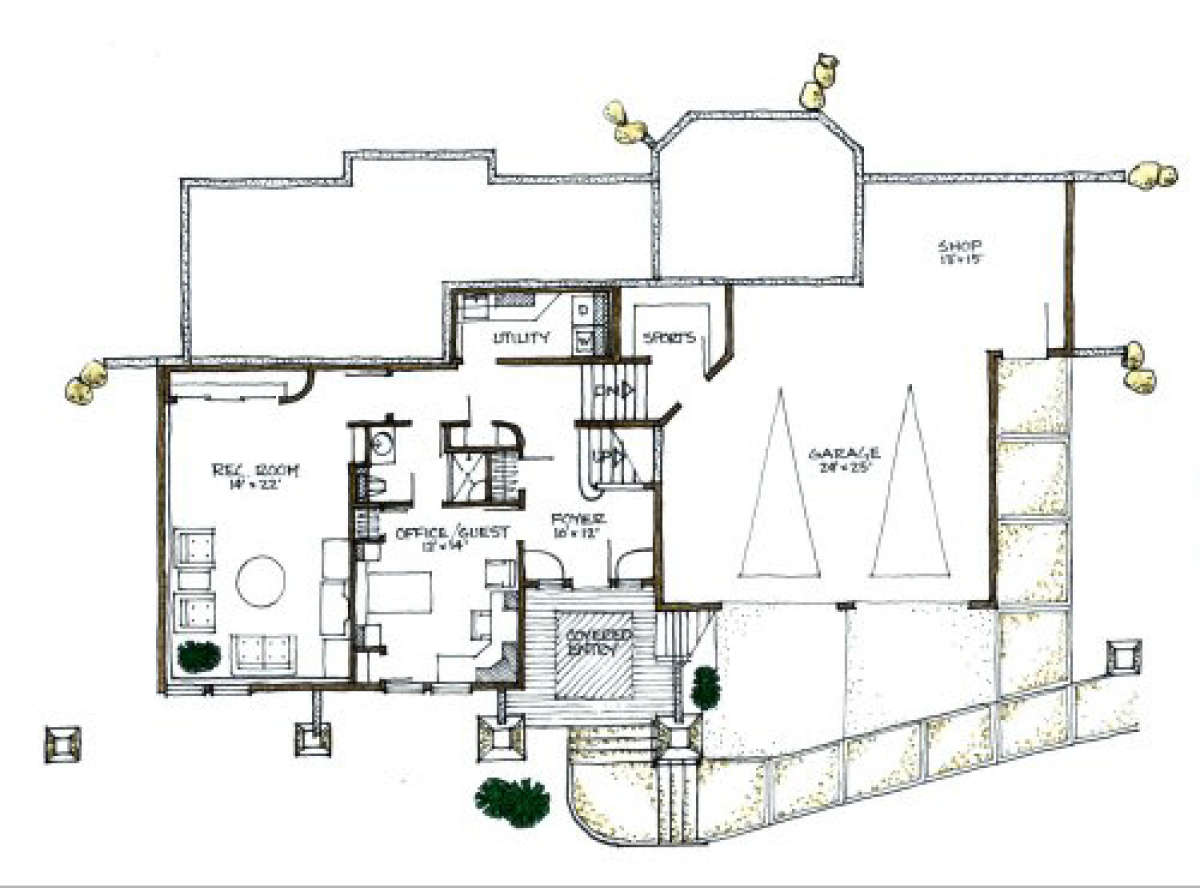

The lower level space offers an enormous family recreation room which provides excellent space in which to “hang out” as a family. There is a fourth bedroom situated downstairs, perfect for overnight guests or family; this space contains a large bedroom with closet space and access to the full bath. The large utility room contains a sink area and additional counter space. This home has outstanding interior and outdoor space and is ideally suited for a lakefront or mountain view property.
